Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

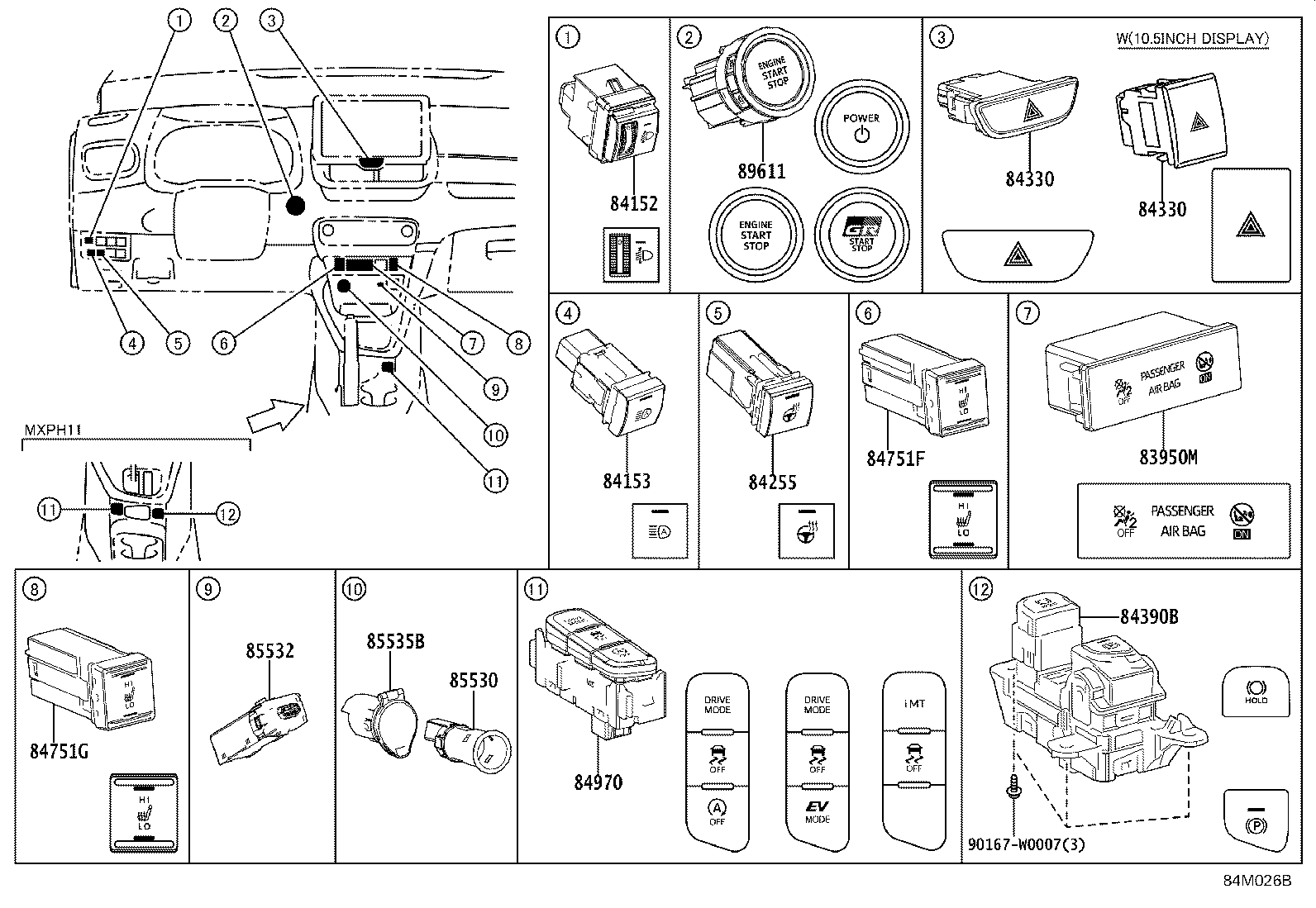

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83950M — Lamp Assy, Telltale | ||||
| 83950-K0010 |
Lamp Assy, Telltale
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 83950-K0010 |
Lamp Assy, Telltale
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 83950-K0010 |
Lamp Assy, Telltale
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 83950-K0010 |
Lamp Assy, Telltale
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 83950-K0010 |
Lamp Assy, Telltale
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 83950-K0010 |
Lamp Assy, Telltale
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-0D290 |
Switch, Headlamp Leveling
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84152-0D290 |
Switch, Headlamp Leveling
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 84152-0D290 |
Switch, Headlamp Leveling
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 84152-0D290 |
Switch, Headlamp Leveling
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 84152-F4020 |
Switch, Headlamp Leveling
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 84152-F4020 |
Switch, Headlamp Leveling
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 84153 — Switch, Auto High Beam | ||||
| 84153-02110 |
Switch, Auto High Beam
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 84153-02110 |
Switch, Auto High Beam
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 84153-02110 |
Switch, Auto High Beam
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 84153-02110 |
Switch, Auto High Beam
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84153-02060 |
Switch, Auto High Beam
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 84153-02060 |
Switch, Auto High Beam
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 84255 — Switch, Steering Heater | ||||
| 84255-33010 note |
Switch, Steering Heater
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84255-33010 note |
Switch, Steering Heater
2020-07 → 2022-05
ended
|
MXPA11 RHD 6F G | — | |
| 84255-33010 note |
Switch, Steering Heater
2020-07 → 2024-01
ended
|
MXPH11 N,S;MXPA11 6F N | — | |
| 84255-33010 note |
Switch, Steering Heater
2022-03 → 2024-01
ended
|
MXPH11 V | — | |
| 84255-33010 note |
Switch, Steering Heater
2020-07 → —
|
KSP211 N;MXPH11 G;MXPA11 6F +4 | — | |
| 84255-33010 note |
Switch, Steering Heater
2022-03 → —
|
MXPA11 V | — | |
| 84255-16010 note |
Switch, Steering Heater
2024-01 → —
|
MXPH1# V | — | |
| 84255-16010 note |
Switch, Steering Heater
2024-01 → —
|
MXPH1# N,S | — | |
| 84255-16010 note |
Switch, Steering Heater
2024-01 → 2024-07
ended
|
MXPA11 6F N | — | |
| 84255-16010 note |
Switch, Steering Heater
2024-01 → 2024-07
ended
|
MXPA11 LHD CVT N | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 84332-0D220 |
Switch Assy, Hazard Warning Signal
2024-01 → —
|
MXPH11 N CZEP;MXPH11 (N,R) +1 | — | |
| 84332-0D220 note |
Switch Assy, Hazard Warning Signal
2024-01 → —
|
MXPH11 S | — | |
| 84332-0D230 |
Switch Assy, Hazard Warning Signal
2024-01 → —
|
MXPH1# S,V | — | |
| 84332-0D230 note |
Switch Assy, Hazard Warning Signal
2024-01 → —
|
MXPH11 N | — | |
| 84332-0D230 note |
Switch Assy, Hazard Warning Signal
2024-01 → —
|
MXPH11 N | — | |
| 84390B — Switch Assy, Electric Parking Brake | ||||
| 84390-K0010 |
Switch Assy, Electric Parking Brake
2020-07 → 2022-05
ended
|
MXPH11 RHD R | — | |
| 84390-K0010 |
Switch Assy, Electric Parking Brake
2020-07 → —
|
MXPH11 G;MXPH11 R CZEP | — | |
| 84390-K0010 |
Switch Assy, Electric Parking Brake
2020-07 → 2024-01
ended
|
MXPH11 N,S,V;MXPH11 LHD R +1 | — | |
| 84390-0D010 |
Switch Assy, Electric Parking Brake
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 84751F — Switch, Seat Heater | ||||
| 84751-K0040 note |
Switch, Seat Heater
2020-07 → 2024-01
ended
|
MXPA11 LHD N;MXPH11 LHD +1 | — | |
| 84751-K0040 note |
Switch, Seat Heater
2020-07 → —
|
KSP211 LHD N;MXPA11 LHD +5 | — | |
| 84751-K0040 note |
Switch, Seat Heater
2021-06 → —
|
MXPA11 LHD (G,S) FRP | — | |
| 84751-0D060 note |
Switch, Seat Heater
2024-01 → 2024-07
ended
|
MXPA11 LHD N | — | |
| 84751-0D060 note |
Switch, Seat Heater
2024-01 → —
|
MXPH1# LHD (N,S,V) | — | |
| 84751G — Switch, Seat Heater | ||||
| 84751-K0030 note |
Switch, Seat Heater
2020-07 → 2024-01
ended
|
MXPA11 LHD N;MXPH11 LHD +1 | — | |
| 84751-K0030 note |
Switch, Seat Heater
2020-07 → —
|
KSP211 LHD N;MXPA11 LHD +5 | — | |
| 84751-K0030 note |
Switch, Seat Heater
2021-06 → —
|
MXPA11 LHD (G,S) FRP | — | |
| 84751-0D030 note |
Switch, Seat Heater
2024-01 → —
|
MXPH1# LHD (N,S,V) | — | |
| 84751-0D030 note |
Switch, Seat Heater
2024-01 → 2024-07
ended
|
MXPA11 LHD N | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-52220 |
Switch Assy, Combination
2022-03 → —
|
MXPA11 V | — | |
| 84970-K0010 note |
Switch Assy, Combination
2020-07 → —
|
MXPA11 LHD CVT (G,S);MXPA11 +3 | — | |
| 84970-K0010 note |
Switch Assy, Combination
2020-07 → 2024-01
ended
|
MXPA11 LHD CVT N | — | |
| 84970-K0010 note |
Switch Assy, Combination
2020-07 → 2022-05
ended
|
MXPA11 RHD CVT G | — | |
| 84970-K0020 |
Switch Assy, Combination
2020-07 → 2022-05
ended
|
MXPH11 RHD R | — | |
| 84970-K0020 |
Switch Assy, Combination
2020-07 → —
|
MXPH11 G;MXPH11 R CZEP | — | |
| 84970-K0020 |
Switch Assy, Combination
2020-07 → 2024-01
ended
|
MXPH11 N,S,V;MXPH11 LHD R +1 | — | |
| 84970-K0030 |
Switch Assy, Combination
2020-07 → 2022-05
ended
|
MXPA11 RHD CVT G | — | |
| 84970-K0030 |
Switch Assy, Combination
2020-07 → —
|
MXPA11 LHD CVT (G,S);MXPA11 +3 | — | |
| 84970-K0030 |
Switch Assy, Combination
2020-07 → 2024-01
ended
|
MXPA11 LHD CVT N | — | |
| 84970-K0040 |
Switch Assy, Combination
2020-07 → 2024-01
ended
|
MXPA11 6F N | — | |
| 84970-K0040 |
Switch Assy, Combination
2020-07 → 2022-05
ended
|
KSP211 RHD R;MXPA11 RHD +2 | — | |
| 84970-K0040 |
Switch Assy, Combination
2020-07 → —
|
MXPA11 6F S;KSP211 RHD +6 | — | |
| 84970-K0040 |
Switch Assy, Combination
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84970-K0050 note |
Switch Assy, Combination
2020-07 → 2024-01
ended
|
MXPA11 6F N | — | |
| 84970-K0050 note |
Switch Assy, Combination
2020-07 → 2022-05
ended
|
KSP211 RHD R;MXPA11 RHD +2 | — | |
| 84970-K0050 note |
Switch Assy, Combination
2020-07 → —
|
MXPA11 6F S;KSP211 RHD +6 | — | |
| 84970-K0050 note |
Switch Assy, Combination
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 84970-52520 note |
Switch Assy, Combination
2024-01 → 2024-07
ended
|
MXPA11 LHD CVT N | — | |
| 84970-52530 |
Switch Assy, Combination
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 84970-52540 |
Switch Assy, Combination
2024-01 → 2024-07
ended
|
MXPA11 LHD CVT N | — | |
| 84970-52550 note |
Switch Assy, Combination
2024-01 → 2024-07
ended
|
MXPA11 LHD 6F N | — | |
| 84970-52570 |
Switch Assy, Combination
2024-01 → 2024-07
ended
|
MXPA11 6F N | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 85532 — Socket, Usb Charger | ||||
| 85532-48030 |
Socket, Usb Charger
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 85532-48030 |
Socket, Usb Charger
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 89611 — Switch, Push Start | ||||
| 89611-02170 note |
Switch, Push Start
2020-07 → 2020-09
ended
|
KSP211 RHD G | — | |
| 89611-02170 note |
Switch, Push Start
2020-07 → —
|
KSP211,MXPA11 N | — | |
| 89611-02170 |
Switch, Push Start
2020-07 → —
|
KSP211,MXPA11 G,S | — | |
| 89611-02170 note |
Switch, Push Start
2020-07 → 2024-01
ended
|
MXPA11 LHD (G,S) FRP | — | |
| 89611-02170 note |
Switch, Push Start
2020-07 → 2020-09
ended
|
KSP211 LHD G | — | |
| 89611-02190 note |
Switch, Push Start
2020-07 → 2024-01
ended
|
MXPH11 RHD (G,S) | — | |
| 89611-02190 note |
Switch, Push Start
2020-07 → 2024-01
ended
|
MXPH11 LHD (G,S) | — | |
| 89611-02190 note |
Switch, Push Start
2020-07 → 2024-01
ended
|
MXPH11 N | — | |
| 89611-02190 |
Switch, Push Start
2020-07 → —
|
MXPH11 G,S | — | |
| 89611-0D130 note |
Switch, Push Start
2022-03 → —
|
MXPA11,MXPH11 V | — | |
| 89611-F4010 |
Switch, Push Start
2024-01 → —
|
MXPH1# S,V | — | |
| 89611-F4010 note |
Switch, Push Start
2024-01 → —
|
MXPH11 S | — | |
| 89611-F4010 note |
Switch, Push Start
2024-01 → —
|
MXPH11 N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
