Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

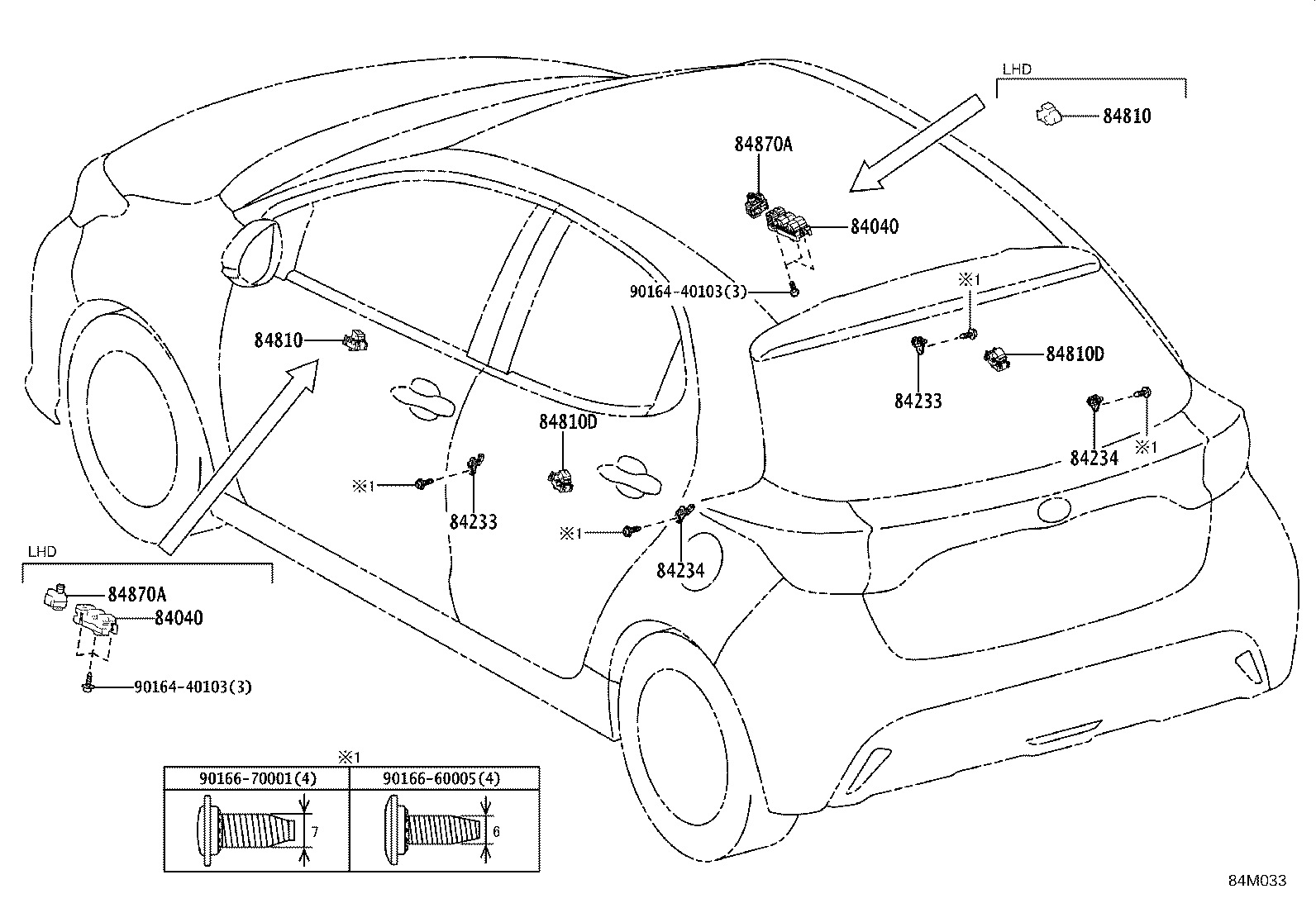

Exploded illustration 84M033 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (6 parts) 84870A — SWITCH ASSY, OUTER MIRROR (26 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (9 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (9 parts) 84040 — MASTER SWITCH ASSY,MULTIPLEX NETWORK (34 parts) 9016670001 — not listed in this catalogue 9016660005 — not listed in this catalogue 9016440103 — not listed in this catalogue 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (6 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (6 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (6 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (6 parts) 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (6 parts) 9016440103 — not listed in this catalogue 84040 — MASTER SWITCH ASSY,MULTIPLEX NETWORK (34 parts) 84870A — SWITCH ASSY, OUTER MIRROR (26 parts)
84M033 · 12 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
84040 — Master Switch Assy,Multiplex Network
84040-0D020 Master Switch Assy,Multiplex Network
2020-07 → 2021-05 ended
KSP211 LHD G —
84040-0D020 note Master Switch Assy,Multiplex Network
2020-07 → —
KSP211 LHD N;MXPA11 LHD +1 —
84040-0D020 Master Switch Assy,Multiplex Network
2020-07 → —
MXPH11 LHD G;MXPA11 LHD +1 —
84040-0D020 Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPH11 LHD S —
84040-0D020 note Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPA11 LHD N;MXPH11 LHD +1 —
84040-0D030 Master Switch Assy,Multiplex Network
2020-07 → 2021-05 ended
KSP211 RHD G —
84040-0D030 note Master Switch Assy,Multiplex Network
2020-07 → —
KSP211 RHD N;MXPA11 RHD +4 —
84040-0D030 Master Switch Assy,Multiplex Network
2020-07 → —
MXPA11 RHD S;MXPH11 RHD +1 —
84040-0D030 note Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPA11 RHD 6F N;MXPH11 +2 —
84040-0D030 Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPH11 RHD S —
84040-0D030 Master Switch Assy,Multiplex Network
2020-07 → 2022-05 ended
MXPA11 RHD G —
84040-K0020 Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPA11 RHD 6F N;MXPH11 +2 —
84040-K0020 note Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPH11 RHD S —
84040-K0020 note Master Switch Assy,Multiplex Network
2020-07 → —
MXPH11 RHD G —
84040-K0020 Master Switch Assy,Multiplex Network
2020-07 → 2022-05 ended
KSP211,MXPH11 RHD R —
84040-K0020 note Master Switch Assy,Multiplex Network
2020-07 → 2021-05 ended
KSP211 RHD G —
84040-K0020 Master Switch Assy,Multiplex Network
2020-07 → —
KSP211 RHD N;MXPA11 RHD +4 —
84040-K0030 Master Switch Assy,Multiplex Network
2020-07 → —
MXPA11 LHD V;MXPH11 R +3 —
84040-K0030 note Master Switch Assy,Multiplex Network
2020-07 → —
MXPH11 LHD G —
84040-K0030 Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPA11 LHD N;MXPH11 N +4 —
84040-K0030 note Master Switch Assy,Multiplex Network
2020-07 → 2021-05 ended
KSP211 LHD G —
84040-K0030 note Master Switch Assy,Multiplex Network
2020-07 → 2024-01 ended
MXPH11 LHD S —
84040-02550 note Master Switch Assy,Multiplex Network
2024-01 → 2024-07 ended
MXPA11 LHD N —
84040-02550 Master Switch Assy,Multiplex Network
2024-01 → —
MXPH1# LHD S —
84040-02550 note Master Switch Assy,Multiplex Network
2024-01 → —
MXPH1# LHD (N,V) —
84040-02560 note Master Switch Assy,Multiplex Network
2024-01 → 2024-07 ended
MXPA11 RHD 6F N —
84040-02560 Master Switch Assy,Multiplex Network
2024-01 → —
MXPH1# RHD S —
84040-02560 note Master Switch Assy,Multiplex Network
2024-01 → —
MXPH1# RHD (N,V) —
84040-0D040 Master Switch Assy,Multiplex Network
2024-01 → —
MXPH1# RHD (N,V) —
84040-0D040 note Master Switch Assy,Multiplex Network
2024-01 → —
MXPH11 RHD S —
84040-0D040 Master Switch Assy,Multiplex Network
2024-01 → 2024-07 ended
MXPA11 RHD 6F N —
84040-0D050 Master Switch Assy,Multiplex Network
2024-01 → 2024-07 ended
MXPA11 LHD N —
84040-0D050 Master Switch Assy,Multiplex Network
2024-01 → —
MXPH11 N CZEP;MXPH1# LHD +2 —
84040-0D050 note Master Switch Assy,Multiplex Network
2024-01 → —
MXPH11 LHD S —
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2020-07 → 2021-05 ended
KSP211 G —
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2020-07 → 2022-05 ended
MXPA11 RHD G;KSP211,MXPH11 RHD +1 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2020-07 → 2024-01 ended
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2020-07 → —
MXPH11 XPA11 G;KSP211 RHD +13 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2020-07 → —
MXPH11 XPA11 G;KSP211 RHD +13 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2020-07 → 2024-01 ended
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2020-07 → 2021-05 ended
KSP211 G —
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2020-07 → 2022-05 ended
MXPA11 RHD G;KSP211,MXPH11 RHD +1 —
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
84231-0D040 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
84810 — Switch Assy, Power Window Regulator
84810-02260 Switch Assy, Power Window Regulator
2020-07 → 2021-05 ended
KSP211 G —
84810-02260 Switch Assy, Power Window Regulator
2020-07 → 2022-05 ended
MXPA11 RHD G;KSP211,MXPH11 RHD +1 —
84810-02260 Switch Assy, Power Window Regulator
2020-07 → 2024-01 ended
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 —
84810-02260 Switch Assy, Power Window Regulator
2020-07 → —
MXPH11 XPA11 G;KSP211 RHD +13 —
84810-02260 Switch Assy, Power Window Regulator
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
84810-02260 Switch Assy, Power Window Regulator
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
84810D — Switch Assy, Power Window Regulator, Rear
84810-02260 Switch Assy, Power Window Regulator, Rear
2020-07 → 2024-01 ended
MXPH11 S —
84810-02260 note Switch Assy, Power Window Regulator, Rear
2020-07 → —
KSP211 N;MXPA11 V;MXPA11 RHD +2 —
84810-02260 Switch Assy, Power Window Regulator, Rear
2020-07 → —
MXPH11 G;MXPA11 RHD S;MXPA11 +2 —
84810-02260 note Switch Assy, Power Window Regulator, Rear
2020-07 → 2024-01 ended
MXPH11 N,V;MXPA11 6F N;MXPA11 +3 —
84810-02260 Switch Assy, Power Window Regulator, Rear
2020-07 → 2022-05 ended
MXPA11 RHD G —
84810-02260 Switch Assy, Power Window Regulator, Rear
2020-07 → 2021-05 ended
KSP211 G —
84810-02260 note Switch Assy, Power Window Regulator, Rear
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
84810-02260 Switch Assy, Power Window Regulator, Rear
2024-01 → —
MXPH1# S —
84810-02260 note Switch Assy, Power Window Regulator, Rear
2024-01 → —
MXPH1# N,V —
84870A — Switch Assy, Outer Mirror
84872-02310 note Switch Assy, Outer Mirror
2020-07 → —
MXPH11 RHD G;MXPA11 RHD +5 —
84872-02310 note Switch Assy, Outer Mirror
2020-07 → 2024-01 ended
MXPA11 RHD 6F N;MXPH11 +2 —
84872-02310 note Switch Assy, Outer Mirror
2020-07 → 2022-05 ended
MXPA11 RHD G —
84872-02320 note Switch Assy, Outer Mirror
2020-07 → 2021-06 ended
KSP211,MXPA11,MXPH11 LHD N —
84872-02320 Switch Assy, Outer Mirror
2020-07 → 2024-01 ended
MXPH11 LHD S —
84872-02320 note Switch Assy, Outer Mirror
2020-07 → 2024-01 ended
MXPH11 LHD V —
84872-02320 note Switch Assy, Outer Mirror
2020-07 → —
MXPA11 LHD V —
84872-02320 Switch Assy, Outer Mirror
2020-07 → —
MXPH11 LHD G;MXPA11 LHD +1 —
84872-02320 note Switch Assy, Outer Mirror
2021-06 → 2024-01 ended
MXPA11,MXPH11 LHD N —
84872-02320 Switch Assy, Outer Mirror
2020-07 → 2021-05 ended
KSP211 LHD G —
84872-02450 Switch Assy, Outer Mirror
2020-07 → 2022-05 ended
MXPA11 RHD G;KSP211,MXPH11 RHD +1 —
84872-02450 Switch Assy, Outer Mirror
2020-07 → —
KSP211 RHD N;MXPH11 RHD +7 —
84872-02450 Switch Assy, Outer Mirror
2020-07 → 2024-01 ended
MXPA11 RHD 6F N;MXPH11 +2 —
84872-02450 Switch Assy, Outer Mirror
2020-07 → 2021-05 ended
KSP211 RHD G —
84872-02460 Switch Assy, Outer Mirror
2020-07 → 2024-01 ended
MXPA11 LHD N;MXPH11 N +4 —
84872-02460 Switch Assy, Outer Mirror
2020-07 → —
MXPA11 LHD V;MXPH11 R +3 —
84872-02420 note Switch Assy, Outer Mirror
2024-01 → —
MXPH1# RHD (N,S,V) —
84872-02430 note Switch Assy, Outer Mirror
2024-01 → 2024-07 ended
MXPA11 N CZEP —
84872-02430 note Switch Assy, Outer Mirror
2024-01 → 2024-07 ended
MXPA11 LHD N FRP —
84872-02430 Switch Assy, Outer Mirror
2024-01 → —
MXPH1# LHD S —
84872-02430 note Switch Assy, Outer Mirror
2024-01 → —
MXPH11 LHD N —
84872-02430 note Switch Assy, Outer Mirror
2024-01 → —
MXPH1# LHD V —
84872-02440 Switch Assy, Outer Mirror
2024-01 → 2024-07 ended
MXPA11 RHD 6F N —
84872-02440 Switch Assy, Outer Mirror
2024-01 → —
MXPH1# RHD (N,S,V) —
84872-02790 Switch Assy, Outer Mirror
2024-01 → 2024-07 ended
MXPA11 LHD N —
84872-02790 Switch Assy, Outer Mirror
2024-01 → —
MXPH11 N CZEP;MXPH1# LHD +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
