Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

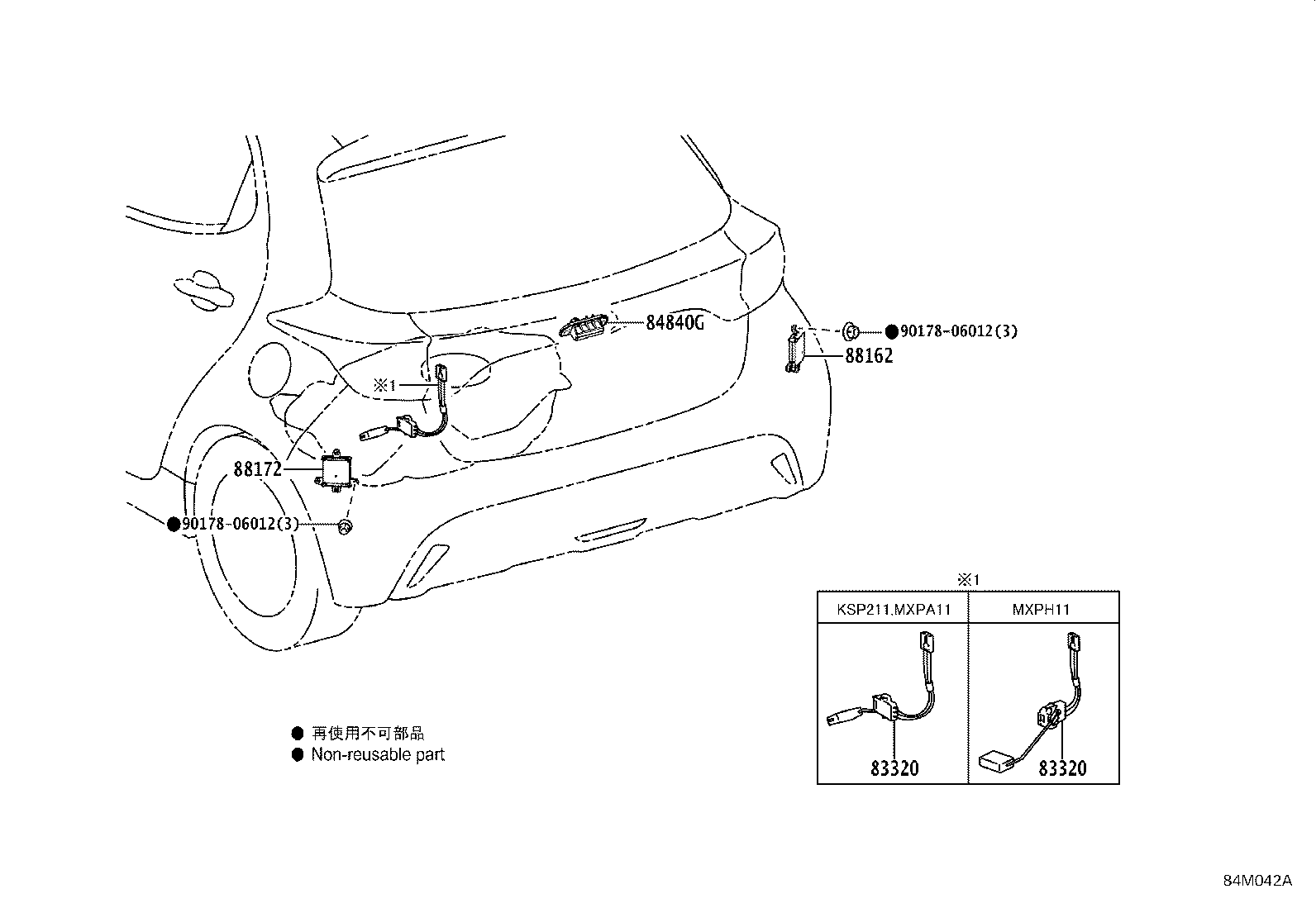

Exploded illustration 84M042A 88162 — SENSOR, BLIND SPOT MONITOR, RH (15 parts) 84840G — SWITCH ASSY, BACK DOOR OPENER (21 parts) 88172 — SENSOR, BLIND SPOT MONITOR, LH (15 parts) 9017806012 — not listed in this catalogue 9017806012 — not listed in this catalogue 83320 — GAGE ASSY, FUEL SENDER (9 parts) 83320 — GAGE ASSY, FUEL SENDER (9 parts)
84M042A · 5 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
83320 — Gage Assy, Fuel Sender
83320-K0020 Gage Assy, Fuel Sender
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
83320-K0020 Gage Assy, Fuel Sender
2020-07 → 2021-05 ended
KSP211 G —
83320-K0020 Gage Assy, Fuel Sender
2020-07 → —
KSP211 11 RHD RHD +10 —
83320-K0020 Gage Assy, Fuel Sender
2020-07 → 2024-01 ended
MXPA11 6F N;MXPA11 LHD +2 —
83320-K0060 Gage Assy, Fuel Sender
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
83320-K0060 Gage Assy, Fuel Sender
2020-07 → 2022-05 ended
MXPH11 RHD R —
83320-K0060 Gage Assy, Fuel Sender
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
83320-K0020 Gage Assy, Fuel Sender
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
83320-K0060 Gage Assy, Fuel Sender
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
84840G — Switch Assy, Back Door Opener
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → —
MXPH11 LHD G —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → —
MXPH11 RHD G —
84840-F4010 Switch Assy, Back Door Opener
2020-07 → —
MXPA11 V;KSP211 RHD N;MXPH11 +7 —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → —
MXPA11 LHD (G,S) FRP —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → 2024-01 ended
MXPH11 LHD S —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → 2024-01 ended
MXPH11 RHD S —
84840-F4010 Switch Assy, Back Door Opener
2020-07 → 2024-01 ended
MXPH11 N,V;MXPA11 6F N;MXPA11 +6 —
84840-F4010 Switch Assy, Back Door Opener
2020-07 → 2022-05 ended
KSP211,MXPH11 RHD R —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → 2021-05 ended
KSP211 LHD G —
84840-F4010 note Switch Assy, Back Door Opener
2020-07 → 2021-05 ended
KSP211 RHD G —
84840-F4020 note Switch Assy, Back Door Opener
2020-07 → —
KSP211 N;MXPA11 V;MXPA11 RHD +2 —
84840-F4020 Switch Assy, Back Door Opener
2020-07 → —
MXPH11 G;MXPA11 RHD S;MXPA11 +2 —
84840-F4020 Switch Assy, Back Door Opener
2020-07 → 2024-01 ended
MXPH11 S —
84840-F4020 note Switch Assy, Back Door Opener
2020-07 → 2024-01 ended
MXPH11 N,V;MXPA11 6F N;MXPA11 +3 —
84840-F4020 Switch Assy, Back Door Opener
2020-07 → 2022-05 ended
MXPA11 RHD G —
84840-F4020 Switch Assy, Back Door Opener
2020-07 → 2021-05 ended
KSP211 G —
84840-F4010 Switch Assy, Back Door Opener
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
84840-F4010 Switch Assy, Back Door Opener
2024-01 → —
MXPH11 N CZEP;MXPH11 (N,R) +1 —
84840-F4010 note Switch Assy, Back Door Opener
2024-01 → —
MXPH11 S —
84840-F4020 Switch Assy, Back Door Opener
2024-01 → —
MXPH1# S,V —
84840-F4020 note Switch Assy, Back Door Opener
2024-01 → —
MXPH11 N —
88162 — Sensor, Blind Spot Monitor, RH
88162-K0010 note Sensor, Blind Spot Monitor, RH
2020-07 → 2021-05 ended
KSP211 LHD G —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2020-07 → —
MXPH11 G;MXPA11 LHD (G,S,V);MXPA11 +6 —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2022-05 → 2024-01 ended
MXPH11 RHD N —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2021-06 → 2024-01 ended
MXPA11,MXPH11 LHD N —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2020-07 → 2022-05 ended
MXPA11 RHD G;MXPH11 RHD +1 —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2020-07 → 2021-06 ended
KSP211,MXPA11,MXPH11 LHD N —
88162-K0010 note Sensor, Blind Spot Monitor, RH
2020-07 → 2024-01 ended
MXPH11 S,V;MXPA11 RHD 6F +1 —
88162-0D030 note Sensor, Blind Spot Monitor, RH
2024-01 → —
MXPH11 LHD N —
88162-0D030 note Sensor, Blind Spot Monitor, RH
2024-01 → —
MXPH11 LHD N —
88162-0D030 note Sensor, Blind Spot Monitor, RH
2024-01 → —
MXPH1# S,V;MXPH11 RHD N —
88162-0D030 note Sensor, Blind Spot Monitor, RH
2024-01 → —
MXPH1# S,V;MXPH11 RHD N —
88162-0D050 note Sensor, Blind Spot Monitor, RH
2024-01 → 2024-07 ended
MXPA11 6F N CZEP —
88162-0D050 note Sensor, Blind Spot Monitor, RH
2024-01 → 2024-07 ended
MXPA11 CVT N CZEP —
88162-0D050 note Sensor, Blind Spot Monitor, RH
2024-01 → 2024-07 ended
MXPA11 LHD 6F N +1 —
88162-0D050 note Sensor, Blind Spot Monitor, RH
2024-01 → 2024-07 ended
MXPA11 LHD CVT N +1 —
88172 — Sensor, Blind Spot Monitor, LH
88162-K0010 note Sensor, Blind Spot Monitor, LH
2020-07 → 2022-05 ended
MXPA11 RHD G;MXPH11 RHD +1 —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2020-07 → —
MXPH11 G;MXPA11 LHD (G,S,V);MXPA11 +6 —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2022-05 → 2024-01 ended
MXPH11 RHD N —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2021-06 → 2024-01 ended
MXPA11,MXPH11 LHD N —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2020-07 → 2024-01 ended
MXPH11 S,V;MXPA11 RHD 6F +1 —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2020-07 → 2021-06 ended
KSP211,MXPA11,MXPH11 LHD N —
88162-K0010 note Sensor, Blind Spot Monitor, LH
2020-07 → 2021-05 ended
KSP211 LHD G —
88162-0D030 note Sensor, Blind Spot Monitor, LH
2024-01 → —
MXPH11 LHD N —
88162-0D030 note Sensor, Blind Spot Monitor, LH
2024-01 → —
MXPH11 LHD N —
88162-0D030 note Sensor, Blind Spot Monitor, LH
2024-01 → —
MXPH1# S,V;MXPH11 RHD N —
88162-0D030 note Sensor, Blind Spot Monitor, LH
2024-01 → —
MXPH1# S,V;MXPH11 RHD N —
88162-0D050 note Sensor, Blind Spot Monitor, LH
2024-01 → 2024-07 ended
MXPA11 6F N CZEP —
88162-0D050 note Sensor, Blind Spot Monitor, LH
2024-01 → 2024-07 ended
MXPA11 CVT N CZEP —
88162-0D050 note Sensor, Blind Spot Monitor, LH
2024-01 → 2024-07 ended
MXPA11 LHD 6F N +1 —
88162-0D050 note Sensor, Blind Spot Monitor, LH
2024-01 → 2024-07 ended
MXPA11 LHD CVT N +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
