Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

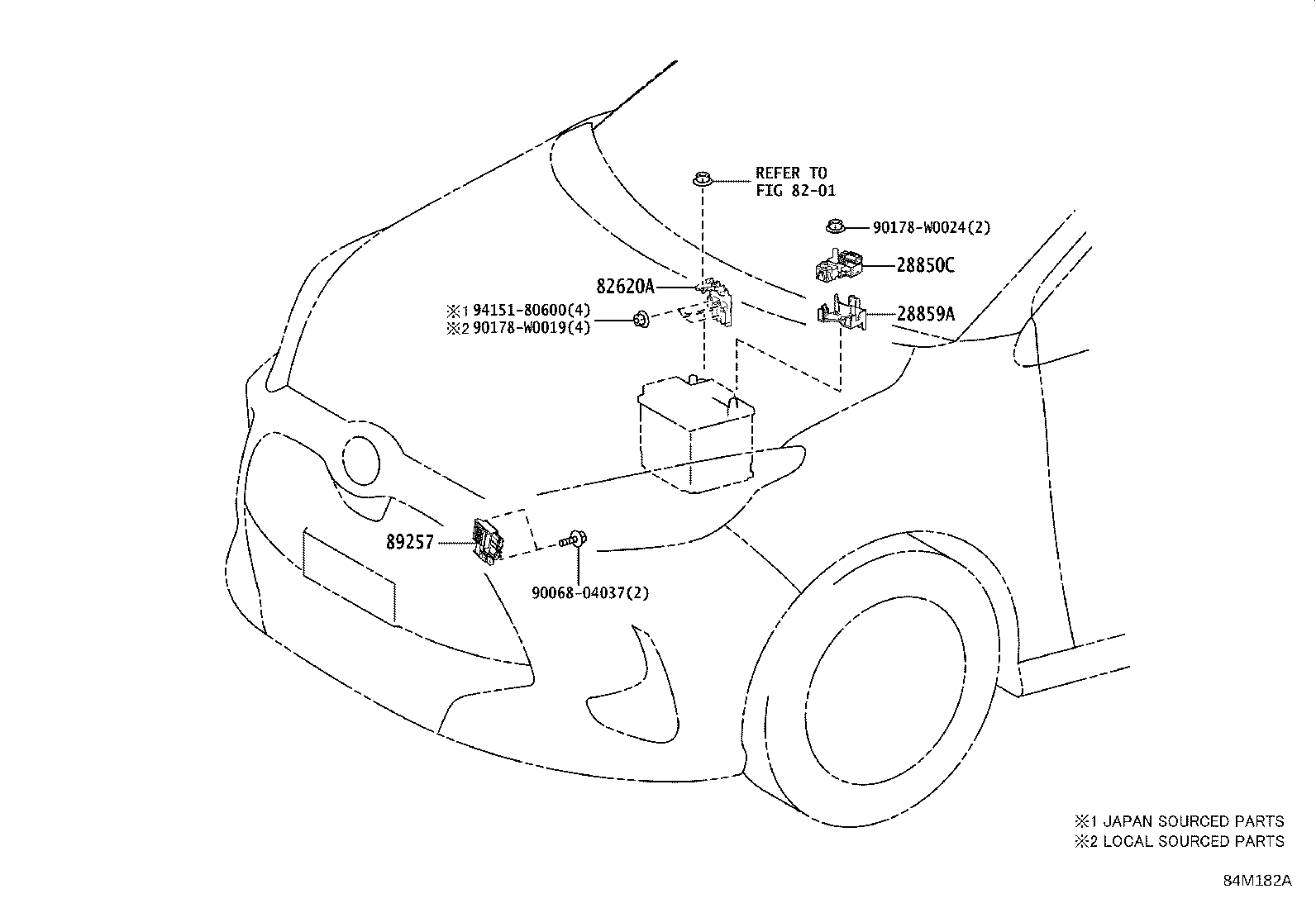

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 note |
Sensor Assy, Battery State
2020-07 → 2022-05
ended
|
1KRFE KSP211 RHD R;M15AFKS +3 | — | |
| 28850-K0010 note |
Sensor Assy, Battery State
2020-07 → 2024-01
ended
|
M15AFKS MXPA11 6F N;M15AFKS +4 | — | |
| 28850-K0010 note |
Sensor Assy, Battery State
2020-07 → —
|
1KRFE S KSP211 MXPA11 +15 | — | |
| 28850-K0010 note |
Sensor Assy, Battery State
2020-07 → 2021-05
ended
|
1KRFE KSP211 G | — | |
| 28850-K0020 |
Sensor Assy, Battery State
2020-07 → 2022-05
ended
|
M15AFXE MXPH11 RHD R | — | |
| 28850-K0020 |
Sensor Assy, Battery State
2020-07 → 2024-01
ended
|
M15AFXE MXPH11 N,S,V;M15AFXE MXPH11 +3 | — | |
| 28850-K0020 |
Sensor Assy, Battery State
2020-07 → —
|
M15AFXE MXPH11 G;M15AFXE MXPH11 +2 | — | |
| 28850-K0010 note |
Sensor Assy, Battery State
2024-01 → 2024-07
ended
|
M15AFKS MXPA11 LHD N | — | |
| 28850-K0020 |
Sensor Assy, Battery State
2024-01 → —
|
M15AFXE MXPH1# N,S,V;M15AFXE MXPH11 +2 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-K0020 note |
Holder, Battery Current Sensor
2020-07 → 2021-05
ended
|
1KRFE KSP211 G | — | |
| 28859-K0020 note |
Holder, Battery Current Sensor
2020-07 → 2022-05
ended
|
1KRFE KSP211 RHD R;M15AFKS +3 | — | |
| 28859-K0020 note |
Holder, Battery Current Sensor
2020-07 → 2024-01
ended
|
M15AFKS MXPA11 6F N;M15AFKS +4 | — | |
| 28859-K0020 note |
Holder, Battery Current Sensor
2020-07 → —
|
1KRFE S KSP211 MXPA11 +15 | — | |
| 28859-K0020 note |
Holder, Battery Current Sensor
2024-01 → 2024-07
ended
|
M15AFKS MXPA11 LHD N | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-K0030 |
Block Assy, Fusible Link
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 82620-K0030 |
Block Assy, Fusible Link
2020-07 → 2022-05
ended
|
KSP211 RHD R;MXPA11 RHD +1 | — | |
| 82620-K0030 |
Block Assy, Fusible Link
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 82620-K0030 |
Block Assy, Fusible Link
2020-07 → —
|
KSP211 11 RHD RHD +10 | — | |
| 82620-K0030 |
Block Assy, Fusible Link
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → 2022-05
ended
|
MXPA11 RHD G | — | |
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → —
|
MXPA11 LHD (G,S,V);MXPA11 RHD +5 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → 2022-05
ended
|
MXPH11 RHD R | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → 2024-01
ended
|
MXPH11 N,S,V;MXPH11 LHD R +1 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → —
|
MXPH11 G;MXPH11 R CZEP | — | |
| 89257-K0010 |
Computer, Cooling Fan
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
