Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

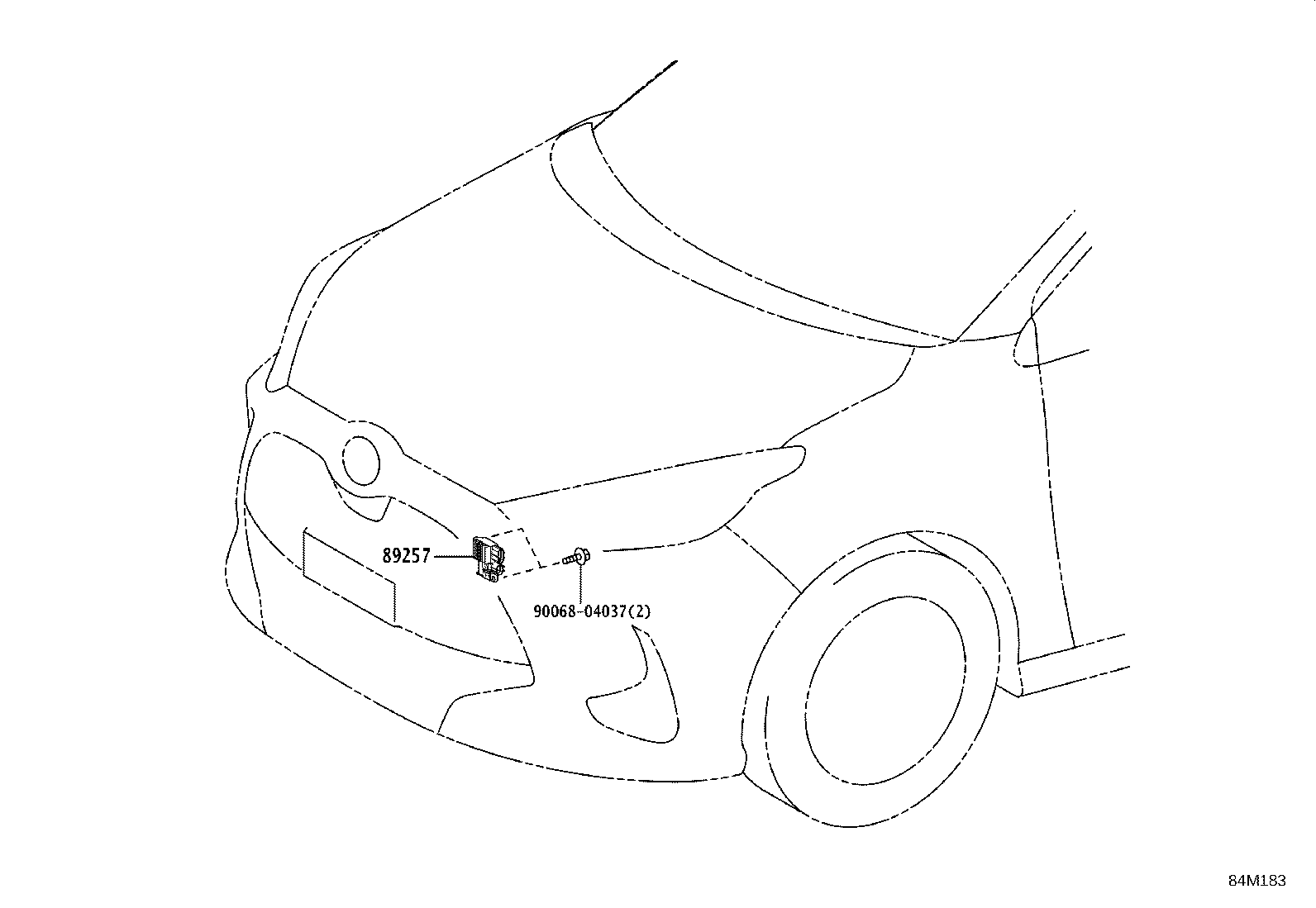

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89257 — Computer, Cooling Fan | ||||
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → 2022-05
ended
|
MXPA11 RHD G | — | |
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 89257-K0010 |
Computer, Cooling Fan
2020-07 → —
|
MXPA11 LHD (G,S,V);MXPA11 RHD +5 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → 2022-05
ended
|
MXPH11 RHD R | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → 2024-01
ended
|
MXPH11 N,S,V;MXPH11 LHD R +1 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2020-07 → —
|
MXPH11 G;MXPH11 R CZEP | — | |
| 89257-K0010 |
Computer, Cooling Fan
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 89257-K0020 |
Computer, Cooling Fan
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
