Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

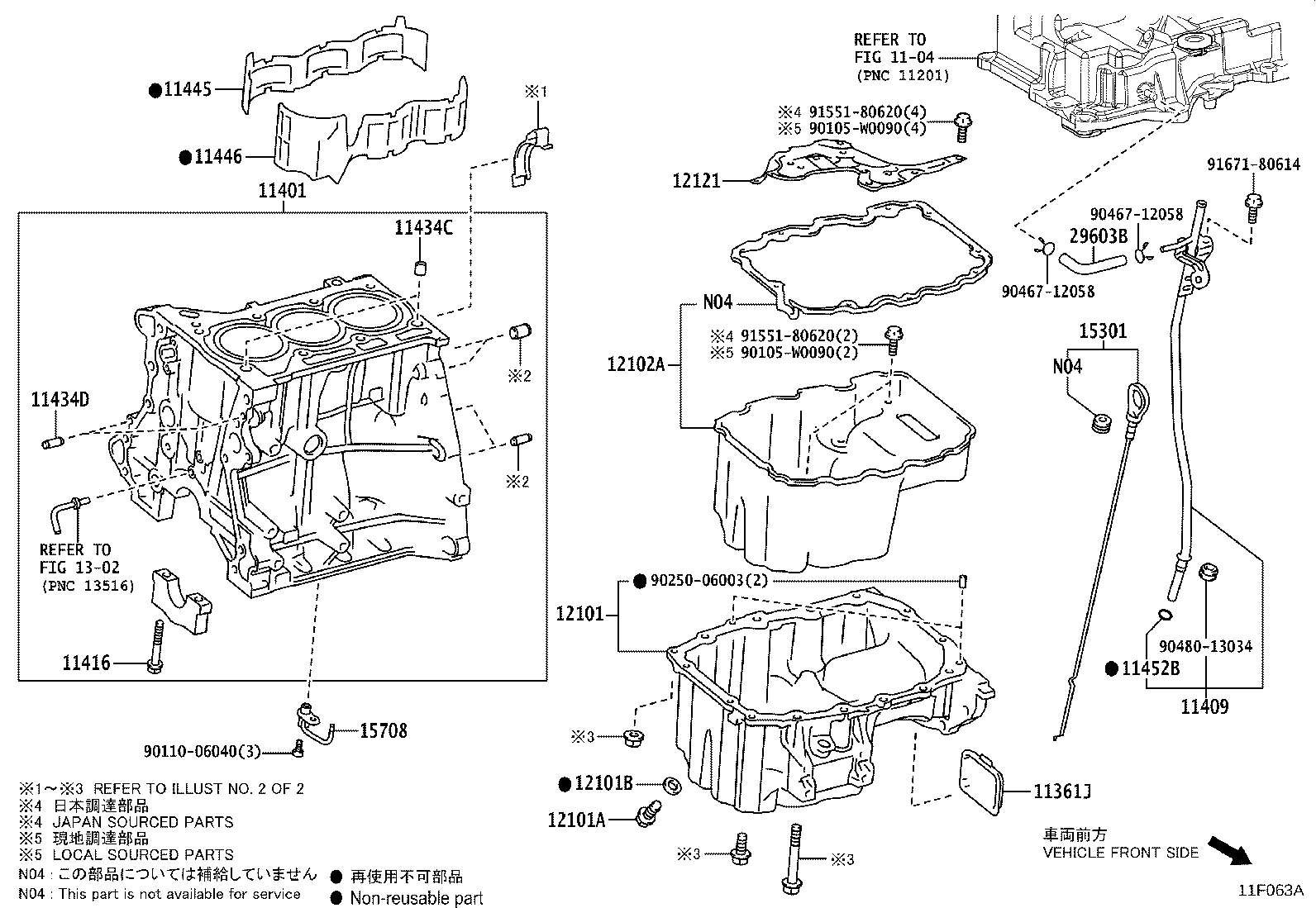

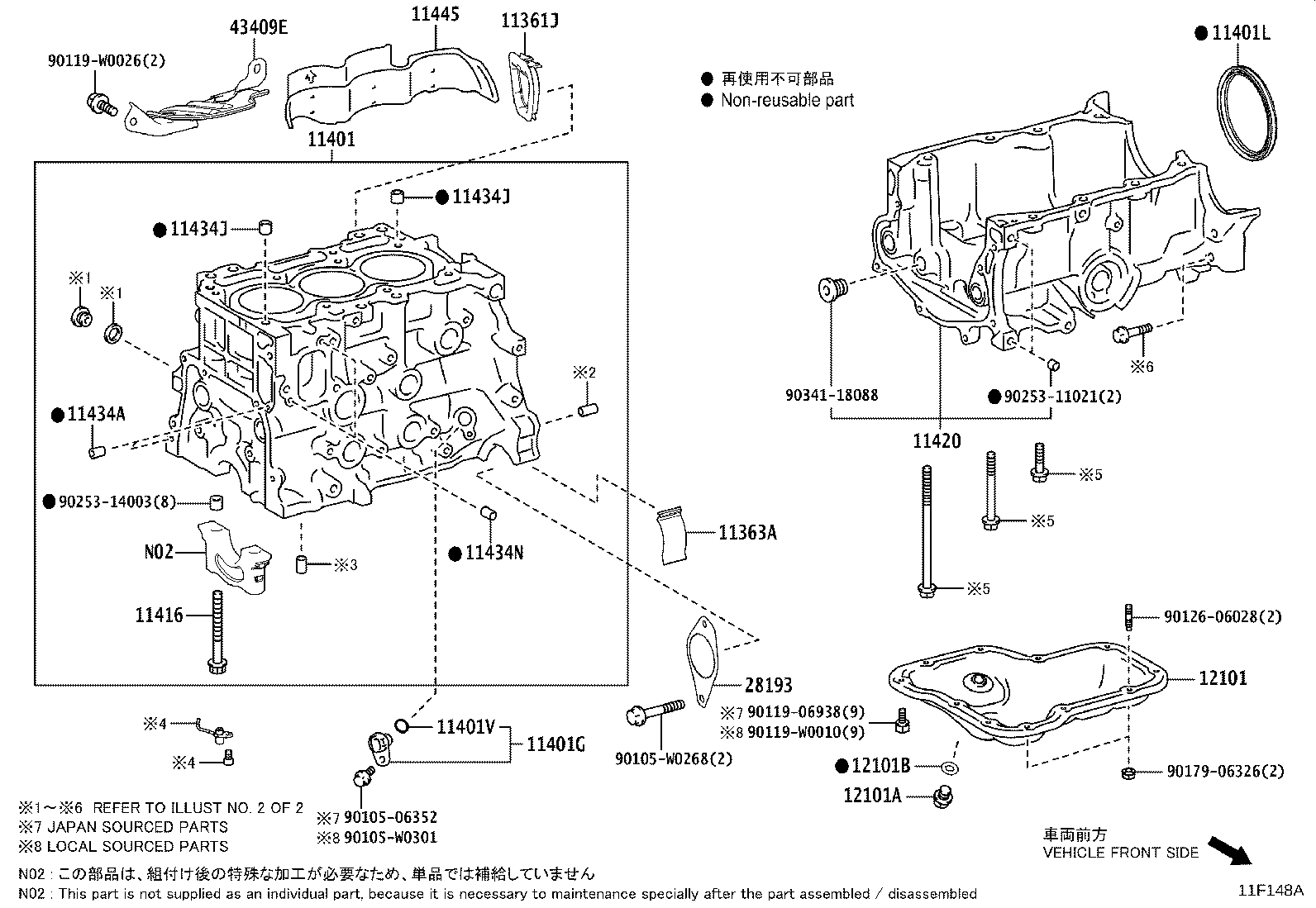

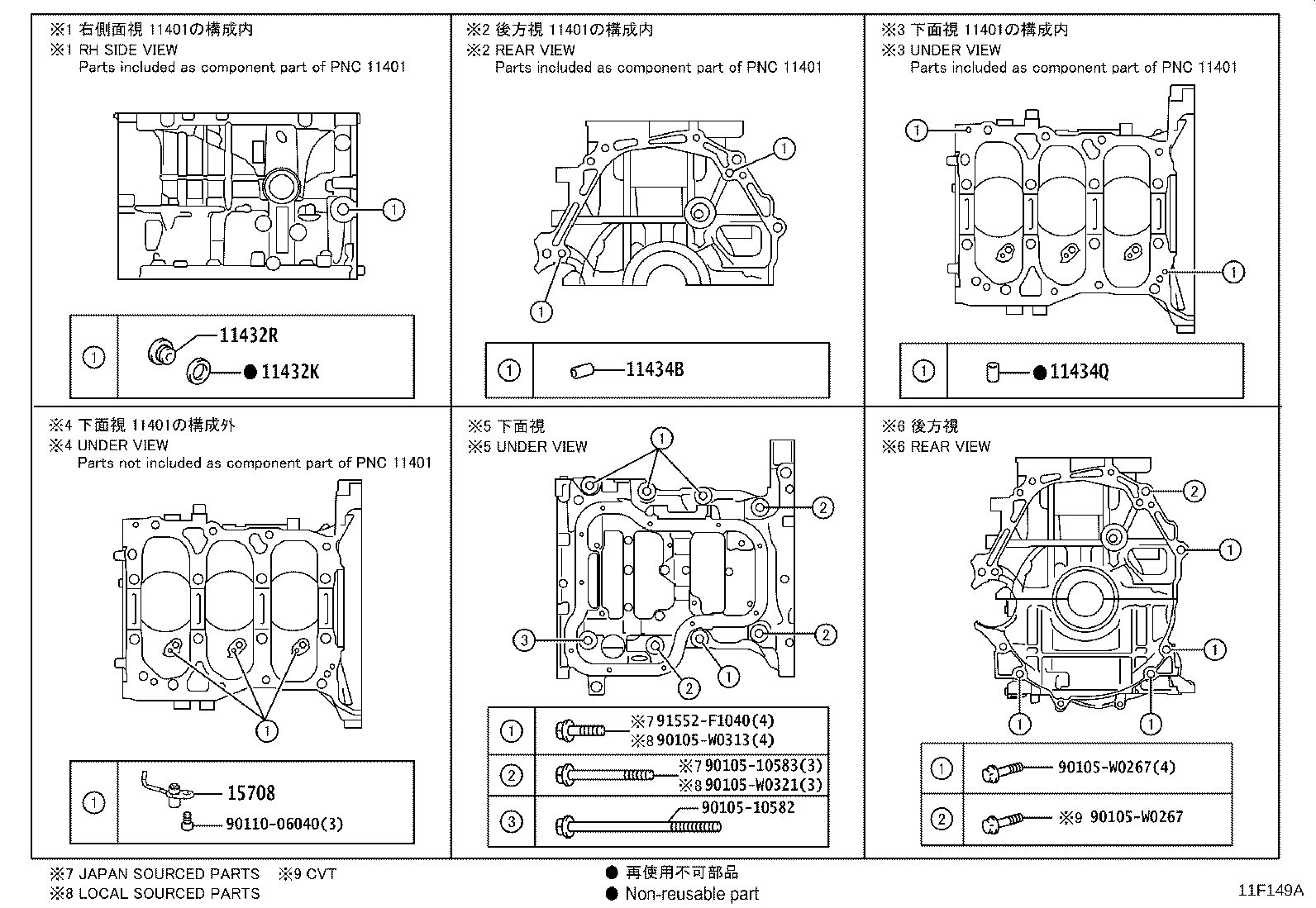

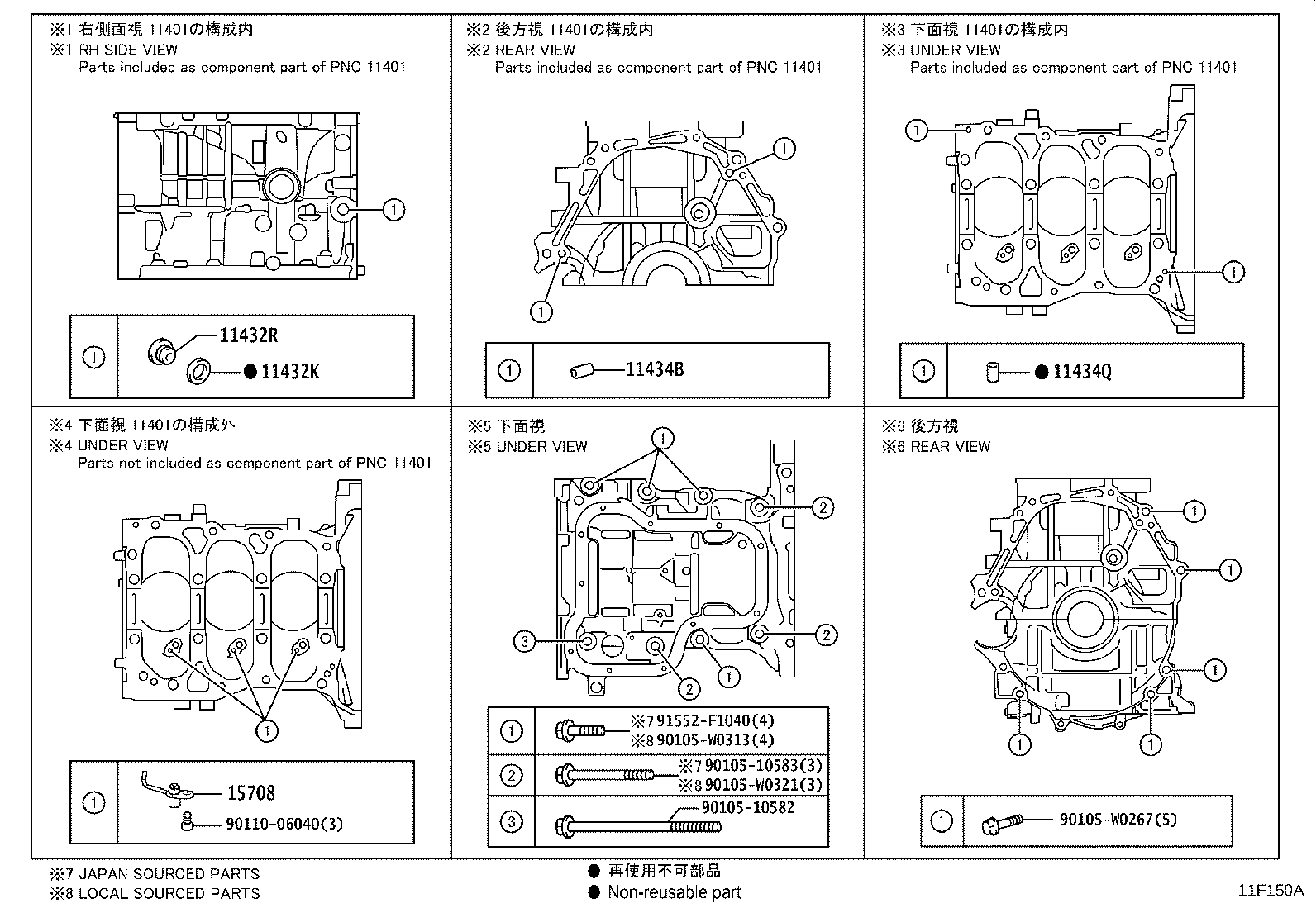

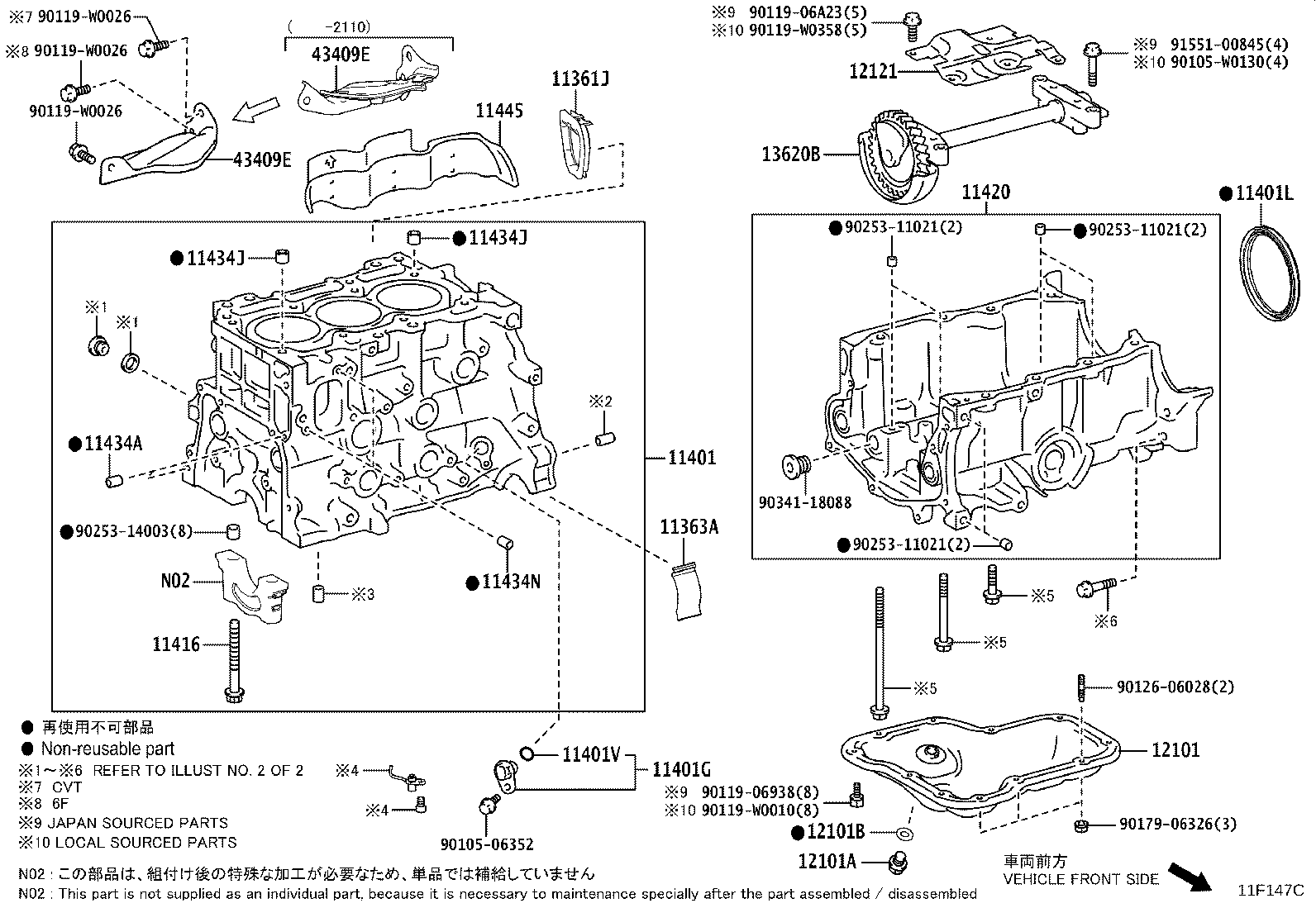

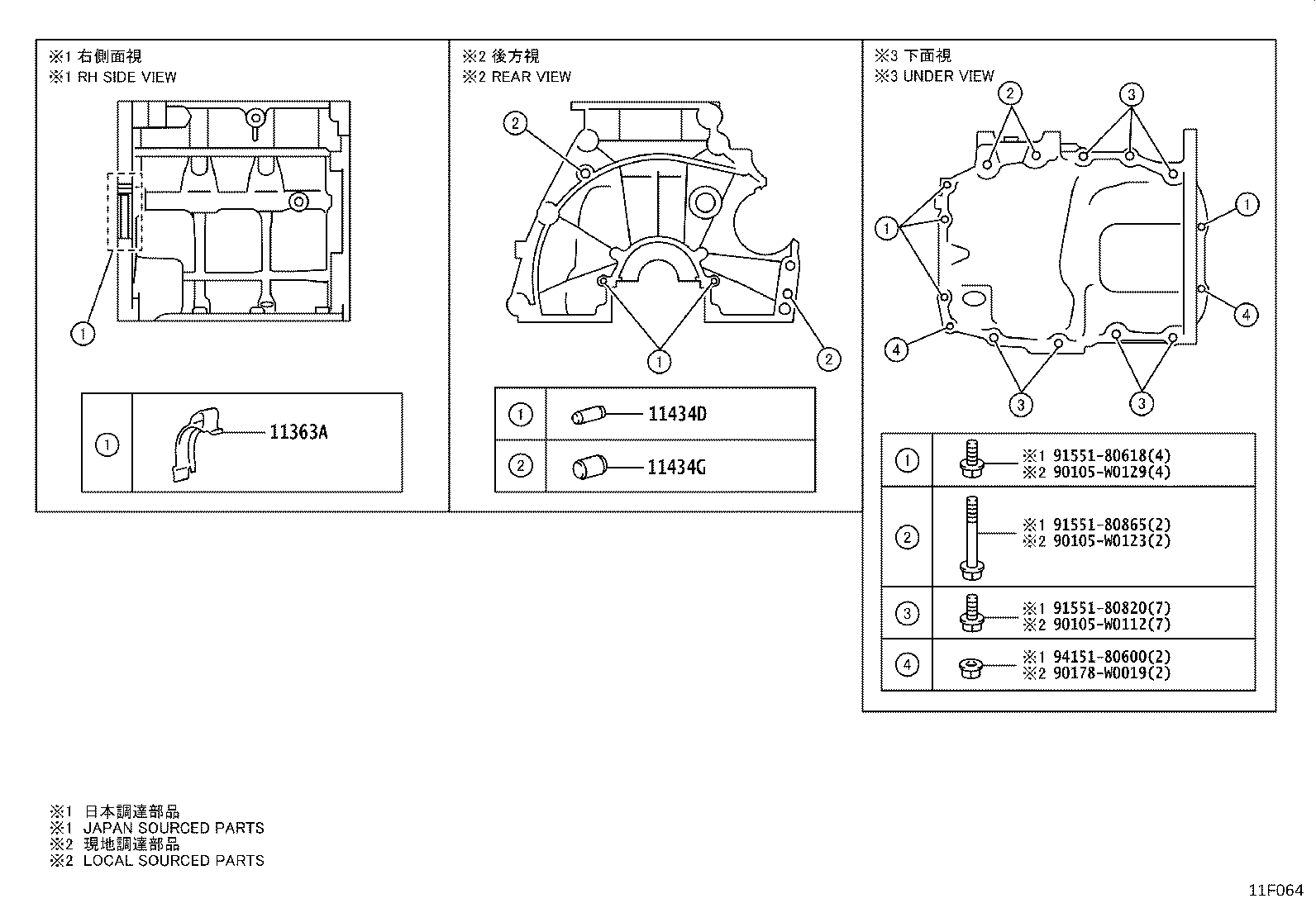

Cylinder Block
33 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11401V | O-ring, Crank Position Sensor |
| 11409 | Guide Sub-assy, Oil Level Gage |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11432K | Gasket, W/Head Straight Screw Plug |
| 11432R | Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434N | Pin, Straight(FOR WATER INLET HOUSING) |
| 11434Q | Pin, Straight(FOR CRANKCASE) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11446 | Spacer, Cylinder Block Water Jacket, LH |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 13620B | Balancer Assy, Engine |
| 15301 | Gage Sub-assy, Oil Level |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 28193 | Insulator, Starter Hole |
| 29603B | Hose, Oil(FOR OIL LEVEL GAUGE GUIDE) |
| 43409E | Insulator Sub-assy, Drive Shaft Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
