Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 4 illustrations

Illustrations

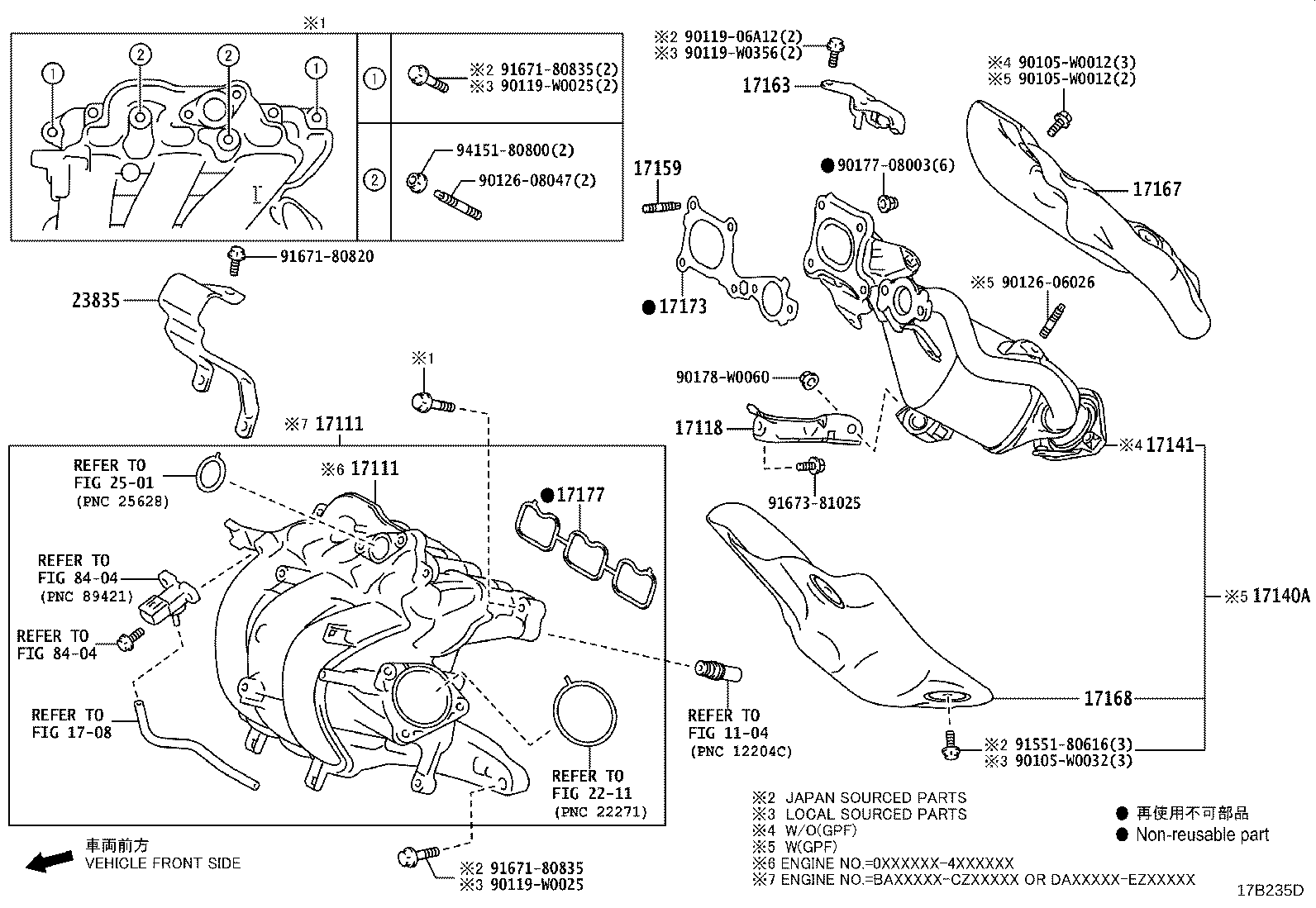

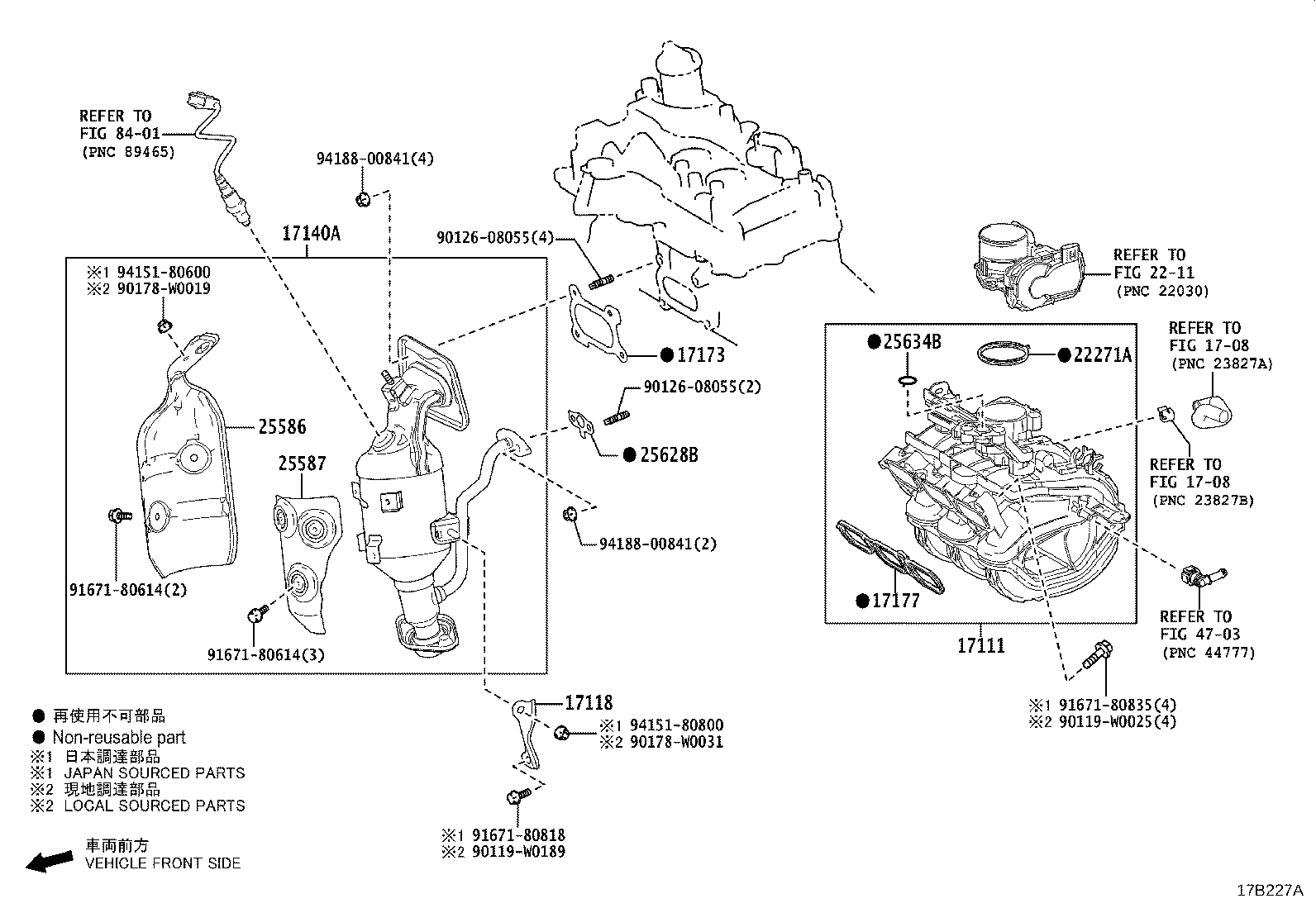

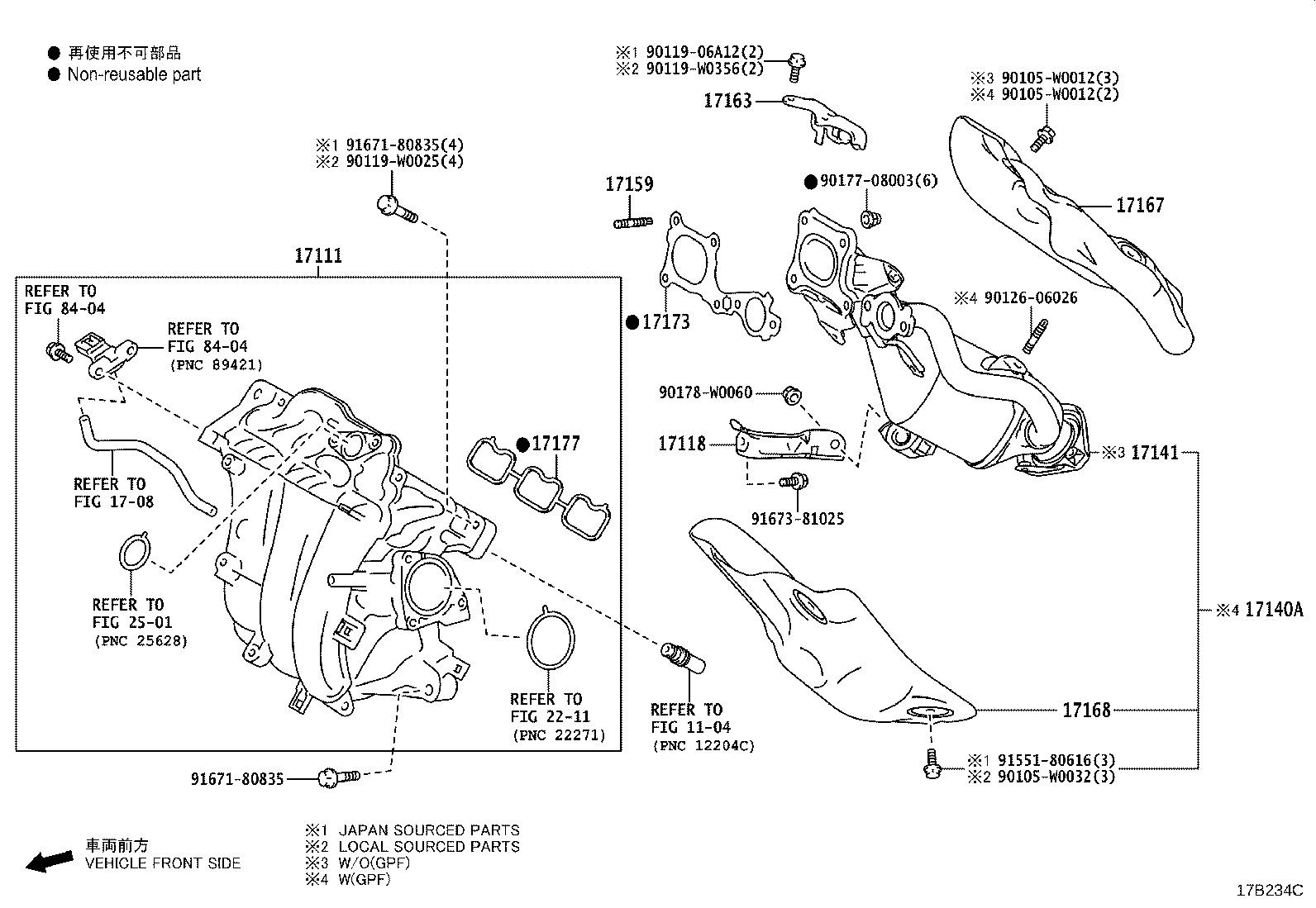

Figure 17B226B 17B226B 2020-07 → — Figure 17B227A 17B227A 2020-07 → — Figure 17B234C 17B234C 2020-07 → — Figure 17B235D 17B235D 2020-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17140A Manifold Assy, Exhaust
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
22271A Gasket, Throttle Body
23835 Guard, Fuel Delivery, NO.2
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25628B Gasket, Egr Inlet
25634B Gasket, Egr Pipe
25706B Pipe Sub-assy, Vacuum Transmitting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
