Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

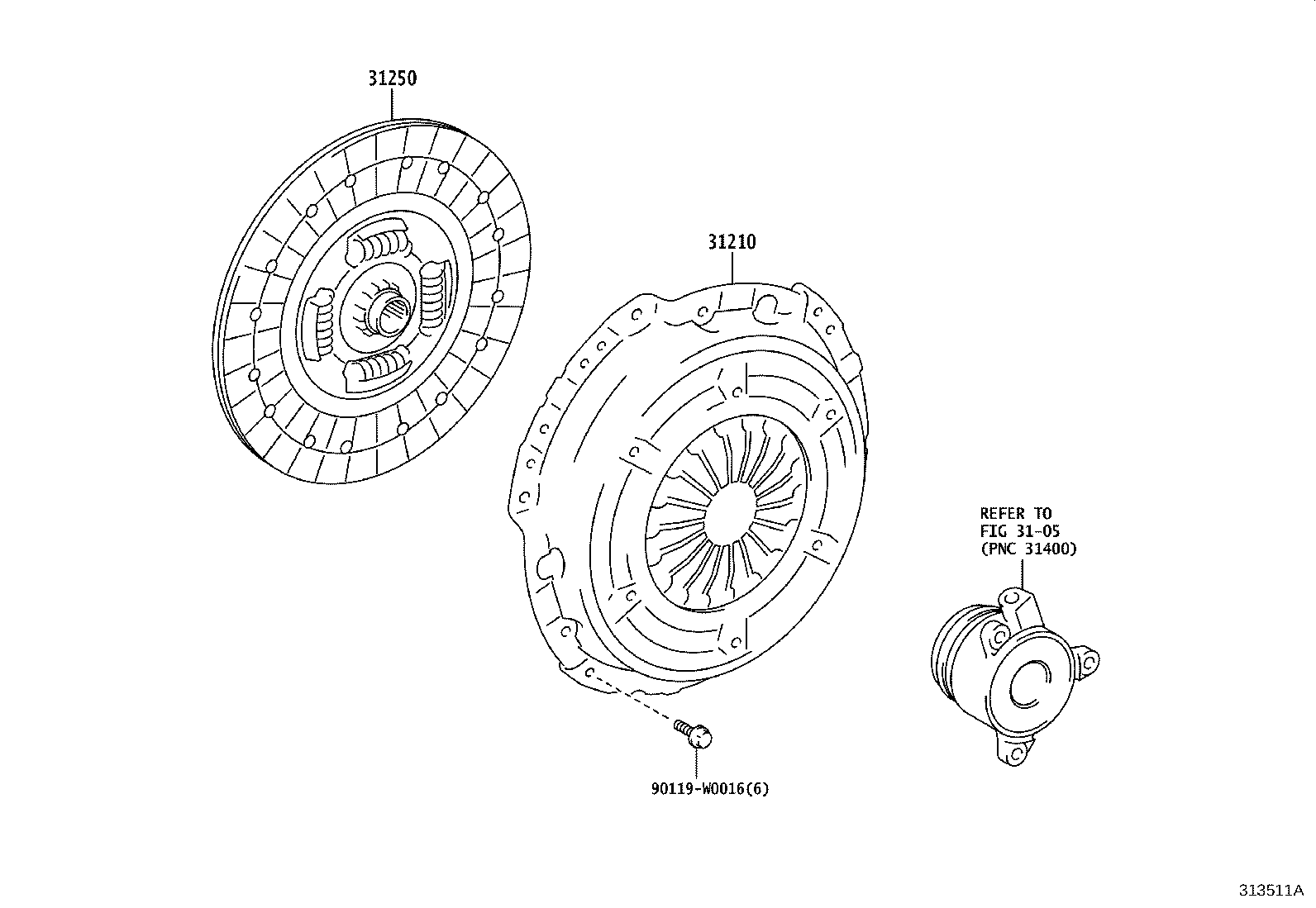

Clutch & Release Fork
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31204 | Fork Sub-assy, Clutch Release |
| 31207A | Seal, Oil(FOR CLUTCH RELEASE FORK LEVER) |
| 31209A | Bush, Bimetal Formed(FOR CLUTCH RELEASE LEVER SUPPORT) |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31233 | Fork, Clutch Release |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
