Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

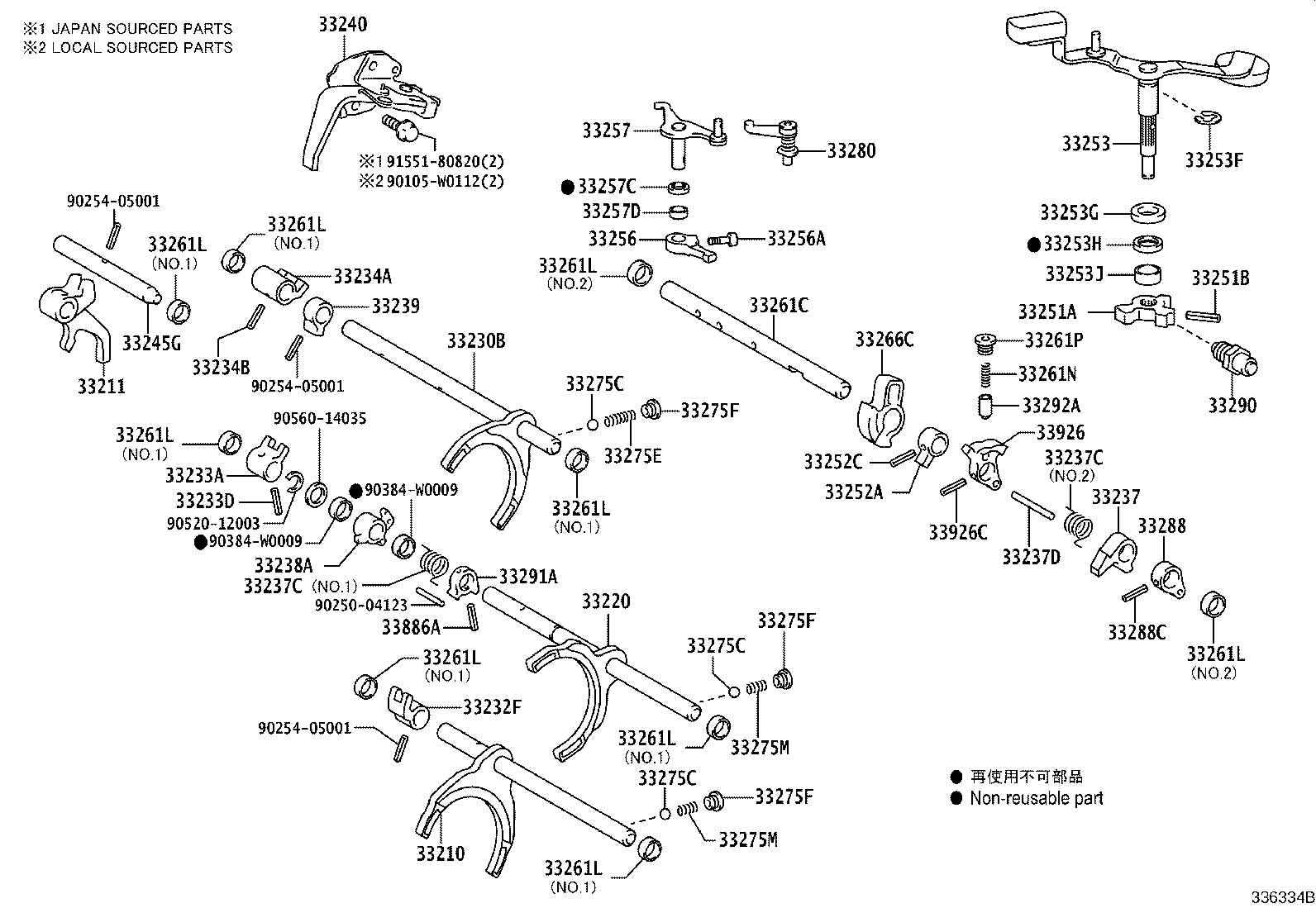

Gear Shift Fork & Lever Shaft (MTM)
79 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111G | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33210 | Fork Assy, Gear Shift, NO.1 |
| 33211 | Fork, Reverse Shift |
| 33211E | Pin, Straight(FOR REVERSE SHIFT FORK) |
| 33212C | Fork, Gear Shift, NO.1 |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33214J | Pin, Straight(FOR 5TH SHIFT FORK) |
| 33220 | Fork Assy, Gear Shift, NO.2 |
| 33230B | Fork Assy, Gear Shift, NO.3 |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33232F | Head, Gear Shift, NO.1 |
| 33233A | Head, Gear Shift, NO.2 |
| 33233D | Pin, Slotted Spring(FOR NO.2 SHIFT GEAR HEAD) |
| 33234A | Head, Gear Shift, NO.3 |
| 33234B | Pin, Slotted Spring(FOR NO.3 SHIFT GEAR HEAD) |
| 33234J | Spring, Compression (FOR SHIFT RETURN) |
| 33237 | Head, Release |
| 33237C | Spring, Torsion(FOR RELEASE HEAD) |
| 33237D | Pin, Straight(FOR RELEASE HEAD) |
| 33238A | Head, Reverse Pre-balk, NO.2 |
| 33239 | Head, Reverse Pre-balk, NO.3 |
| 33240 | Bracket Assy, Reverse Shift Arm |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244G | Shaft, Gear Shift Fork, NO.3 |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251B | Pin, Slotted Spring (FOR SHIFT INNER LEVER) |
| 33252A | Lever, Shift, Inner NO.2 |
| 33252C | Pin, Slotted Spring(FOR SHIFT LEVER INN NO.2) |
| 33253 | Lever, Shift Outer, NO.1 |
| 33253F | Ring, E(FOR SHIFT OUTER LEVER) |
| 33253G | Spacer(FOR SHIFT OUTER LEVER) |
| 33253H | Seal, Oil(FOR SHIFT OUTER LEVER) |
| 33253J | Bush(FOR SHIFT OUTER LEVER) |
| 33256 | Lever, Select Inner |
| 33256A | Bolt, Set (FOR SELECT INNER LEVER) |
| 33257 | Lever, Select Outer |
| 33257C | Seal, Oil(FOR OUTER SELECT LEVER) |
| 33257D | Bush, Bimetal Formed(FOR OUTER SELECT LEVER) |
| 33261C | Shaft, Shift & Select Lever |
| 33261G | Ring, Snap (FOR SHIFT & SELECT LEVER SHAFT) |
| 33261L | Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT) |
| 33261N | Spring, Compression(FOR SHIFT & SELECT LEVER SHAFT) |
| 33261P | Plug, Straight Screw W/Head(FOR SHIFT & SELECT LEVER SHAFT) |
| 33262E | Shaft, Select Lever |
| 33262F | Seal, Oil (FOR SELECT LEVER SHAFT) |
| 33266C | Plate, Shift Interlock |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33275M | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276F | Spring, Compression, NO.1 (FOR SELECT RETURN) |
| 33277 | Seat, Select Spring, NO.2 |
| 33277A | Spring, Compression, NO.2 (FOR SELECT RETURN) |
| 33277C | Ring, Shaft Snap (FOR SELECT SPRING NO.2 SEAT) |
| 33280 | Pin Assy, Reverse Restrict |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283B | Pin, Straight (FOR REVERSE RESTRICT PIN) |
| 33283U | Ball, Reverse Restrict Pin |
| 33288 | Block, Select Stopper |
| 33288C | Pin, Slotted Spring(FOR SELECT STOPPER BLOCK) |
| 33290 | Ball Assy, Lock, NO.1 |
| 33291A | Stopper, Shift Fork Shaft |
| 33292A | Pin, Lock Ball |
| 33293G | Holder, Lock Ball |
| 33295B | Pin, Shift Gate |
| 33528B | Cover, Control Shaft |
| 33528C | Seal, Oil (FOR CONTROL SHAFT COVER) |
| 33528E | Bolt (FOR CONTROL SHAFT COVER) |
| 33528K | Pin, Ring (FOR CONTROL SHAFT COVER SET BOLT) |
| 33544C | Damper, Shift Lever |
| 33555D | Boot, Shift Lever |
| 33886A | Pin, Slotted Spring(FOR SHIFT LEVER STOPPER) |
| 33926 | Lever, Shift Inner, Front |
| 33926C | Pin, Slotted Spring(FOR SHIFT INNER LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
