Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

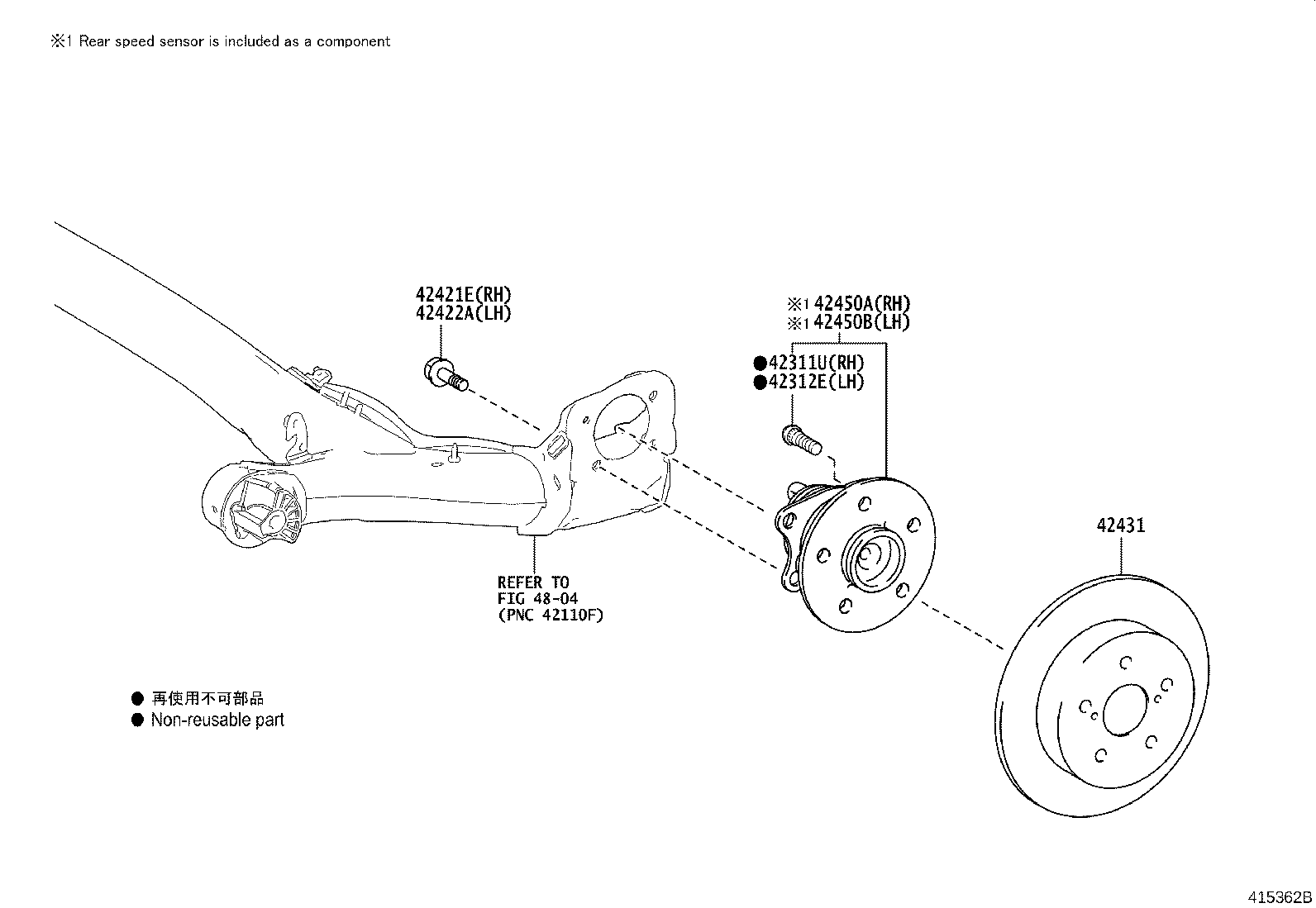

Rear Axle Shaft & Hub
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42421E | Bolt (FOR REAR AXLE BEARING CASE RH) |
| 42422A | Bolt (FOR REAR AXLE BEARING CASE LH) |
| 42431 | Disc, Rear |
| 42431D | Drum, Brake |
| 42450A | Hub & Bearing Assy, Rear Axle, RH |
| 42450B | Hub & Bearing Assy, Rear Axle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
