Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

22 part groups · 5 illustrations

Illustrations

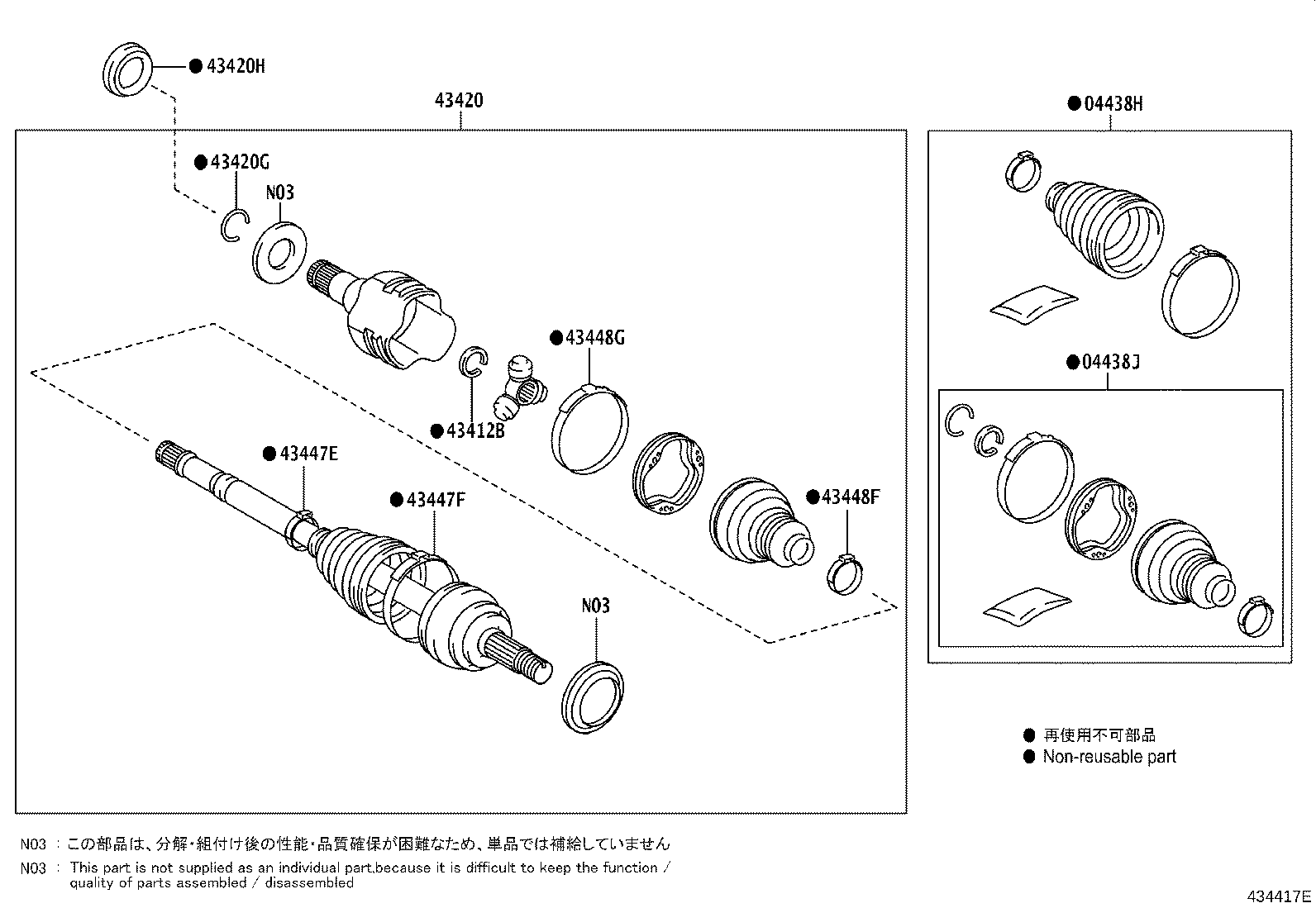

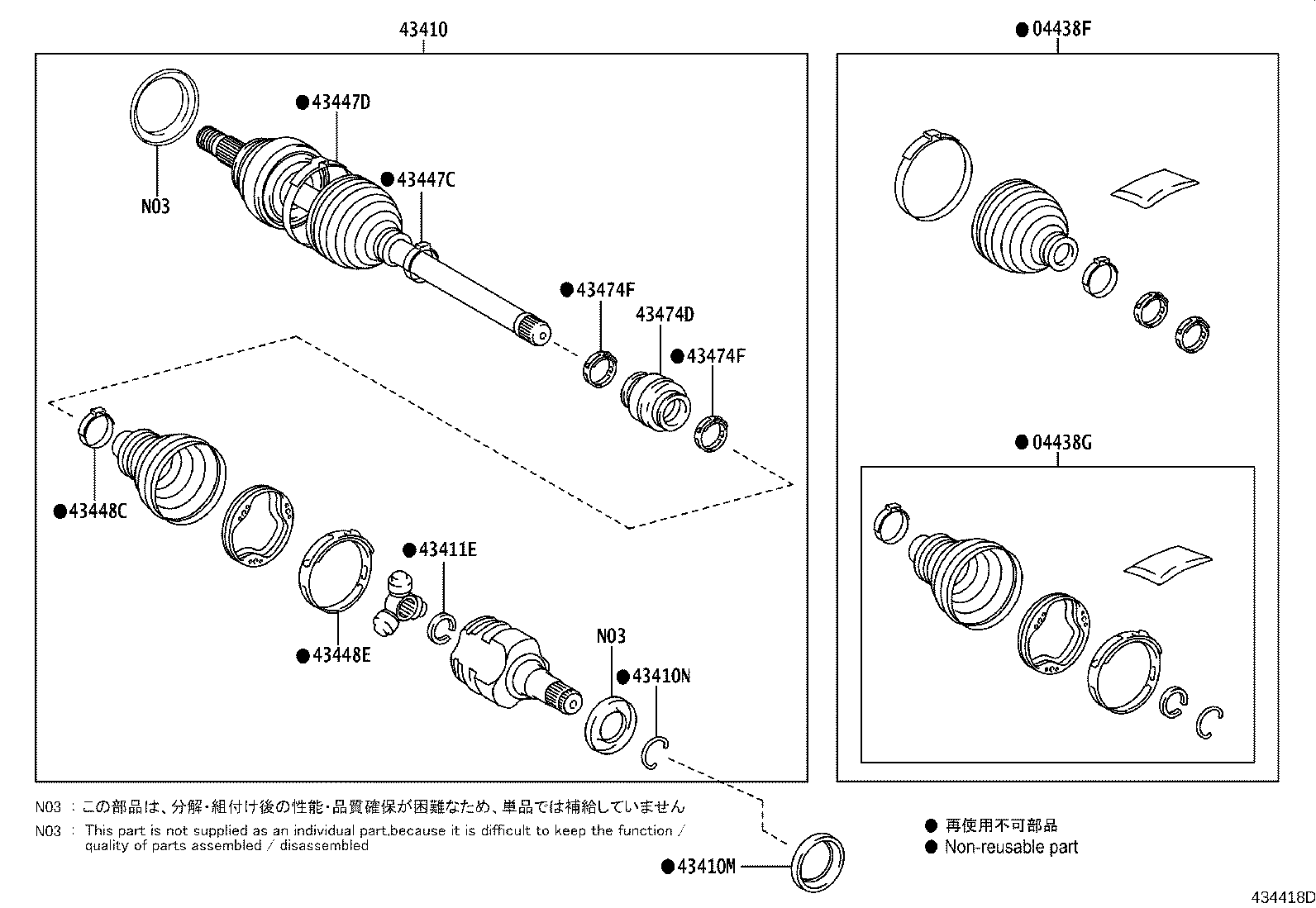

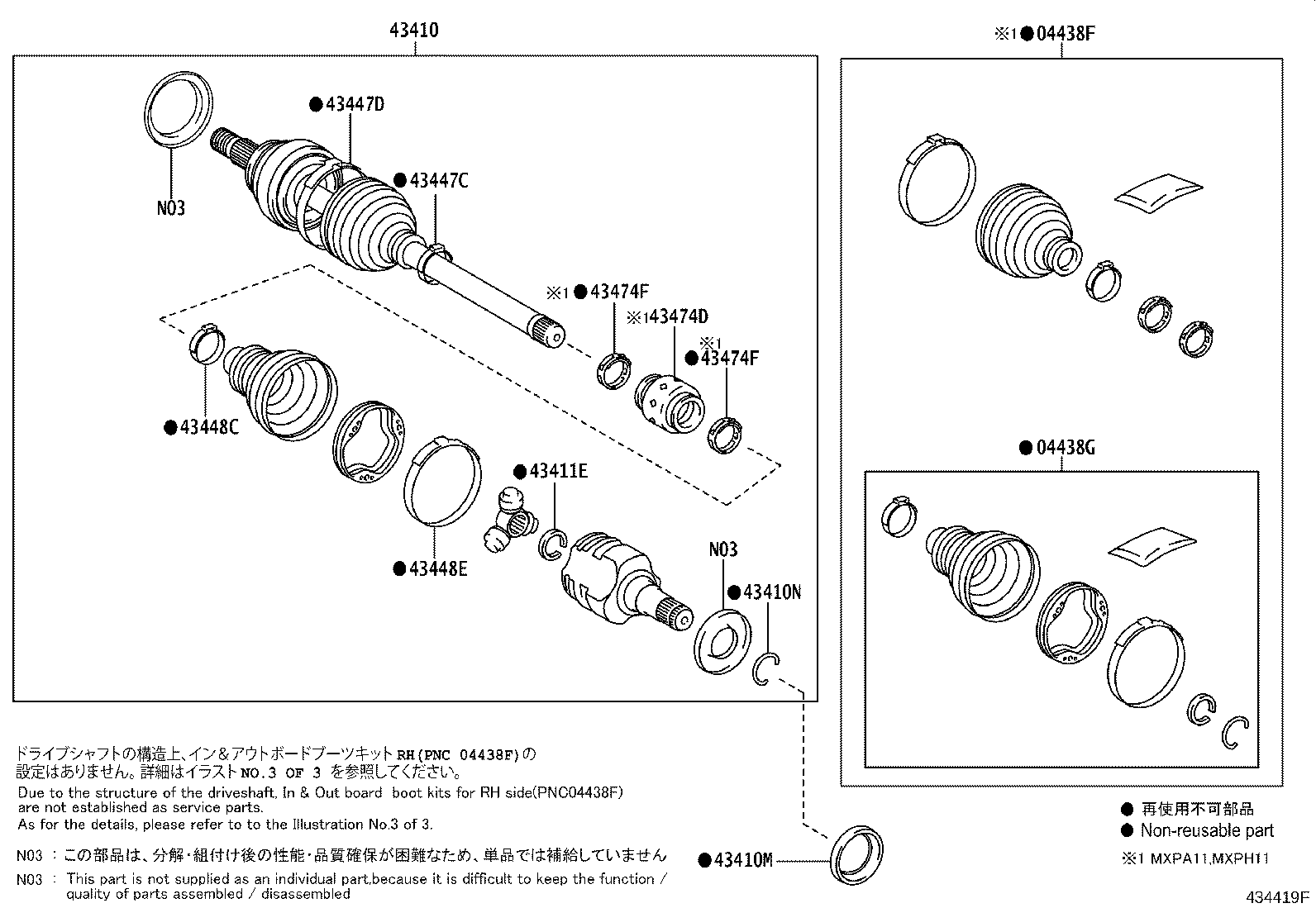

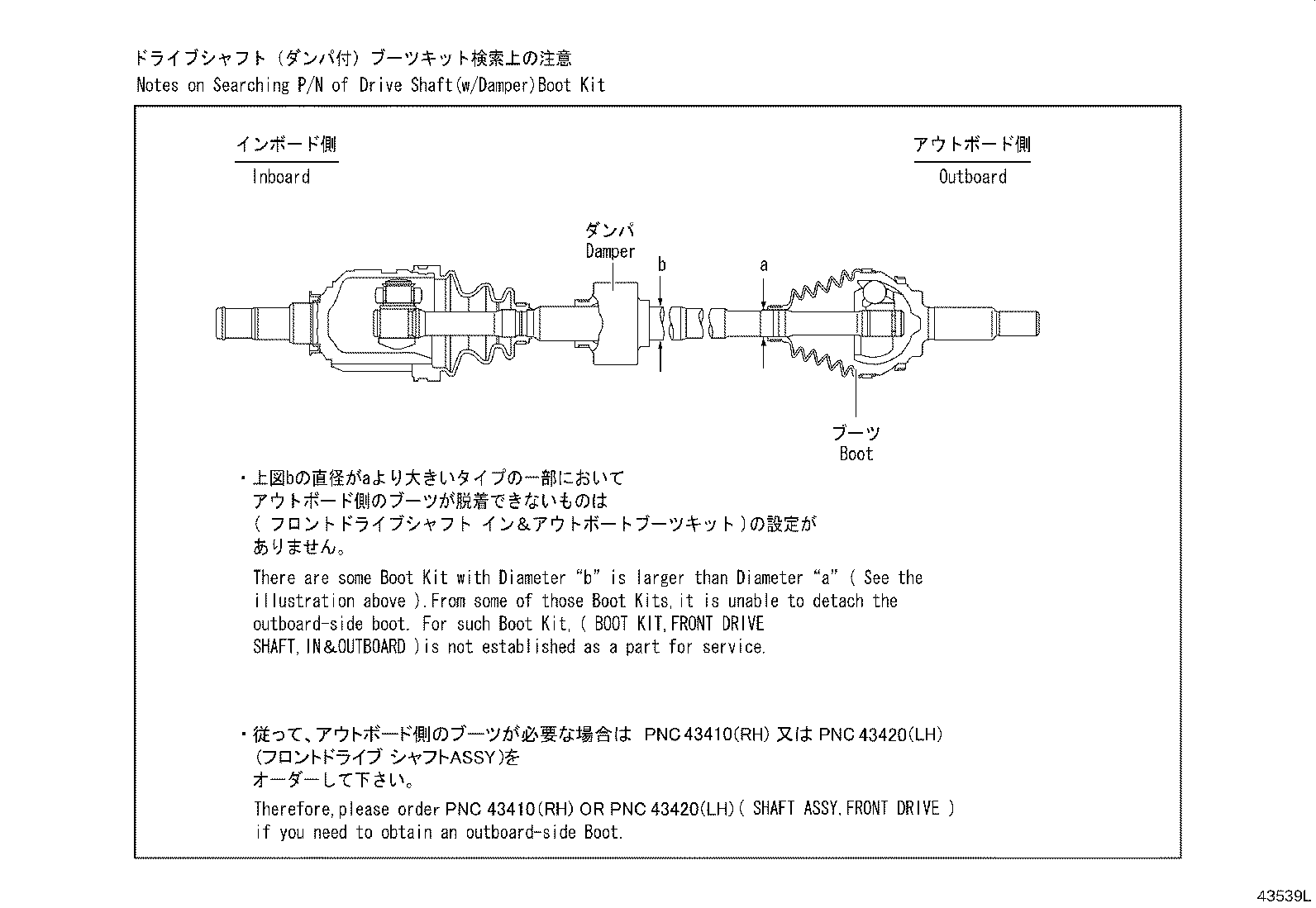

Figure 434416E 434416E 2020-07 → — Figure 434417E 434417E 2020-07 → — Figure 434418D 434418D 2020-07 → — Figure 434419F 434419F 2020-07 → — Figure 43539L 43539L 2024-01 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
43410 Shaft Assy, Front Drive, RH
43410M Oil Seal, Front Drive Shaft, RH
43410N Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H Oil Seal, Front Drive Shaft, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43474D Damper, Front Drive Shaft, RH
43474F Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
