Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

12 part groups · 2 illustrations

Illustrations

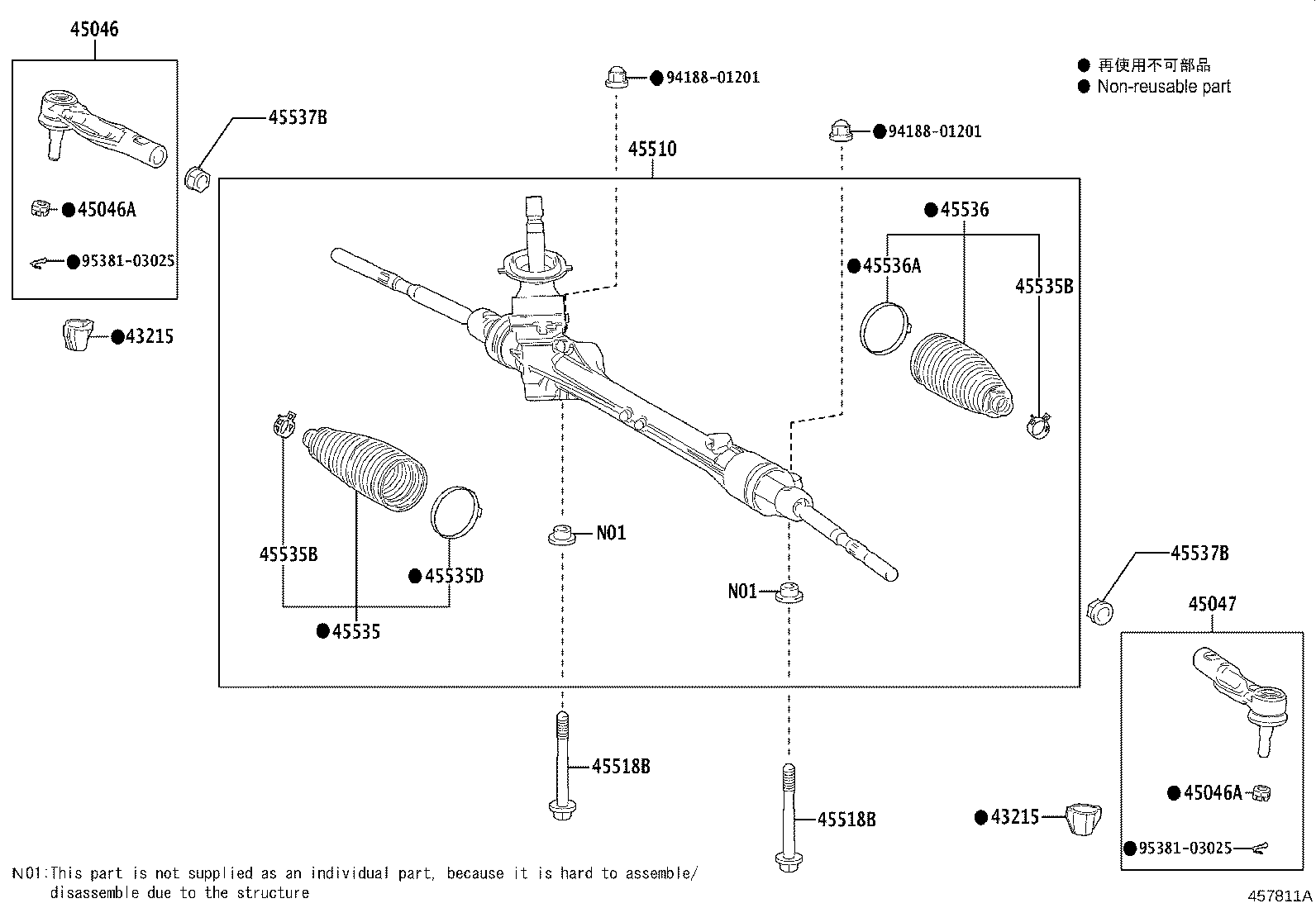

Figure 457810A 457810A 2020-07 → — Figure 457811A 457811A 2020-07 → —

Part groups

PNCDescription
43215 Seal, Steering Knuckle
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45510 Gear Assy, Steering
45518B Bolt, Steering Rack Housing
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
