Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 2 illustrations

Illustrations

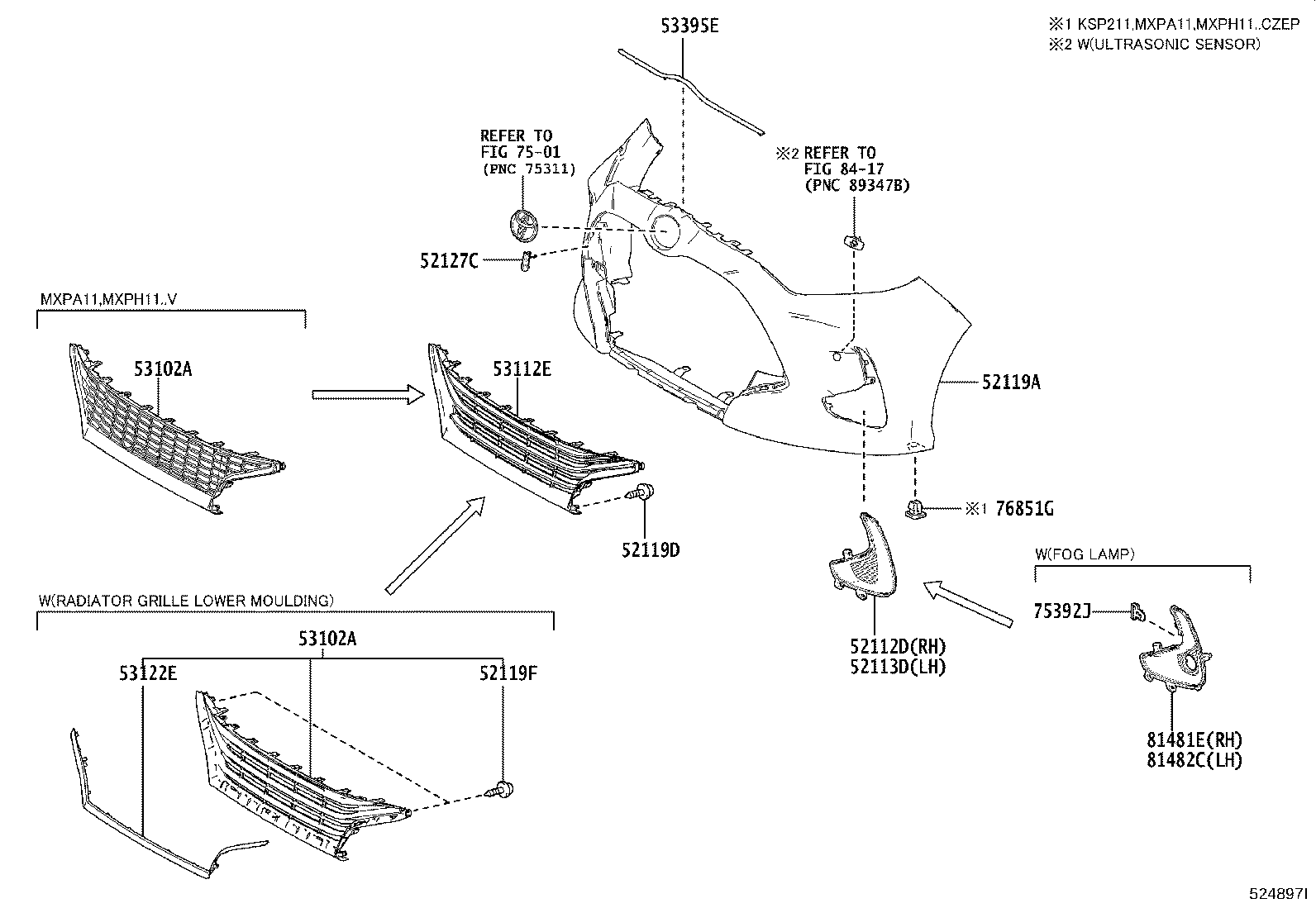

Figure 524896E 524896E 2020-07 → — Figure 524897I 524897I 2020-07 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52102B Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52119E Screw, NO.2
52119F Screw, NO.3
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53122E Moulding, Radiator Grille, Lower
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
