Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 2 illustrations

Illustrations

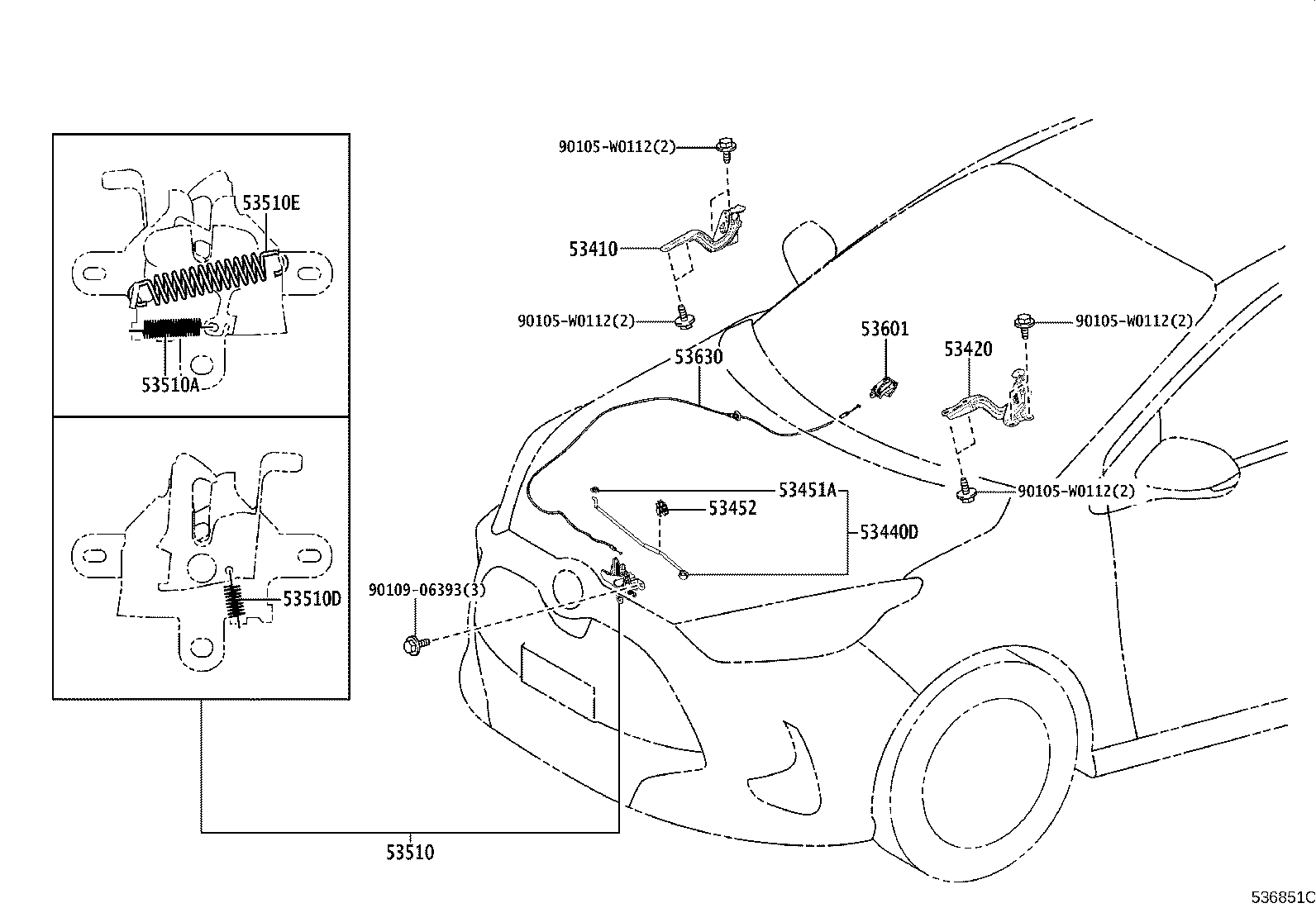

Figure 536850C 536850C 2020-07 → — Figure 536851C 536851C 2020-07 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
