Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

12 part groups · 2 illustrations

Illustrations

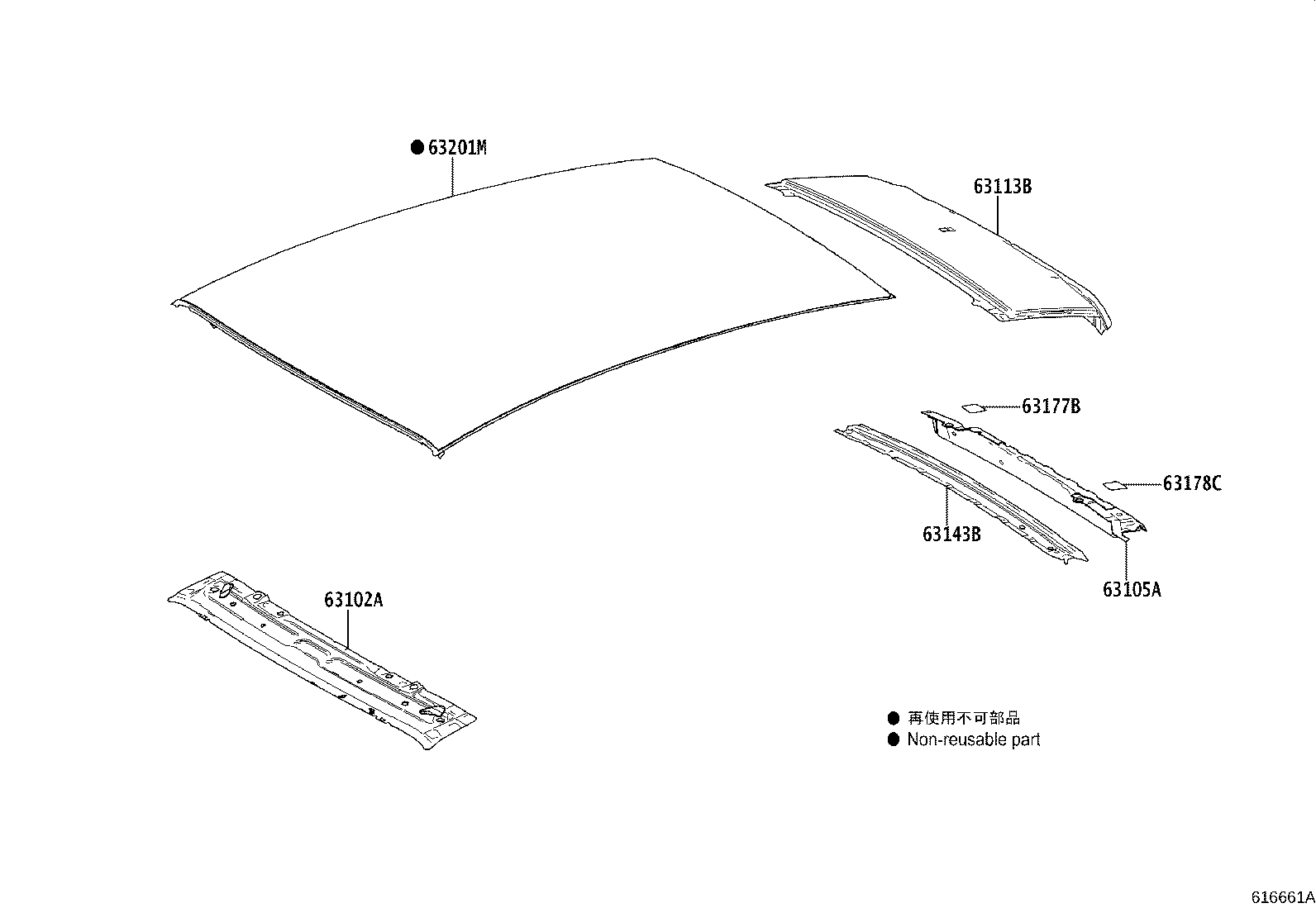

Figure 616660 616660 2020-07 → — Figure 616661A 616661A 2020-07 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63113B Panel, Roof, Rear
63141H Reinforcement, Roof Panel, Center
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63146A Bracket, Roof Panel Reinforcement, NO.1
63177B Retainer, Back Door Hinge Female, RH
63178C Retainer, Back Door Hinge Female, LH
63201M Glass Sub-assy, Roof Window, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
