Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 2 illustrations

Illustrations

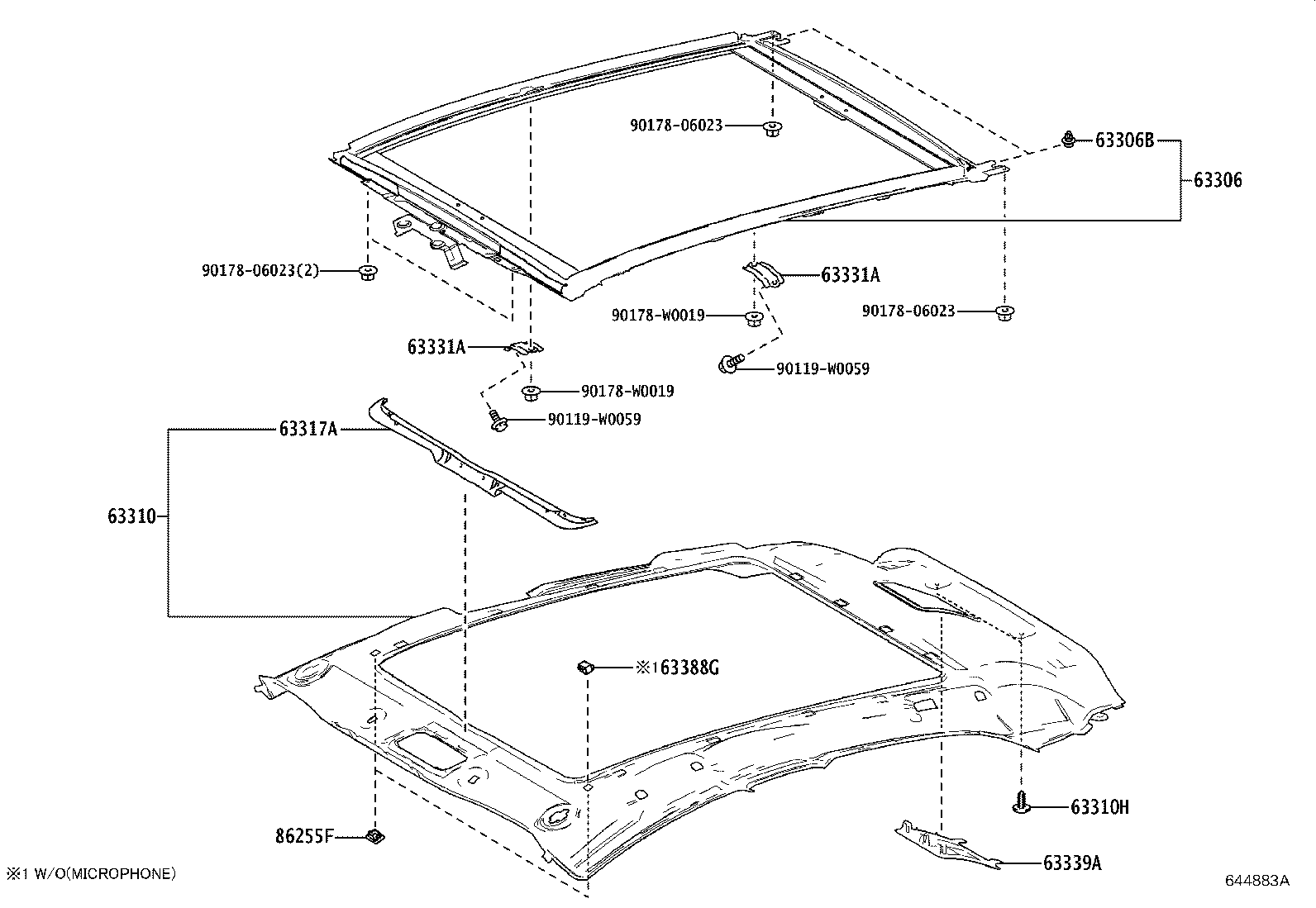

Figure 644882B 644882B 2020-07 → — Figure 644883A 644883A 2020-07 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63306B Clip(FOR SUNSHADE TRIM)
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63317A Retainer, Roof Headlining
63331A Bracket, Sunshade Trim Lock, NO.1
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63345 Pad, Roof Silencer, NO.5
63347A Pad, Roof Silencer, NO.7
63388G Cover, Roof Headlining Holder, NO.2
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
