Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

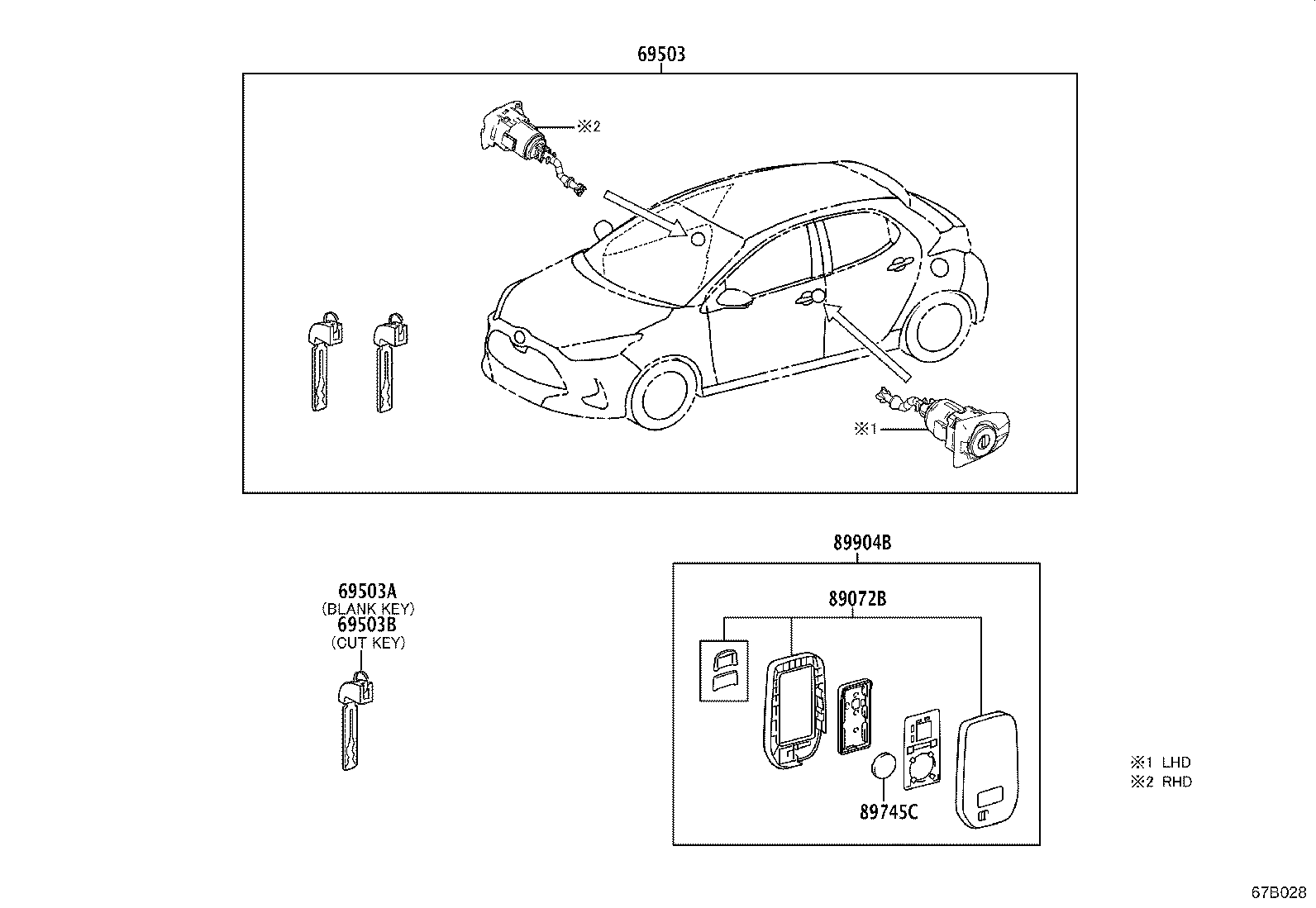

Lock Cylinder Set
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 89070E | Transmitter Assy, Door Control |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 8975B | Cover, Transmitter Battery Housing |
| 89785B | Transmitter, Transponder Key Master |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
