Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

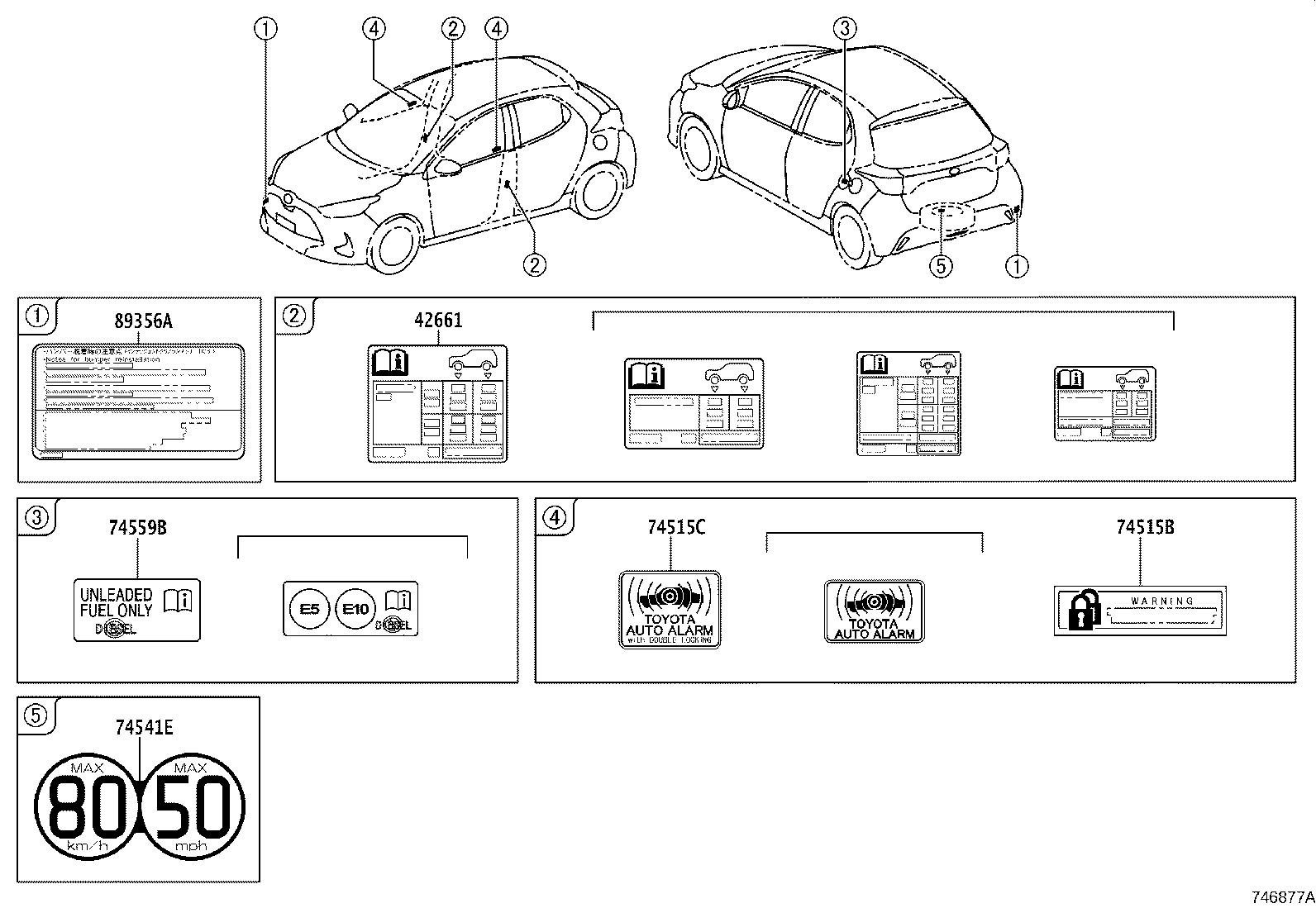

Figure 745238F 745238F 2020-07 → — Figure 746877A 746877A 2020-07 → —

Part groups

PNCDescription
11293D Label, Engine Caution
16793E Label, Cooling Fan Caution
288A2 Label, Battery Location
42661 Label, Tire Pressure Information
47288 Label, Brake Fluid Notice
74515B Plate, Theft Warning
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
82685D Plate, Caution
88723E Label, Cooler Service Caution
88733A Label, Cooler Service Information
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
