Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12
Battery & Battery Cable
26 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

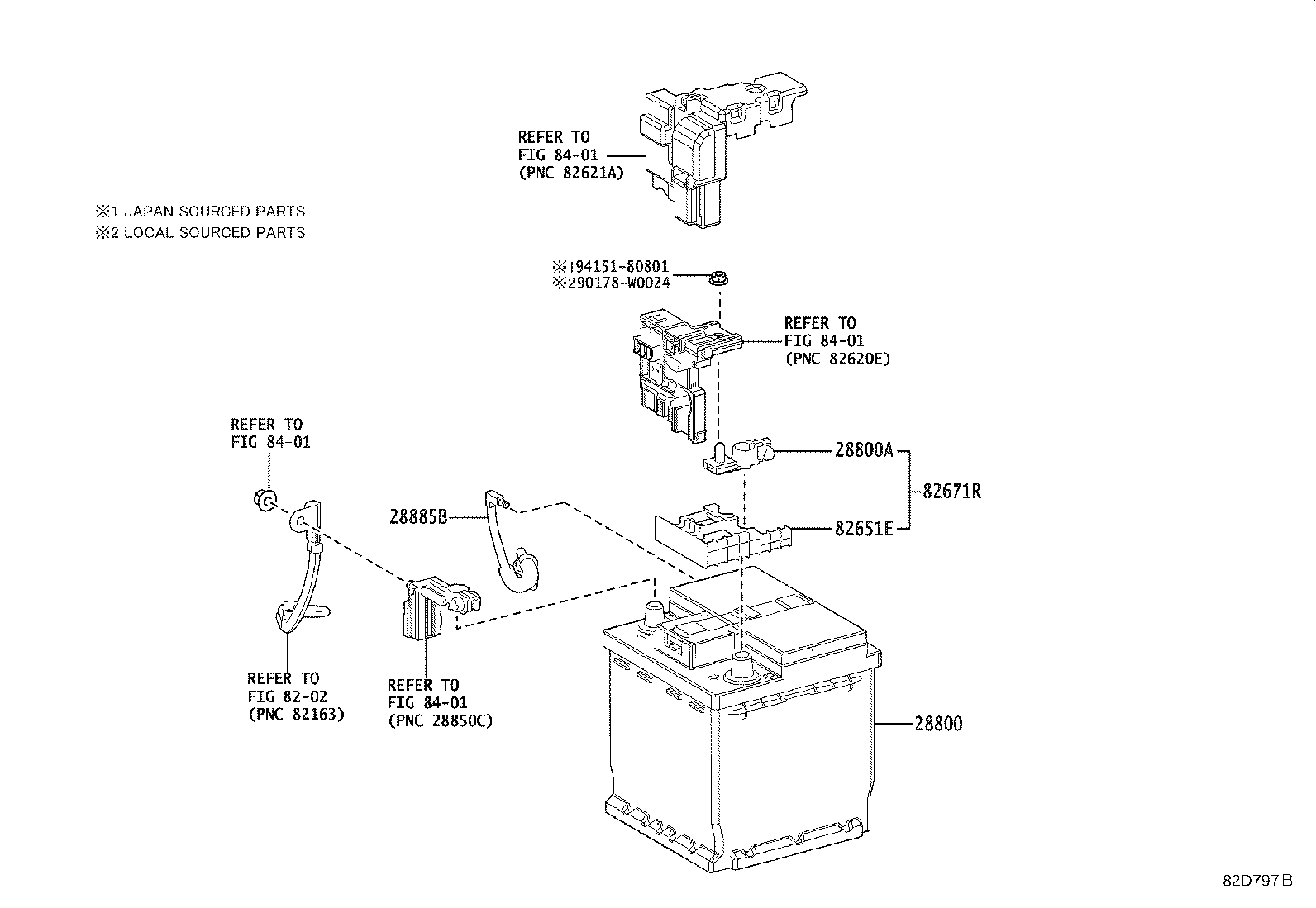

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 82651E | Block, Terminal |
| 82671R | Stopper, Battery Terminal |
| 82685E | Plate, Service Plug Caution |
| 89890A | Computer Assy, Battery |
| G3830A | Plug Assy, Electric Vehicle Battery |

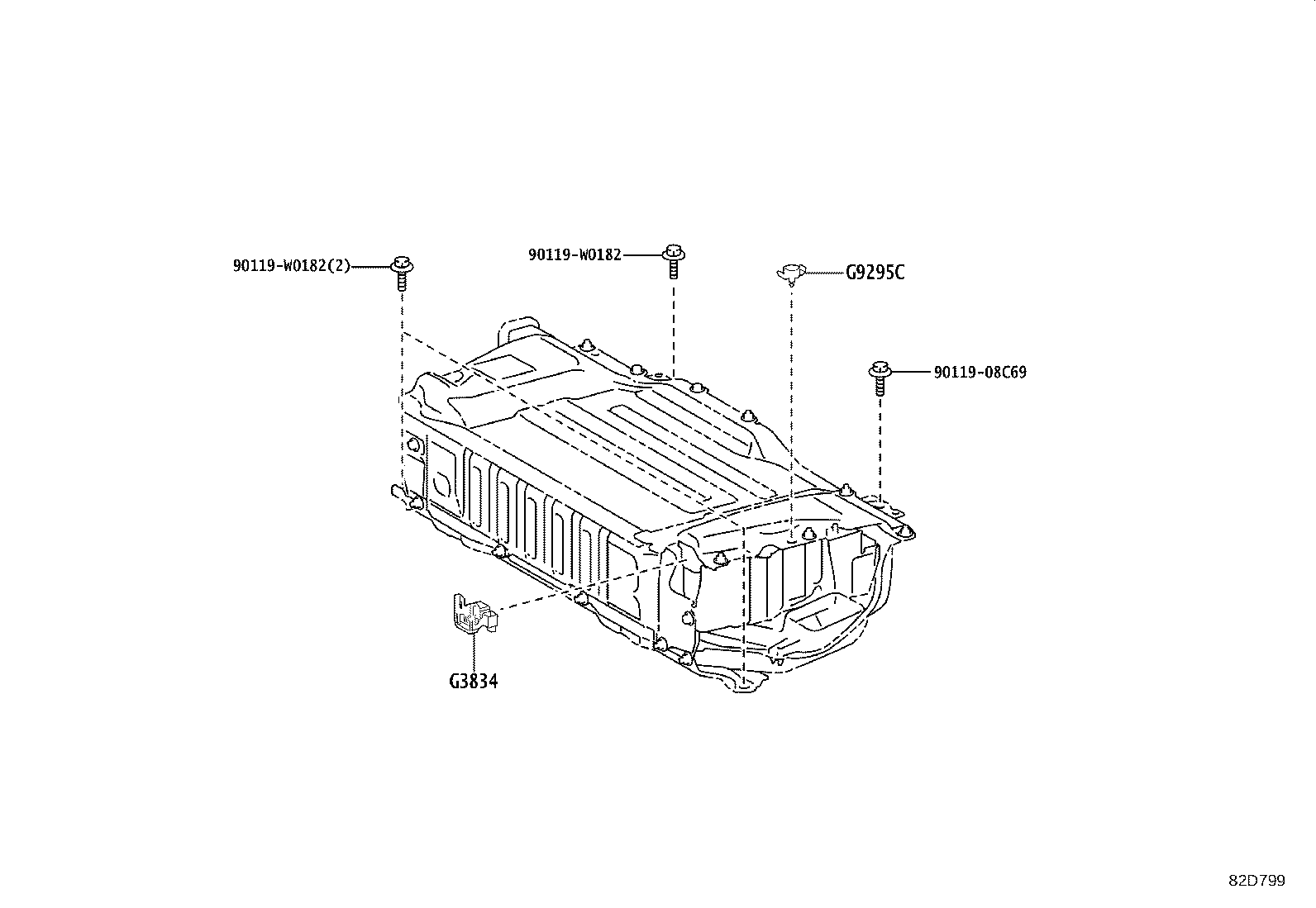

| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |

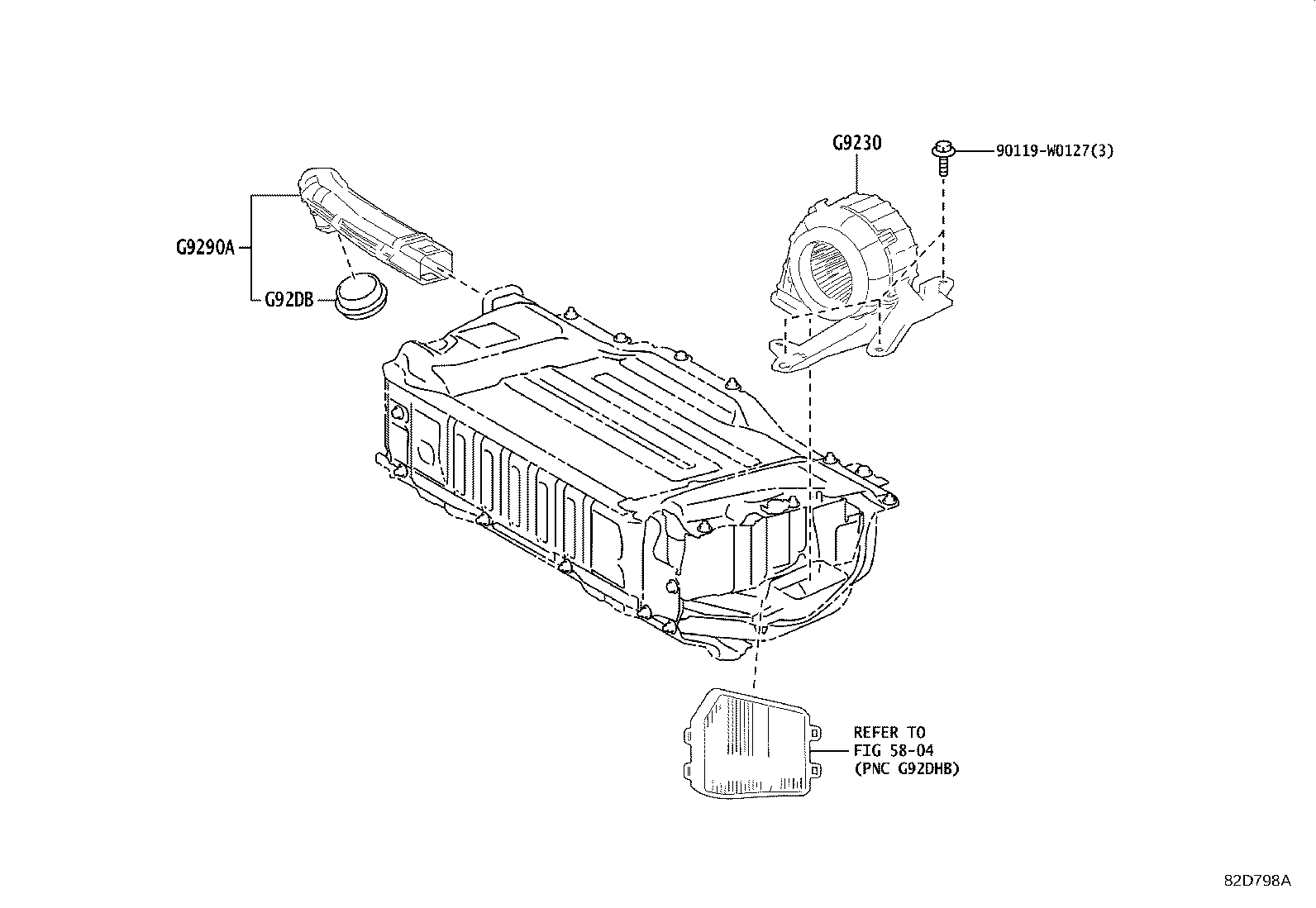

| G9230 | Blower Assy, Battery Cooling |
| G9290A | Hose Assy, Hybrid Battery |
| G9295C | Striker, Battery Cover Lock, NO.2 |
| G929A | Hose, HV Battery, NO.1 |
| G92DB | Seal, Hybrid Battery, NO.1 |
| G92E1A | Duct, HV Battery Intake, NO.1 LH |
| G92N1 | Panel, HV Battery Upper Cover |
| G92PC | Protector, HV Battery, NO.1 |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9508 | Stack Sub-assy, HV Supply, NO.1 |
| G9509 | Stack Sub-assy, HV Supply, NO.2 |

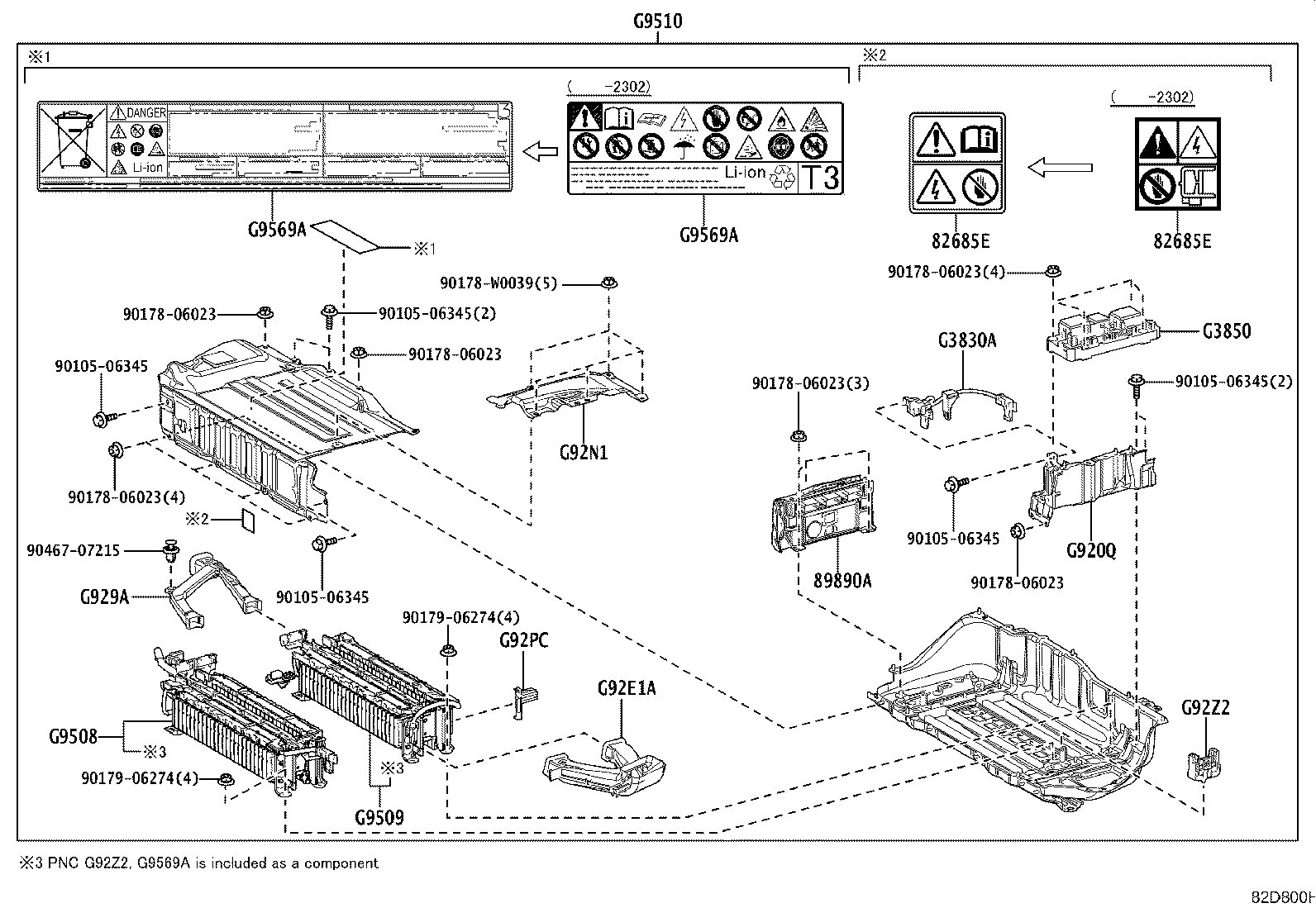

| G9510 | Battery Assy, HV Supply |
| G9569A | Label, Lithium Ion Battery Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
