Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

8 part groups · 3 illustrations

Illustrations

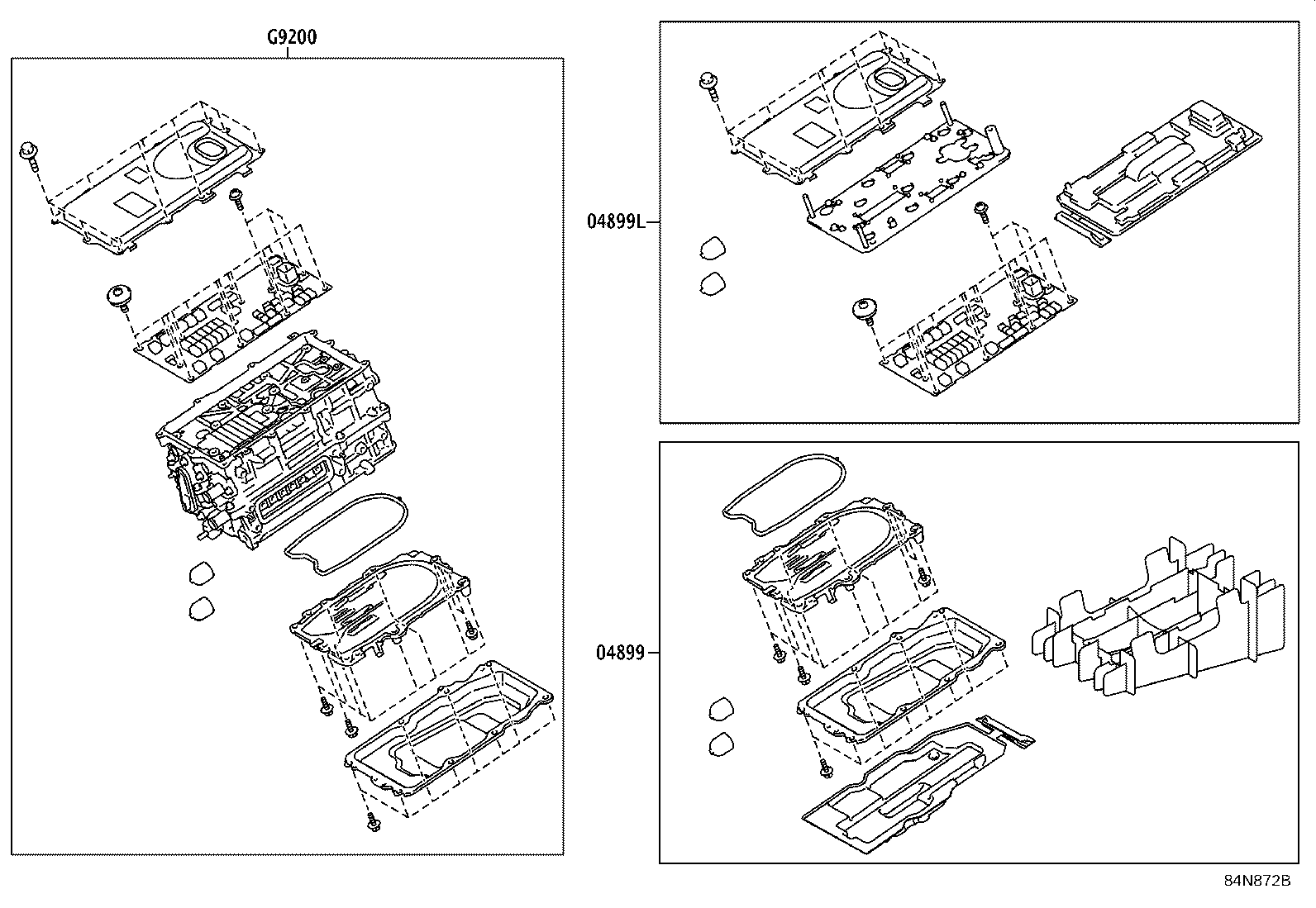

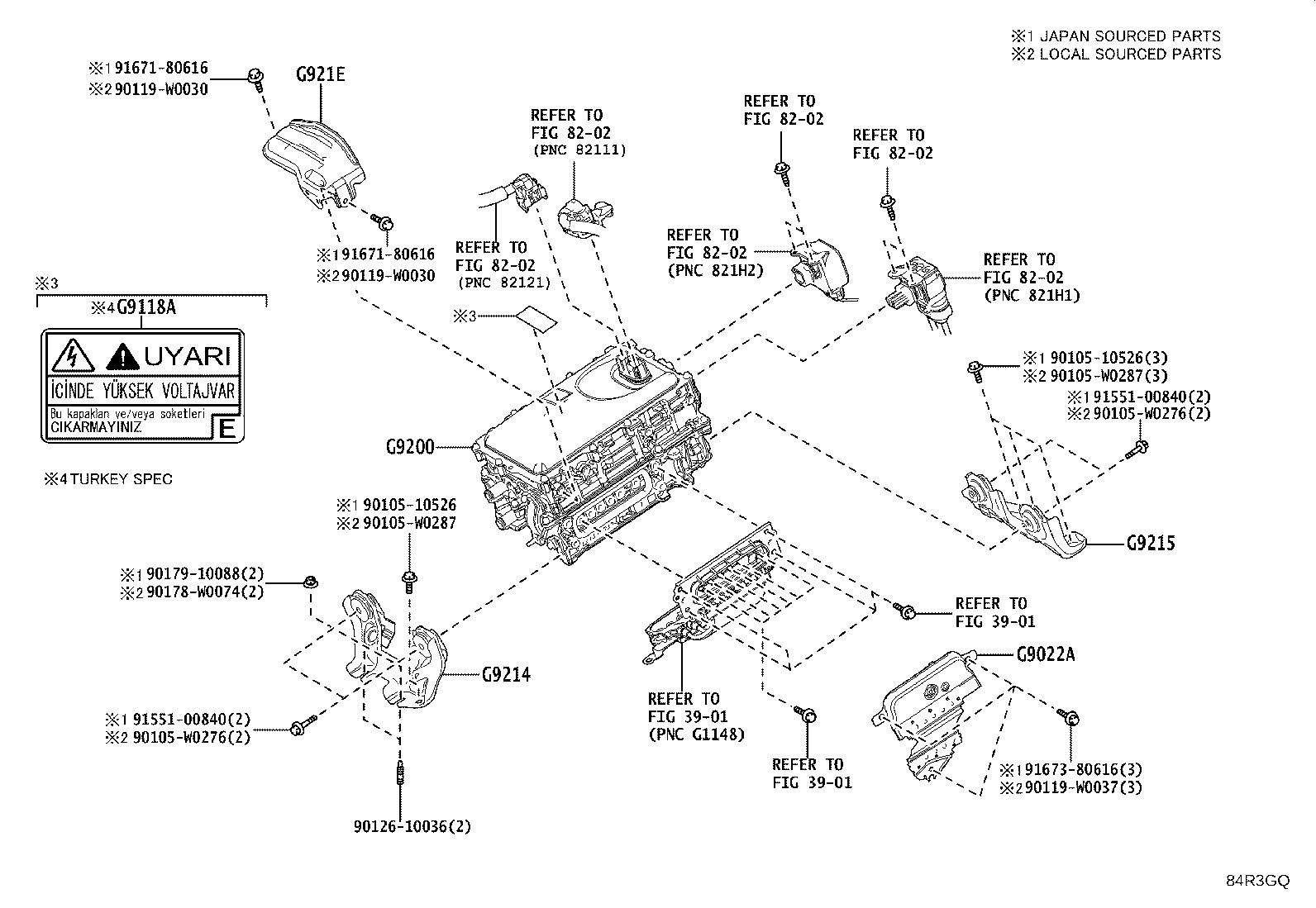

Figure 84M064E 84M064E 2020-07 → — Figure 84R3GQ 84R3GQ 2024-01 → — Figure 84N872B 84N872B 2020-07 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G921E Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
