Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 3 illustrations

Illustrations

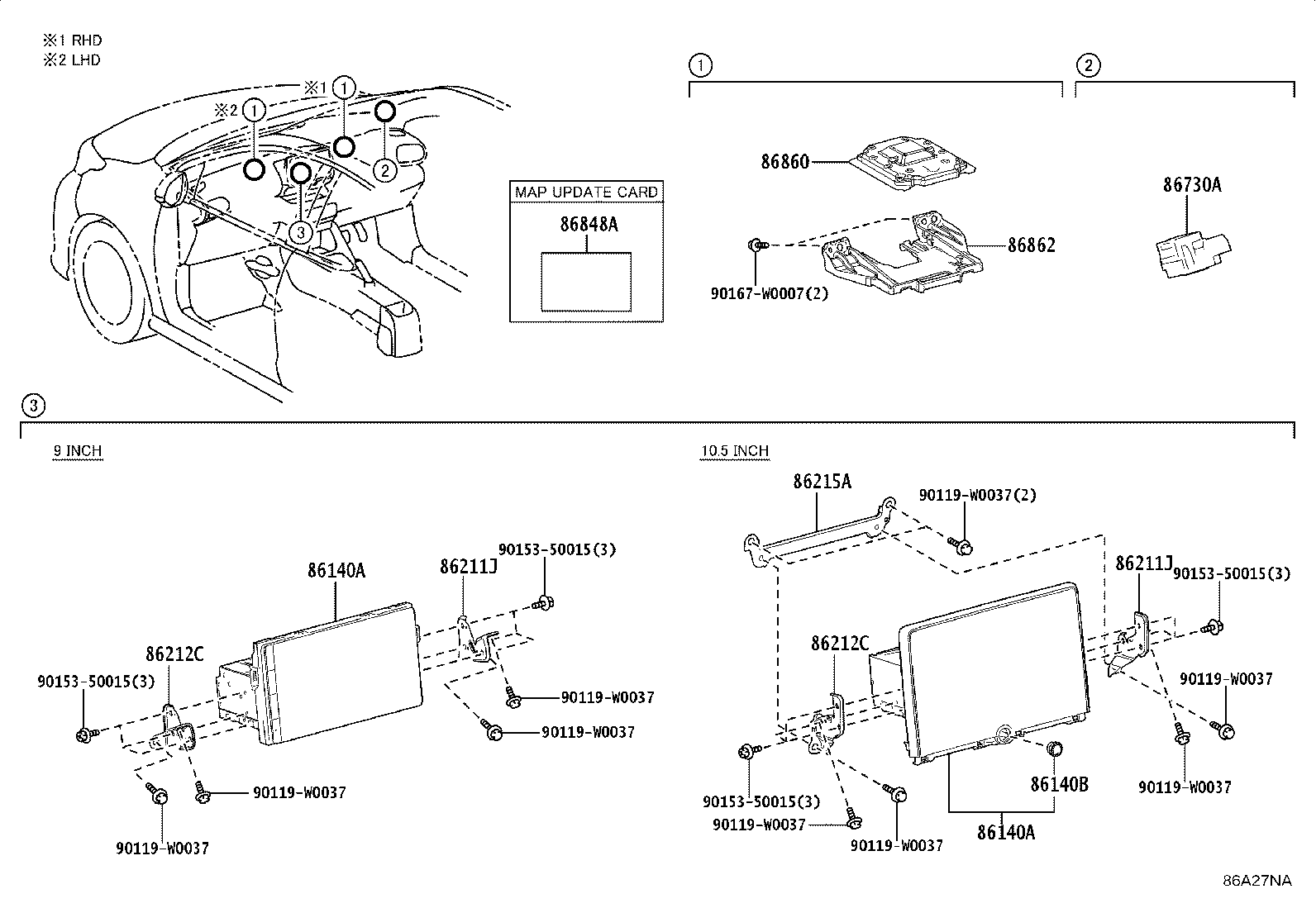

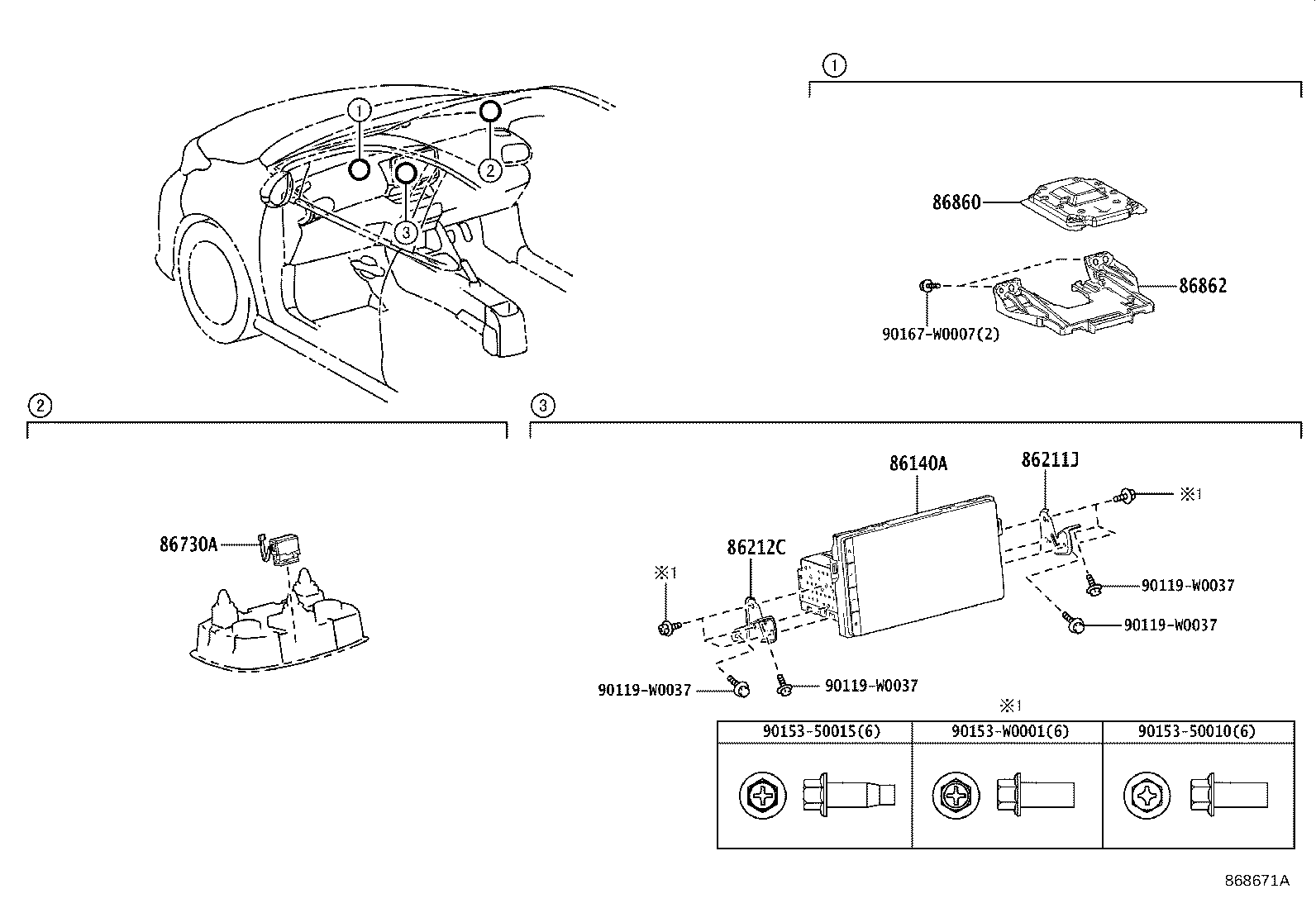

Figure 868139B 868139B 2020-07 → — Figure 868671A 868671A 2021-06 → — Figure 86A27NA 86A27NA 2024-01 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86215A Bracket, Radio Receiver, Rear
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
