Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12
Telephone & Mayday

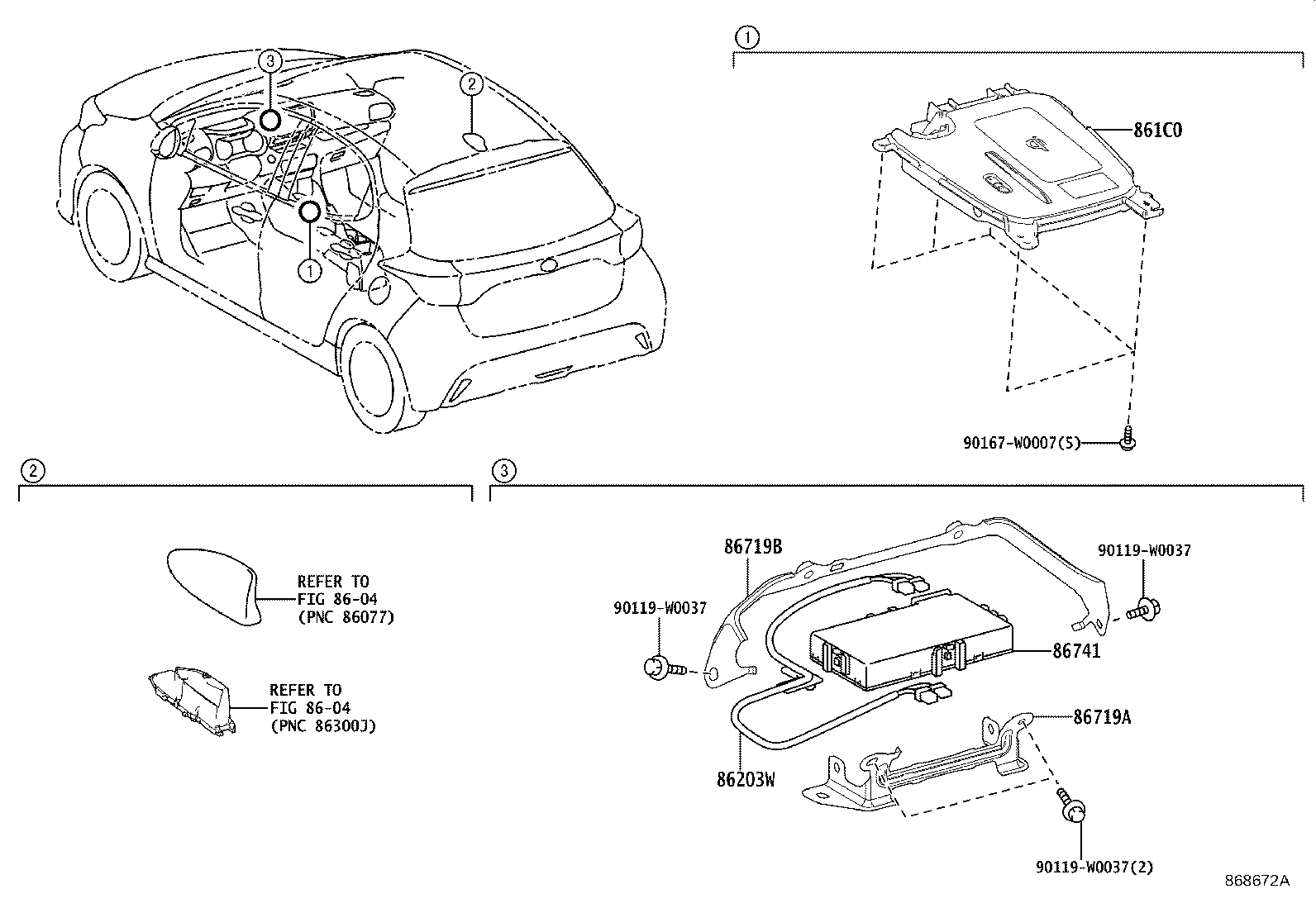

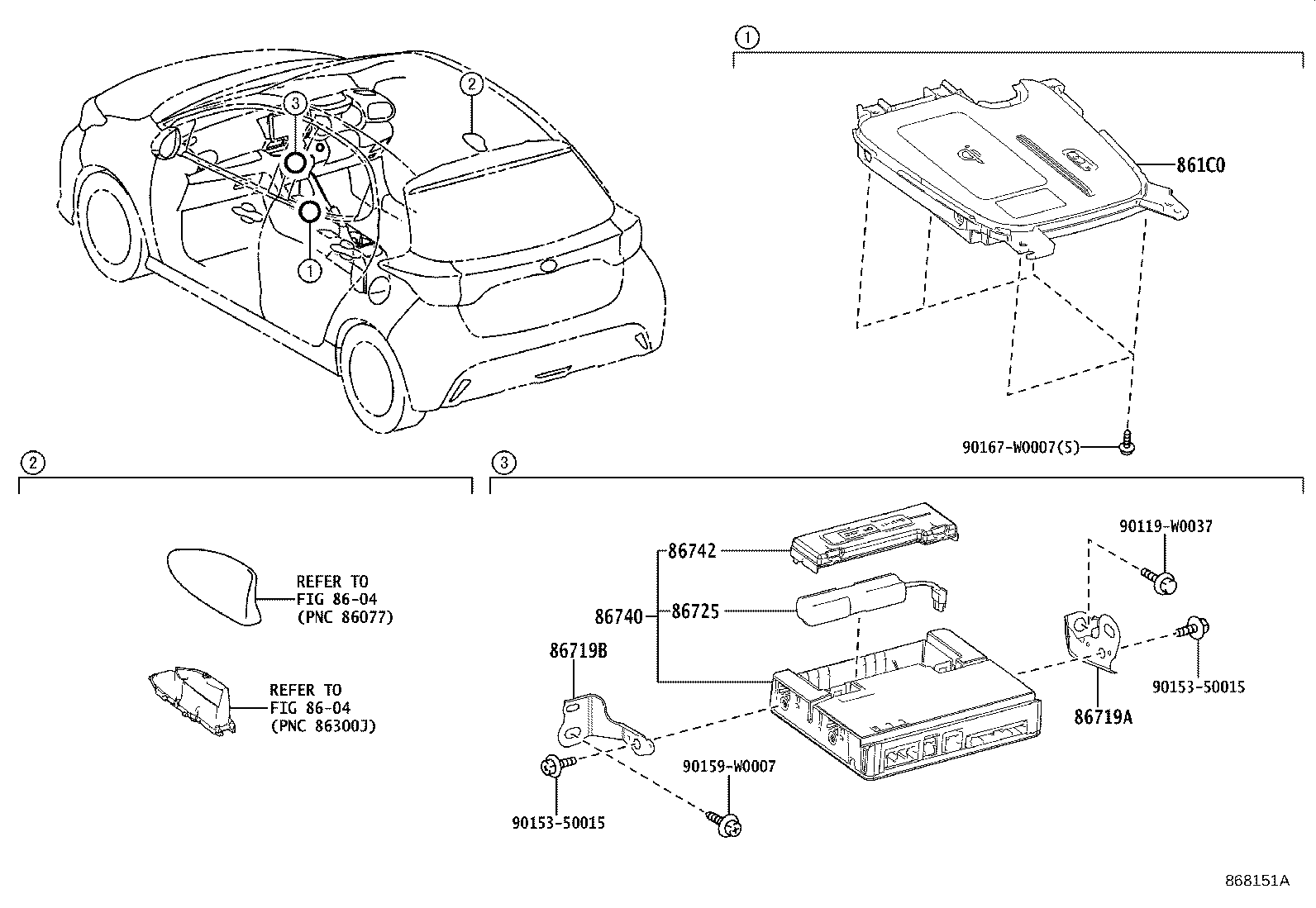

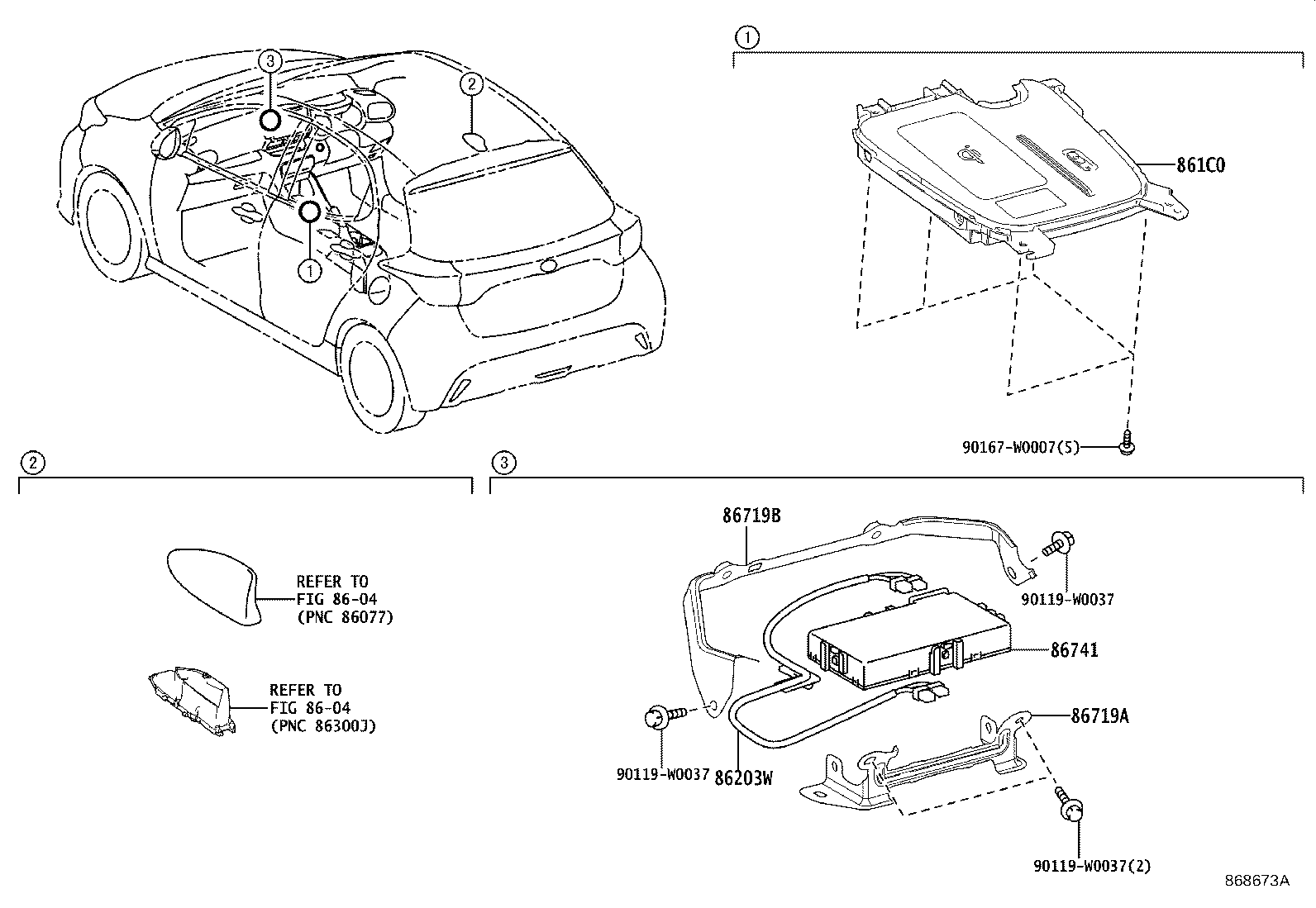

8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86203W | Wiring Sub-assy, Radio |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741 | Transceiver, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
