Toyota Urban Cruiser
2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe
Supported model
Data version 2016-10

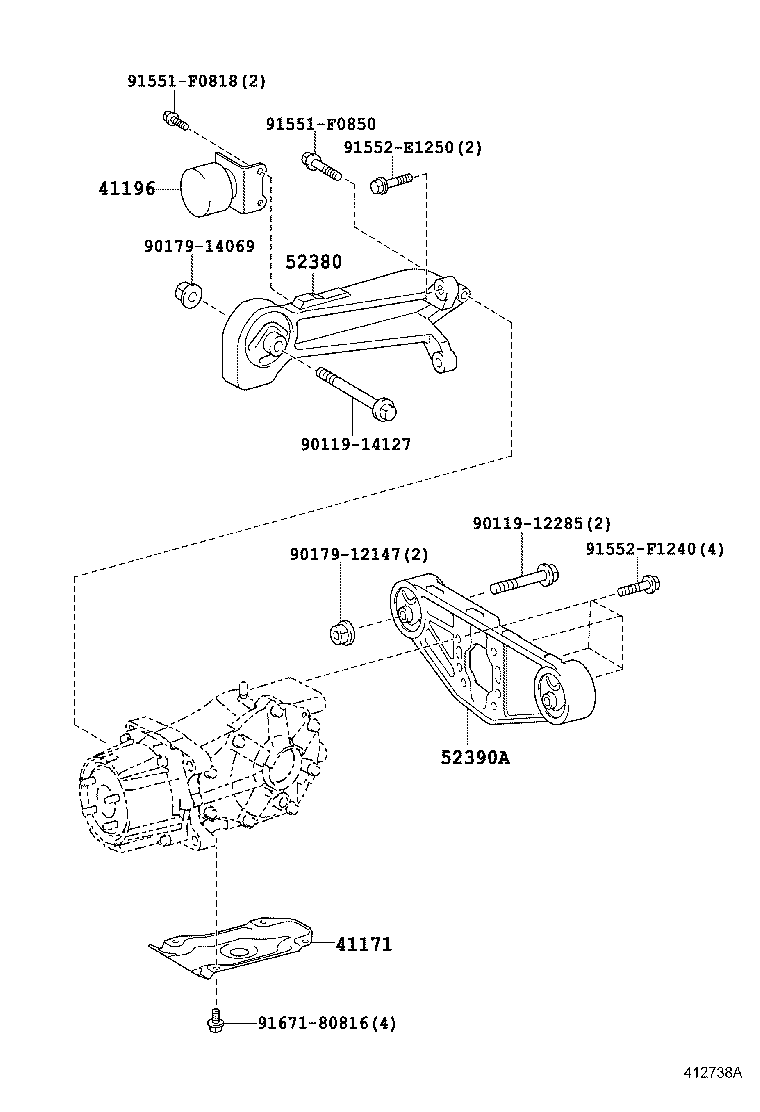

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41171 — Protector, Differential, Rear | ||||
| 41171-52010 |
Protector, Differential, Rear
2009-02 → 2014-05
ended
|
NLP115 | — | |
| 41196 — Damper, Rear Differential Dynamic | ||||
| 41196-52010 |
Damper, Rear Differential Dynamic
2009-02 → 2014-05
ended
|
NLP115 | — | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-52010 |
Support, Rear Differential, NO.1
2009-02 → 2014-05
ended
|
NLP115 | — | |
| 52390A — Support Assy, Differential, Rear | ||||
| 52390-52010 |
Support Assy, Differential, Rear
2009-02 → 2014-05
ended
|
NLP115 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
