Toyota Urban Cruiser
2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe
Supported model
Data version 2016-10

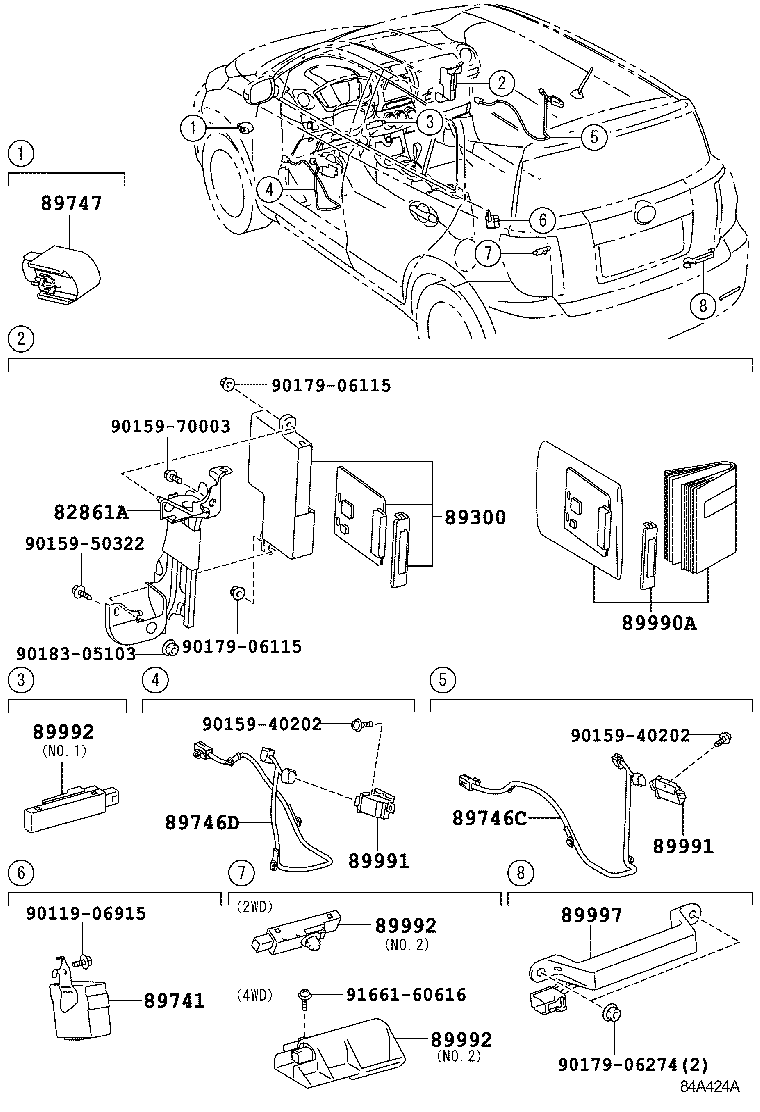

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82861A — Bracket, Computer Integration, NO.1 | ||||
| 82860-52010 note |
Bracket, Computer Integration, NO.1
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
| 82861-52010 note |
Bracket, Computer Integration, NO.1
2009-01 → 2014-05
ended
|
NSP110 RHD | — | |
| 82861-52020 note |
Bracket, Computer Integration, NO.1
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89300 — Box Assy, Ecu Aggregation | ||||
| 89300-52080 |
Box Assy, Ecu Aggregation
2012-06 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89300-52080 note |
Box Assy, Ecu Aggregation
2012-06 → —
|
NSP110 LHD N | — | |
| 89300-52080 note |
Box Assy, Ecu Aggregation
2012-06 → —
|
NLP11#,NSP110 LHD N | — | |
| 89300-52120 |
Box Assy, Ecu Aggregation
2009-01 → 2010-08
ended
|
NLP11#,NSP110 RHD | — | |
| 89300-52120 note |
Box Assy, Ecu Aggregation
2009-01 → 2010-08
ended
|
NLP11#,NSP110 LHD N | — | |
| 89300-52120 note |
Box Assy, Ecu Aggregation
2009-01 → 2010-08
ended
|
NSP110 LHD N | — | |
| 89300-52130 note |
Box Assy, Ecu Aggregation
2009-01 → 2010-08
ended
|
NLP11#,NSP110 RHD | — | |
| 89300-52150 |
Box Assy, Ecu Aggregation
2010-08 → 2012-06
ended
|
NLP11#,NSP110 RHD | — | |
| 89300-52150 note |
Box Assy, Ecu Aggregation
2010-08 → 2012-06
ended
|
NLP11#,NSP110 LHD N | — | |
| 89300-52150 note |
Box Assy, Ecu Aggregation
2010-08 → 2012-06
ended
|
NSP110 LHD N | — | |
| 89300-52160 note |
Box Assy, Ecu Aggregation
2010-08 → 2012-06
ended
|
NLP11#,NSP110 RHD | — | |
| 89300-52170 note |
Box Assy, Ecu Aggregation
2012-06 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89741 — Receiver, Door Control | ||||
| 89740-52051 |
Receiver, Door Control
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89740-52051 note |
Receiver, Door Control
2009-01 → 2016-03
ended
|
NLP11#,NSP110 LHD N | — | |
| 89741-52252 |
Receiver, Door Control
2009-01 → 2010-08
ended
|
NLP11#,NSP110 LHD | — | |
| 89741-52252 note |
Receiver, Door Control
2009-01 → 2010-08
ended
|
NLP11#,NSP110 LHD N | — | |
| 89741-52440 note |
Receiver, Door Control
2012-06 → —
|
NLP11#,NSP110 LHD N | — | |
| 89741-52440 |
Receiver, Door Control
2012-06 → —
|
NLP11#,NSP110 LHD | — | |
| 89741-52600 |
Receiver, Door Control
2010-09 → 2012-06
ended
|
NLP11#,NSP110 LHD | — | |
| 89741-52600 note |
Receiver, Door Control
2010-09 → 2012-06
ended
|
NLP11#,NSP110 LHD N | — | |
| 89746C — Harness, Electrical Key Wire, NO.1 | ||||
| 89746-52140 |
Harness, Electrical Key Wire, NO.1
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89746-52140 note |
Harness, Electrical Key Wire, NO.1
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
| 89746D — Harness, Electrical Key Wire, NO.2 | ||||
| 89746-52150 |
Harness, Electrical Key Wire, NO.2
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89746-52150 note |
Harness, Electrical Key Wire, NO.2
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-52010 |
Buzzer, Wireless Door Lock
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-52230 |
Computer Assy, Smart Key
2009-01 → 2010-08
ended
|
NLP11#,NSP110 RHD | — | |
| 89990-52230 note |
Computer Assy, Smart Key
2009-01 → 2010-08
ended
|
NLP11#,NSP110 LHD N | — | |
| 89990-52280 |
Computer Assy, Smart Key
2010-08 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89990-52280 note |
Computer Assy, Smart Key
2010-08 → —
|
NLP11#,NSP110 LHD N | — | |
| 89991 — Oscillator, Door Electrical Key | ||||
| 89991-30040 note |
Oscillator, Door Electrical Key
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89991-30040 note |
Oscillator, Door Electrical Key
2009-01 → 2016-04
ended
|
NLP11#,NSP110 LHD N | — | |
| 89991-30050 note |
Oscillator, Door Electrical Key
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89991-30050 note |
Oscillator, Door Electrical Key
2009-01 → 2016-04
ended
|
NLP11#,NSP110 LHD N | — | |
| 89992 — Oscillator, Indoor Electrical Key | ||||
| 89992-52010 note |
Oscillator, Indoor Electrical Key
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89992-52010 note |
Oscillator, Indoor Electrical Key
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
| 89992-52020 note |
Oscillator, Indoor Electrical Key
2009-01 → 2014-05
ended
|
NLP110,NSP110 RHD | — | |
| 89992-52020 note |
Oscillator, Indoor Electrical Key
2009-01 → —
|
NLP110,NSP110 LHD N | — | |
| 89992-52030 note |
Oscillator, Indoor Electrical Key
2009-02 → 2014-05
ended
|
NLP115 RHD | — | |
| 89992-52030 note |
Oscillator, Indoor Electrical Key
2009-02 → 2014-05
ended
|
NLP115 LHD N | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-52010 |
Antenna, Electrical Key
2009-01 → 2014-05
ended
|
NLP11#,NSP110 RHD | — | |
| 89997-52010 note |
Antenna, Electrical Key
2009-01 → —
|
NLP11#,NSP110 LHD N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
