Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

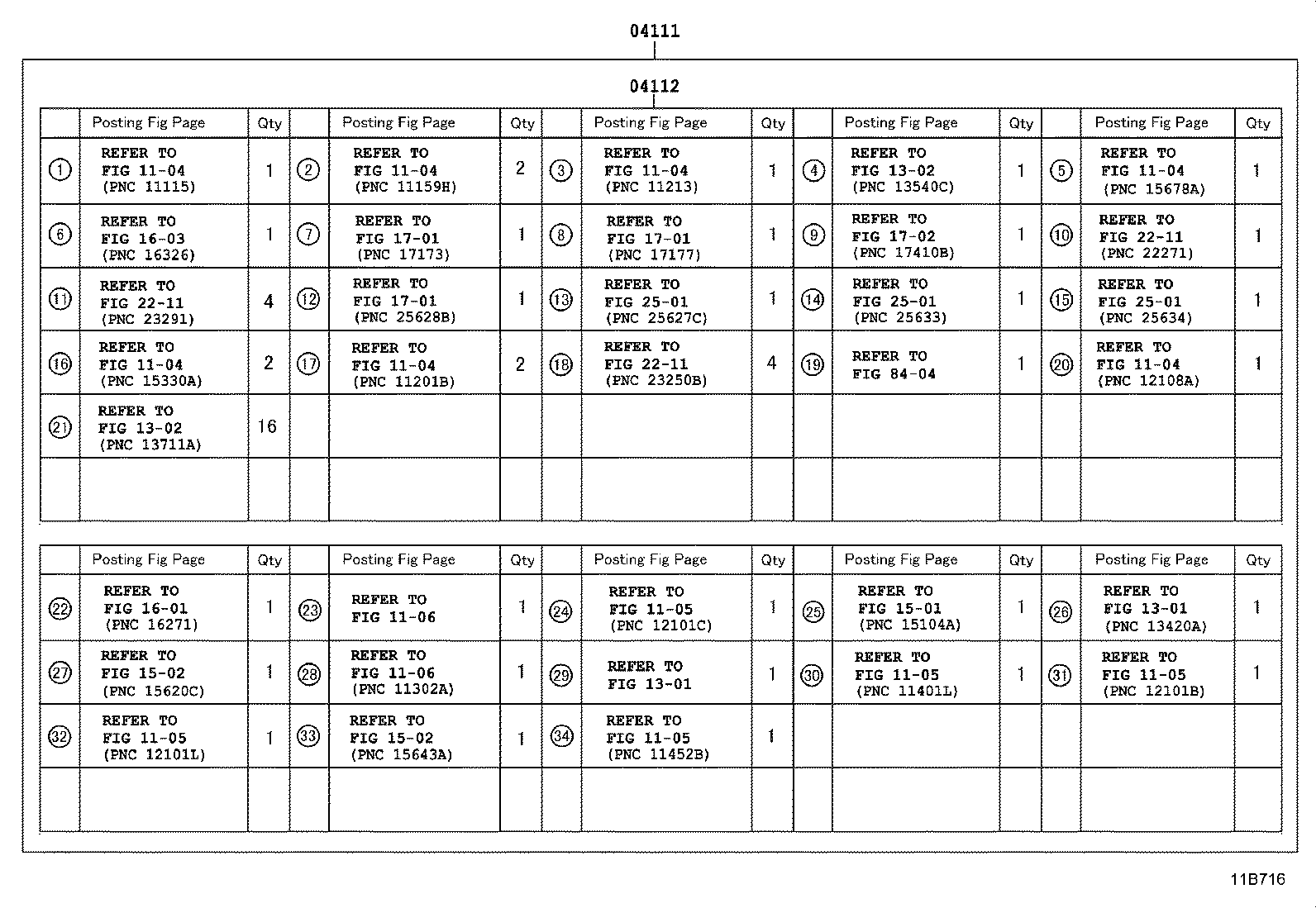

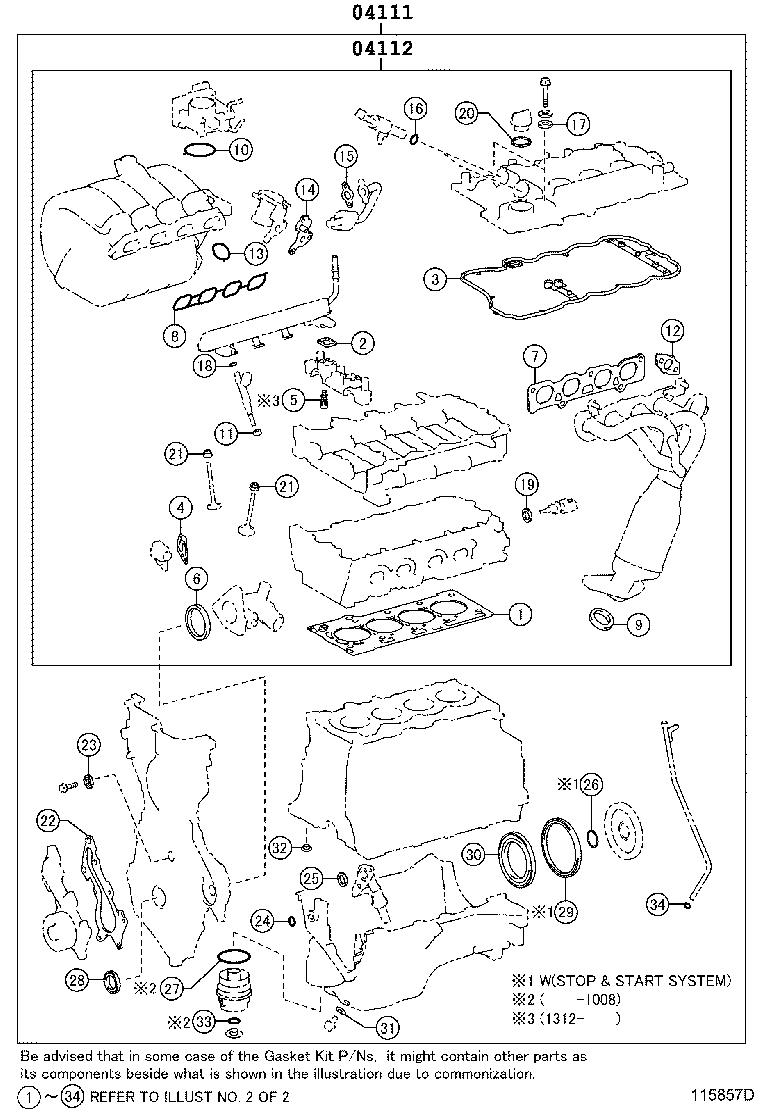

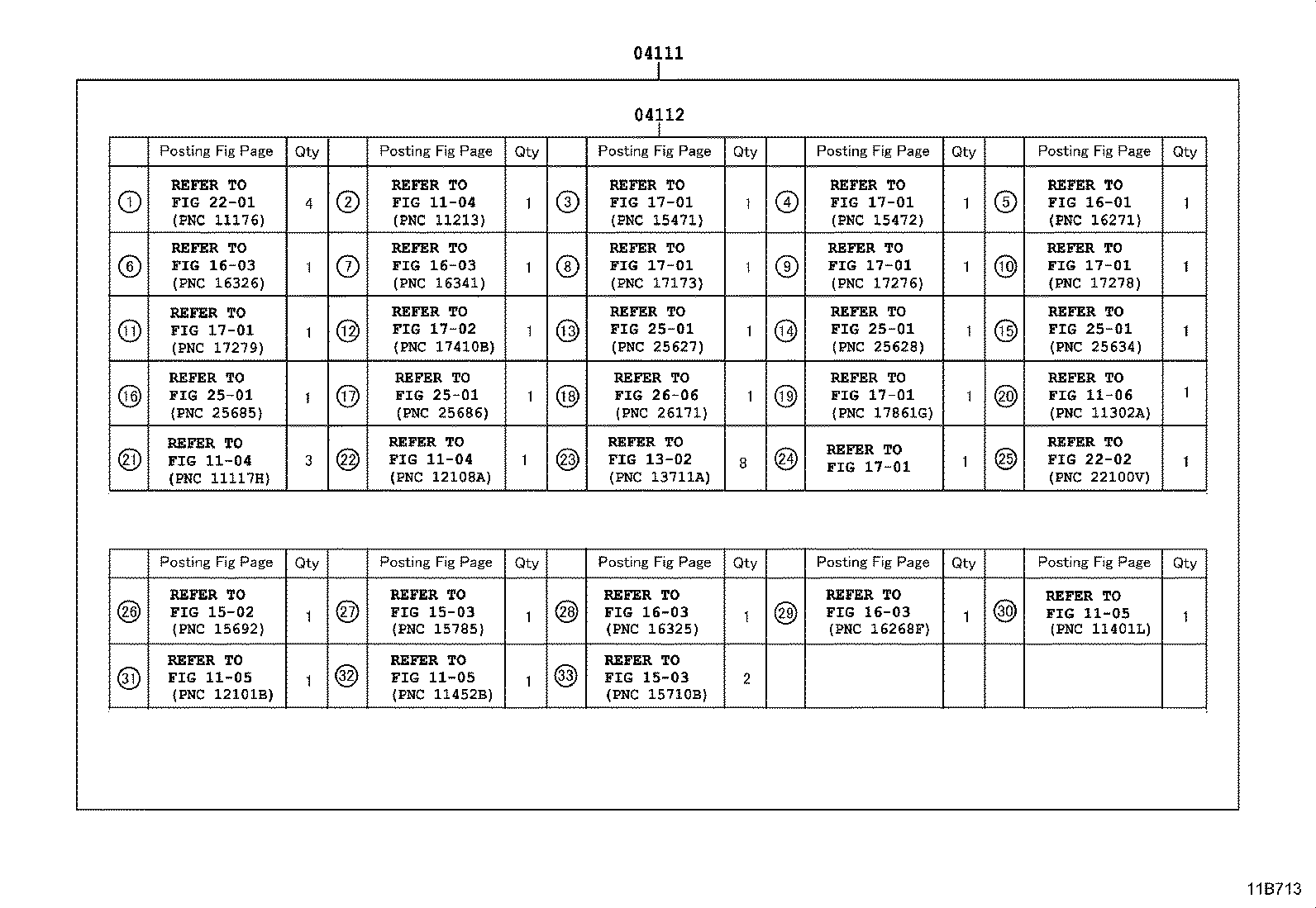

Figure 115856B 115856B 2009-01 → — Figure 11B713 11B713 2009-01 → — Figure 115857D 115857D 2009-01 → — Figure 11B716 11B716 2009-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
