Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

5 part groups · 2 illustrations

Illustrations

Figure 151589C

151589C 2009-01 → 2010-08

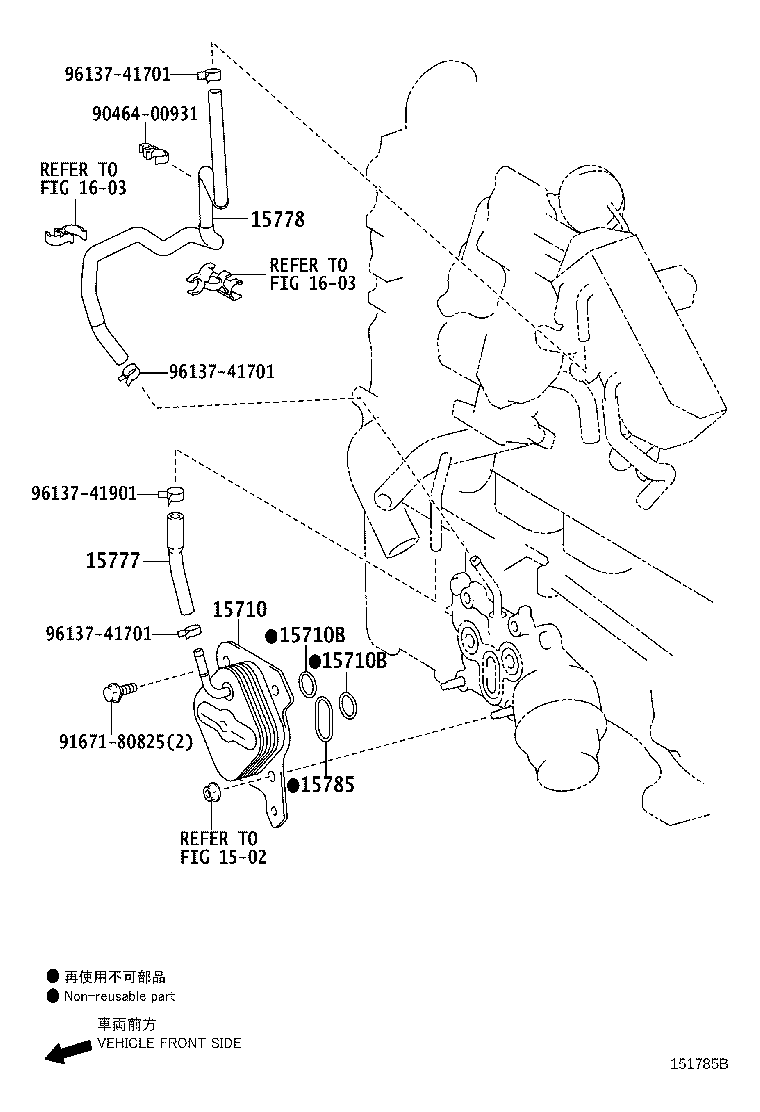

Figure 151785B

151785B 2010-08 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15777	Hose, Oil Cooler
15778	Hose, Oil Cooler, NO.2
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
