Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

57 part groups · 7 illustrations

Illustrations

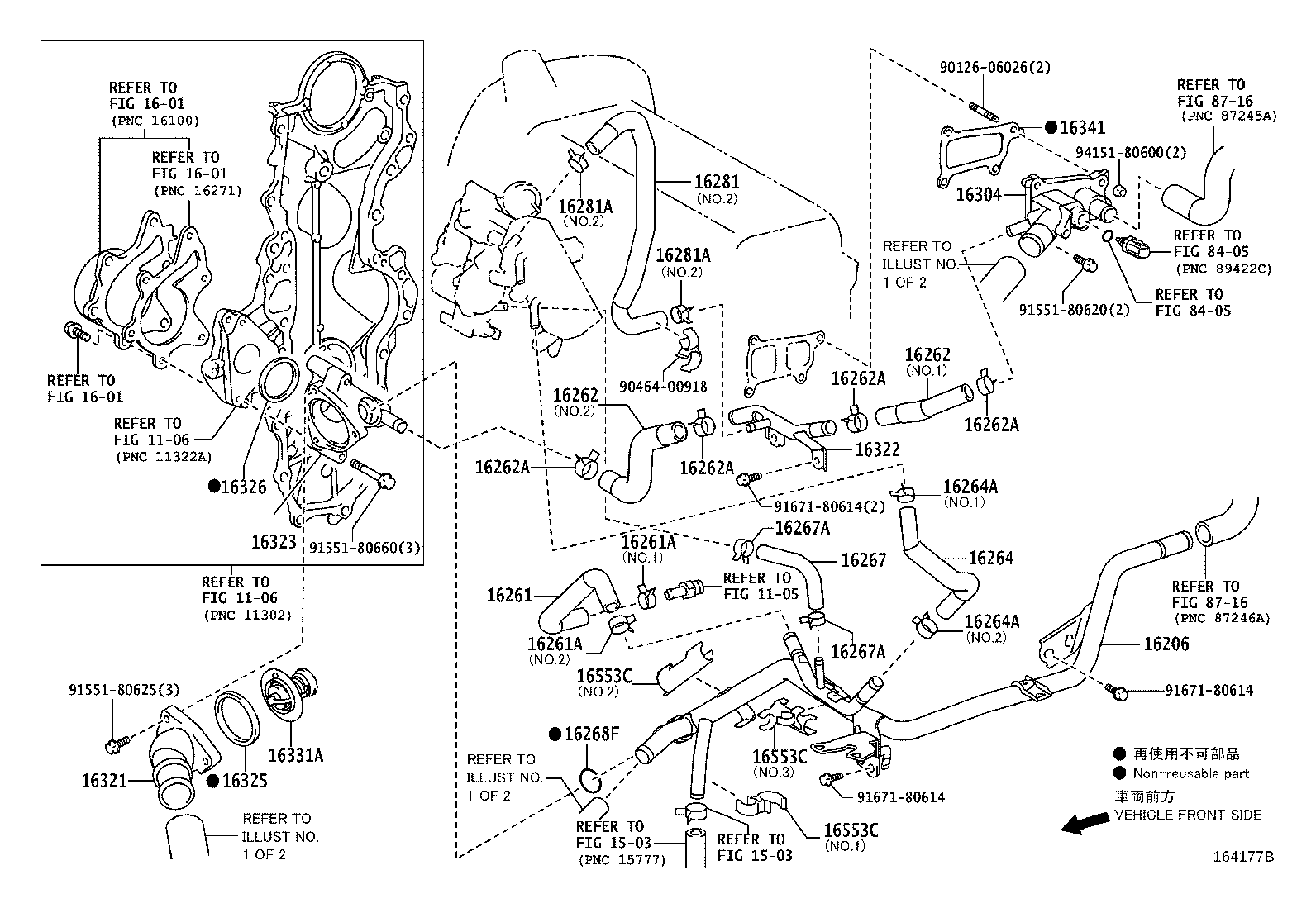

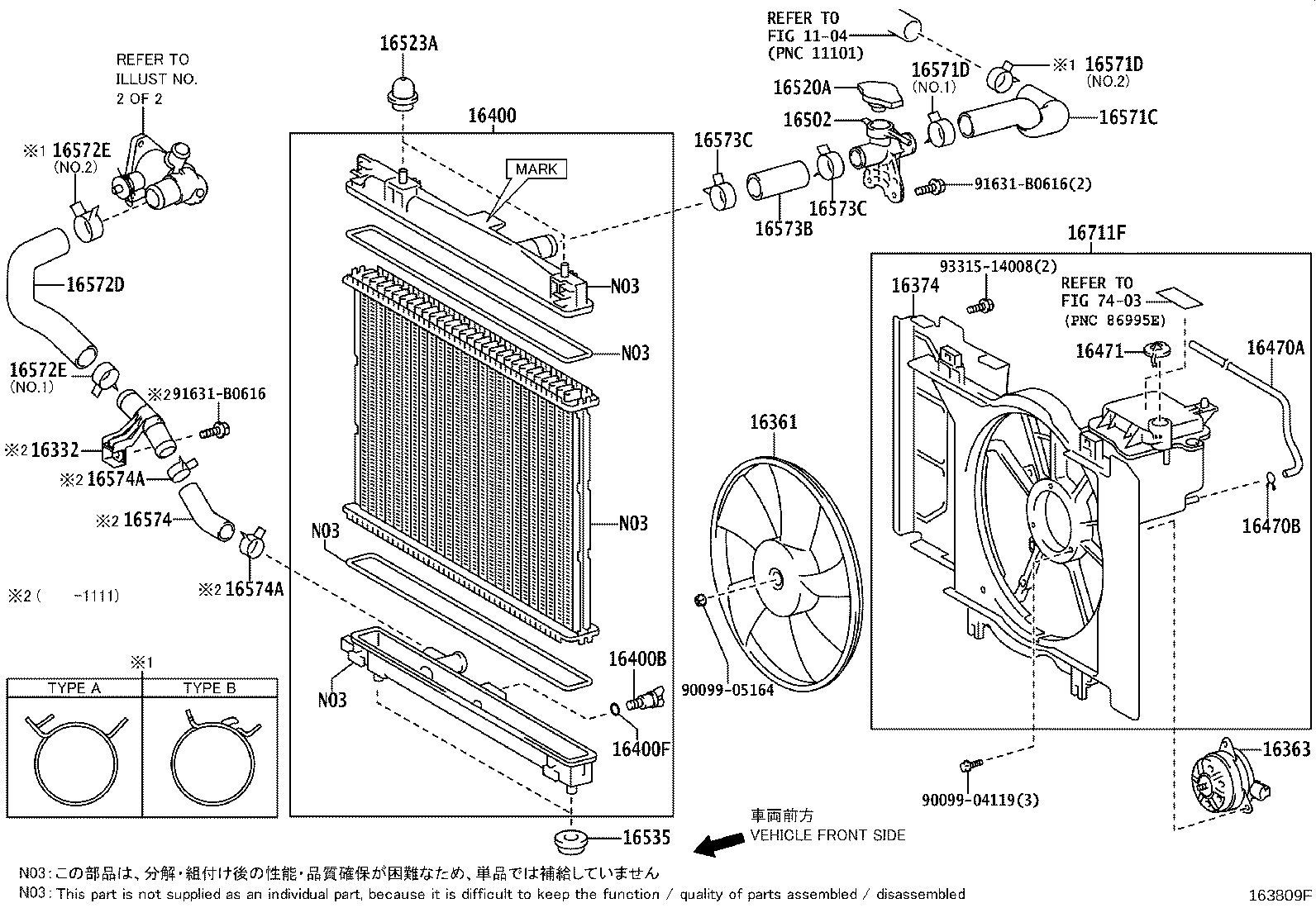

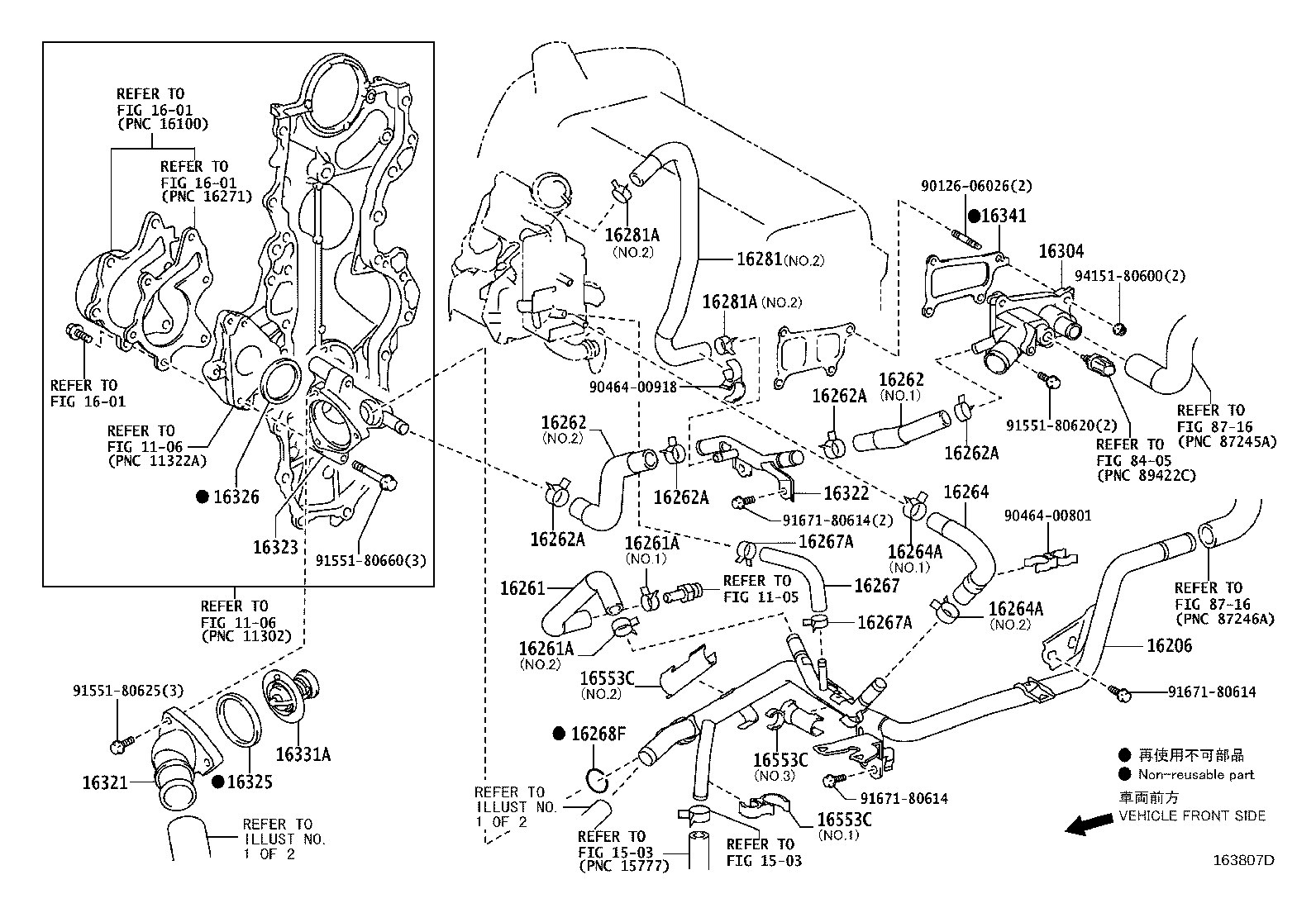

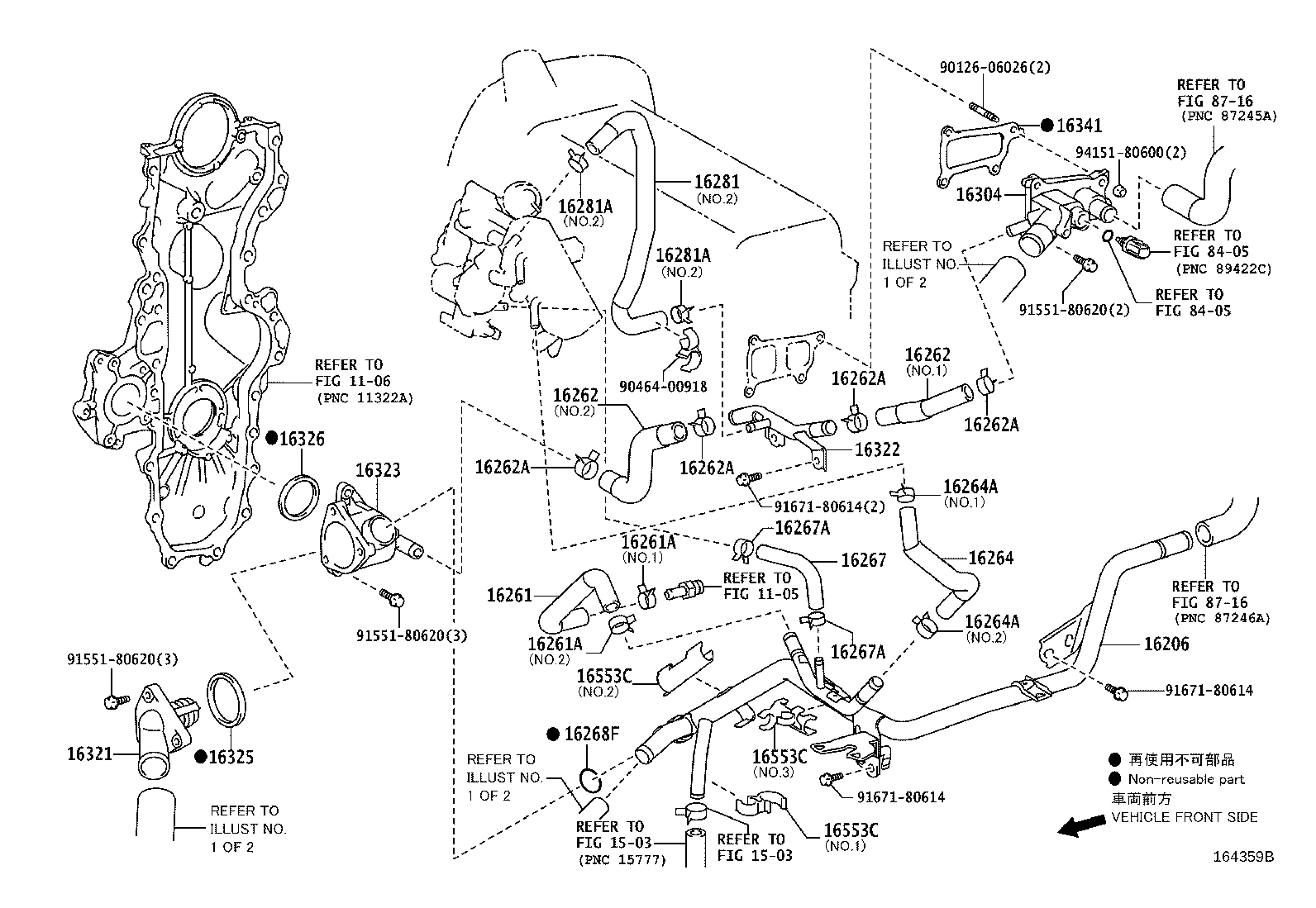

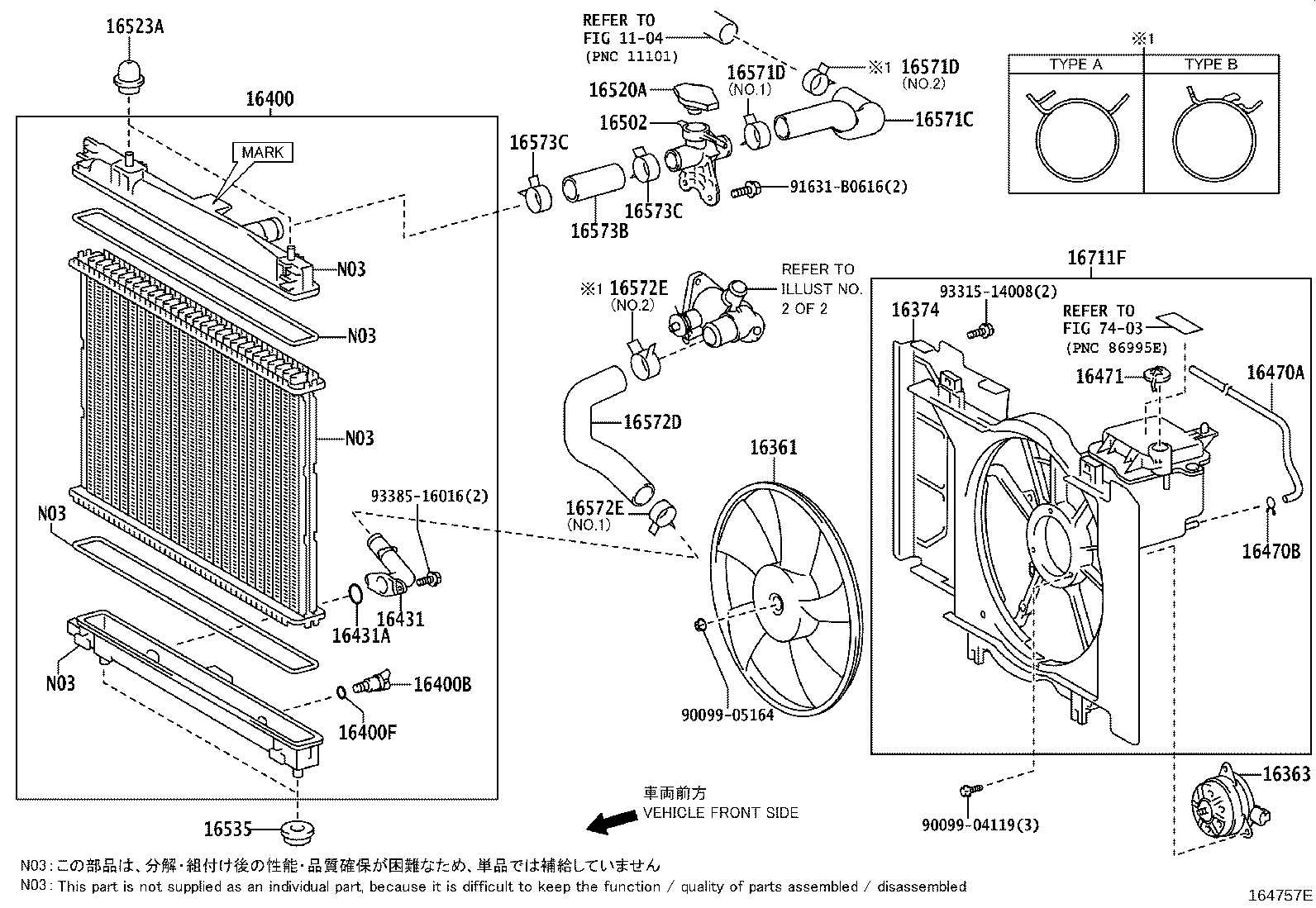

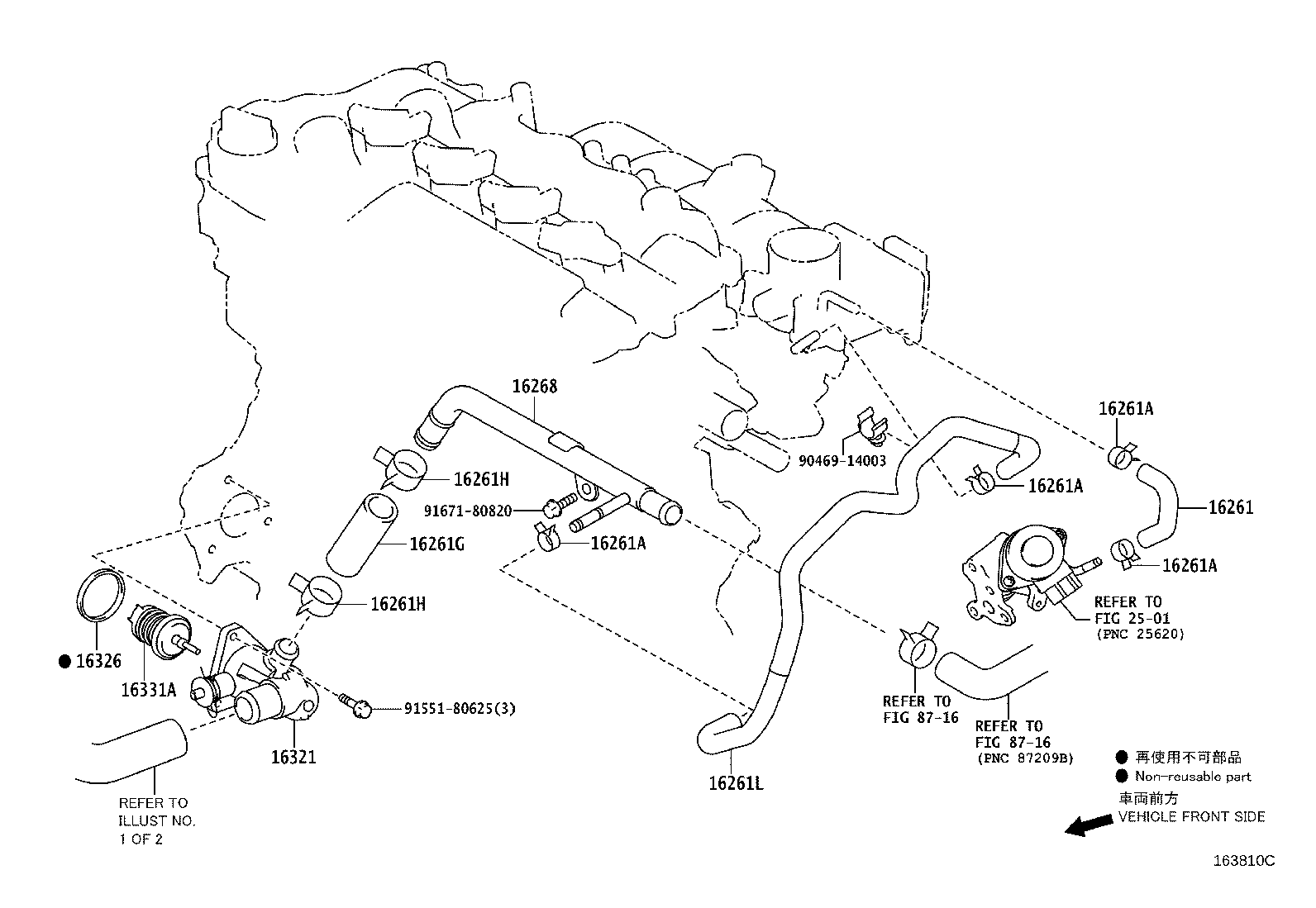

Figure 163806C 163806C 2009-01 → — Figure 163809F 163809F 2009-01 → 2012-05 Figure 164757E 164757E 2012-05 → — Figure 163807D 163807D 2009-01 → 2010-08 Figure 164177B 164177B 2010-08 → 2010-09 Figure 164359B 164359B 2010-09 → — Figure 163810C 163810C 2009-01 → —

Part groups

PNCDescription
16206 Pipe Sub-assy, Water By-pass
16260 Hose Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16361 Fan
16363 Motor, Cooling Fan
16374 Insulator, Cooling Fan Motor
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16431 Inlet, Radiator Water
16431A Ring, O(FOR RADIATOR WATER INLET)
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16502 Filler Sub-assy, Water
16520A Cap Sub-assy, Water Filler
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16553C Clamp, Hose
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16611 Bracket, Radiator Reserve Tank
16612 Bracket, Radiator Reserve Tank, NO.2
16711 Shroud, Fan
16711F Shroud, Fan(W/RADIATOR RESERVE TANK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
