Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

17 part groups · 5 illustrations

Illustrations

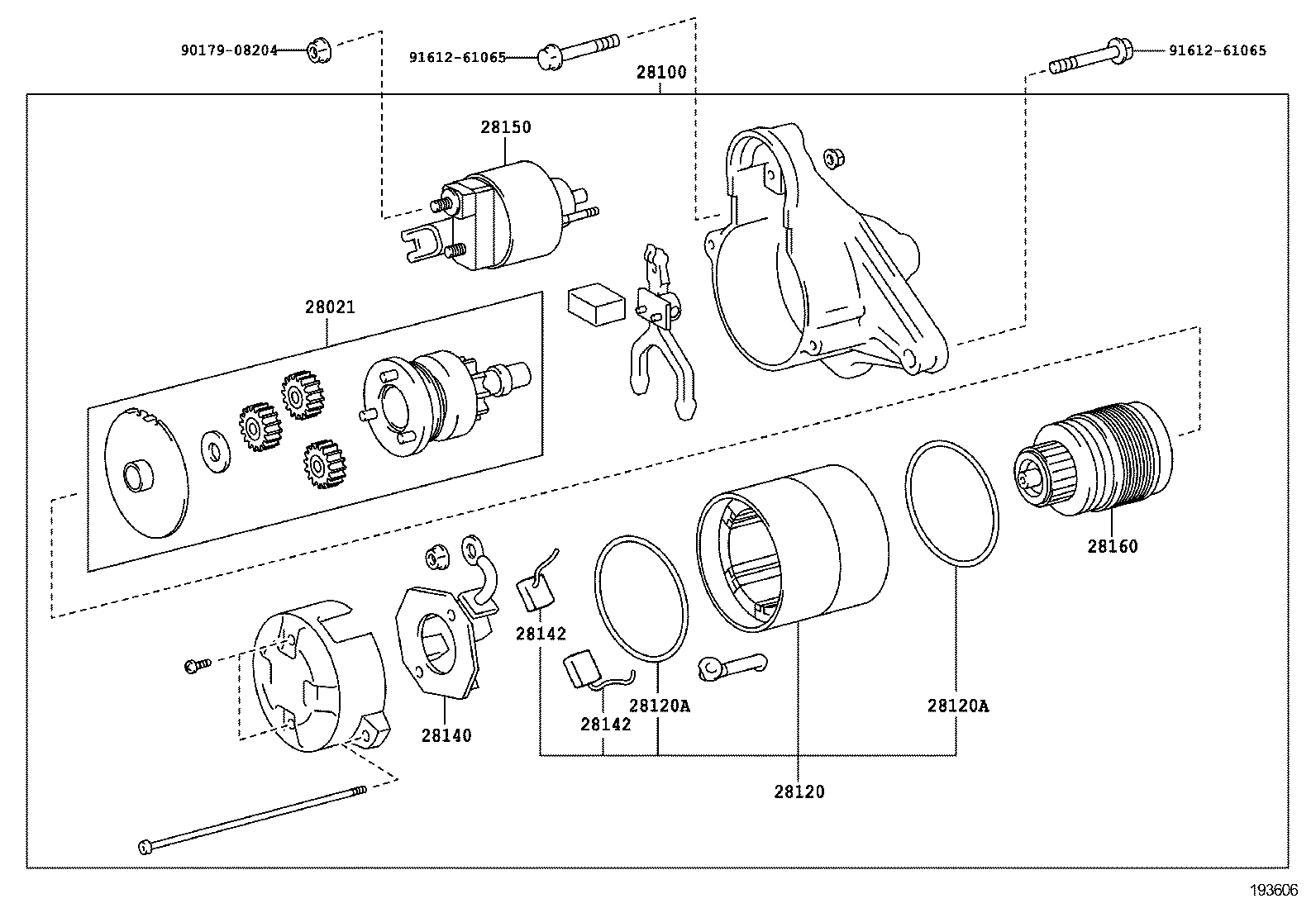

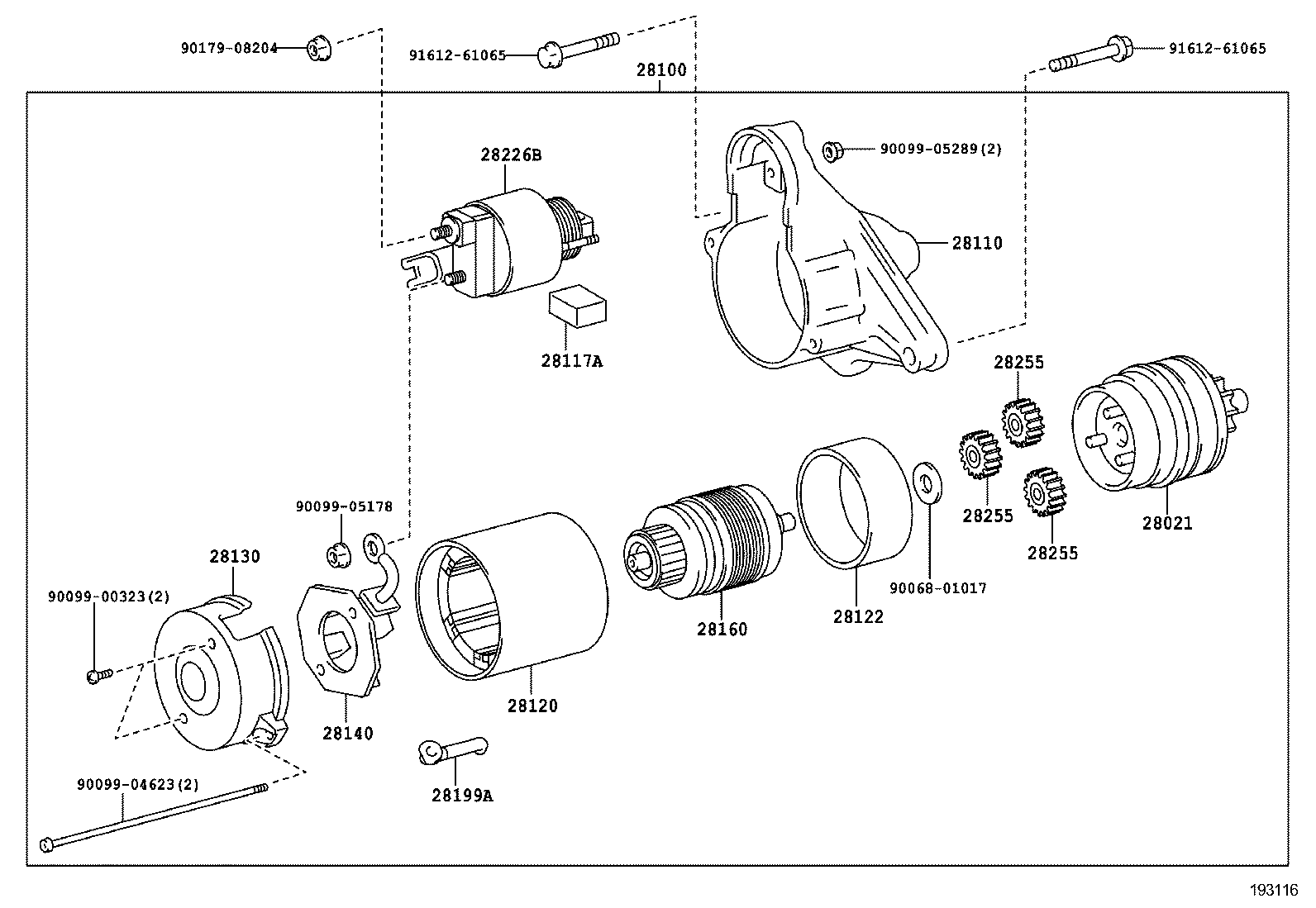

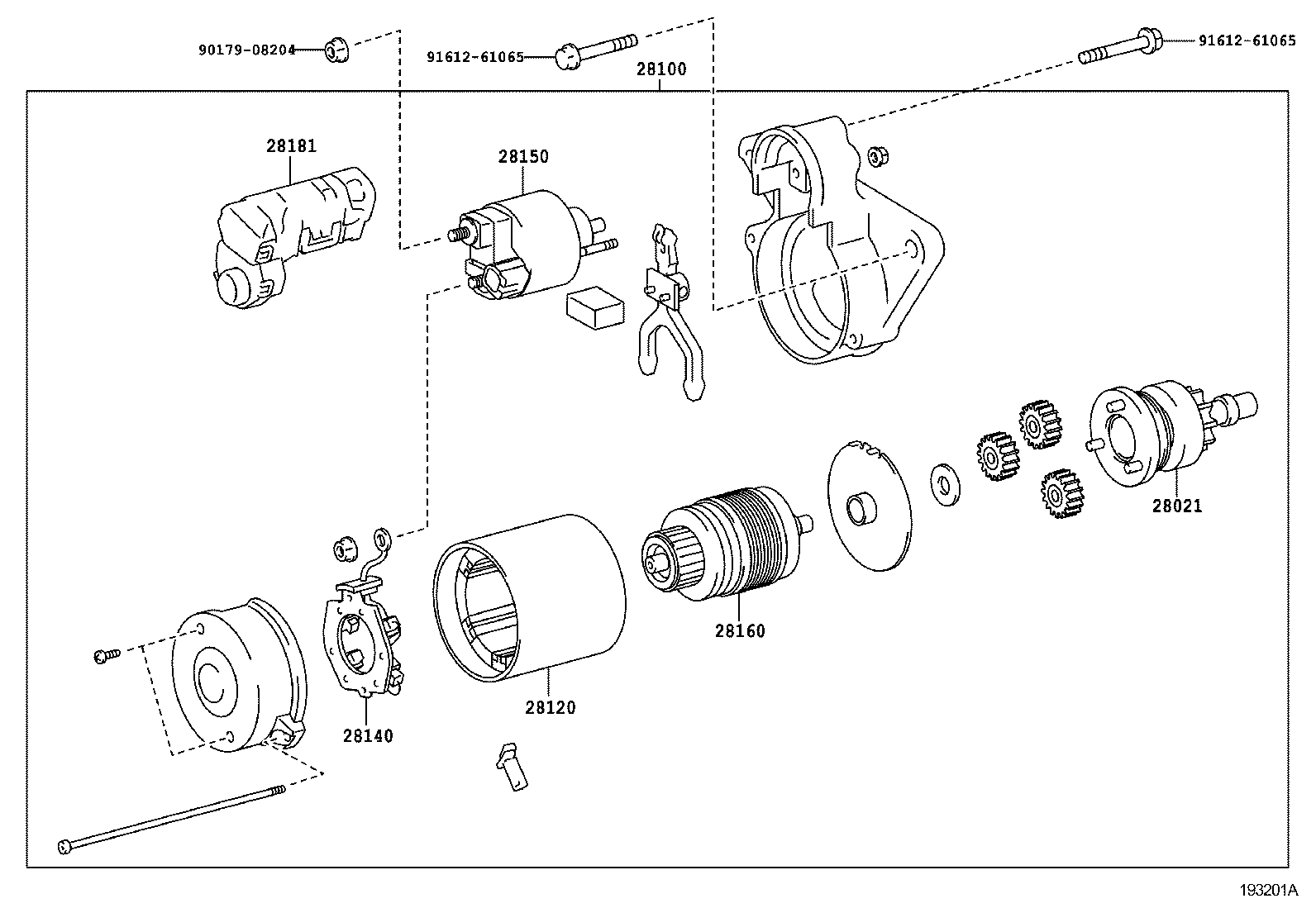

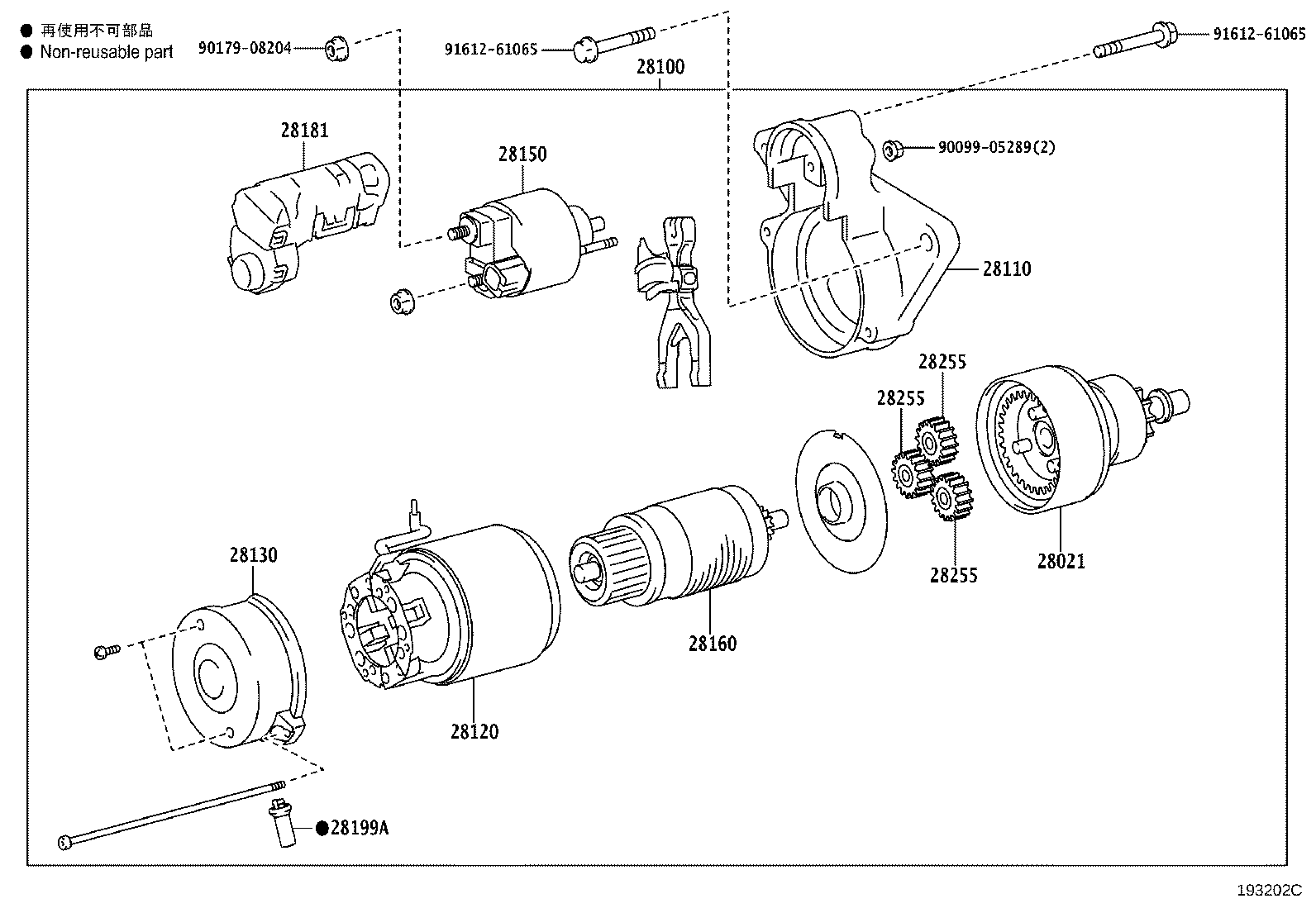

Figure 193114A 193114A 2009-01 → 2011-01 Figure 193606 193606 2011-01 → — Figure 193116 193116 2009-01 → — Figure 193201A 193201A 2009-01 → — Figure 193202C 193202C 2009-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28122 Collar, Space
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28181 Terminal, Starter
28199A Protector, Dust Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
