Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

17 part groups · 2 illustrations

Illustrations

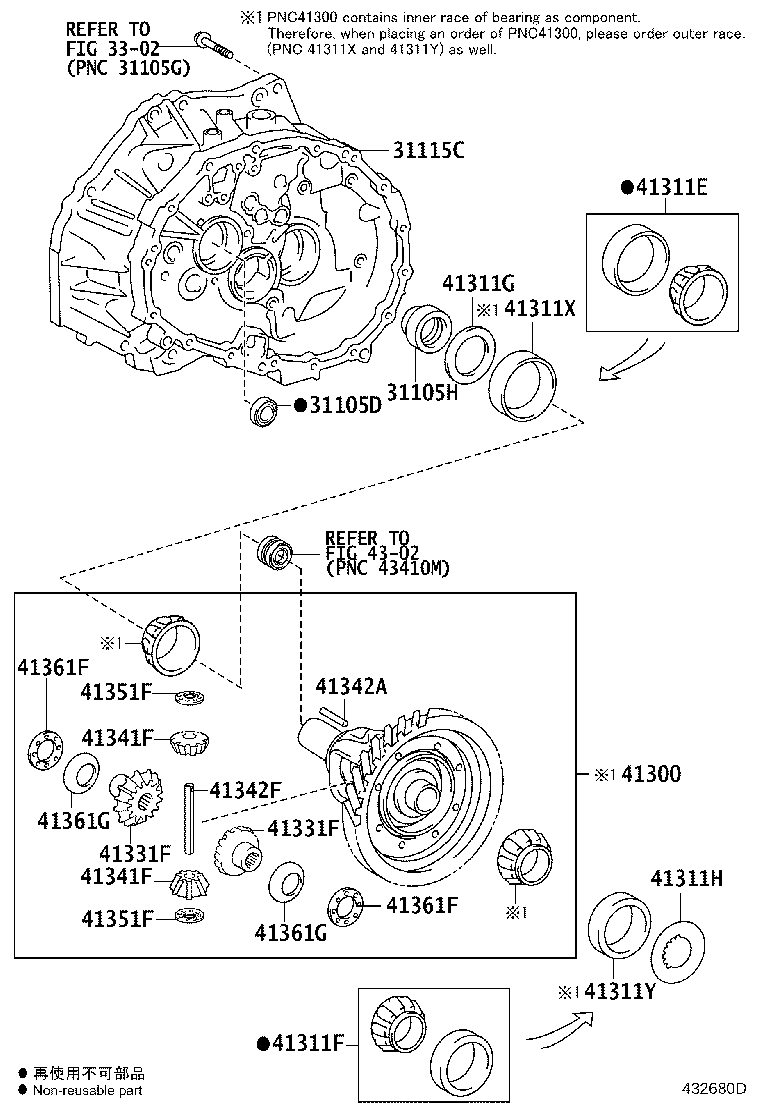

Figure 432159Y 432159Y 2009-01 → — Figure 432680D 432680D 2009-01 → —

Part groups

PNCDescription
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
31105H Seal, Oil, NO.2(FOR TRANSAXLE CASE)
31115C Case, Front Transaxle(MTM)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
41311H Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
41311X Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
41311Y Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
41361G Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
