Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 8 illustrations

Illustrations

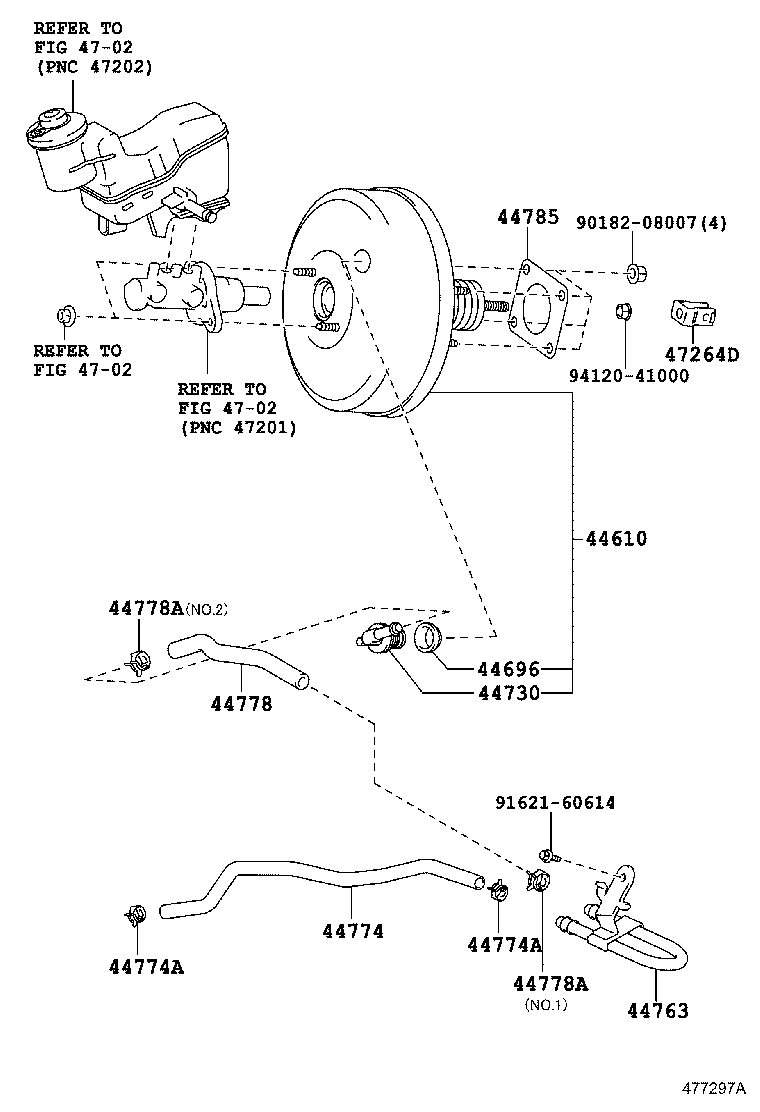

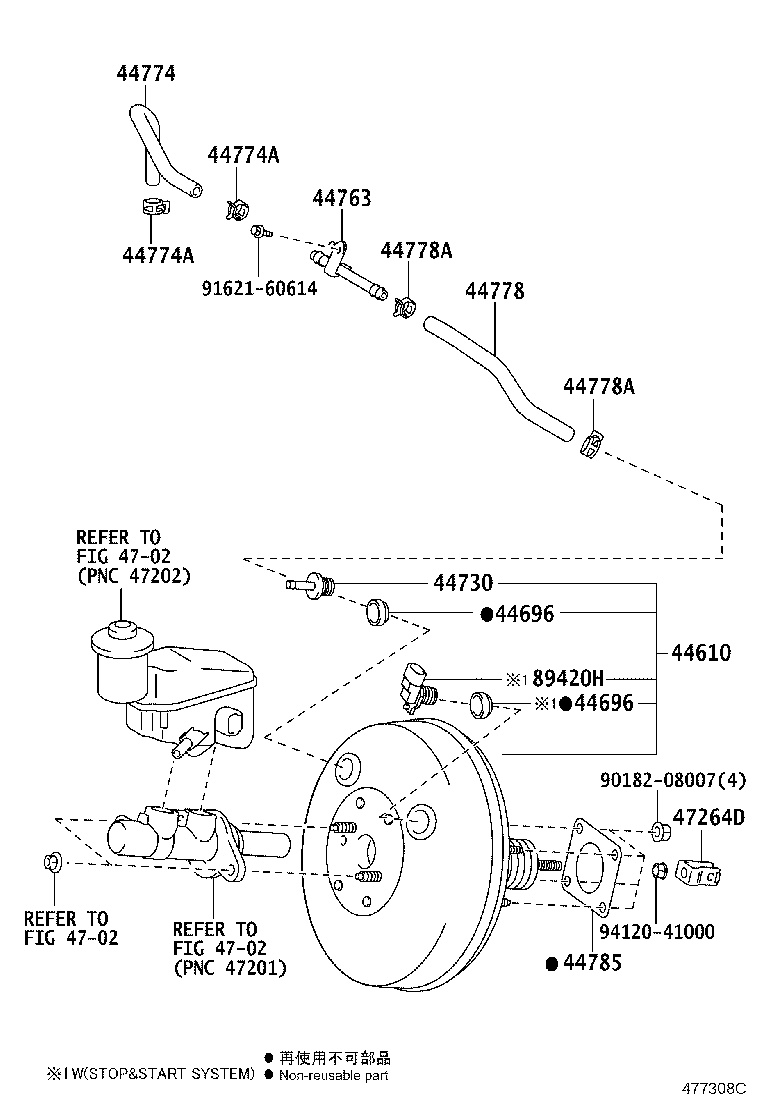

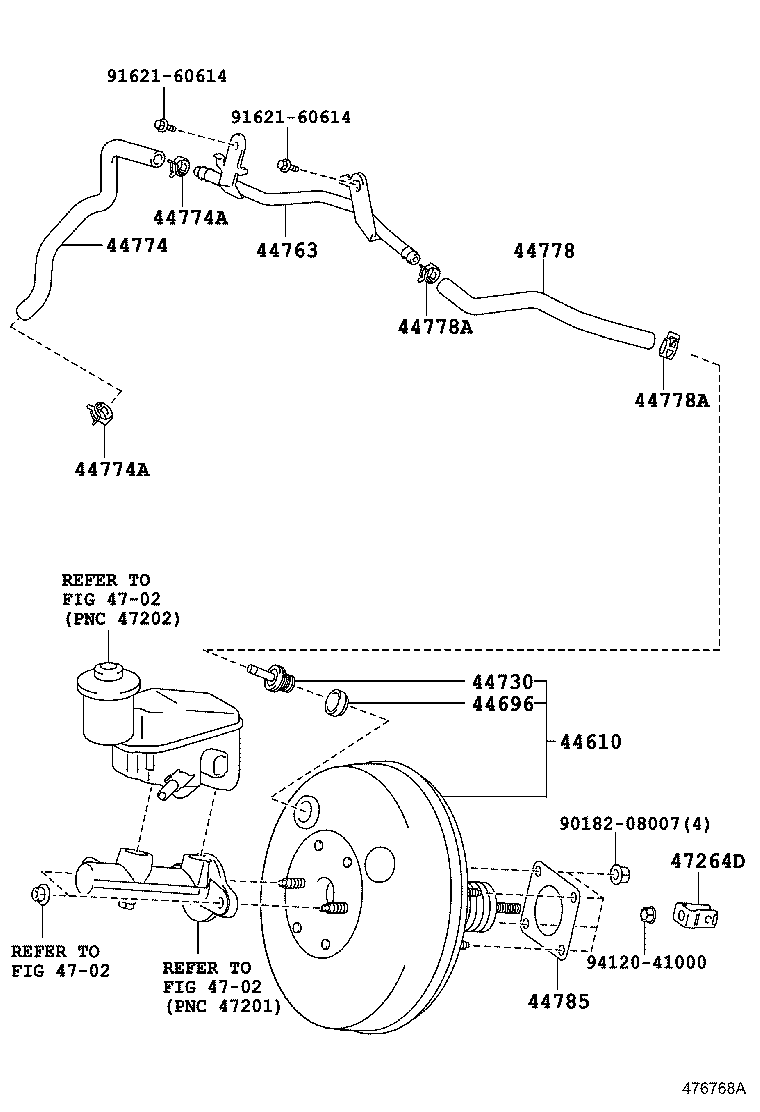

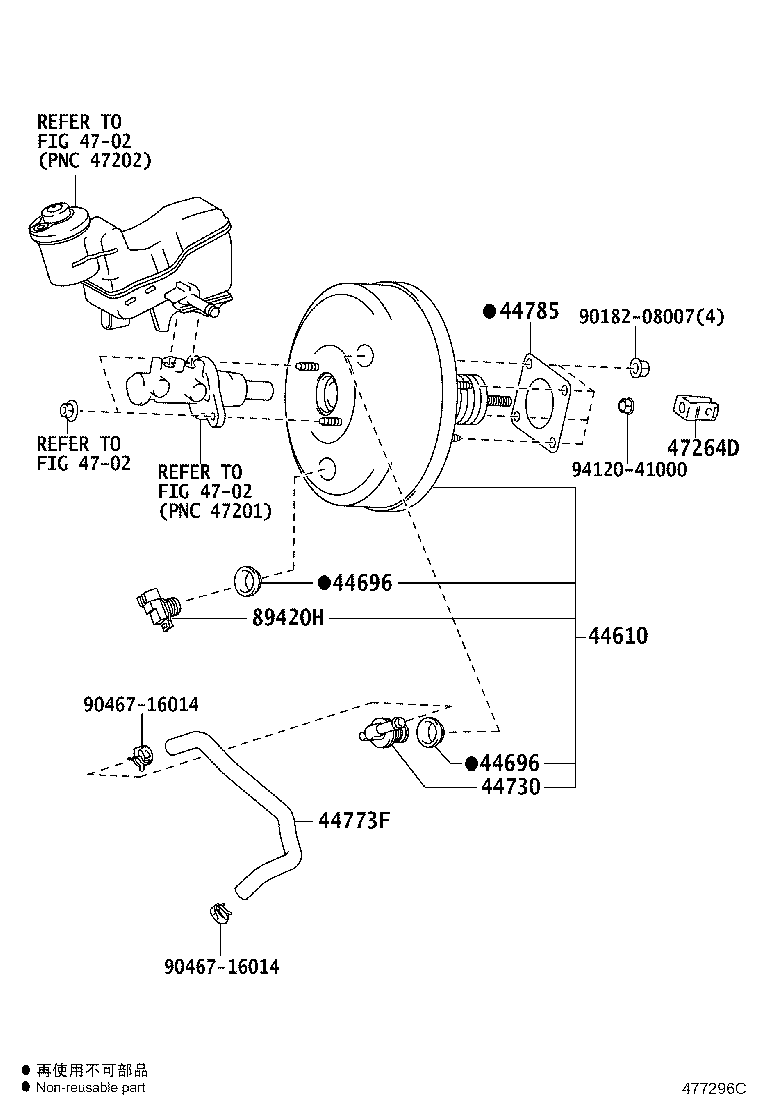

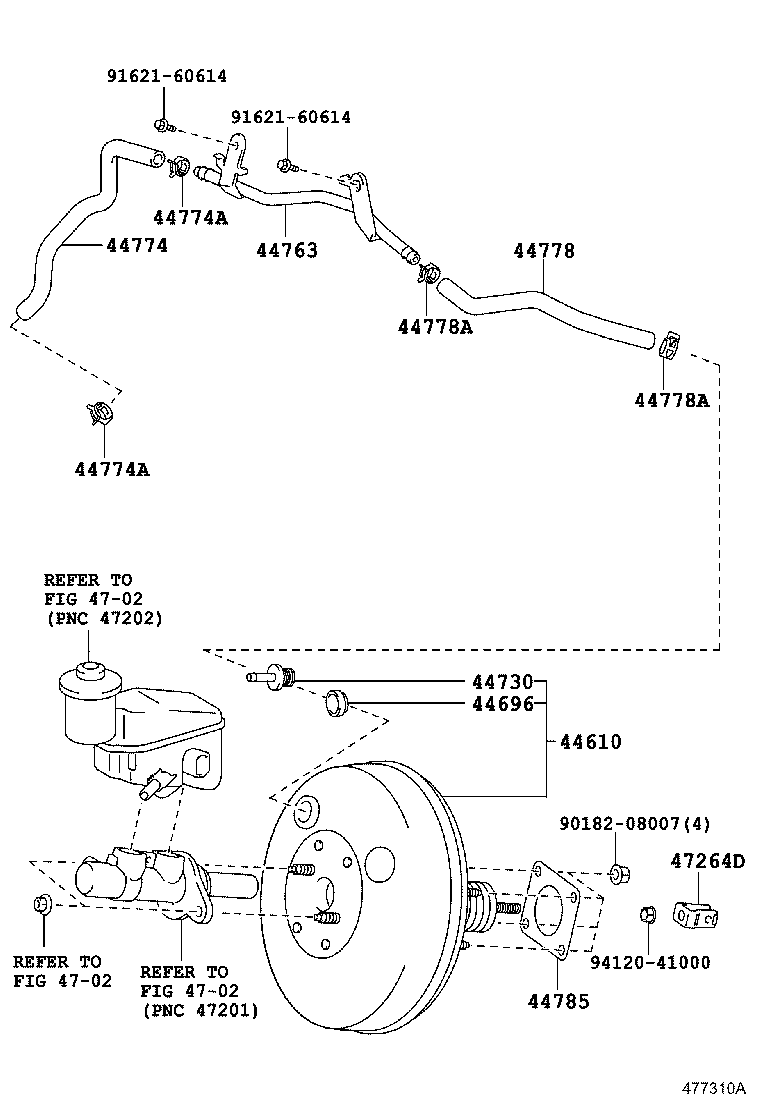

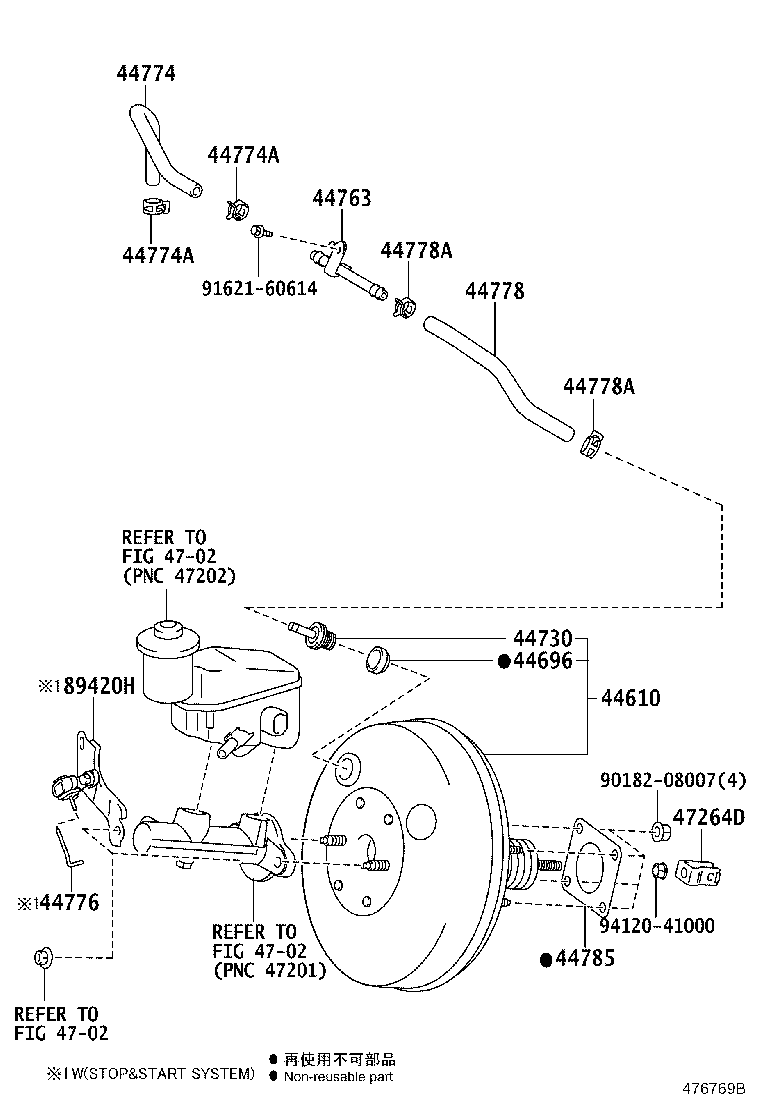

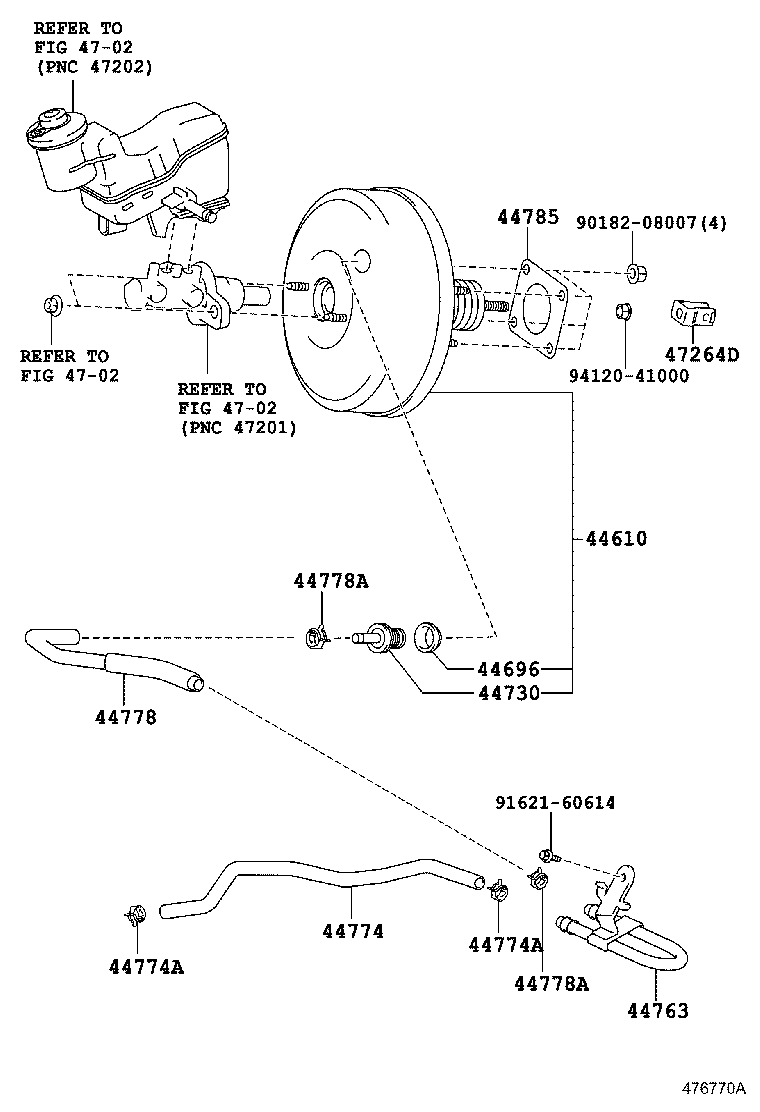

Figure 476771B 476771B 2009-01 → 2010-08 Figure 477296C 477296C 2010-08 → — Figure 476769B 476769B 2009-01 → 2010-08 Figure 477308C 477308C 2010-08 → — Figure 476770A 476770A 2009-01 → 2010-08 Figure 477297A 477297A 2010-08 → — Figure 476768A 476768A 2009-01 → 2010-08 Figure 477310A 477310A 2010-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44776 Hose, Brake Booster
44778 Hose, Connector TO Check Valve
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
