Toyota Urban Cruiser
2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe
Supported model
Data version 2016-10

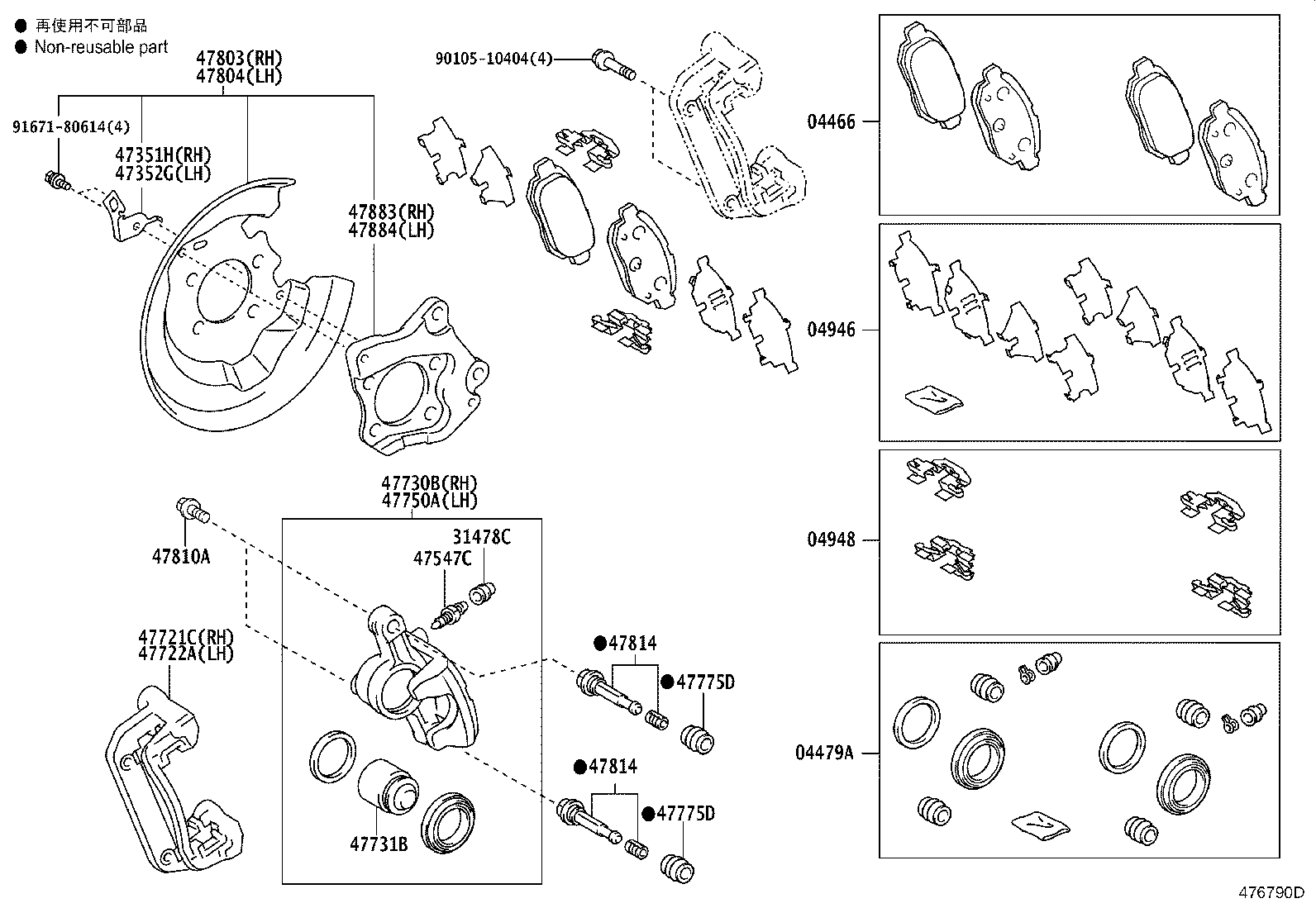

Rear Disc Brake Caliper & Dust Cover
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47351H | Bracket, Flexible Hose, RH |
| 47352G | Bracket, Flexible Hose, LH |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47730B | Cylinder Assy, Rear Disc Brake, RH |
| 47731B | Piston, Rear Disc Brake |
| 47750A | Cylinder Assy, Disc Brake, Rear LH |
| 47775D | Boot, Bush Dust(FOR REAR DISC BRAKE) |
| 47803 | Cover Sub-assy, Disc Brake Dust, Rear RH |
| 47804 | Cover Sub-assy, Disc Brake Dust, Rear LH |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47814 | Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47883 | Bracket, Caliper Support, Rear RH |
| 47884 | Bracket, Caliper Support, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
