Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

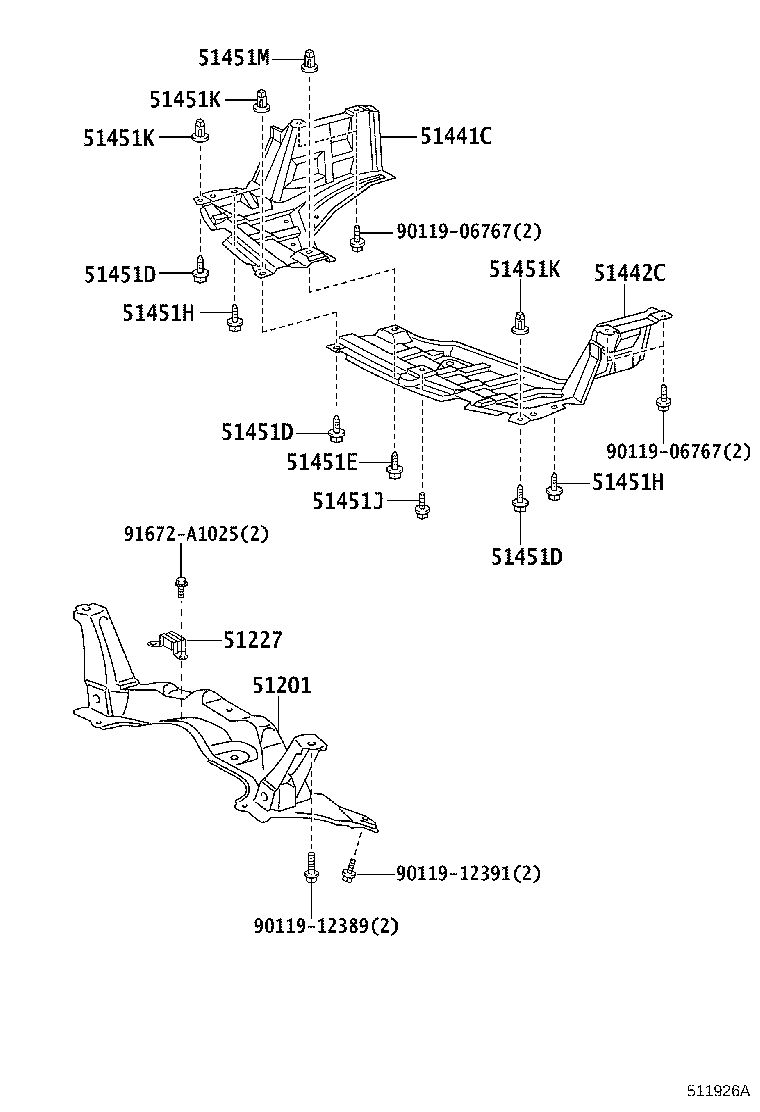

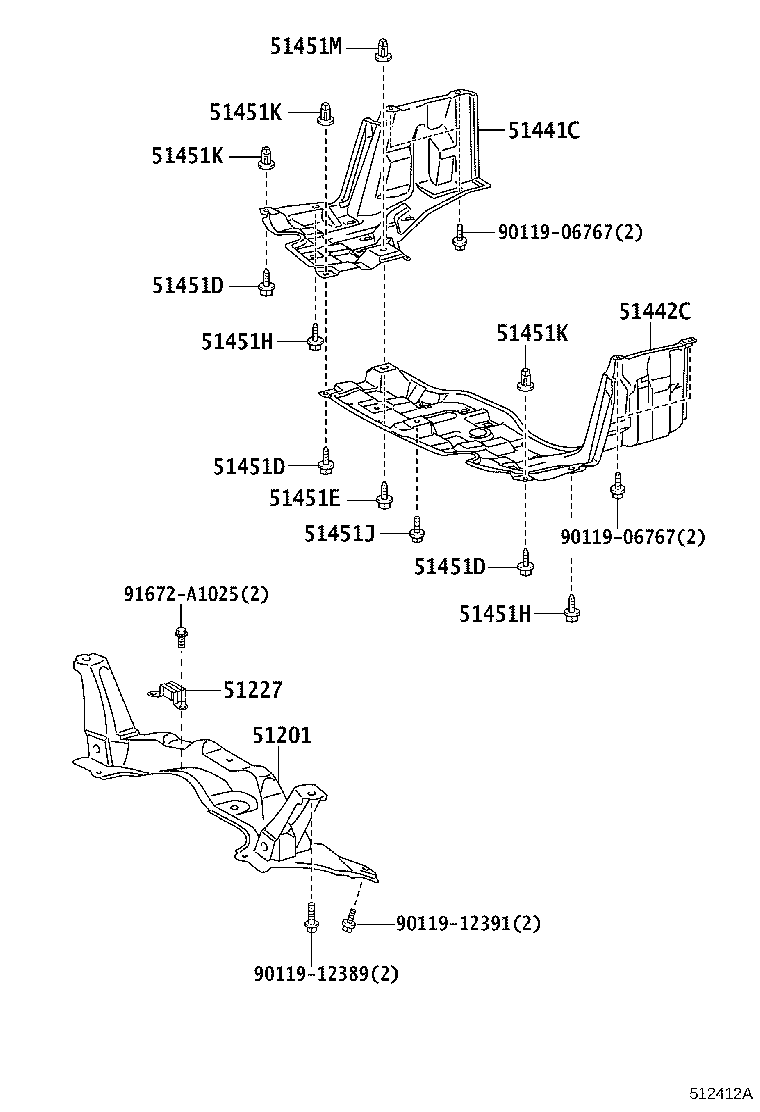

Figure 511927A 511927A 2009-01 → — Figure 511926A 511926A 2009-01 → 2011-11 Figure 512412A 512412A 2011-11 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51227 Weight, Front Suspension Member Damper
51440A Cover Assy, Engine Under
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451J Bolt, NO.1
51451K Grommet, Screw, NO.1
51451M Grommet, Screw, NO.2
51454C Silencer, Engine Under Cover, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
