Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 2 illustrations

Illustrations

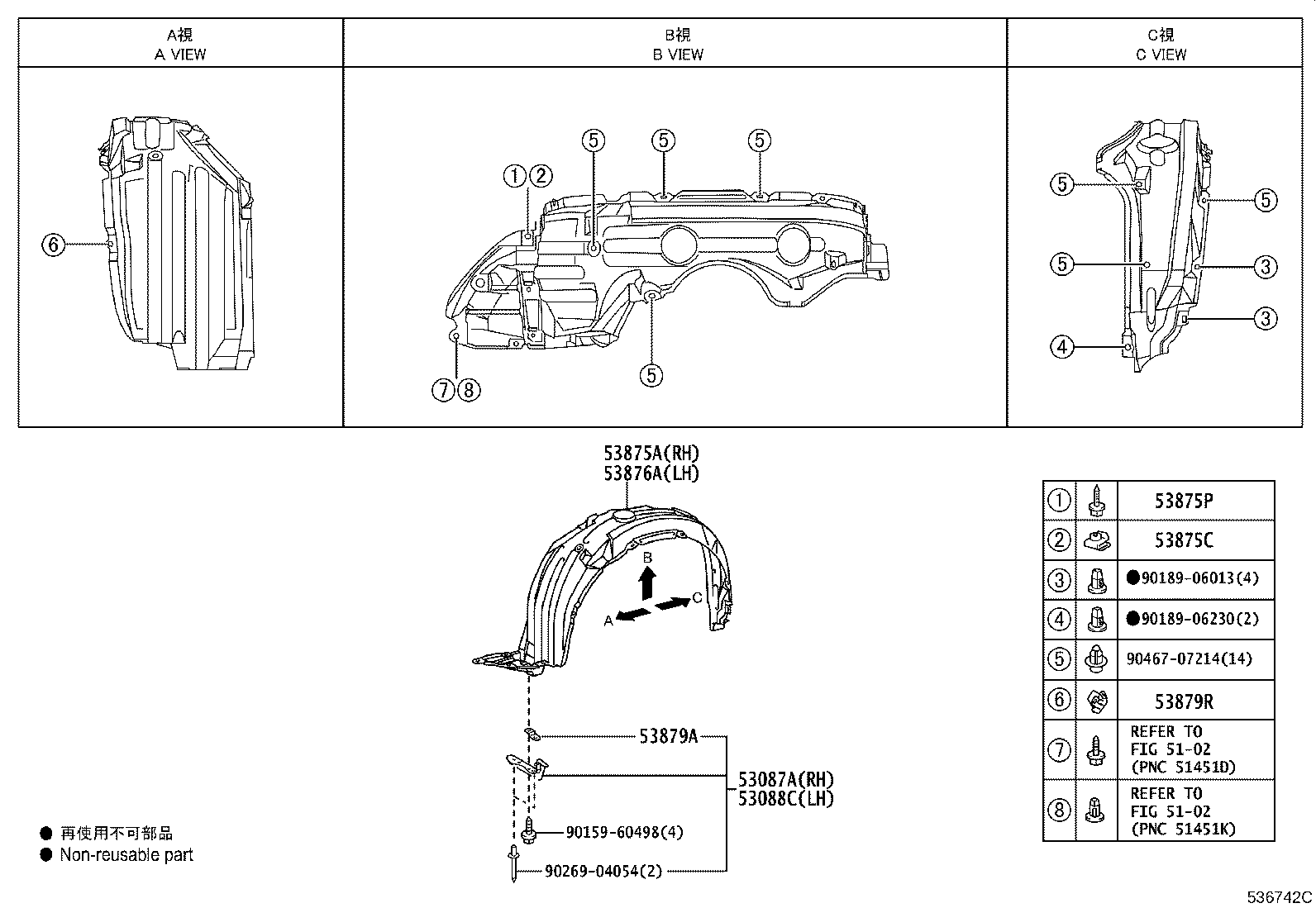

Figure 532970E 532970E 2009-01 → — Figure 536742C 536742C 2009-01 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088C Reinforcement, Front Fender Apron, Rear LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
