Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 2 illustrations

Illustrations

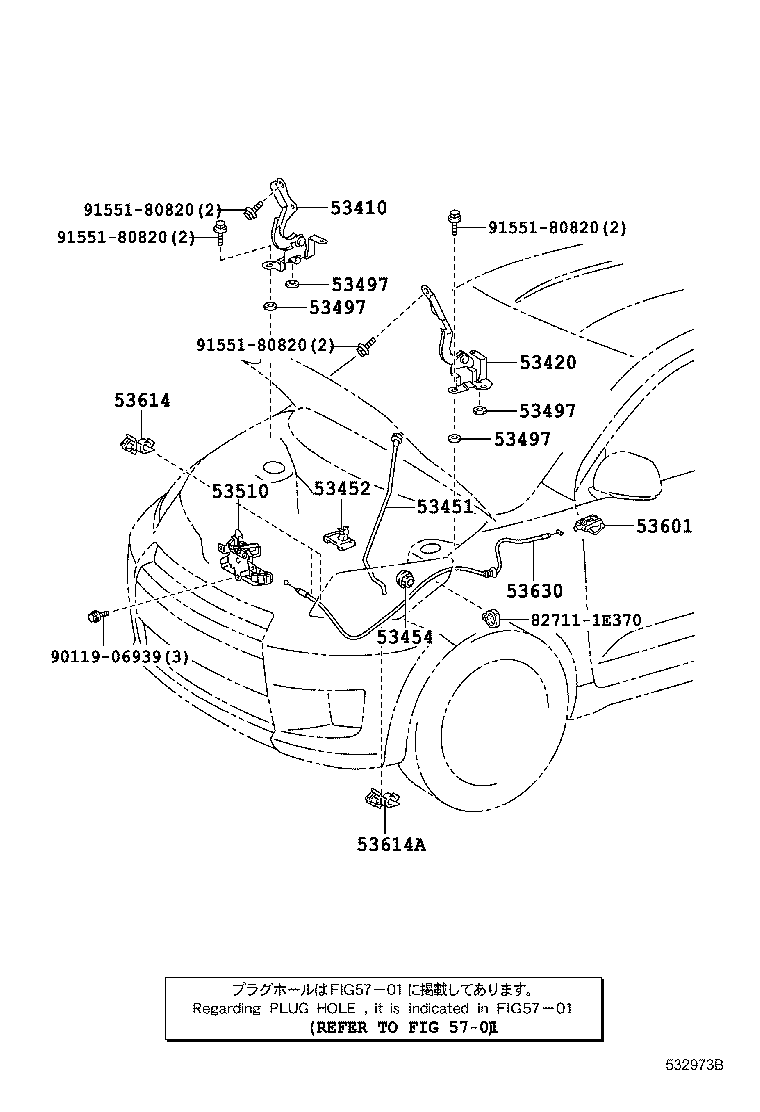

Figure 532974B 532974B 2009-01 → — Figure 532973B 532973B 2009-01 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53614A Clamp, Hood Lock Control Cable, NO.1
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
