Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

21 part groups · 2 illustrations

Illustrations

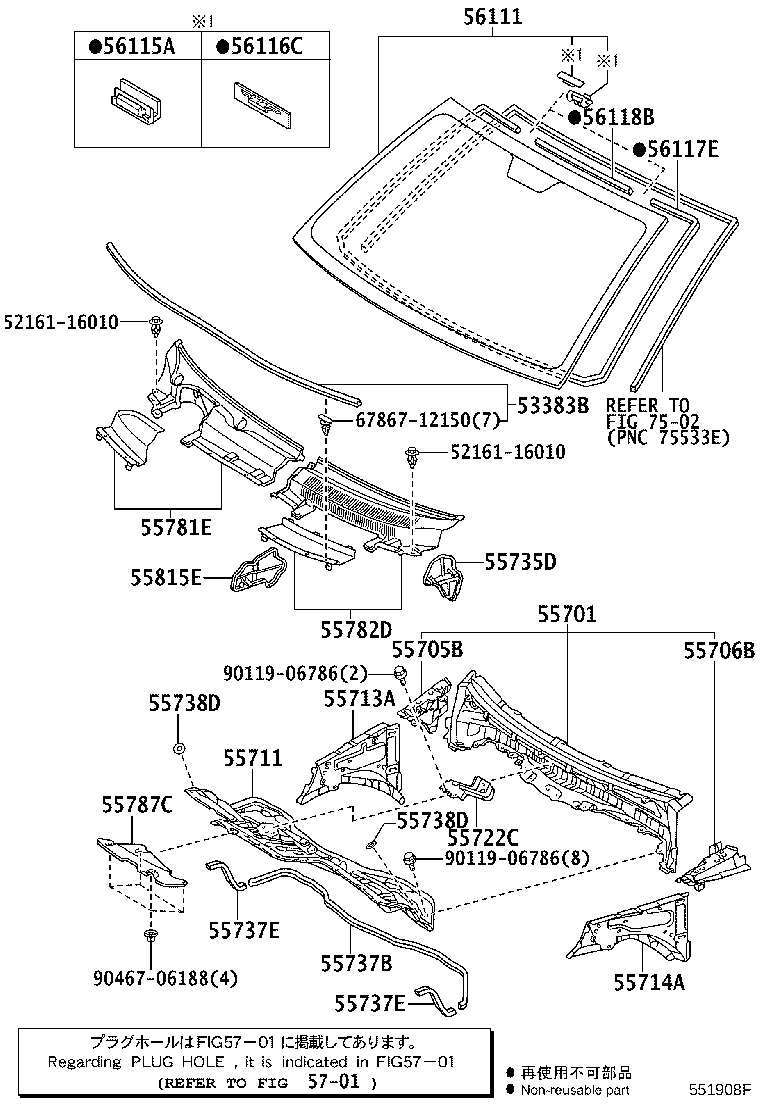

Figure 551909F 551909F 2009-01 → — Figure 551908F 551908F 2009-01 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55722C Brace, Cowl Top TO Cowl, Inner
55735D Seal, Front Air Shutter, RH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55737E Seal, Heater Air Duct Splash Shield, NO.2
55738D Seal, Heater Air Duct Splash Shield, NO.2
55781E Louver Sub-assy, Cowl Top Ventilator
55782D Louver, Cowl Top Ventilator, LH
55787C Insulator, Cowl Top Panel, NO.1
55815E Seal, Front Ventilator, NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117E Dam, Window Glass Adhesive
56118B Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
