Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

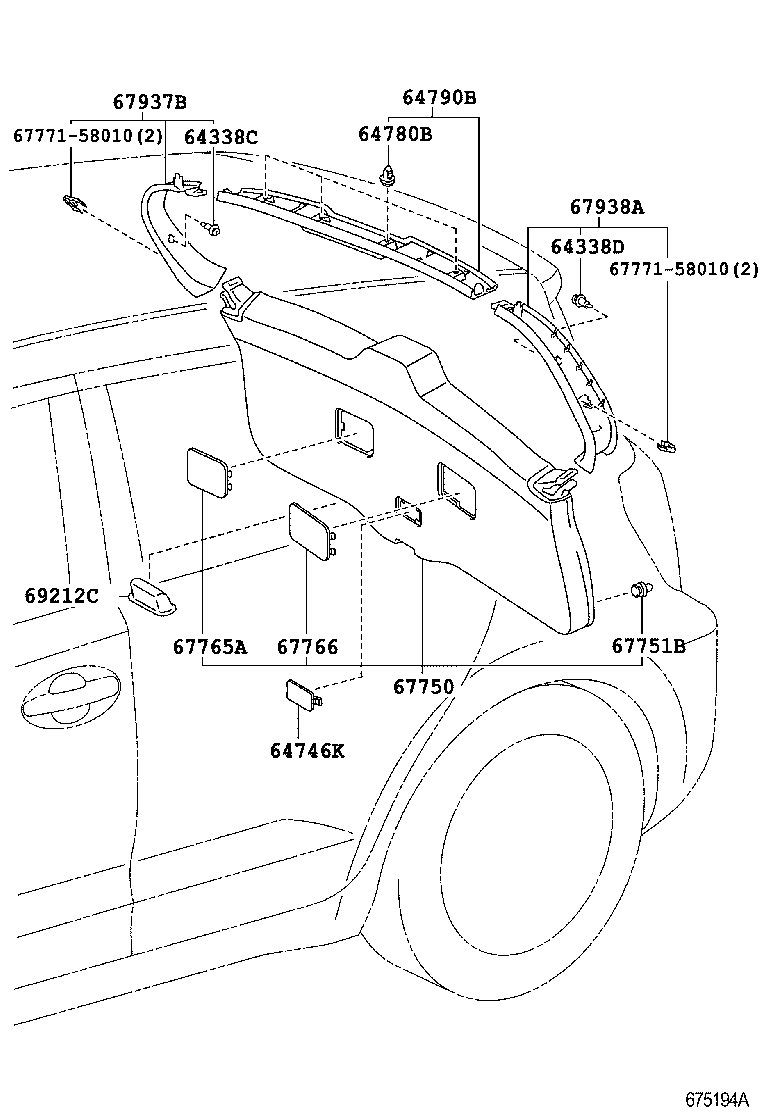

Figure 675195G 675195G 2009-01 → — Figure 675194A 675194A 2009-01 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64338C Hook, Package Tray Trim Garnish, RH
64338D Hook, Package Tray Trim Garnish, LH
64746K Cover, Deck Trim Side Lamp Hole
64780B Clip(FOR BACK DOOR TRIM PANEL)
64790B Panel Assy, Back Door Trim, Upper
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67751B Retainer(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68291K Dam Kit, Back Window Glass
69212C Handle, Back Door Inside
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
76831A Cover, Back Door Finish Panel, RH
76832A Cover, Back Door Finish Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
