Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 4 illustrations

Illustrations

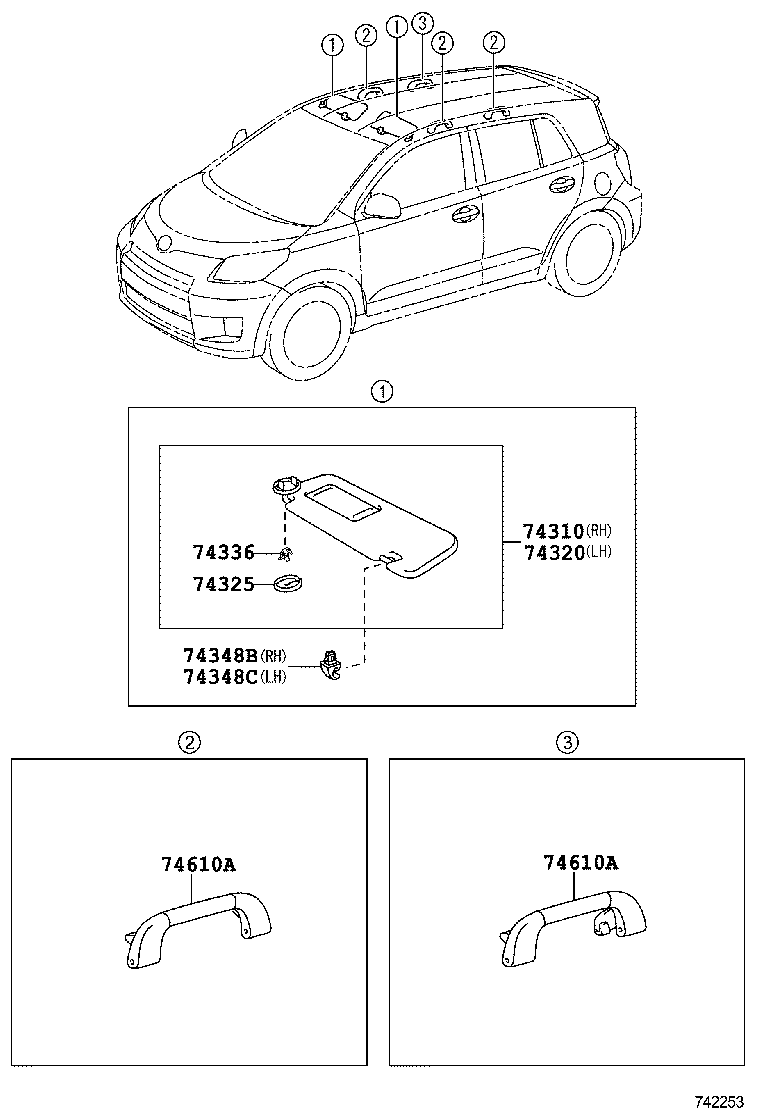

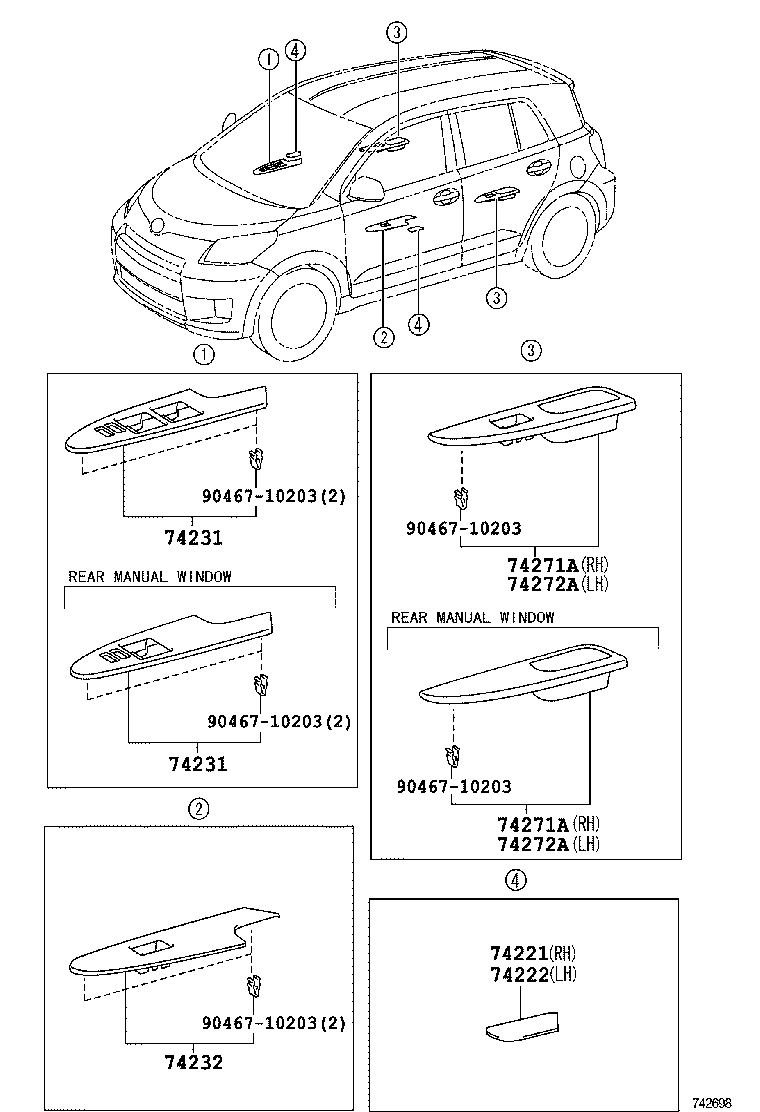

Figure 742697 742697 2009-01 → — Figure 742698 742698 2009-01 → — Figure 742267 742267 2009-01 → — Figure 742253 742253 2009-01 → —

Part groups

PNCDescription
74221 Cover, Door Armrest, RH
74222 Cover, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74336 Clip, Visor Arm Set
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
