Toyota Urban Cruiser
2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe
Supported model
Data version 2016-10

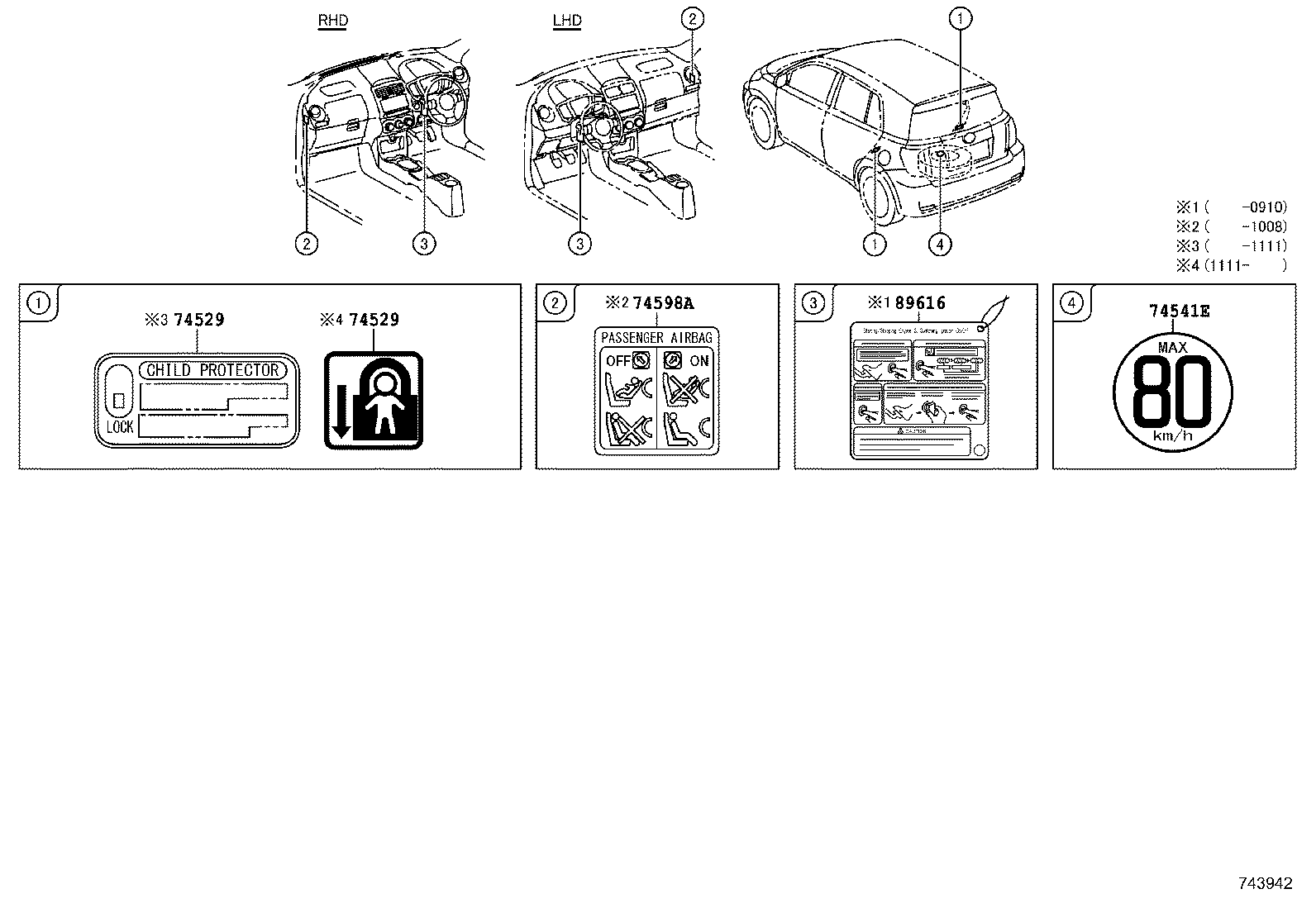

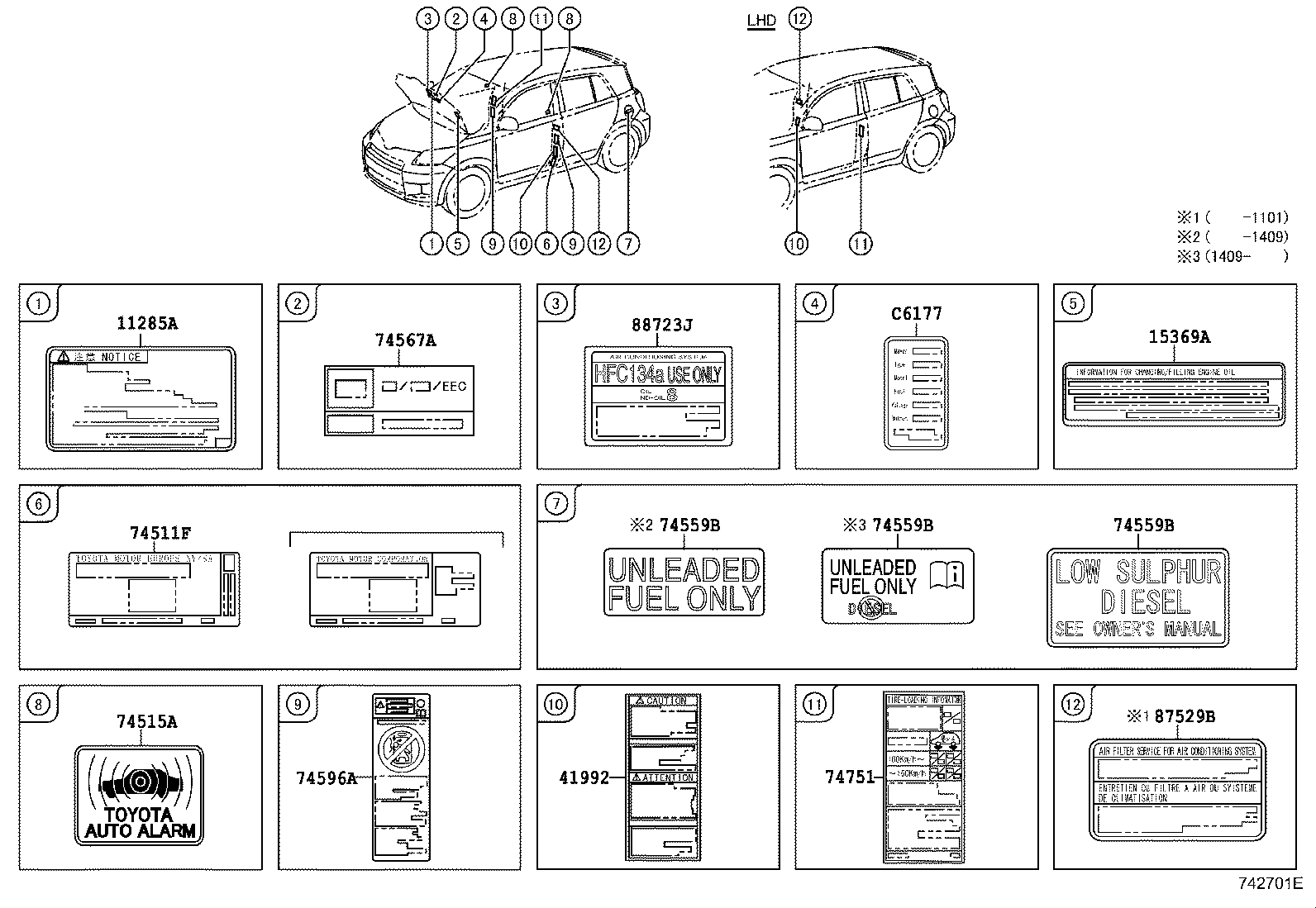

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11295B | Label, Engine Service Notice, NO.1 |
| 15369A | Label, Engine Oil Information |
| 41992 | Label, Differential Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 87529B | Label, A/C Filter Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
| 89616 | Label, Push Start Information |
| C6177 | Label, Heater Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
