Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

92 part groups · 13 illustrations

Illustrations

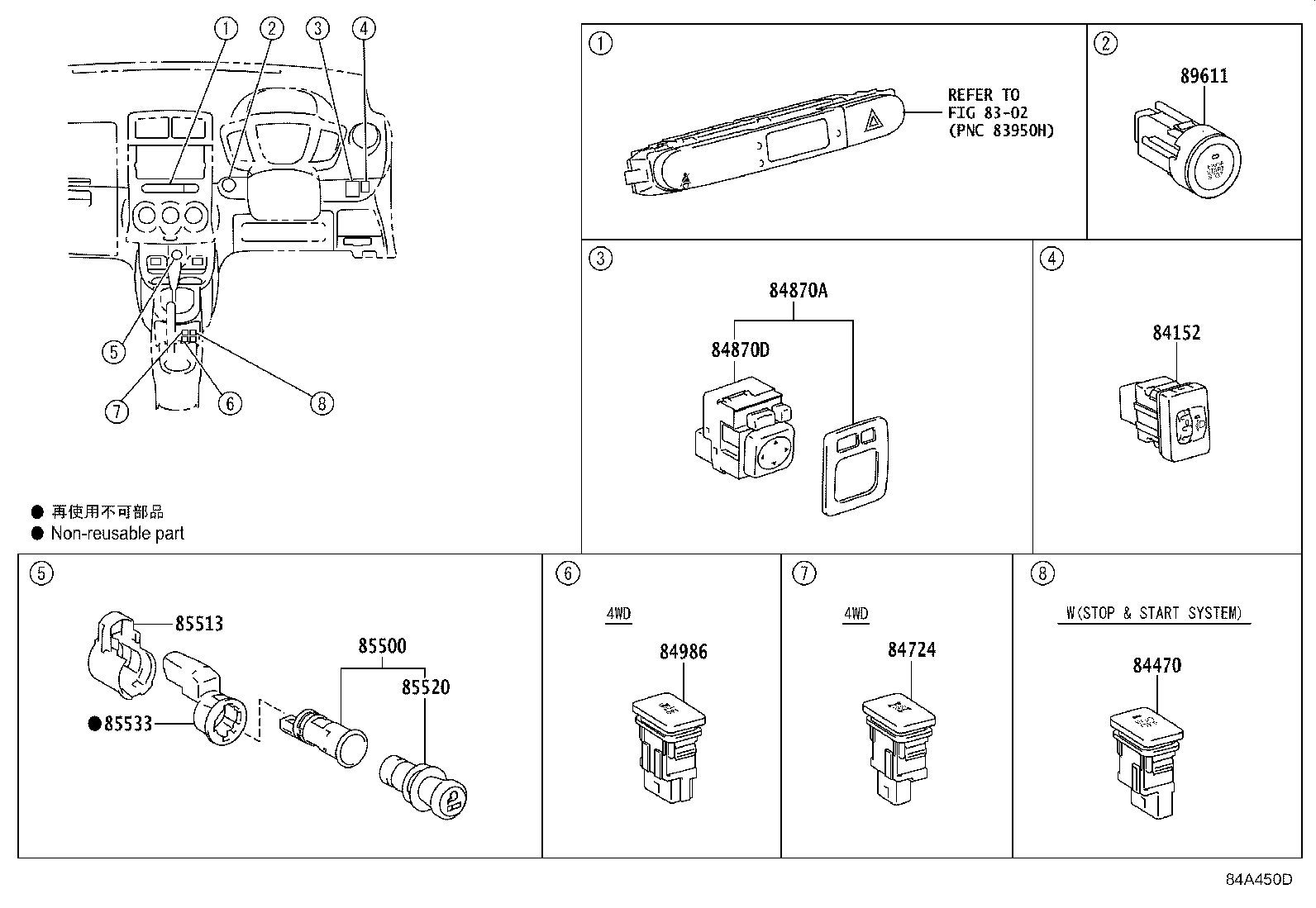

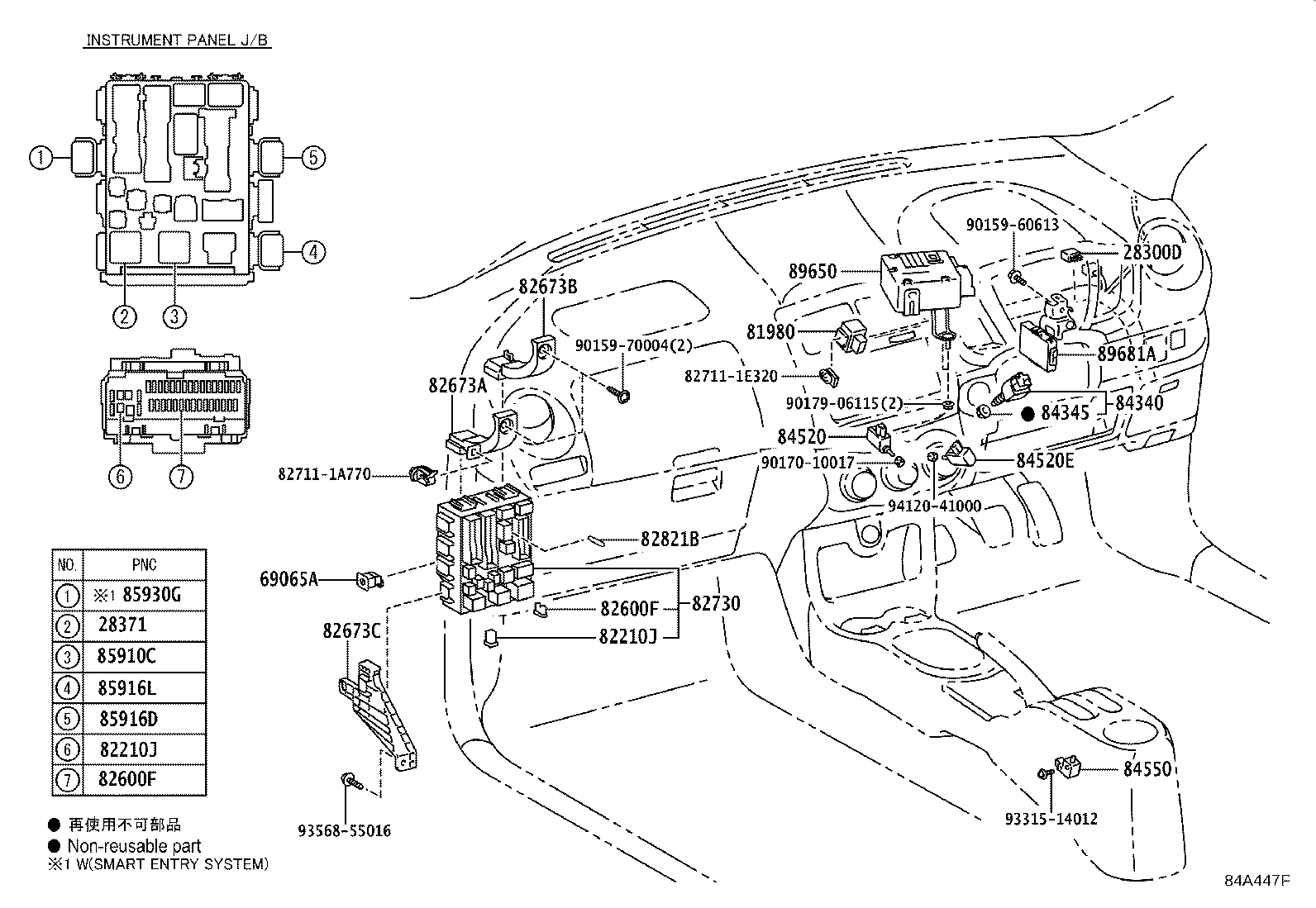

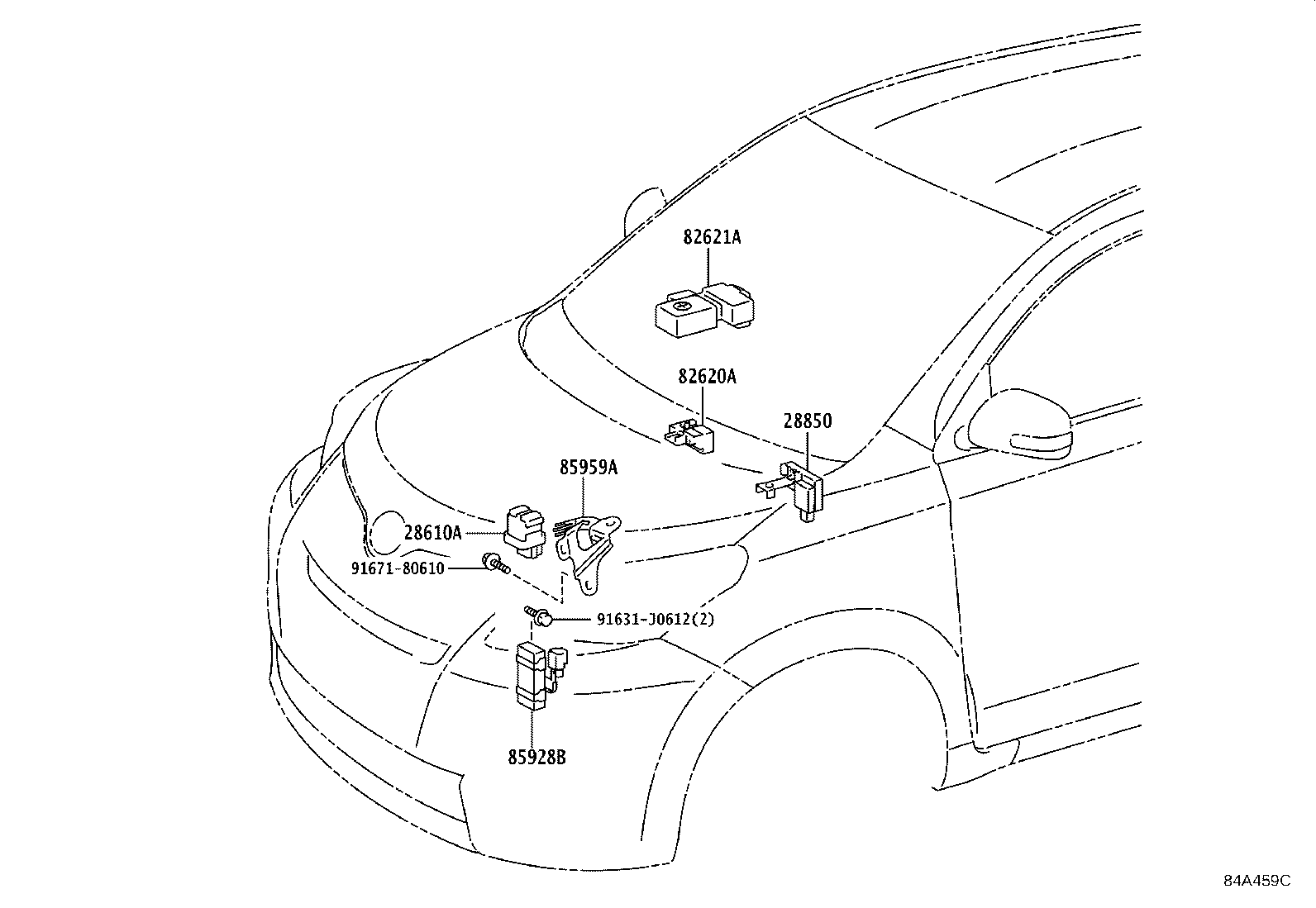

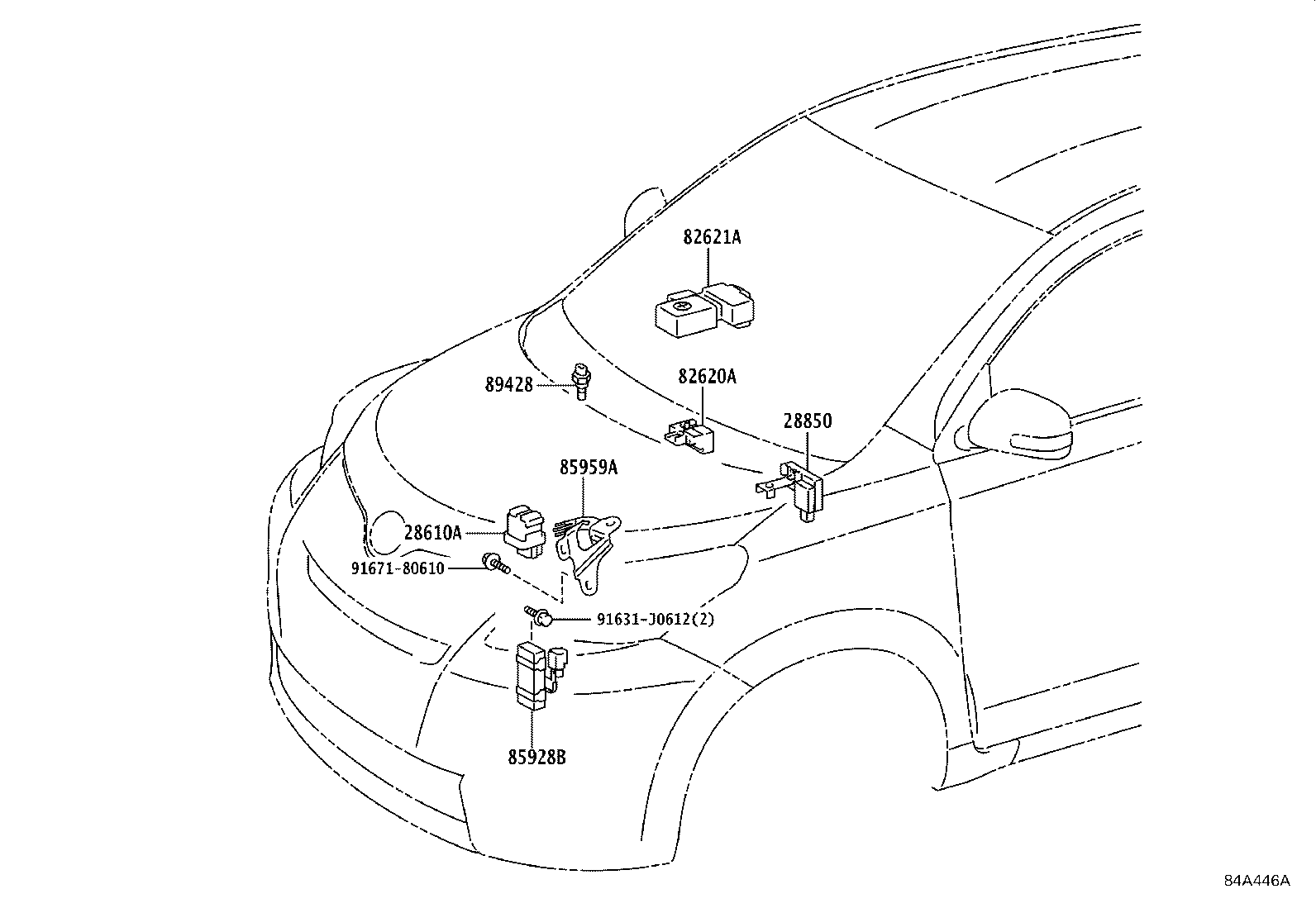

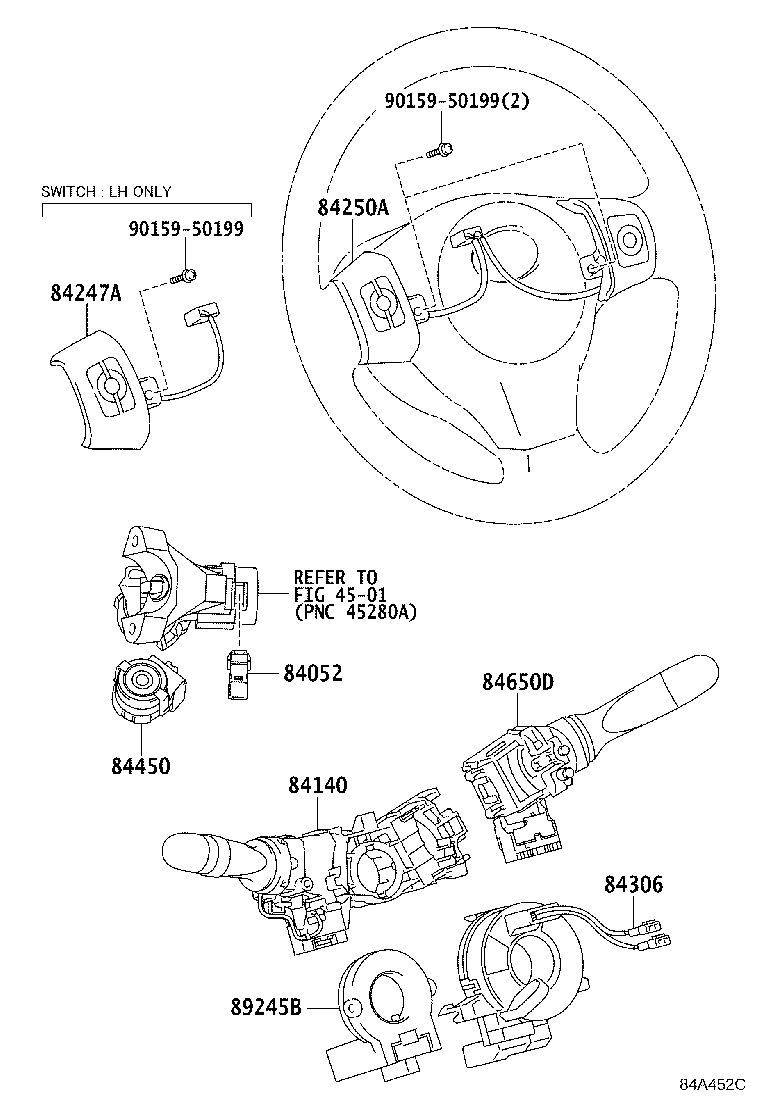

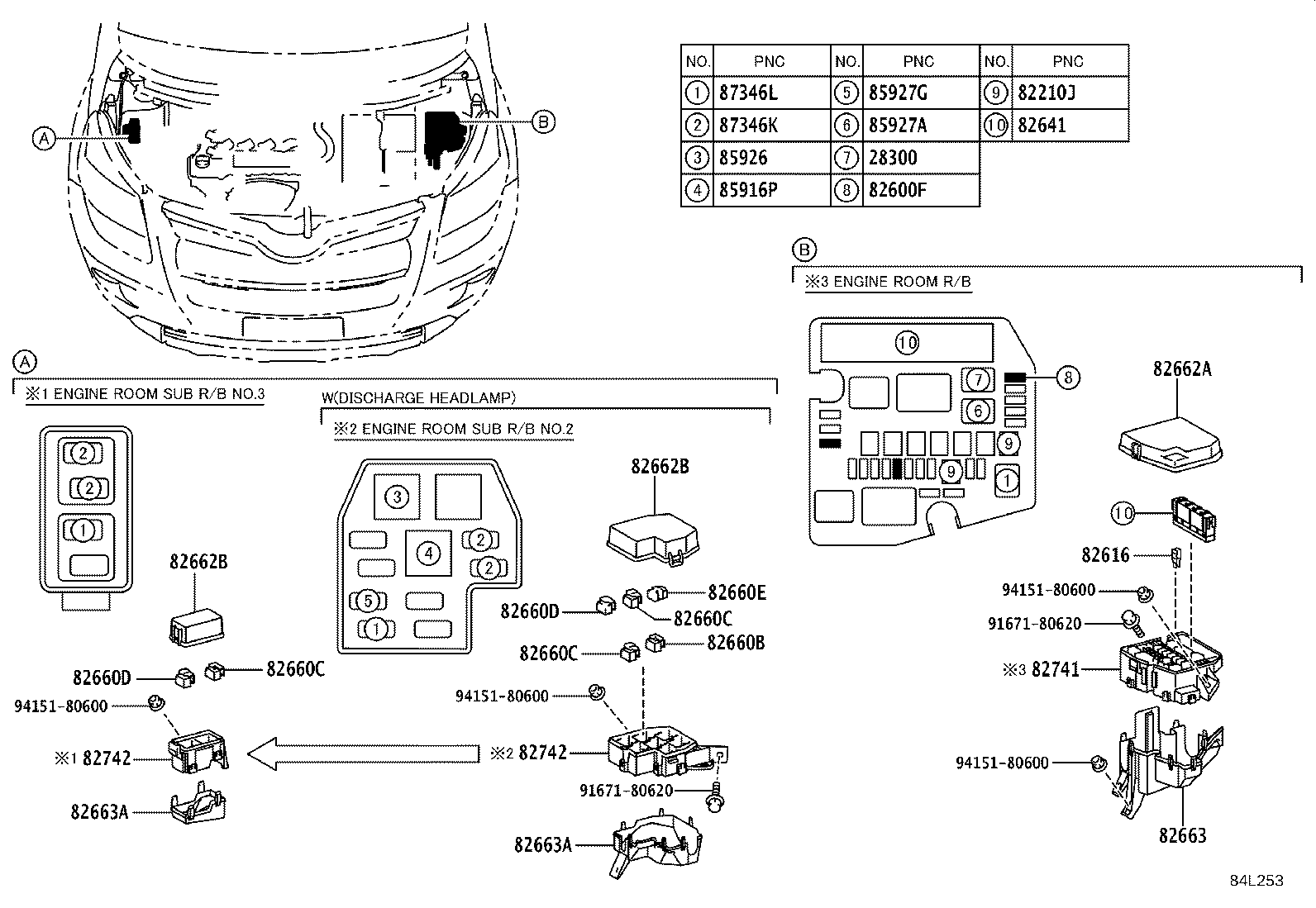

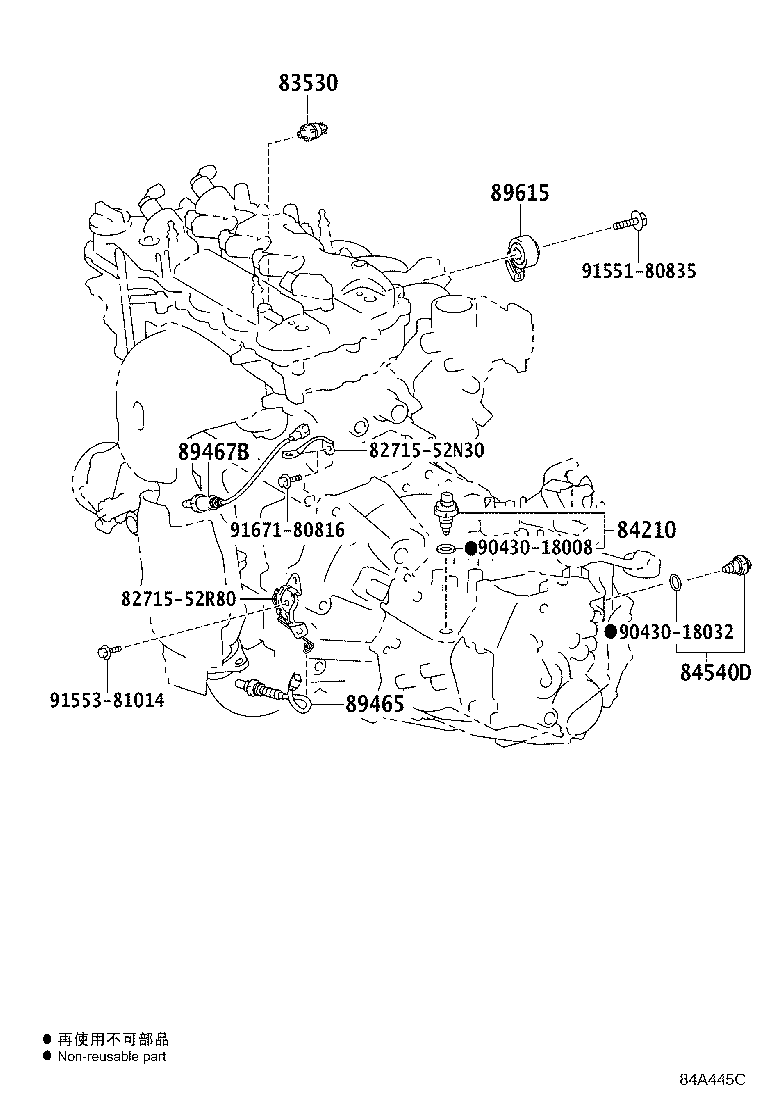

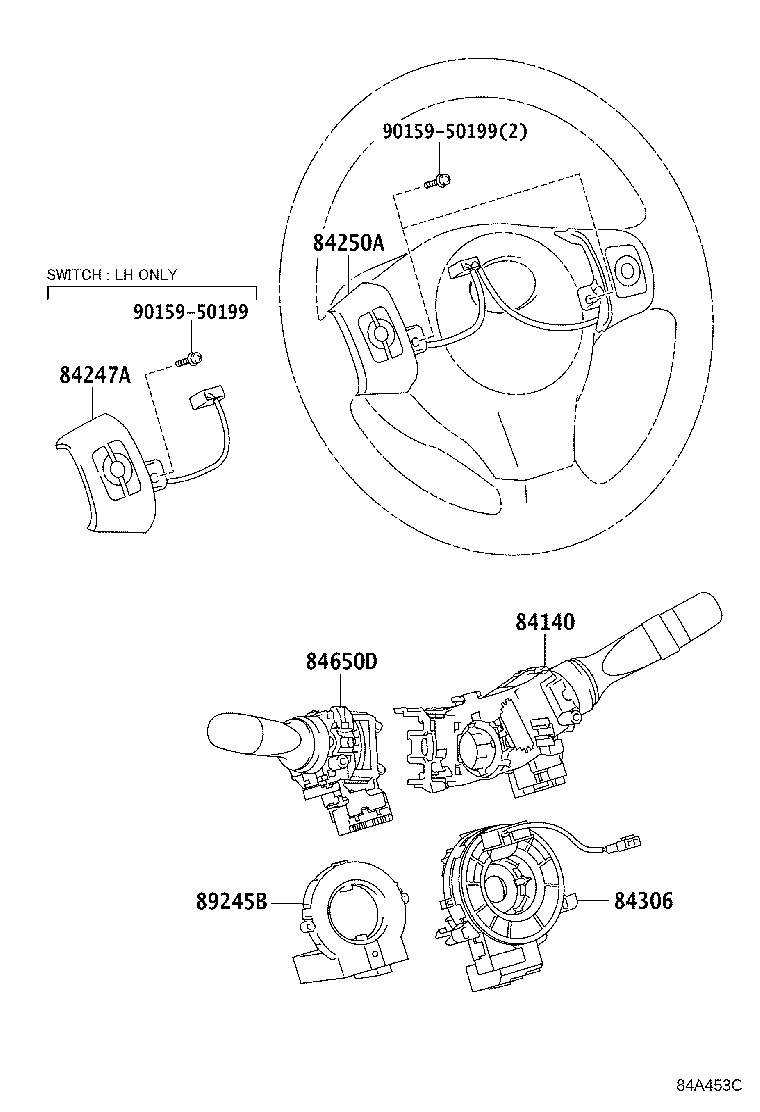

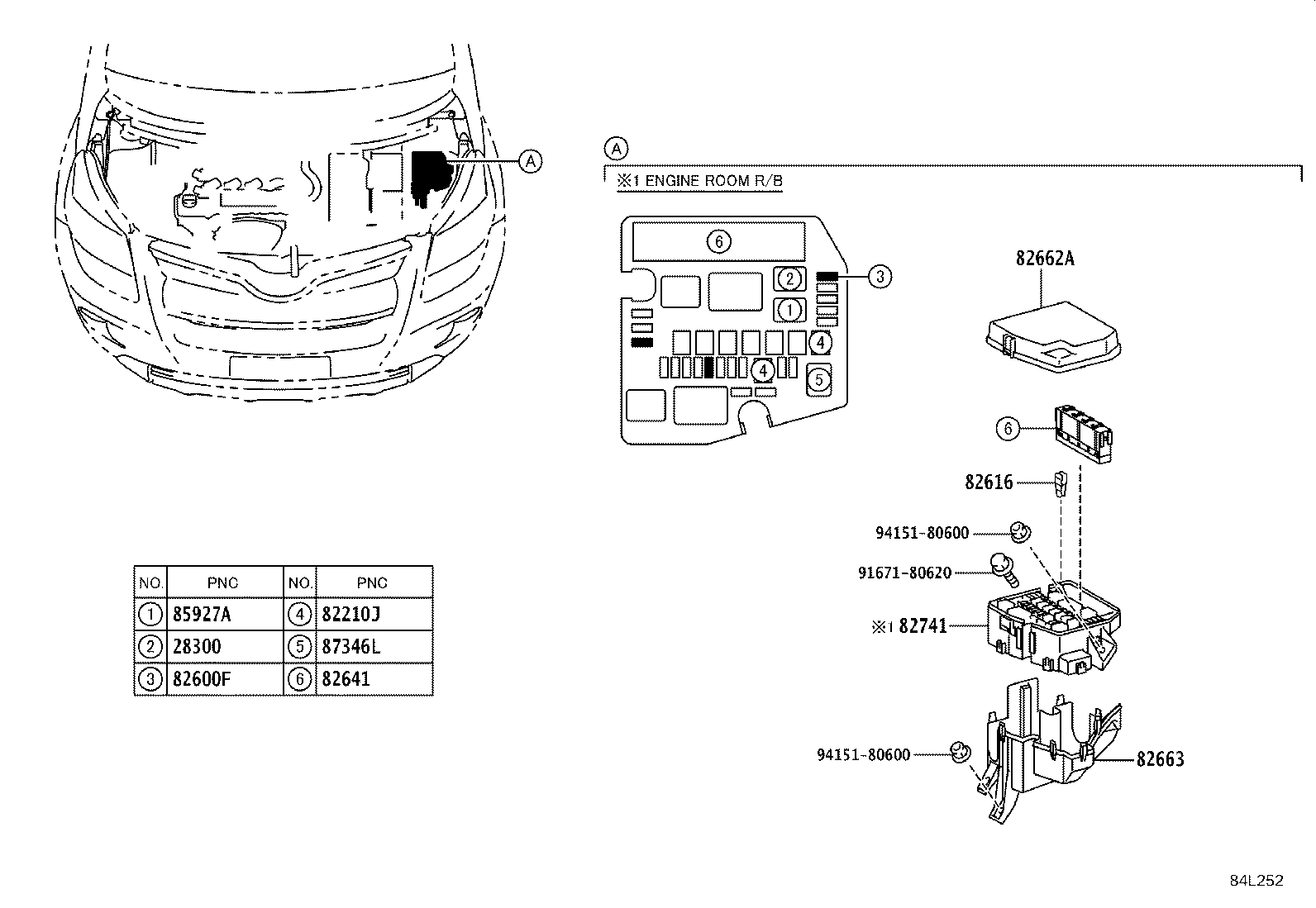

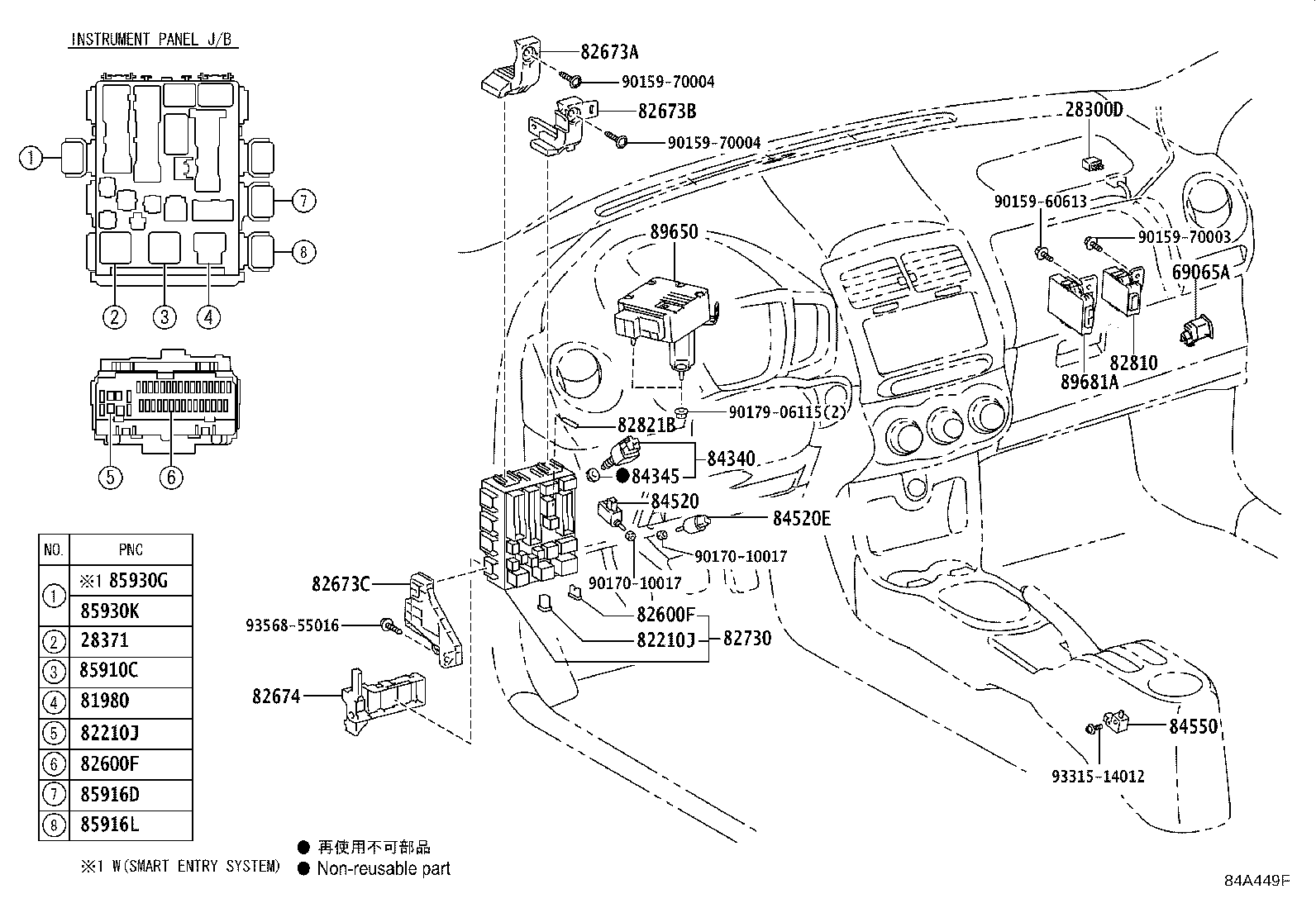

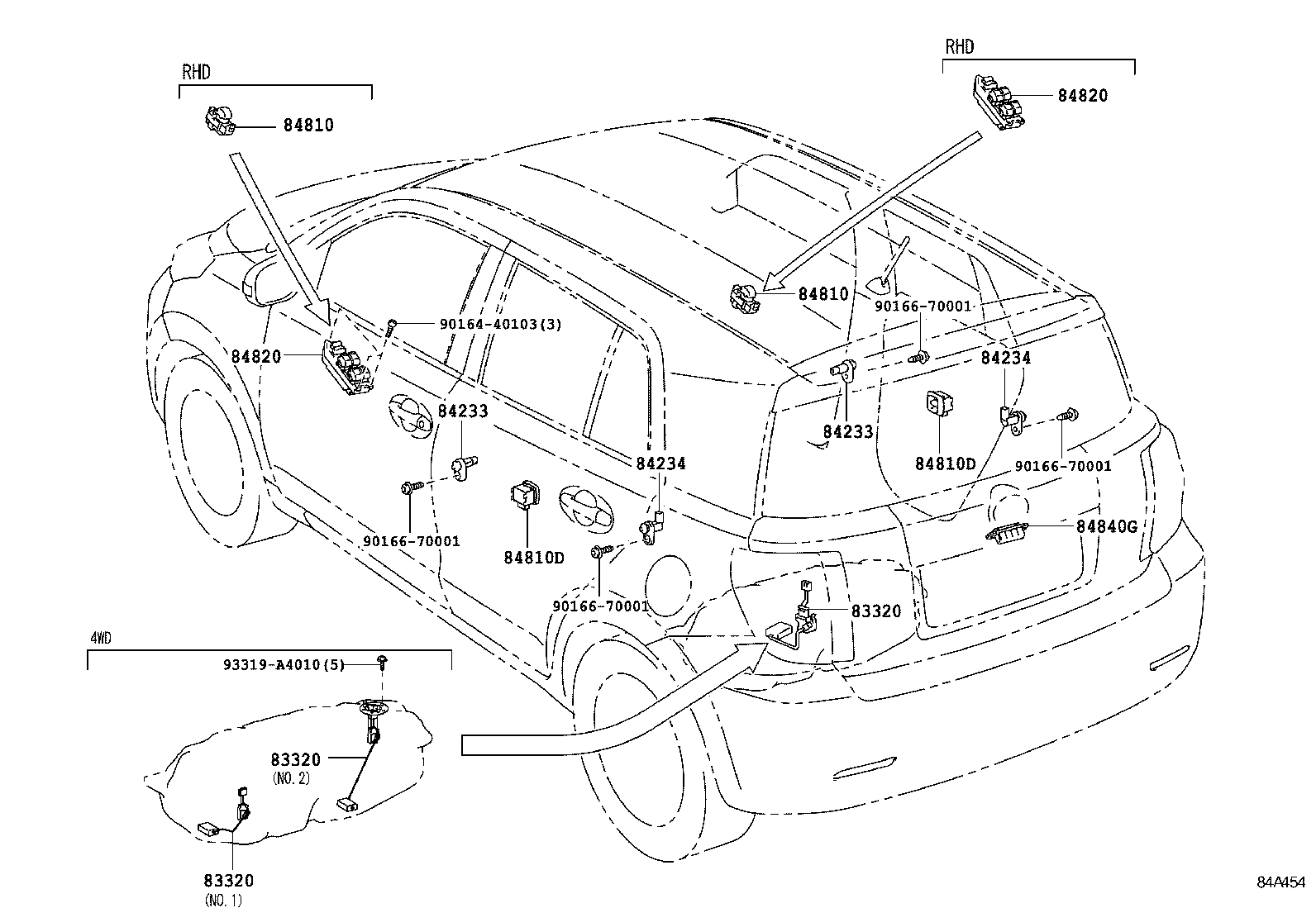

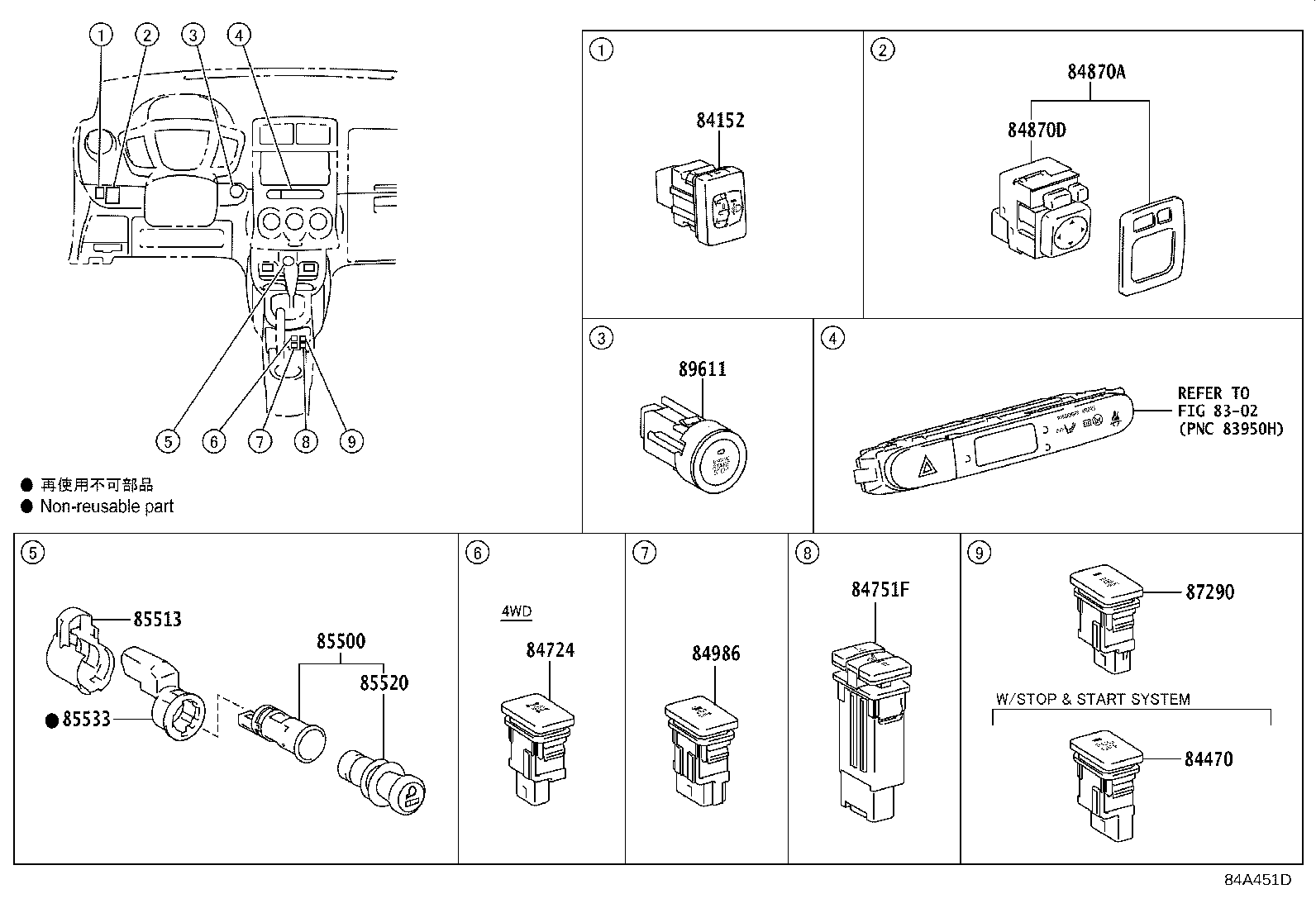

Figure 84A444B 84A444B 2009-01 → — Figure 84A445C 84A445C 2009-01 → — Figure 84A459C 84A459C 2009-01 → — Figure 84A446A 84A446A 2009-01 → — Figure 84L252 84L252 2009-01 → — Figure 84L253 84L253 2009-01 → — Figure 84A447F 84A447F 2009-01 → — Figure 84A449F 84A449F 2009-01 → — Figure 84A450D 84A450D 2009-01 → — Figure 84A451D 84A451D 2009-01 → — Figure 84A453C 84A453C 2009-01 → — Figure 84A452C 84A452C 2009-01 → — Figure 84A454 84A454 2009-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28610A Relay Assy, Glow Plug(SUB)
28850 Sensor Assy, Battery Current
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540D Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724 Switch, 4 Wheel Drive Control
84751F Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84986 Switch, Vehicle Stability Control
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927A Relay, Cooling Fan, NO.2
85927G Relay, Air Conditioner Water Pump
85928B Resistor, Cooling Fan
85930G Relay, Acc
85930K Relay, Acc, NO.2
85959A Holder, Relay
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
89245B Sensor, Steering
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89437 Cover, Sensor
89439 Bracket, Sensor
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
