Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Eco-run System

2 part groups · 2 illustrations

Illustrations

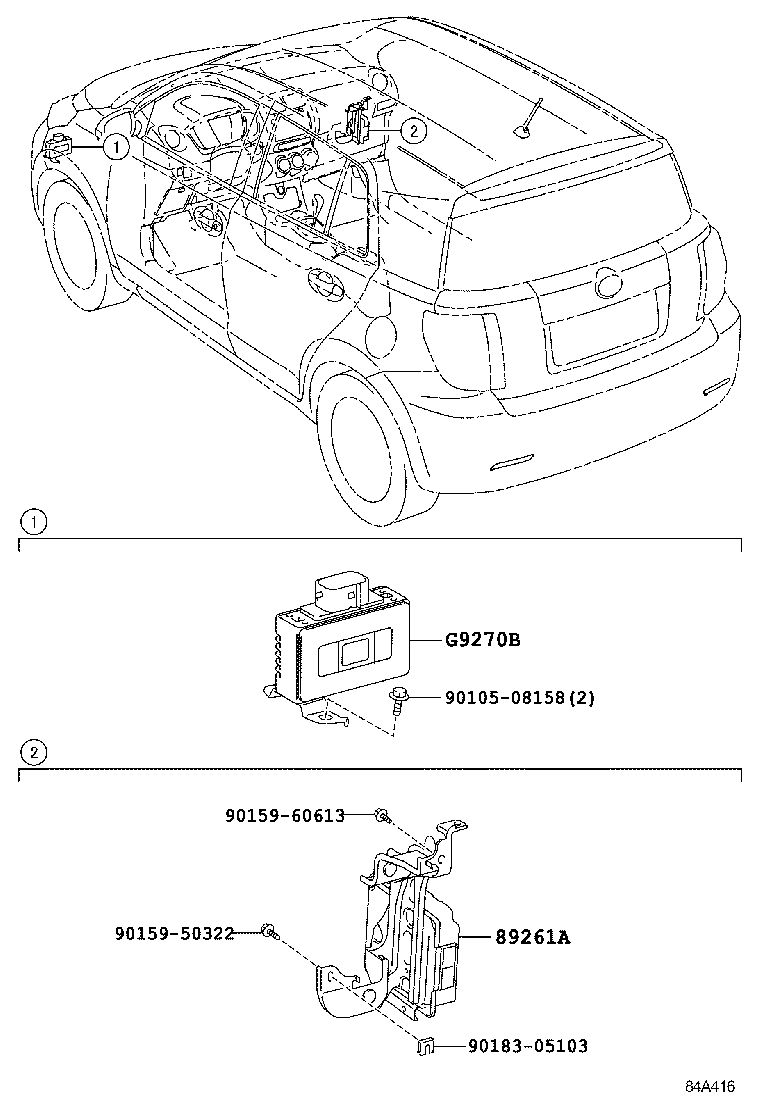

Figure 84A415 84A415 2009-01 → — Figure 84A416 84A416 2009-01 → —

Part groups

PNCDescription
89261A Computer, Engine Stop And Start
G9270B Converter Assy, Eco Run Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
