Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 3 illustrations

Illustrations

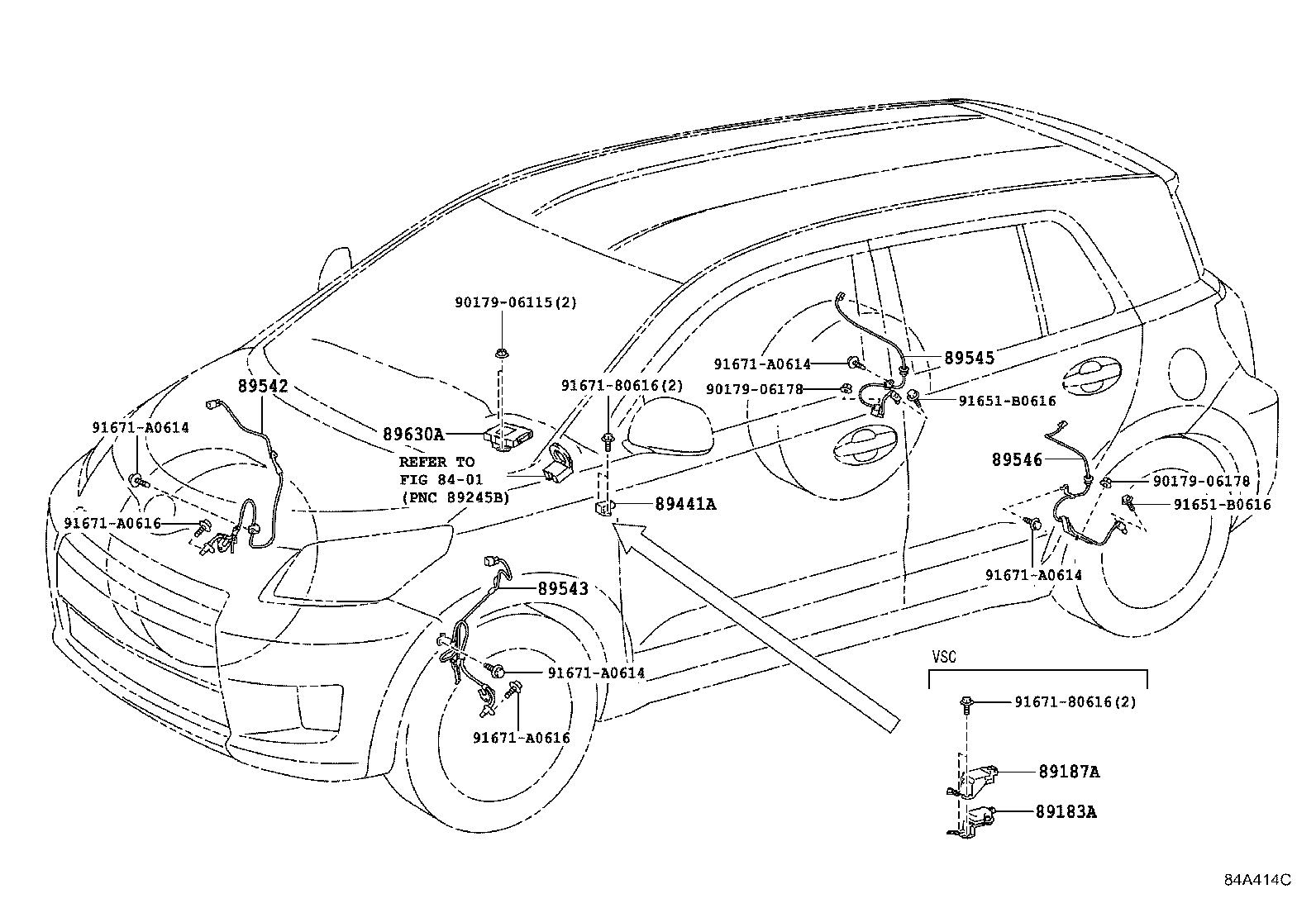

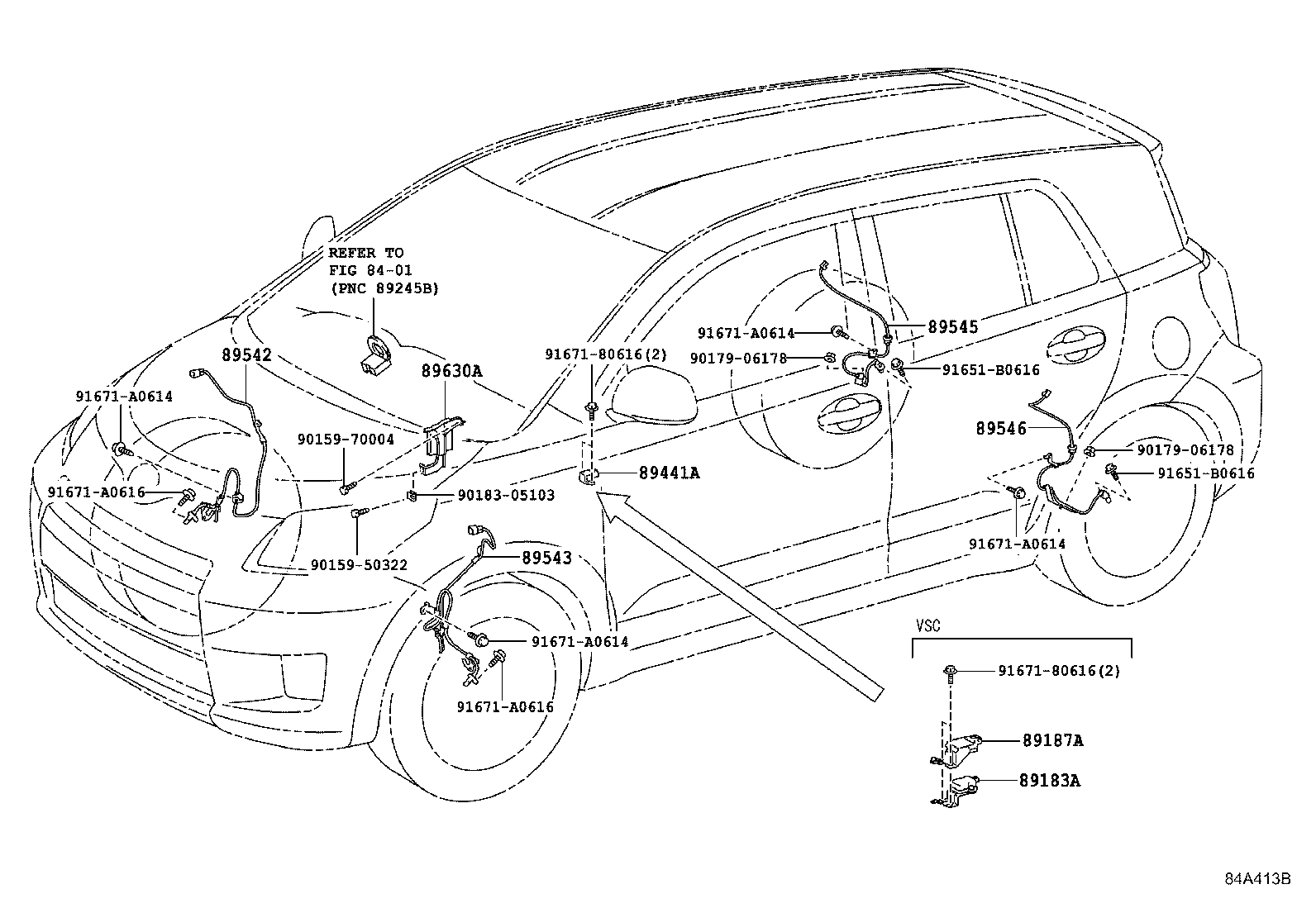

Figure 84A412G 84A412G 2009-01 → — Figure 84A413B 84A413B 2009-02 → — Figure 84A414C 84A414C 2009-02 → —

Part groups

PNCDescription
89183A Sensor, Yawrate
89187A Protector, Yawrate Sensor
89441A Sensor, Deceleration
89516G Wire, Skid Control Sensor, Rear RH NO.1
89516H Wire, Skid Control Sensor, Rear LH NO.1
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
