Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

8 part groups · 2 illustrations

Illustrations

Figure 84A386A

84A386A 2009-01 → 2012-06

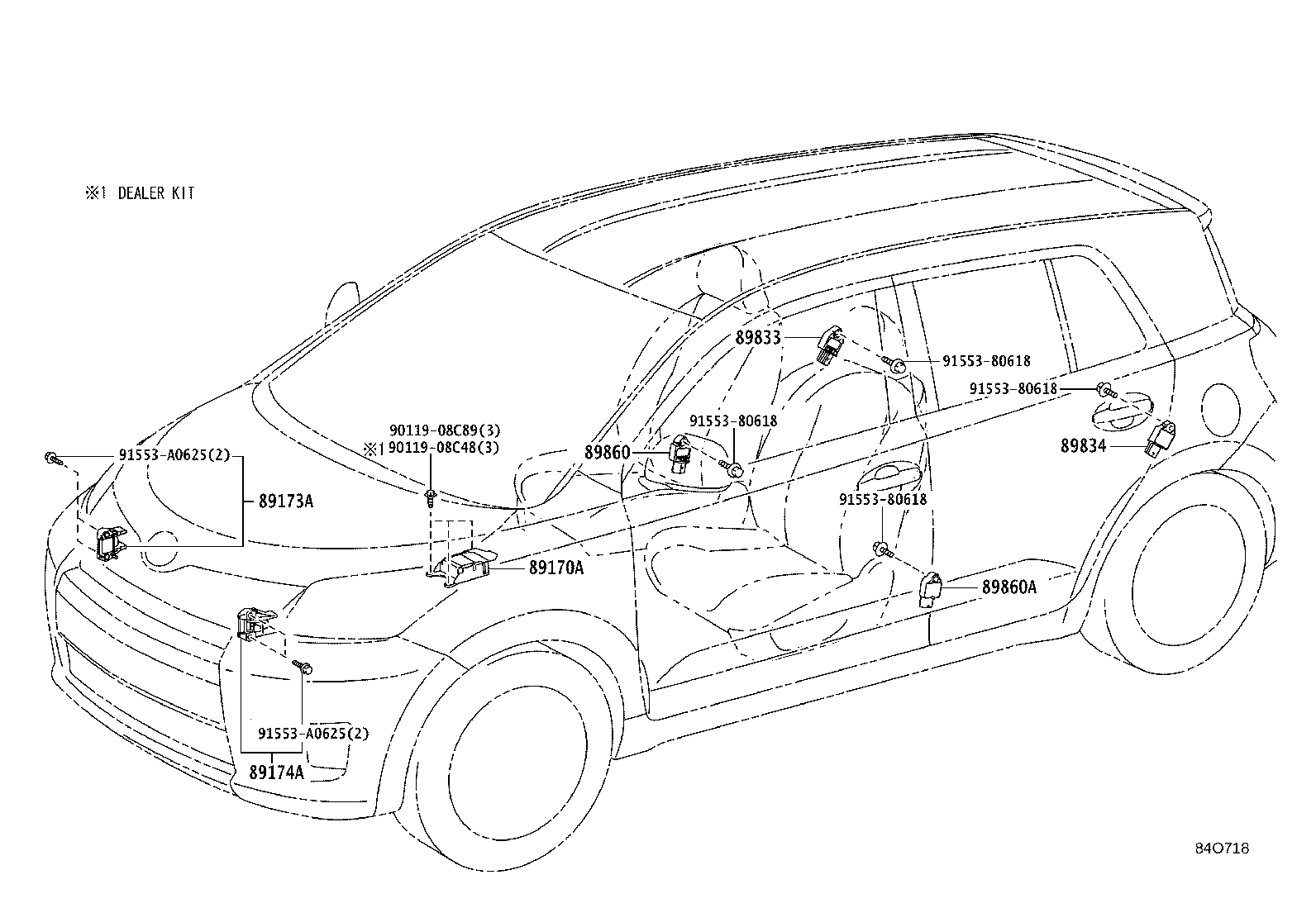

Figure 84O718

84O718 2012-06 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89833	Sensor, Airbag, Rear RH
89834	Sensor, Airbag, Rear LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
