Toyota Urban Cruiser

2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 6 illustrations

Illustrations

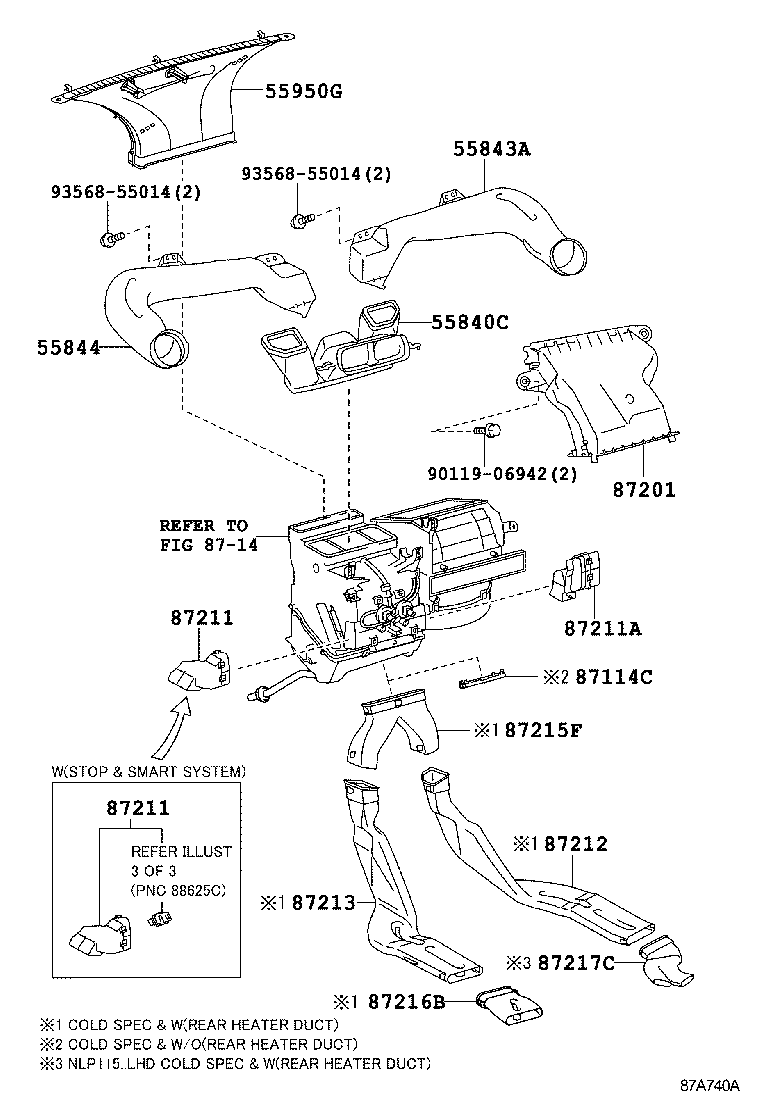

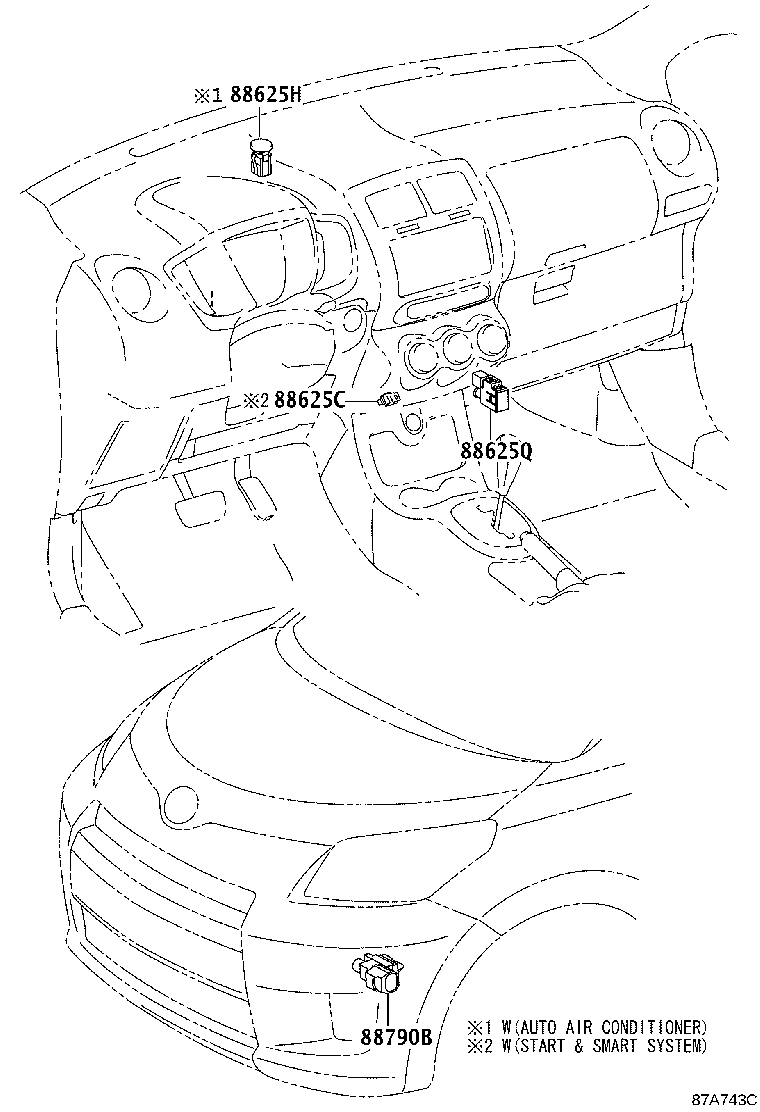

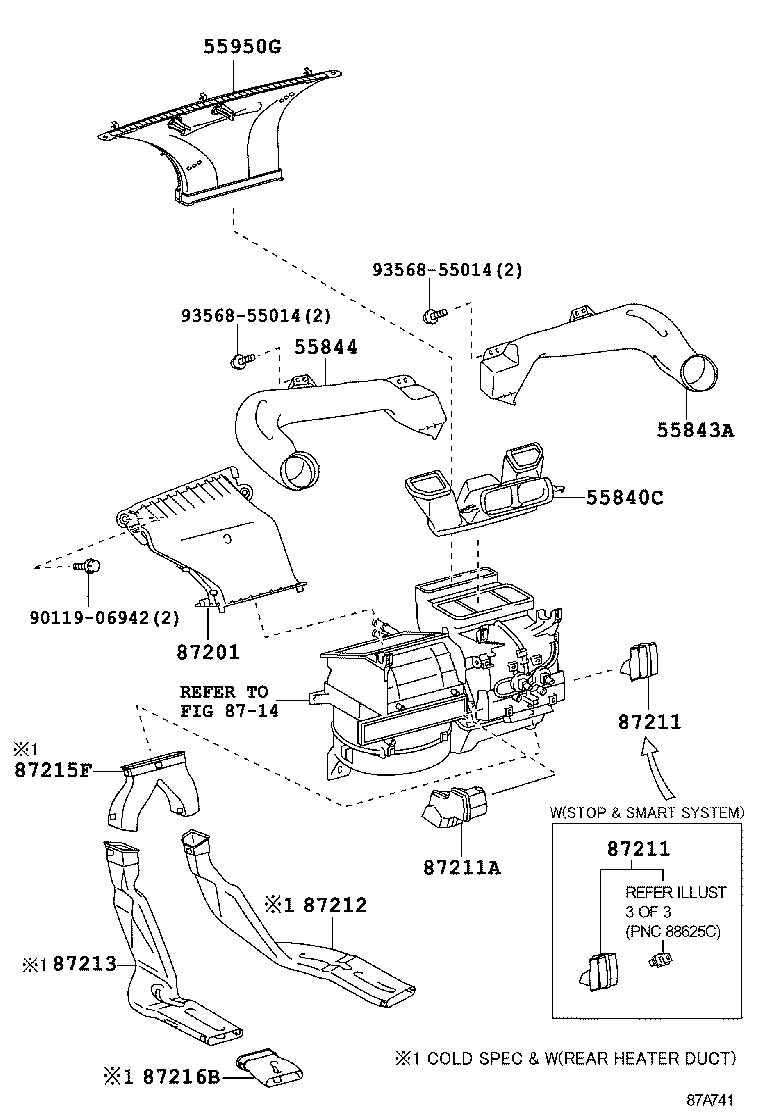

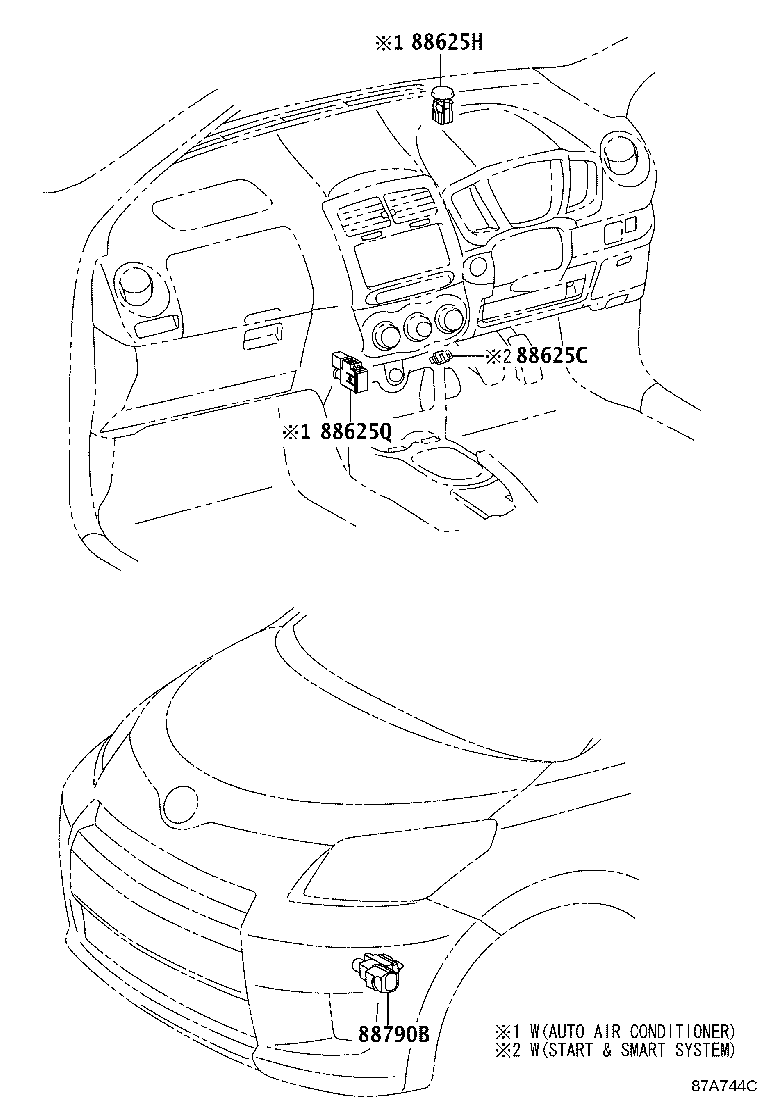

Figure 87A739B 87A739B 2009-01 → — Figure 879472B 879472B 2009-01 → — Figure 87A740A 87A740A 2009-01 → — Figure 87A741 87A741 2009-01 → — Figure 87A743C 87A743C 2009-01 → — Figure 87A744C 87A744C 2009-01 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
81080Q Lamp Assy, Interior Illumination, NO.1
87114C Cover, Heater
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
87217C Duct, Air, Rear NO.5
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
