Heating & Air Conditioning - Water Piping

12 part groups · 5 illustrations

Illustrations

Figure 87A709A

87A709A 2009-01 → —

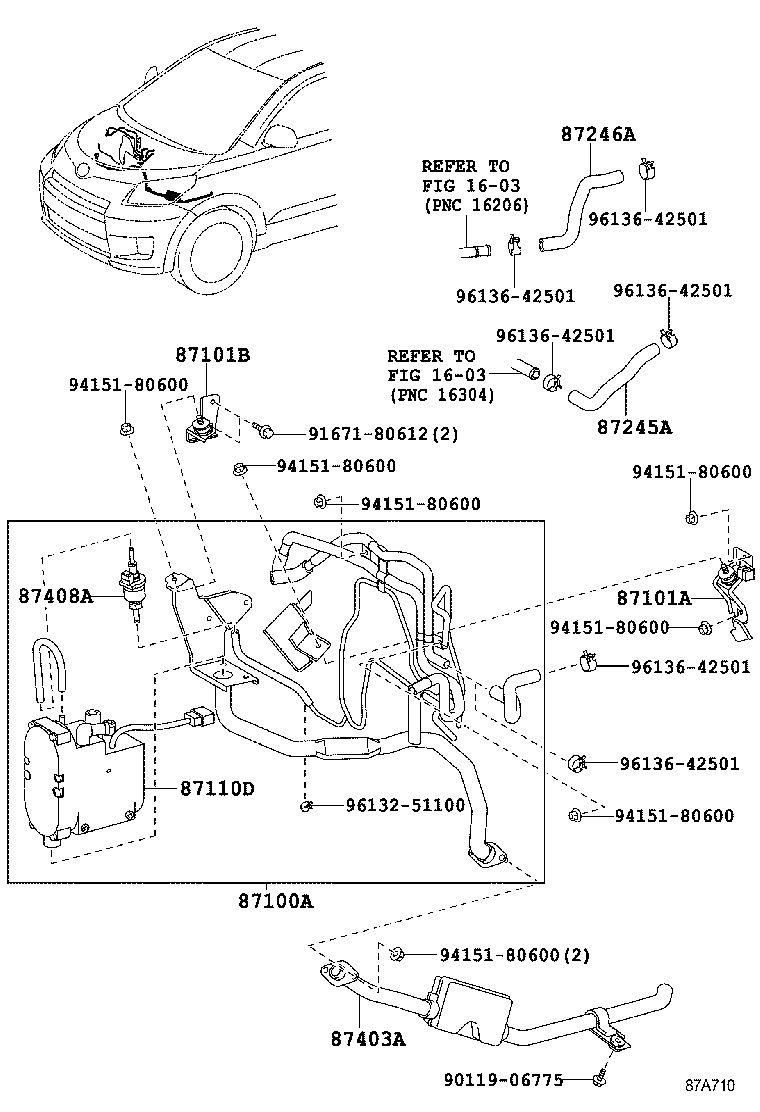

Figure 87A710

87A710 2009-01 → —

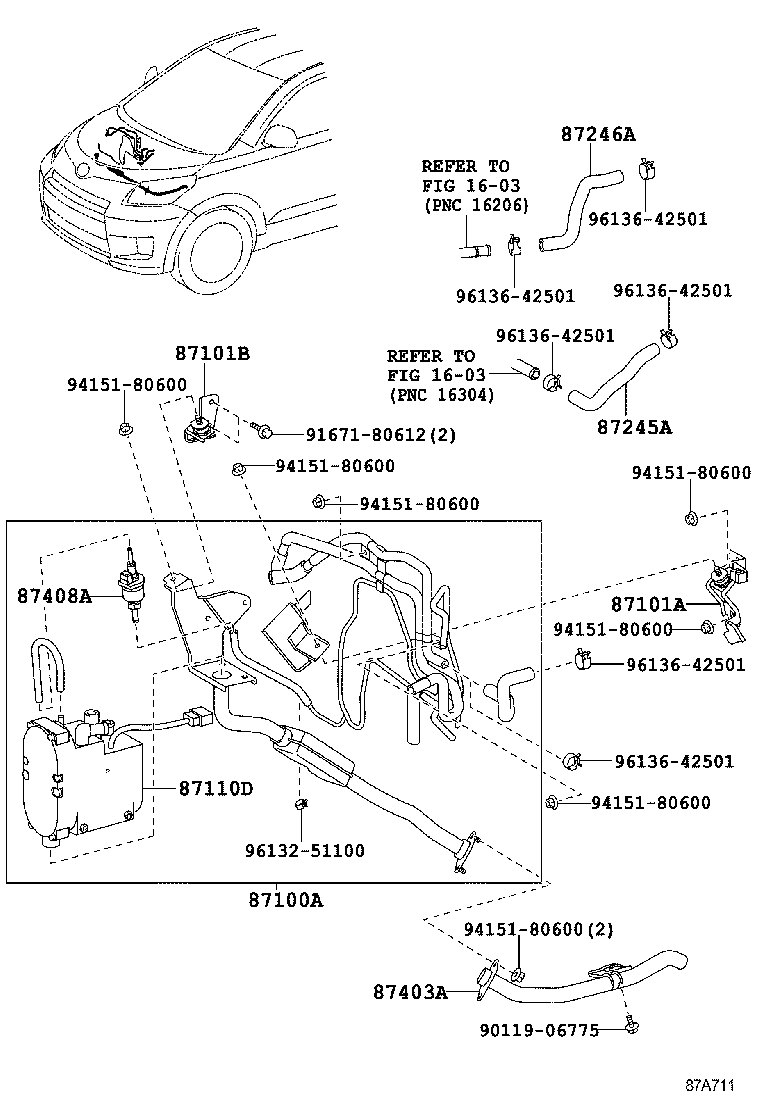

Figure 87A711

87A711 2009-02 → —

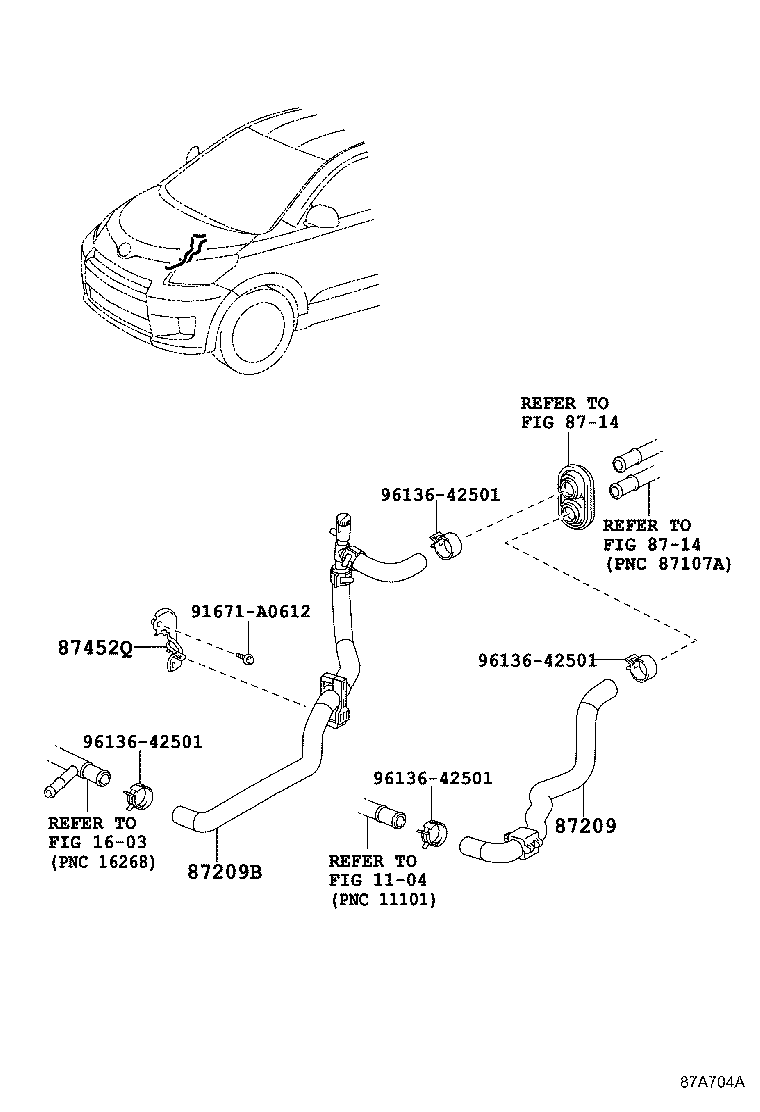

Figure 87A704A

87A704A 2009-01 → —

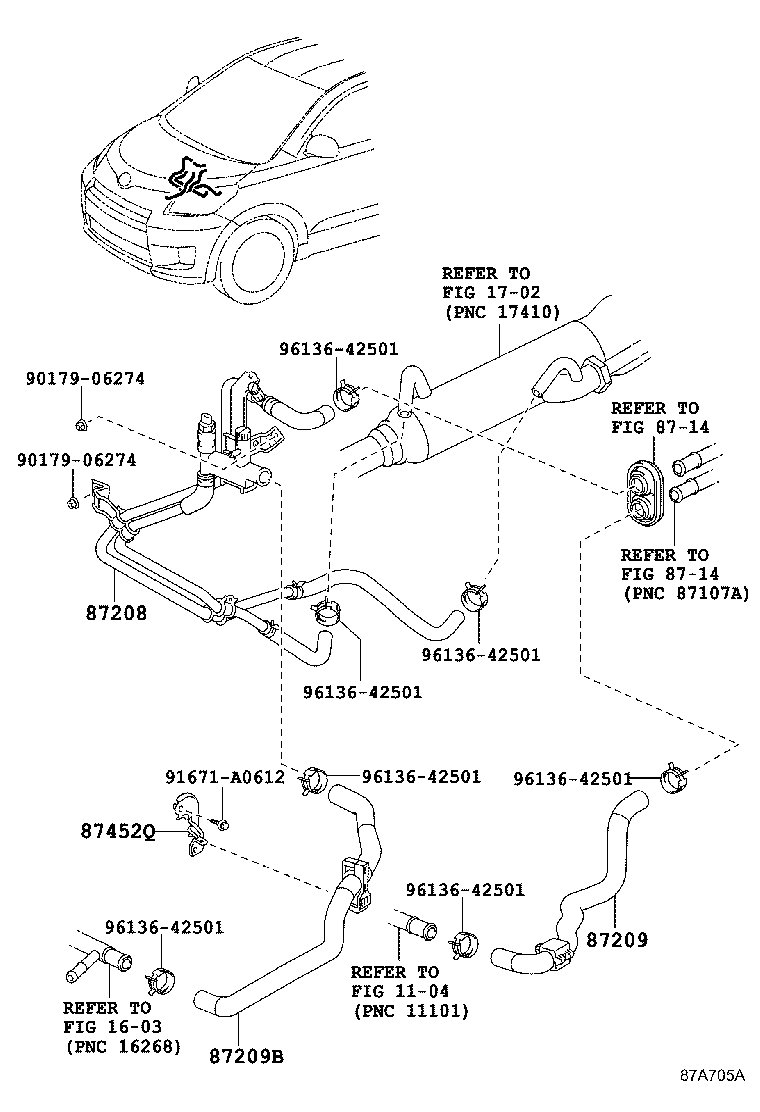

Figure 87A705A

87A705A 2009-01 → —

Part groups

PNC	Description
87100A	Heater & Accessory Assy
87101A	Bracket Sub-assy, Heater NO.1
87101B	Bracket Sub-assy, Heater NO.2
87110D	Heater Assy
87208	Pipe Sub-assy, Heater Water
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87403A	Pipe Sub-assy, Exhaust
87408A	Pump Sub-assy, Fuel
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
