Toyota Urban Cruiser
2009-01 → 2016-04 · chassis NLP11#,NSP110 · catalogue 117520 · Europe
Supported model
Data version 2016-10
Heating & Air Conditioning - Cooler Piping
18 part groups · 5 illustrations

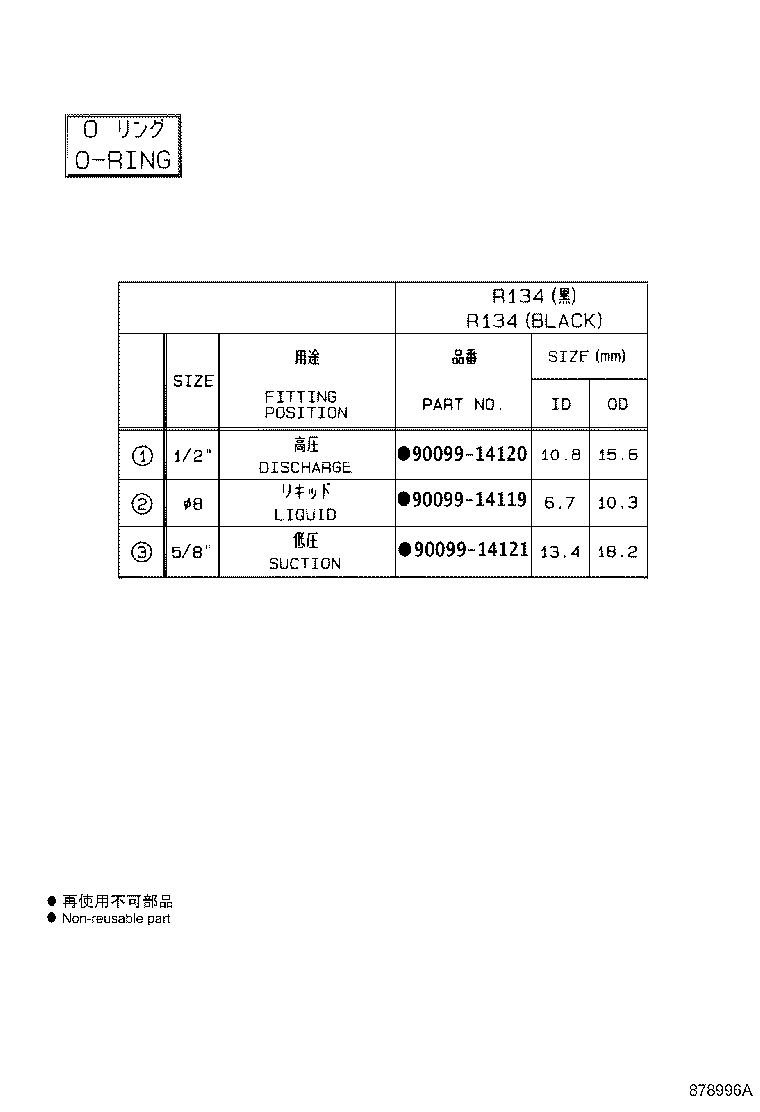

Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88566N | Duct, Cooler Air, NO.1 |
| 88704 | Hose Sub-assy, Suction |
| 88706A | Tube Sub-assy, Liquid, A |
| 88706B | Tube Sub-assy, Liquid, B |
| 88707B | Tube Sub-assy, Suction, B |
| 88707C | Tube Sub-assy, Suction, C |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712C | Hose, Suction |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88718L | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
