Toyota Yaris Grmn

2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 2 illustrations

Illustrations

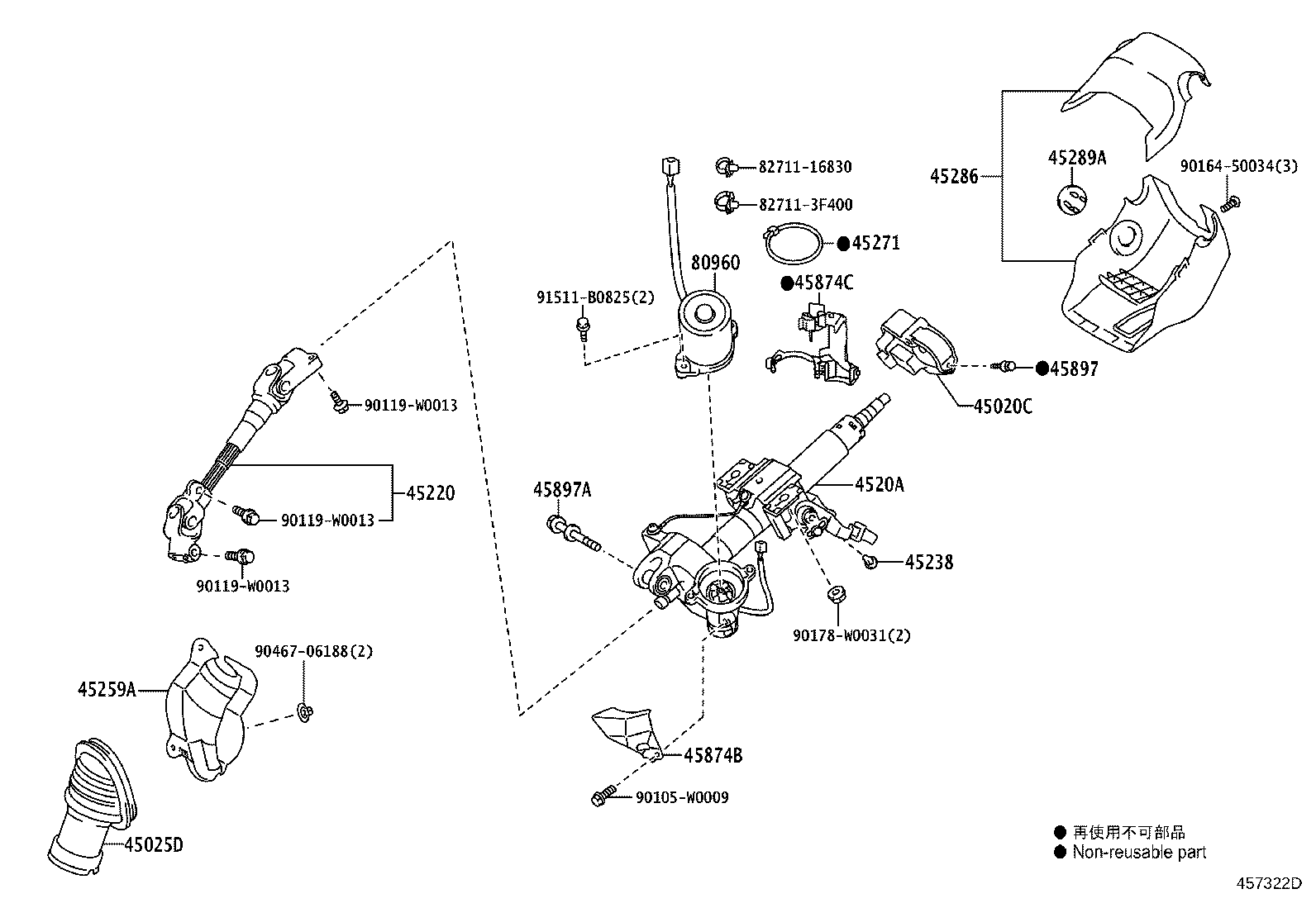

Figure 457321B 457321B 2017-11 → — Figure 457322D 457322D 2017-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45259A Sheet, Column Hole Cover Silencer
45271 Clamp, Steering Column, Upper
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45874B Protector, Steering Column, NO.1
45874C Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
