Toyota Yaris Grmn

2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

8 part groups · 2 illustrations

Illustrations

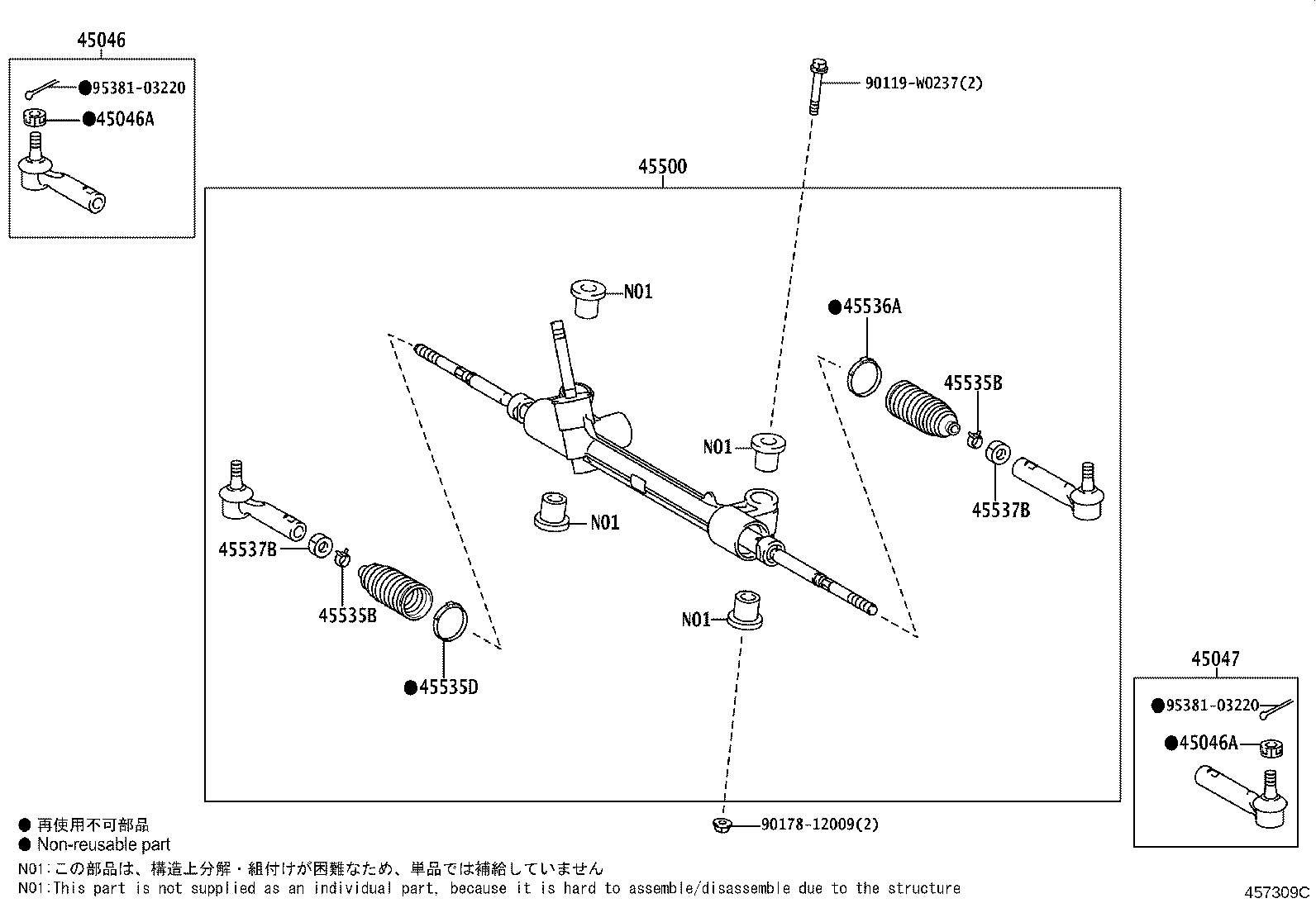

Figure 457308B 457308B 2017-11 → — Figure 457309C 457309C 2017-11 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45500 Link Assy, Steering
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536A Clamp(FOR STEERING RACK BOOT NO.2)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
