Toyota Yaris Grmn
2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe
Supported model
Data version 2018-09

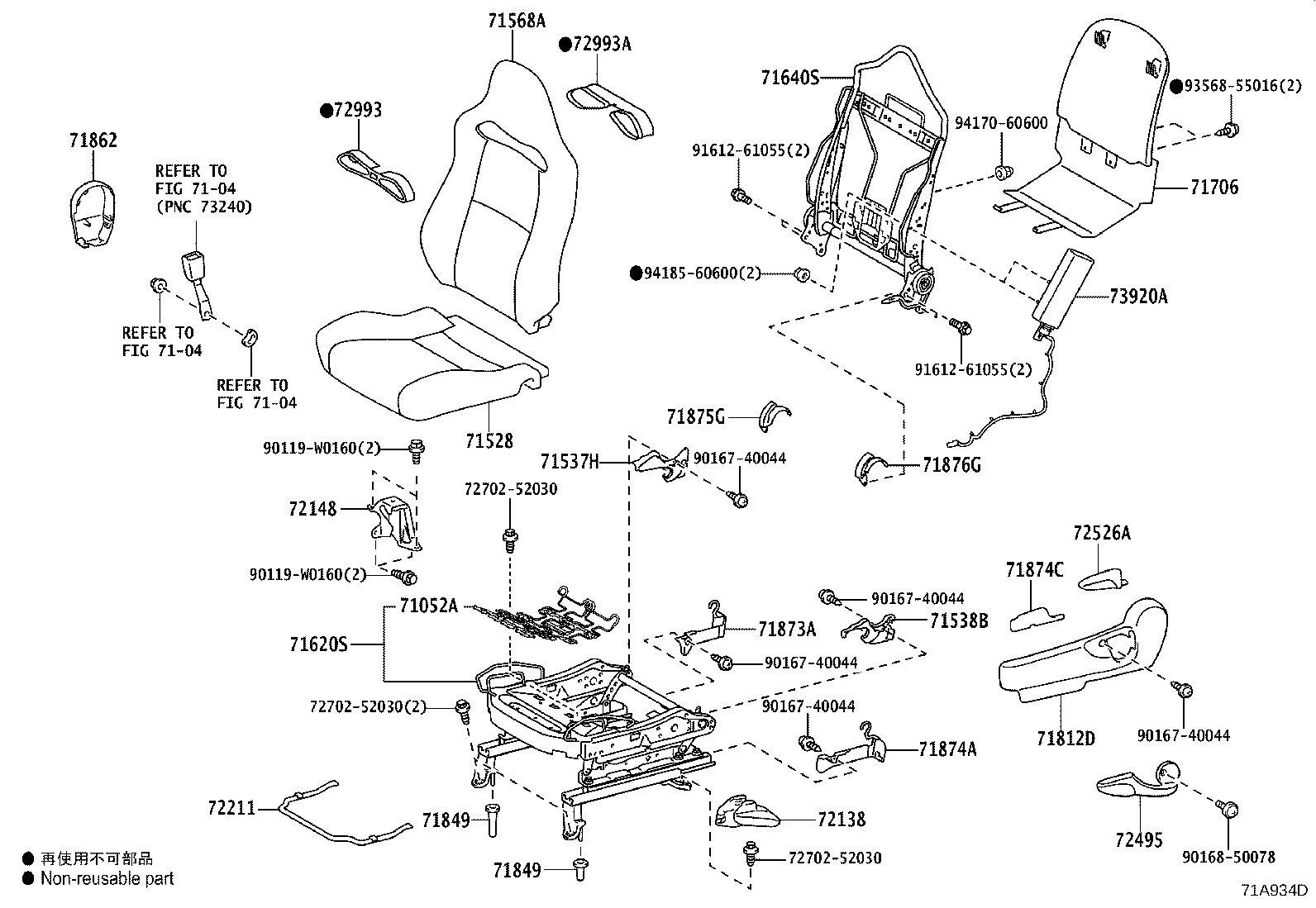

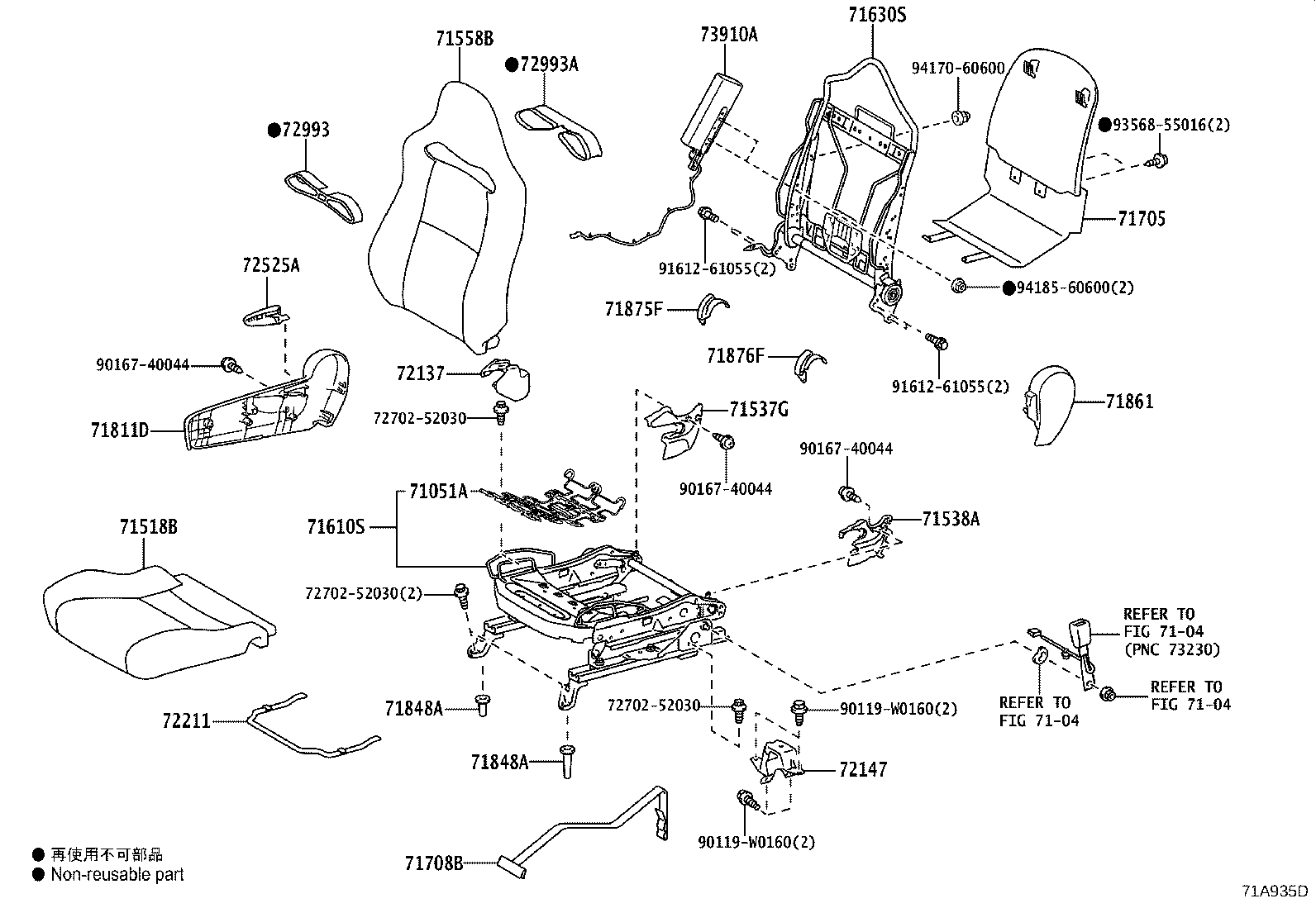

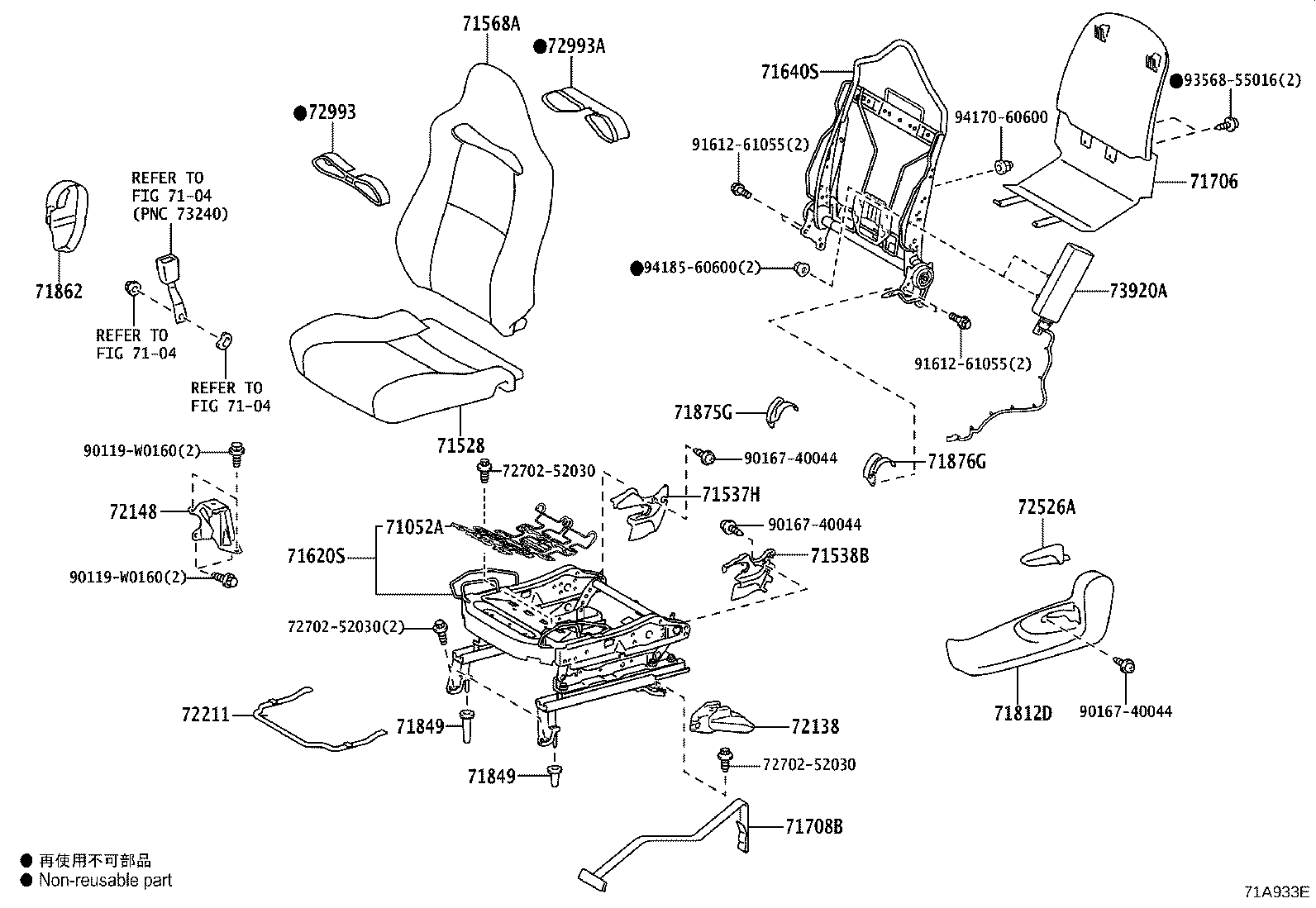

Front Seat & Seat Track
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71708B | Strap Sub-assy, Seat Cover |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72211 | Handle, Seat Track Adjusting |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72993 | Cover, Front Seatback |
| 72993A | Cover, Front Seatback |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
