Toyota Yaris Grmn

2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

7 part groups · 2 illustrations

Illustrations

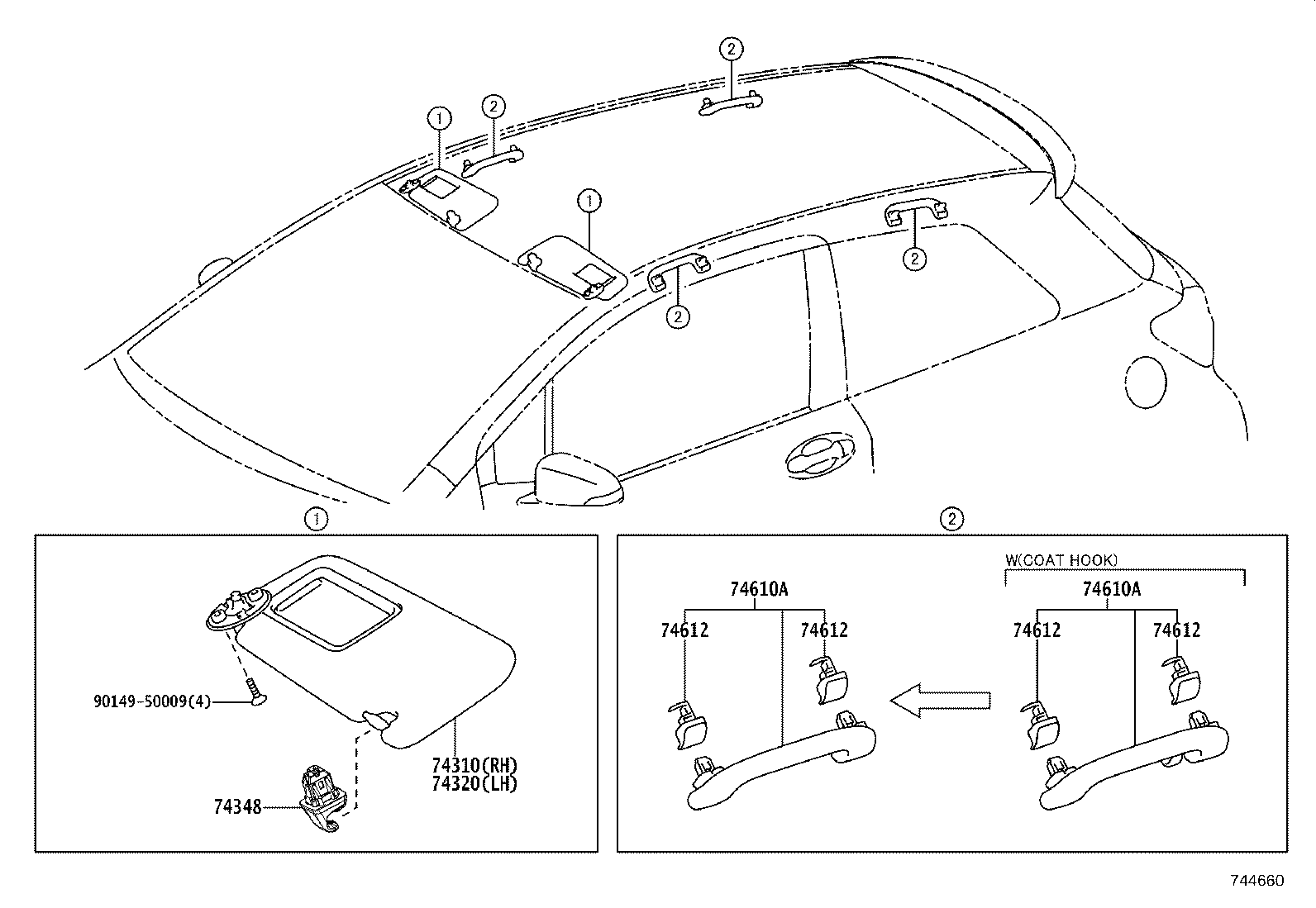

Figure 744630 744630 2017-11 → — Figure 744660 744660 2017-11 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
