Toyota Yaris Grmn
2017-11 → 2018-04 · chassis NSP131 · catalogue 11C510 · Europe
Supported model
Data version 2018-09
Switch & Relay & Computer
51 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|

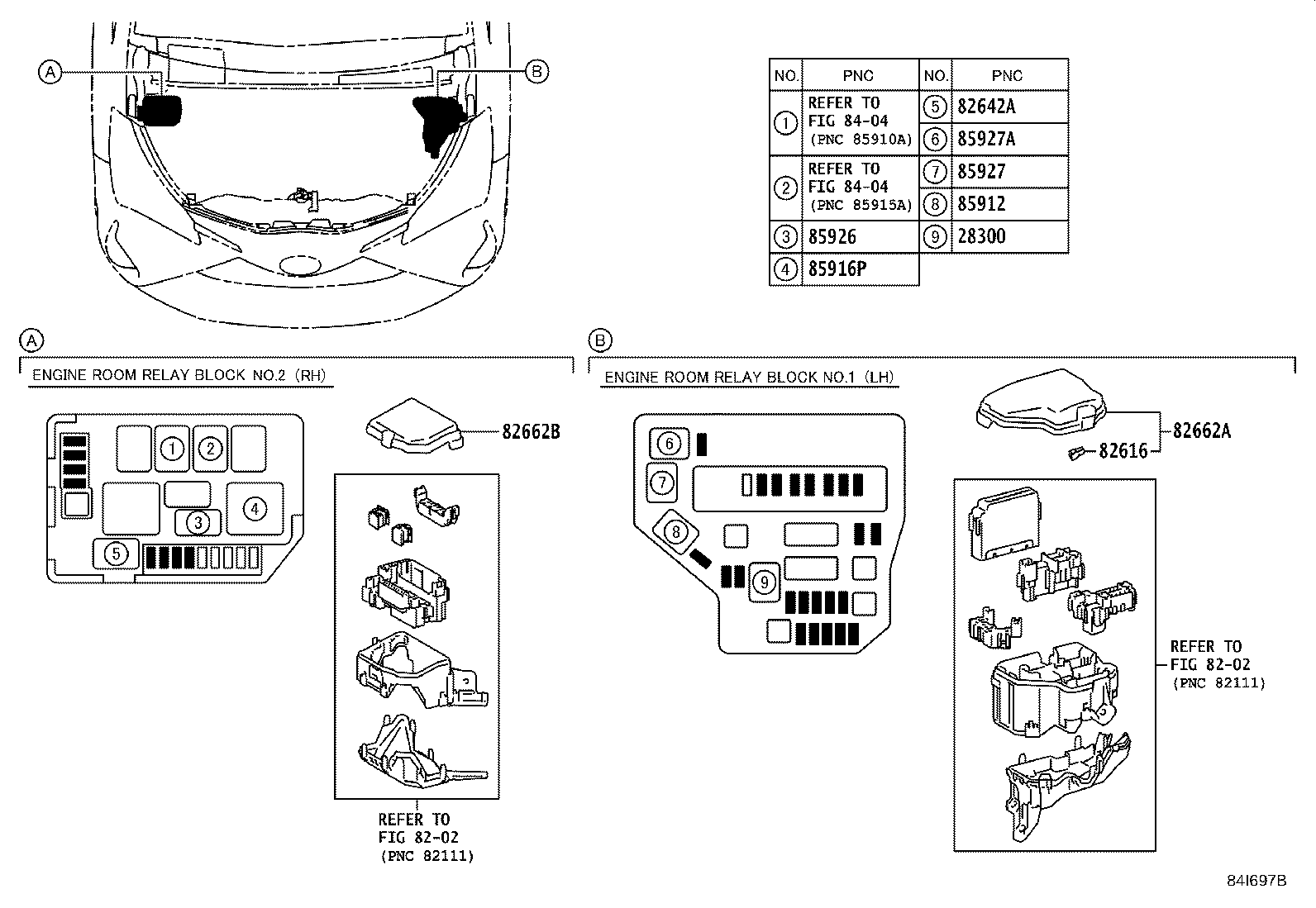

| 28300 | Relay Assy, Starter |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82210N | Instrument Panel Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82616 | Puller, Fuse |

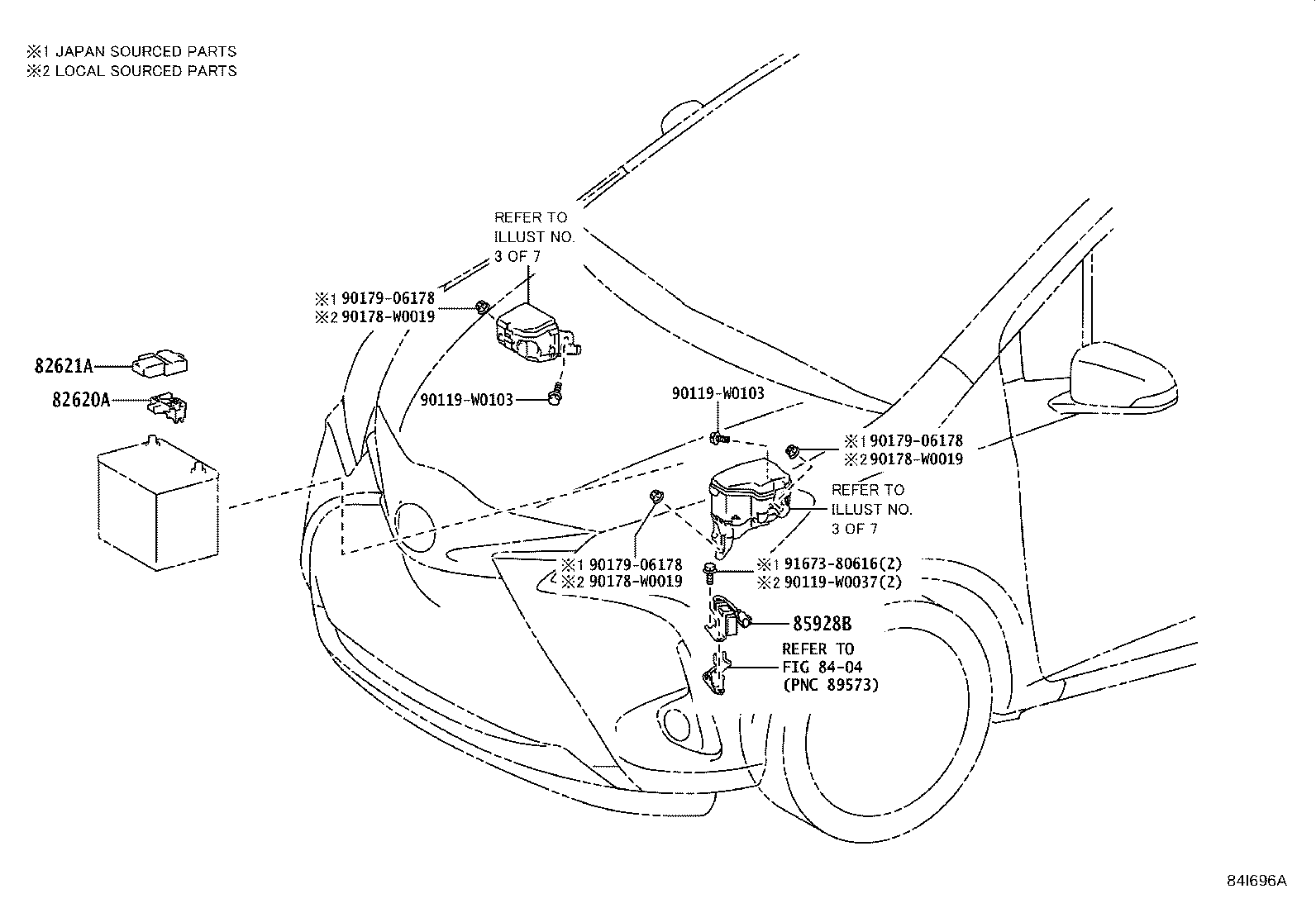

| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82642A | Relay, Running Light |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82672A | Cover, Junction Block |

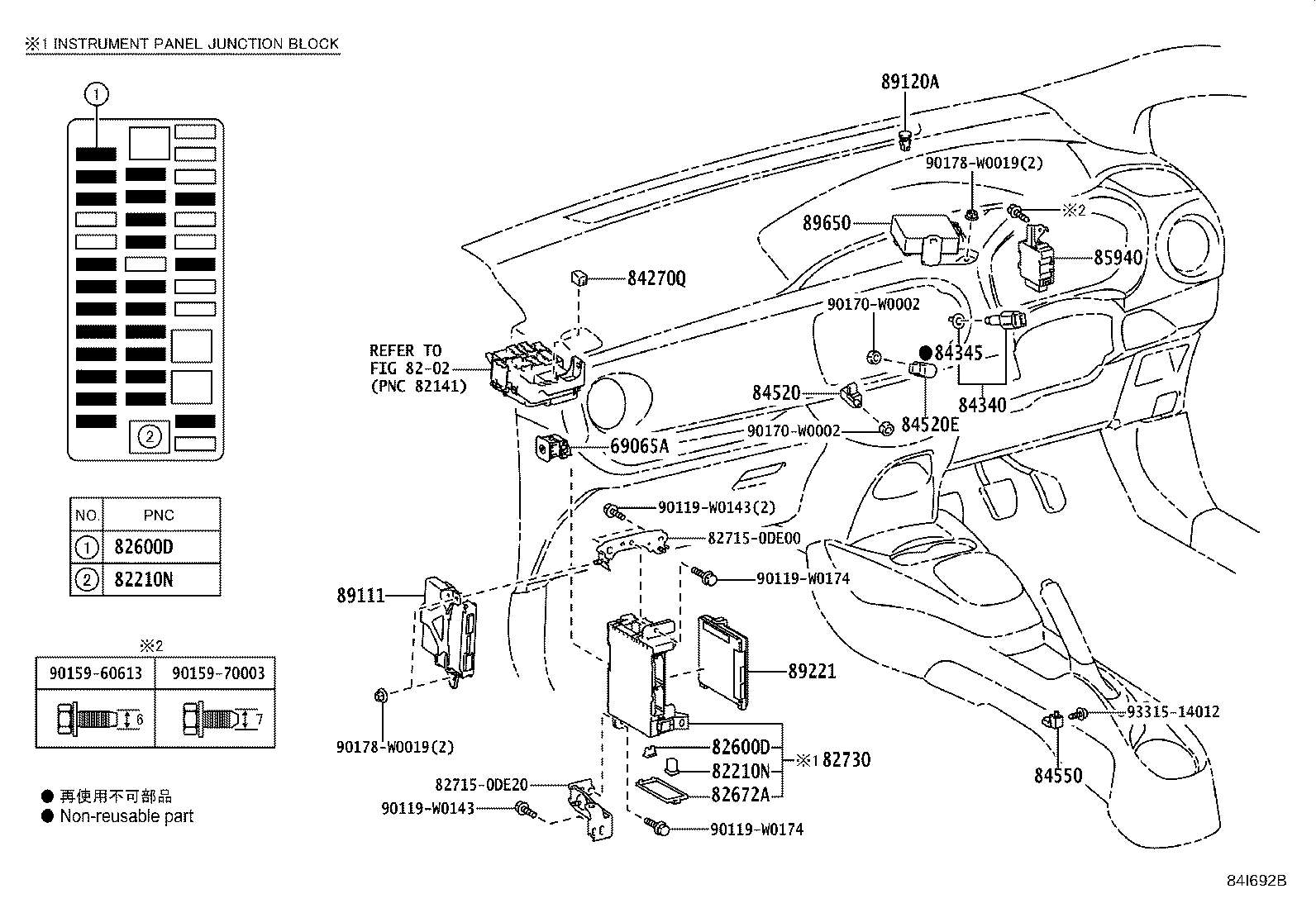

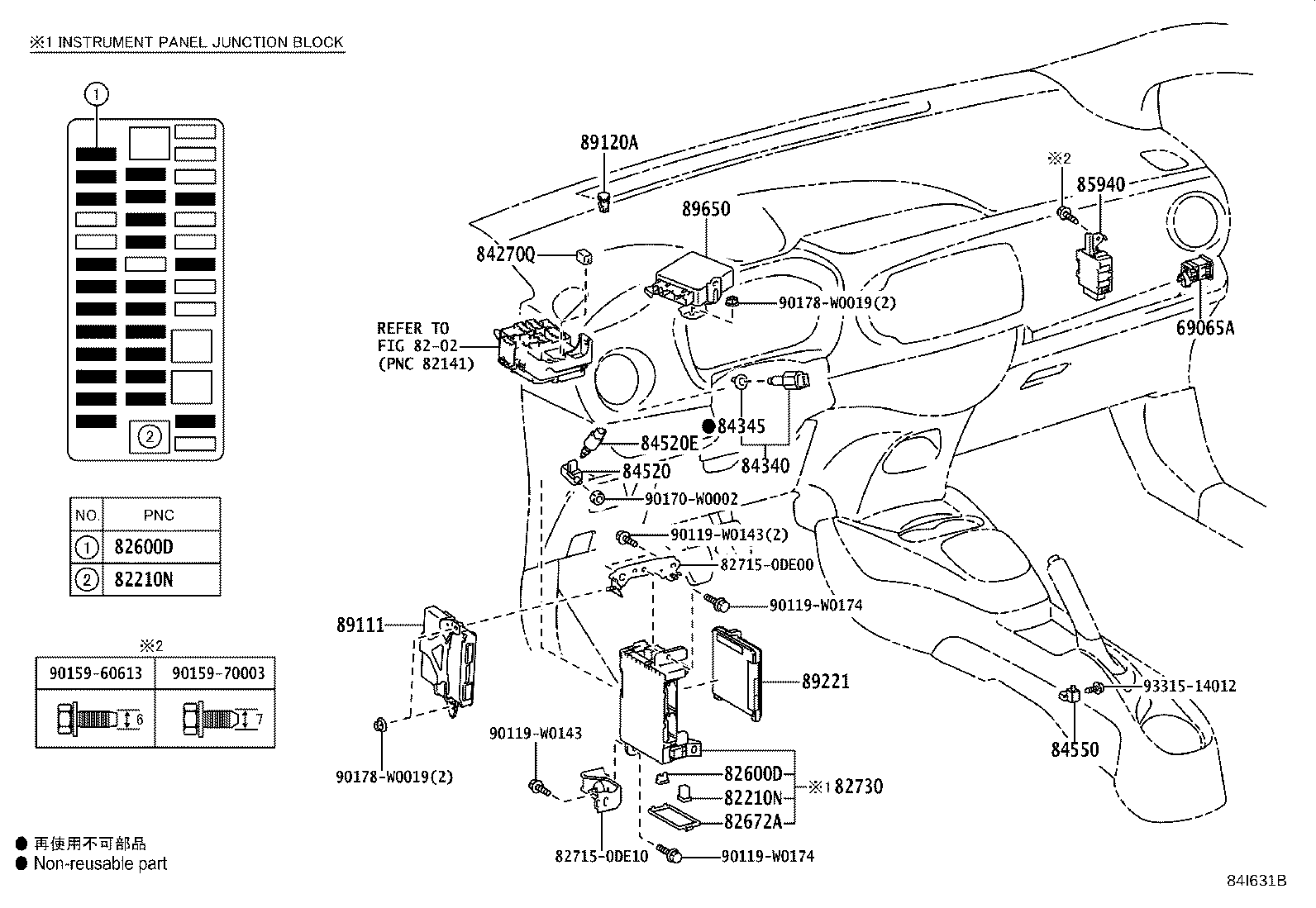

| 82730 | Block Assy, Instrument Panel Junction |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

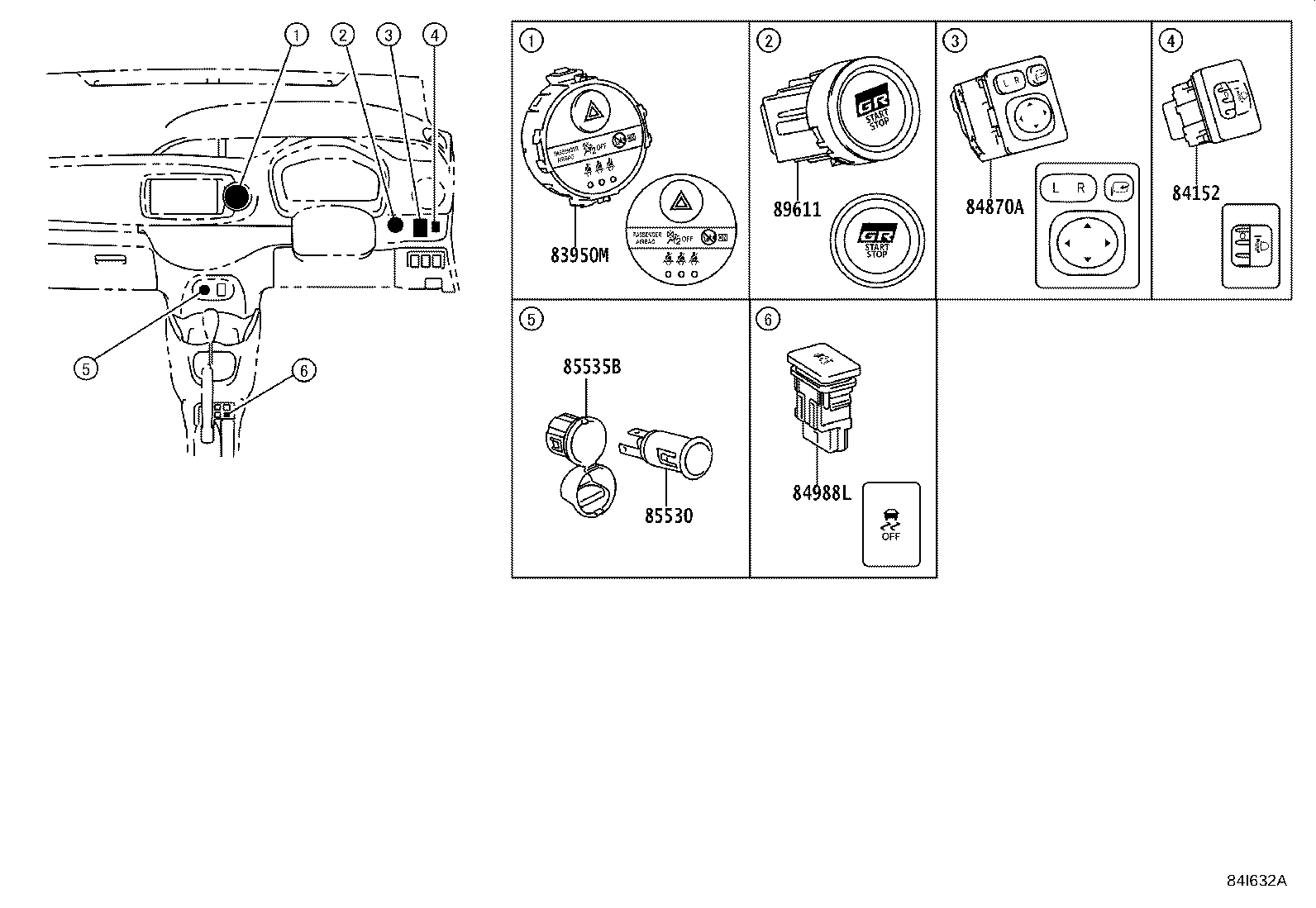

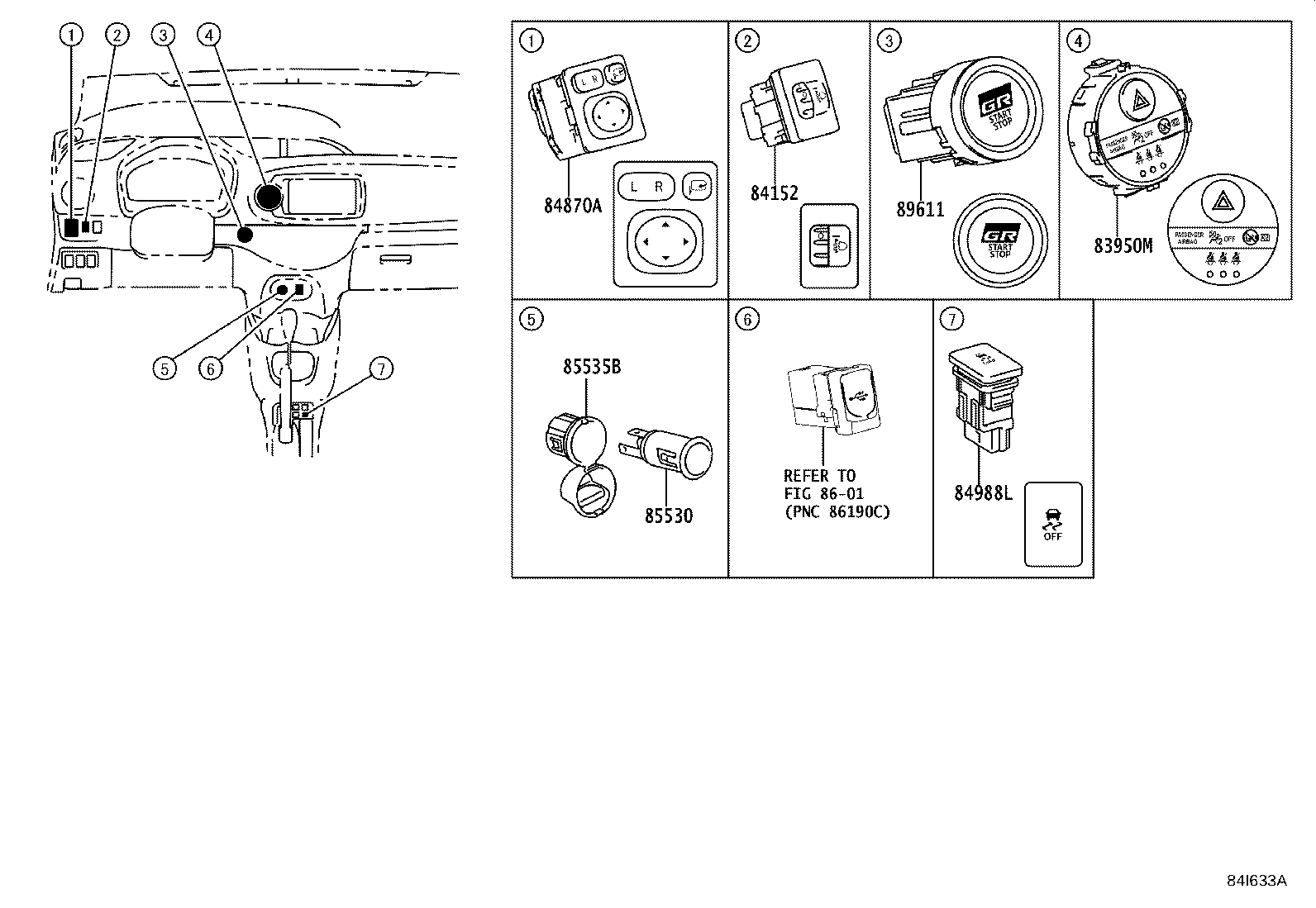

| 83950M | Lamp Assy, Telltale |

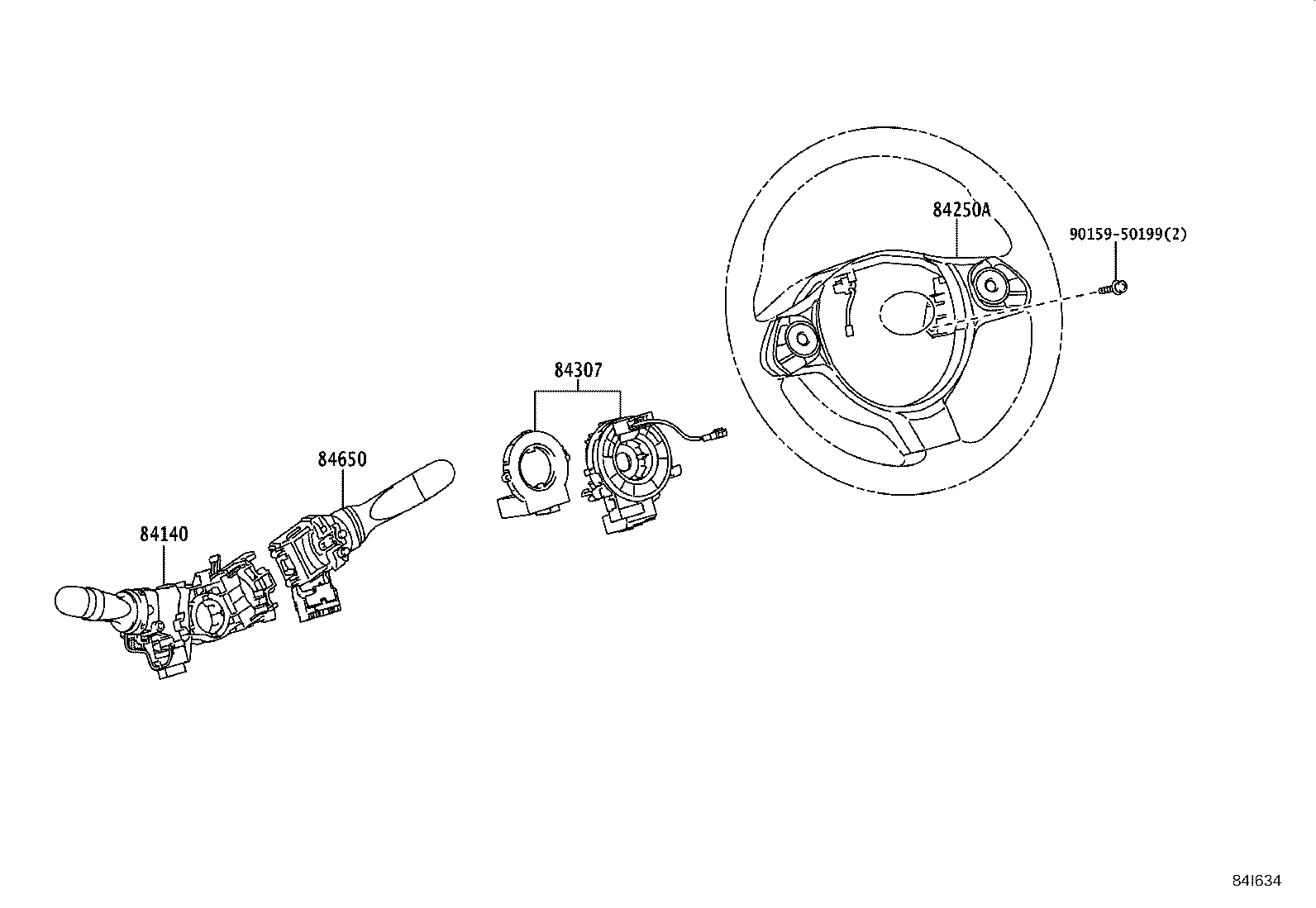

| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84270Q | Relay, Lamp Cut |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84520 | Switch Assy, Clutch Start |
| 84520E | Switch Assy, Clutch Start, NO.2 |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |

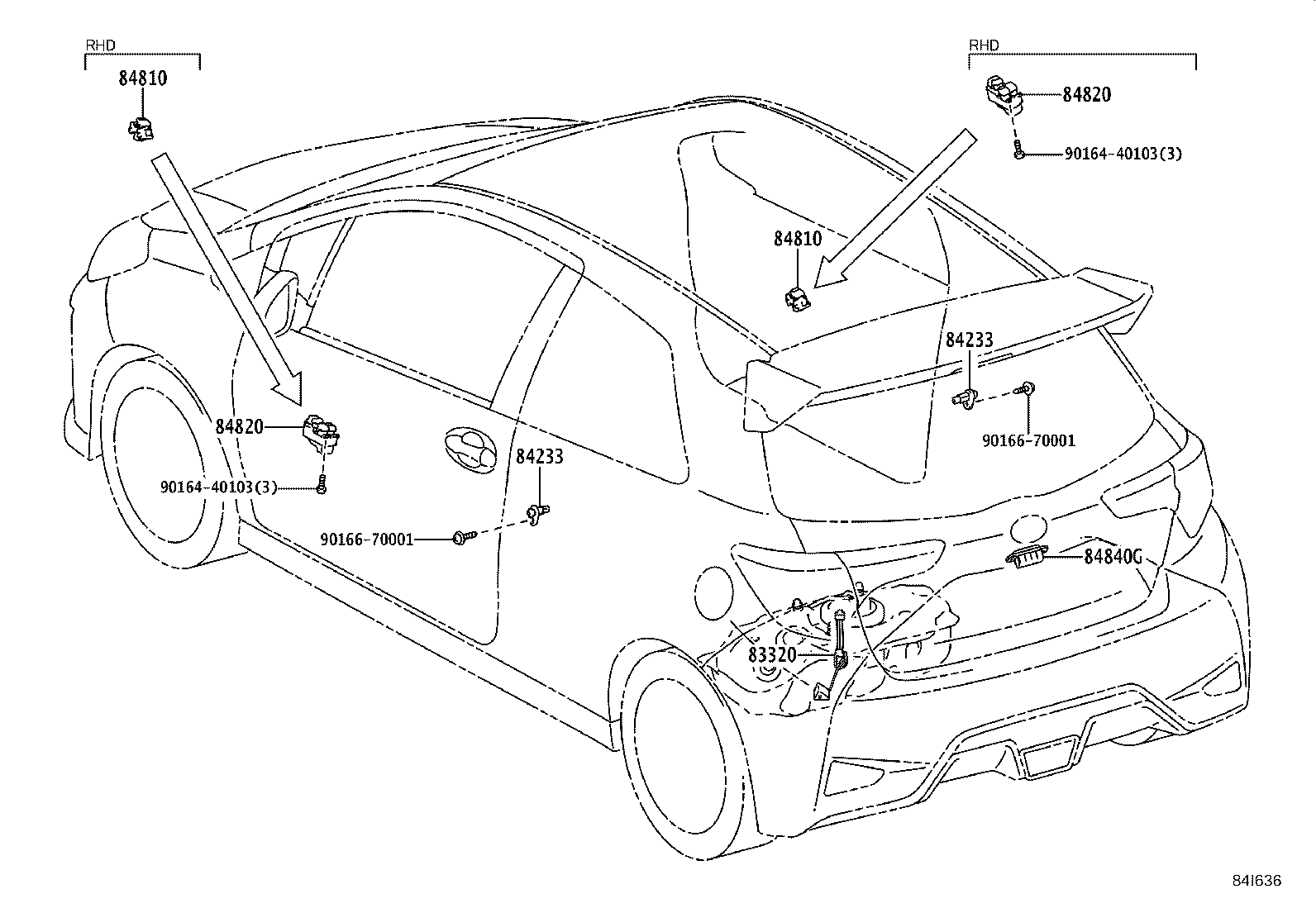

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85912 | Relay, Defogger |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89423A | Sensor, Manifold Temperature |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
